having trouble aligning holes in solidworks

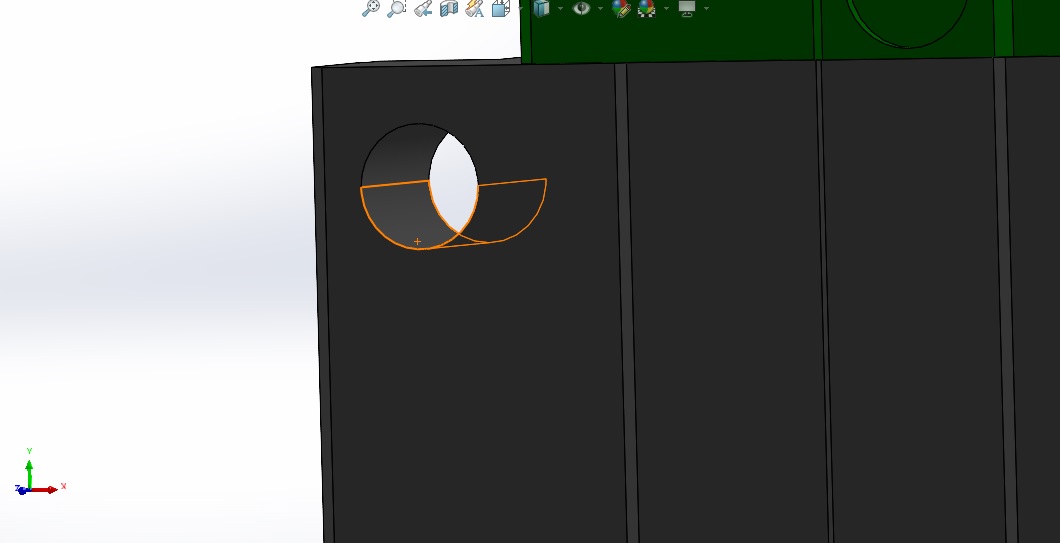

never had this problem before because it was just a matter of selecting the hole diameter of one object and mating it with another hole and they would both match up bang on. however i cant seem to do it this time because the cad model i downloaded the holes are split into 2 pieces as shown in the pic, so when i am mating and i select 1 half of the hole it doesn't align up with my plate holes.
any tips please?
thanks

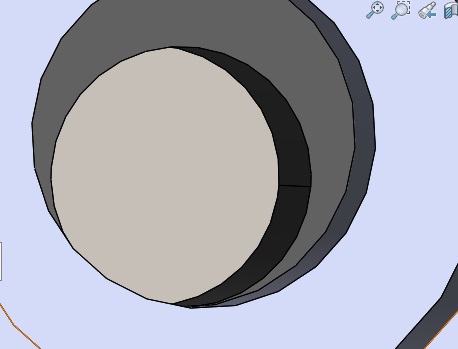

Attachment 30441
Attachment 30442
Re: having trouble aligning holes in solidworks
U can make a sketch , and select circle , and there u can select a 3 point circle , after that u can make a coincident point on the circe u want to make inside .
Re: having trouble aligning holes in solidworks
Thank you i will try this
Re: having trouble aligning holes in solidworks
The other thing I'd try is using a concentric mate rather than a bog standard coincident faces mate.
Re: having trouble aligning holes in solidworks
Quote:
Originally Posted by
AndyUK
The other thing I'd try is using a concentric mate rather than a bog standard coincident faces mate.
this worked perfectly thank you
