Thread: Help please

  1. #1
    Hey guys, im needing some help with mating in a new way to what im used to.

    Basically, im needing to mate a "seat" inside a large dia pipe on an angle (Above the opening on one side and below on the opposite) that will be a seat for something else to slide into.

    Click image for larger version.

Name:	Front View.png
Views:	60
Size:	62.2 KB
ID:	18922Click image for larger version.

Name:	inner seat.png
Views:	73
Size:	137.5 KB
ID:	18923

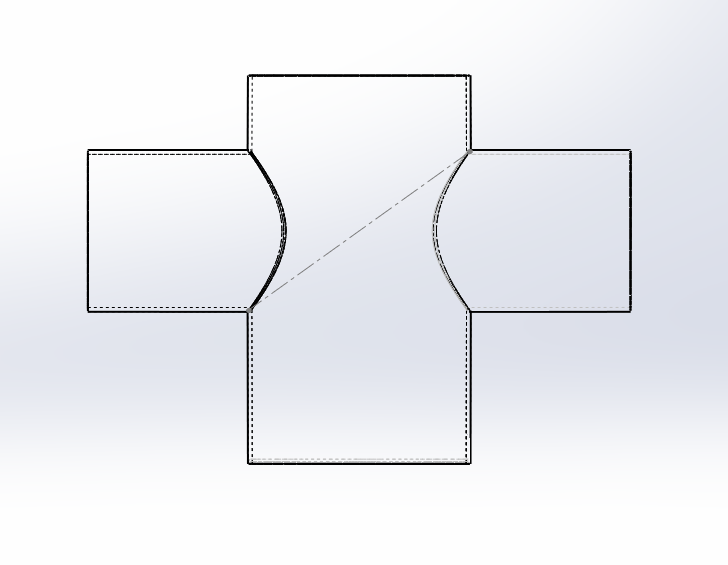

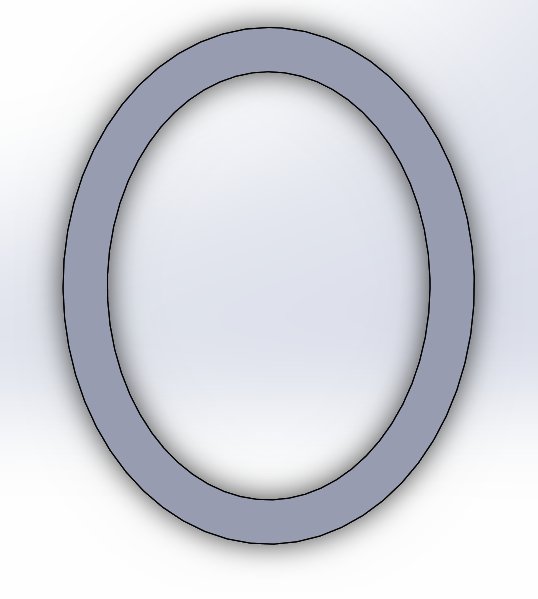

    Im trying to get the image to the right mated inside the image to the left but on an angle (54 degrees) like the construction line.

    Next post will be some images of exactly what i want to do

    can anyone shed some light on the best way to do this?
    Last edited by D-man; 22-07-2016 at 10:55 AM.

  2. #2
    As promised actual images of what I'm trying to achieve




    Sent from my iPhone using Tapatalk

  3. #3
    I might be talking out of my bottom end But can you position the oval above the part at the correct angle and then mate it to the top of the tee with an offset.
    ..Clive

  4. #4
    Hey Clive, cheers for your reply. its also getting the oval to mate in the centre of the pipe. its a tricky one. i cant attach the files for some reason in case anyone wanted a play

  5. #5
    Hello. Look at this https://mega.nz/#!ZUtC0DwD!wI9D63TNE...qrSDwykQQe80d4

    I made mates using 2d sketch references
    Last edited by Naftero; 22-07-2016 at 06:53 PM.

  6. #6
    Quote Originally Posted by Naftero View Post
    Hello. Look at this https://mega.nz/#!ZUtC0DwD

    I made mates using 2d sketch references
    Needs a decryption key to download :-(
    If you will not be swayed by logic or experience simply pick the idea you
    like best, but ask yourself why you sought advice in the first place and,
    for a simple life, perhaps consider not doing so in future

  7. #7
    Oops, Solidworks isn't my thing!
    Last edited by magicniner; 22-07-2016 at 06:50 PM.
    If you will not be swayed by logic or experience simply pick the idea you
    like best, but ask yourself why you sought advice in the first place and,
    for a simple life, perhaps consider not doing so in future

  8. #8
    Sorry try again now. https://mega.nz/#!ZUtC0DwD!wI9D63TNERNkIDvmU2mFkFfZ_XN2eqrSDwykQQe80d4

    Its solidworks 2013 version
    Last edited by Naftero; 22-07-2016 at 06:54 PM.

  9. #9

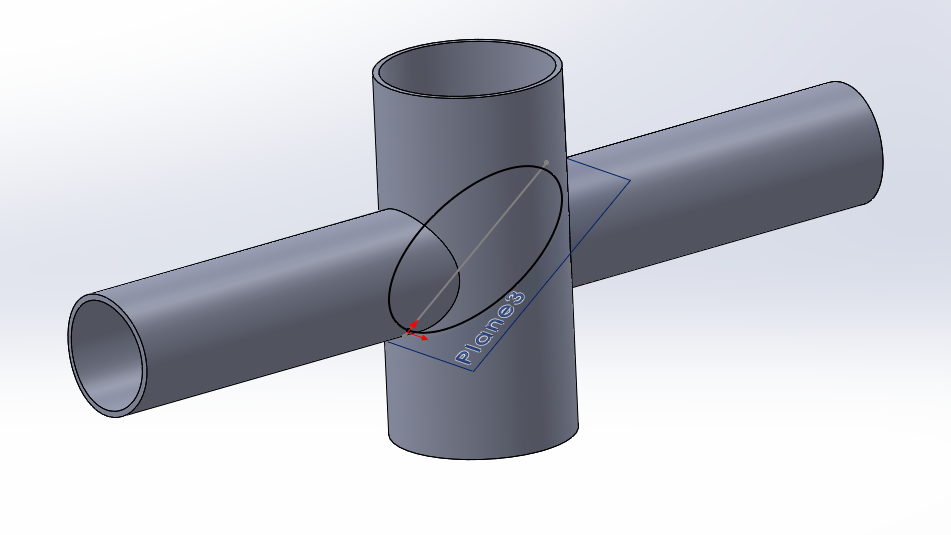

    Create a plane at the angle then create sketch or extrude on this plane using the convert entity's intersection tool.

    To create the plane draw a sketch on the front plane with line at the angle and location you want. See pic1

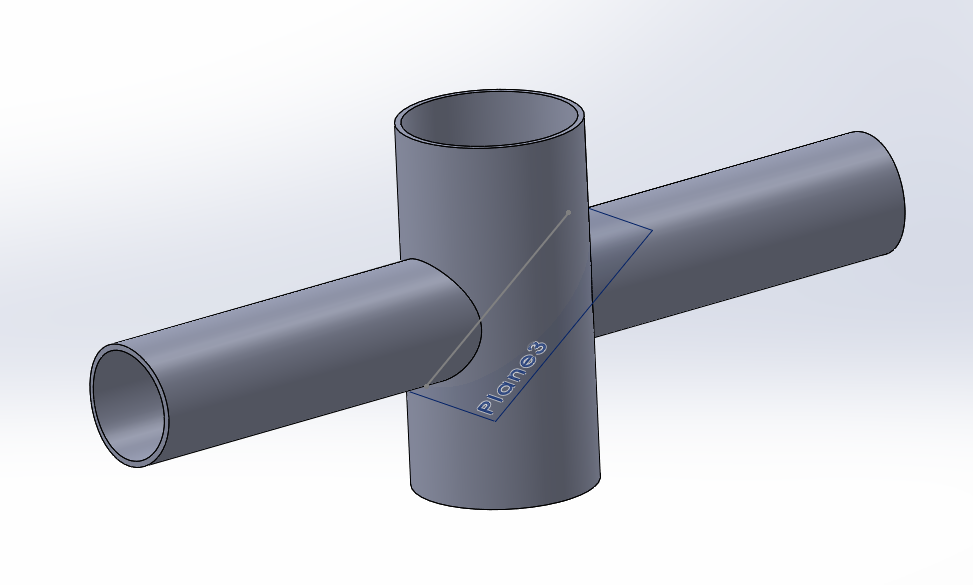

    Then create plane from Reference geometry option using the angled line as first reference and front plane as second. See pic2

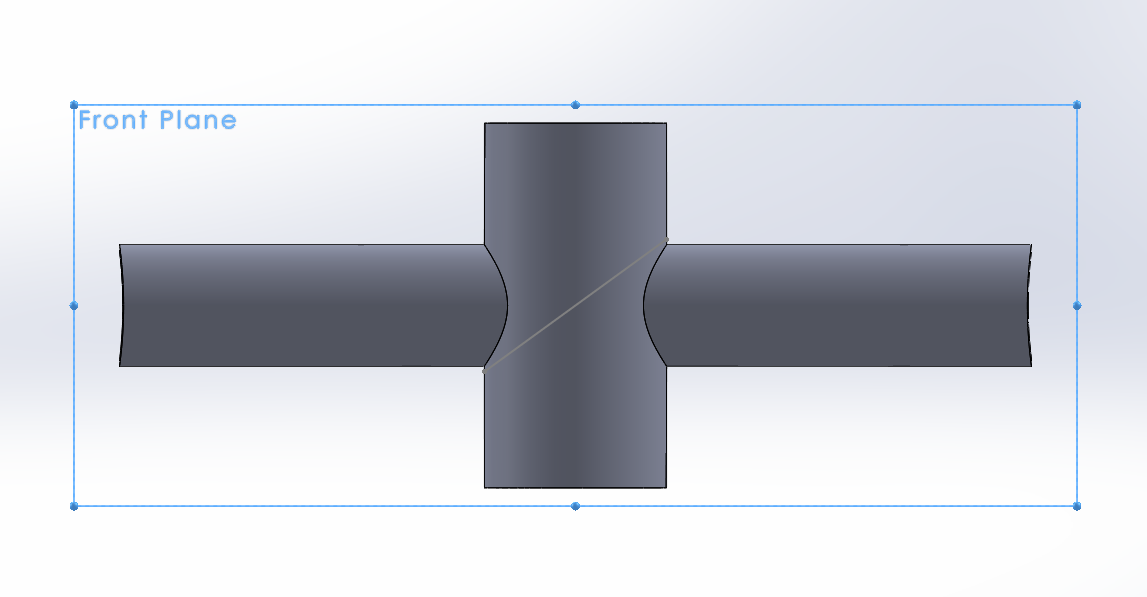

    Next select the new plane and create sketch on it. Use the Convert entity's tool and select the intersection tool. see pic3
    Then you can offset the result and extrude.

    Click image for larger version.

Name:	pipe1.png
Views:	30
Size:	69.8 KB
ID:	18925
    Click image for larger version.

Name:	pipe2.png
Views:	33
Size:	121.6 KB
ID:	18926
    Click image for larger version.

Name:	pipe3.png
Views:	33
Size:	119.4 KB
ID:	18927

  10. #10
    Cheers Dean, I will give that a go.


    Sent from my iPhone using Tapatalk
