  1. #171
    Hey Andy, nice to meet you mate. Yeh, i really do like the building process, somthing really satisfying about building one and seeing it do its thing!....Mate im way over the other side, Geelong
    Last edited by BenOZ; 12-05-2017 at 07:28 AM.

  2. Quote Originally Posted by bmuessig View Post
    Hello!

    I just stumbled over this thread and decided to register an account here.

    To introduce myself, I am Benedikt from MadModder / bmuessig.eu.

    iocapa and I are working hard on a complete open-source GPL rewrite of the entire software which will take time.
    Right now, we are still very flexible. If you have any special feature requests, now is the best time to ask!
    In principle many things could still be added and more types of machines could be supported.

    Feel free to ask.

    Best regards,
    Benedikt
    Hi Benedikt,
    Please update us with how things are going when you make some progress.

    The main feature if possible for the router type machines will be to auto square the gantry. Which implies that A should be able to be linear like Y, the 2 long axis on router. For the moment i have connected 2 drives at the Y and works without a glitch, so that scenario is proven.

    Next thing probing on X and Y , similar like Z probing, would be interesting.

    For that money i dont expect much more, if one wants rigid tapping and similar, he must look at the 500-1500 controllers. I am quite happy with the price and what it is.

    Quote Originally Posted by BenOZ View Post
    Hi all,
    Im new here and have recently made a CNC machine using this controller, which i must admit isn't too bad a unit apart from the manual! I'm not a pro by any means and i do this just for a fun hobby. There is a couple of issues i'm working on at the moment and i'm just making sure i'm not one of them!! A question i have though, is how do you program a zero button for this unit? That is, push an external button and all axis' are zeroed?
    Thats how i have it. Push a button and all zeroes/ the DRO/. Not that the machine starts a zeroing procedure.
    project 1 , 2, Dust Shoe ...

  3. #173
    Yes, but how is it done? How do you wire it up? What are the connections?

  4. Quote Originally Posted by BenOZ View Post
    Yes, but how is it done? How do you wire it up? What are the connections?

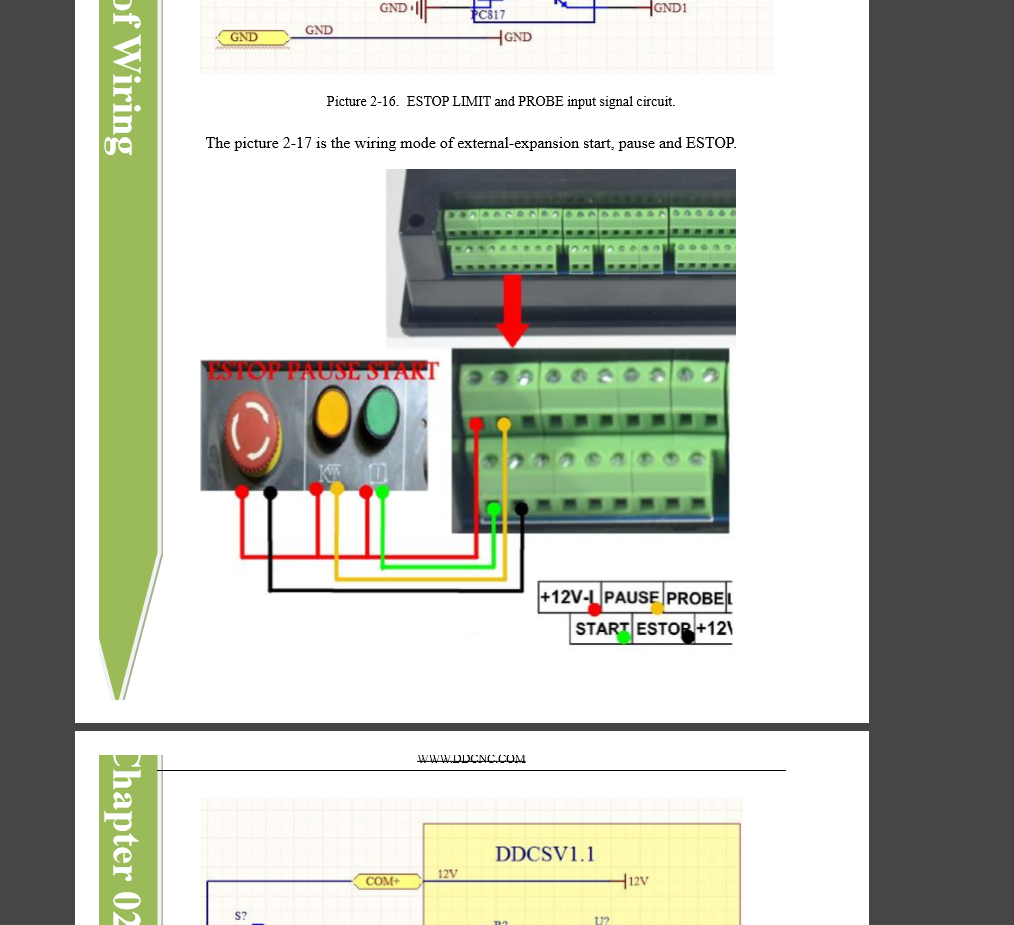

    Click image for larger version.

Name:	ddcsv1 zero all.PNG
Views:	54
Size:	101.2 KB
ID:	21615 Click image for larger version.

Name:	ddcsv1 zero all 2.PNG
Views:	61
Size:	527.7 KB
ID:	21616
    project 1 , 2, Dust Shoe ...

  5. #175
    Much appreciated. Thank you. When I'm done I'll post a few pictures
    Last edited by BenOZ; 13-05-2017 at 06:56 AM.

  6. Just as a side note: I watched again a nice video where a guy have made the controller like a pendant. As i said in comments of video, i wish i have come up earlier with that idea. Now i have to go back and forth on my big machine, instead of taking the pendant with me.

    project 1 , 2, Dust Shoe ...

  7. #177
    Click image for larger version.

Name:	IMG20170707013059.jpg
Views:	39
Size:	408.7 KB
ID:	22159

    Click image for larger version.

Name:	IMG20170710173149.jpg
Views:	40
Size:	157.0 KB
ID:	22160

    Been working on this for a few months now. Trying to find a nice way to mount the controller. Didn't come up to bad albeit with a few mods to the PC case.
    There's one more power supply to go in for the spindle motor.

    Once that's done i'll be up and running :)
    Last edited by BenOZ; 1 Week Ago at 09:54 AM.

  8. Quote Originally Posted by BenOZ View Post
    Click image for larger version.

Name:	IMG20170707013059.jpg
Views:	39
Size:	408.7 KB
ID:	22159

    Click image for larger version.

Name:	IMG20170710173149.jpg
Views:	40
Size:	157.0 KB
ID:	22160

    Been working on this for a few months now. Trying to find a nice way to mount the controller. Didn't come up to bad albeit with a few mods to the PC case.
    There's one more power supply to go in for the spindle motor.

    Once that's done i'll be up and running :)
    Not bad. Very nice!

    What drives are that? Do you have cooler in front of enclosure near them ? Or just the enclosure other coolers?
    project 1 , 2, Dust Shoe ...

  9. #179
    Thanks Boyan,
    The drivers are just generic Chinese brand set to half step.
    At the moment i only have one fan at the rear blowing in... i will replace this with a bigger fan soon and would like to use some smaller ones near the drivers. This is still a work in progress.
