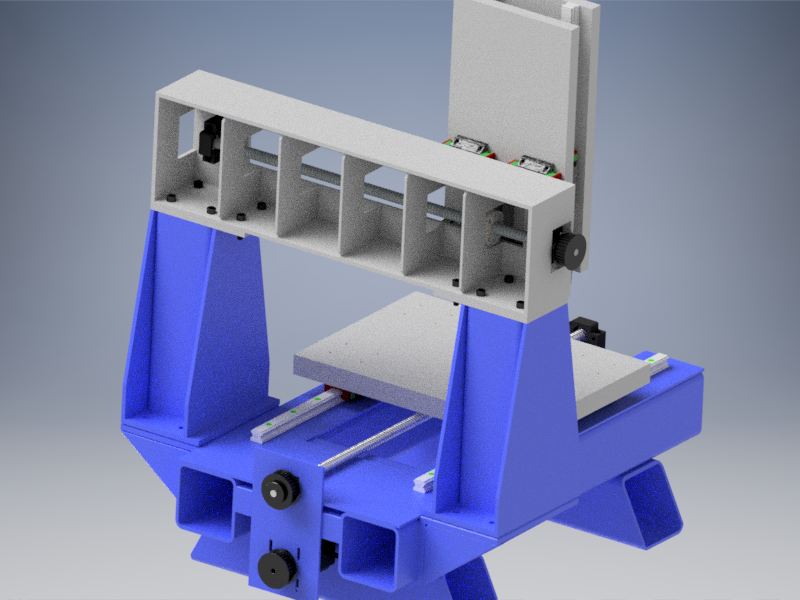

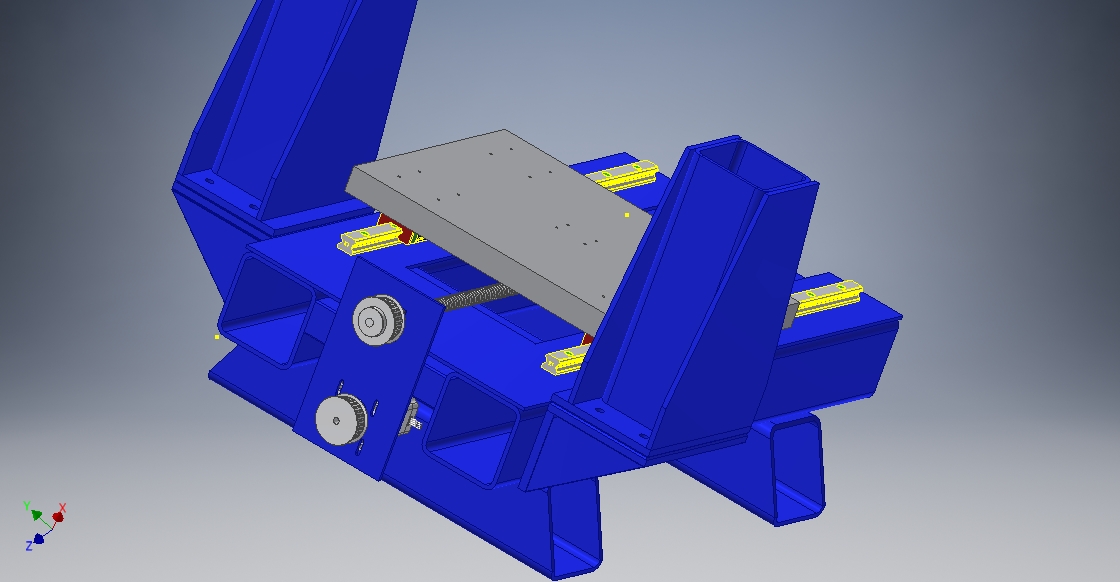

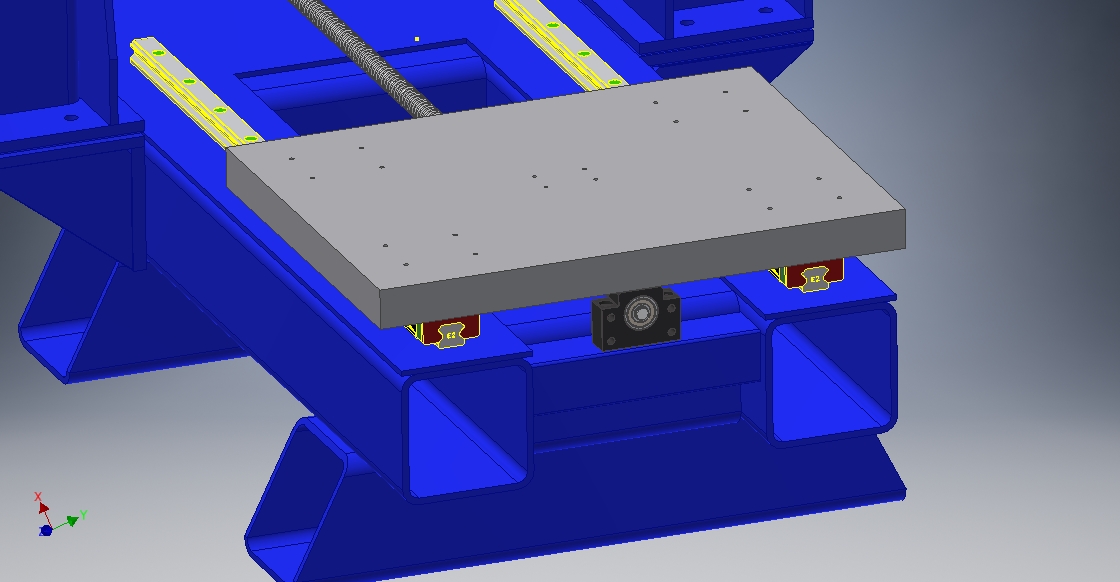

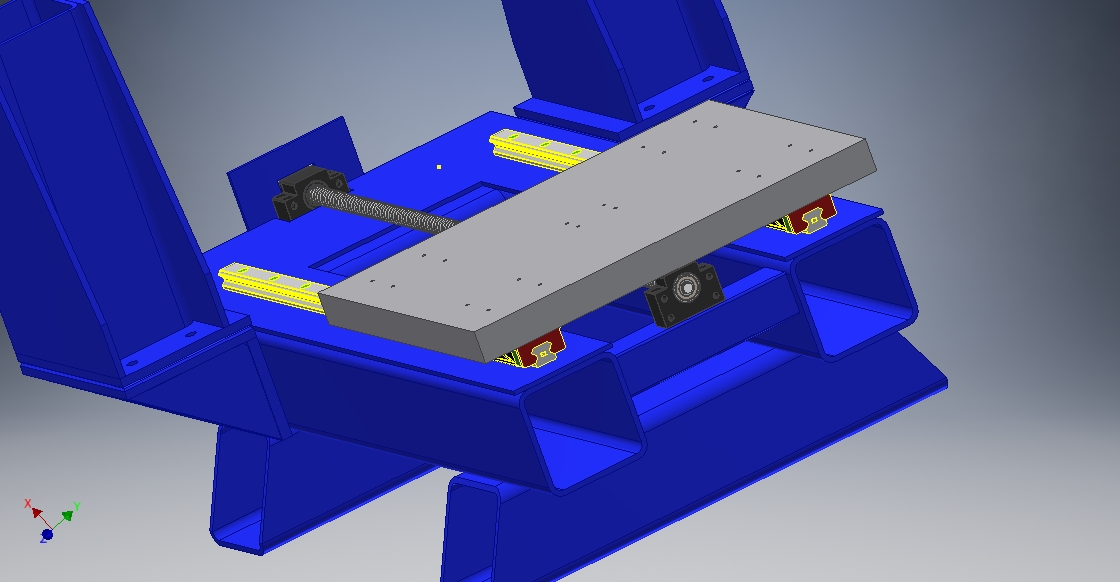

    i might have got a bit carried away with my new revised version of a fixed gantry...its a 3040 sized work area for milling plastics and aluminium, box section is 100mm x 100mmx 5mm sat on the rack at work.
    and im hoping my gaffers will help us out with using their laser cutters with the plate.
    still loads to.
    Click image for larger version.

Name:	over kill 2.jpg
Views:	282
Size:	262.1 KB
ID:	19513
    Click image for larger version.

Name:	overkill3.jpg
Views:	263
Size:	242.6 KB
ID:	19514
    Click image for larger version.

Name:	overkill4.jpg
Views:	260
Size:	254.3 KB
ID:	19515
    Click image for larger version.

Name:	overkill5jpg.jpg
Views:	227
Size:	240.1 KB
ID:	19516
    Last edited by dazza; 29-10-2016 at 09:52 PM.

  2. #2
    Quote Originally Posted by deisel View Post
    i might have got a bit carried away with my new revised version of a fixed gantry
    No what makes you think that.? Plastics can be bitch to cut.!!

  3. #3
    It wouldn't be right if I didn't mention the blinking obvious, you are under no obligation to listen though.
    The profile rails are upside down. You should have the rails bolted to the table and the carriages bolted to the gantry.
    The way you have it makes for an unnecessary overhang which you are trying to compensate with huge box sections.

  4. The Following User Says Thank You to Robin Hewitt For This Useful Post:

  5. #4
    ta lads.
    i dont think ive ever seen an x axis arrangement in the way you describe robin

  6. #5
    Robin's usual suggestion is quite common on milling machines, including mine. It makes sense so long as the bed is very strong, though it's not normally seen on extremely high precision machines as the weight of the overhanging will cause some deflection, but that's hardly a concern to us.

    Careful with the bearing spacing you've chosen for X - with a single ballscrew either the bearing spacing should be increased or the rail spacing decreased, else the stiffness of the X-axis is reduced when Y is towards either extreme.

    By the way, when it comes to aligning the rails and bearings, I have a quite high precision straight edge and square now, so you're welcome to borrow them.
    Old router build log here. New router build log here. Lathe build log here.
    Electric motorbike project here.

  7. #6

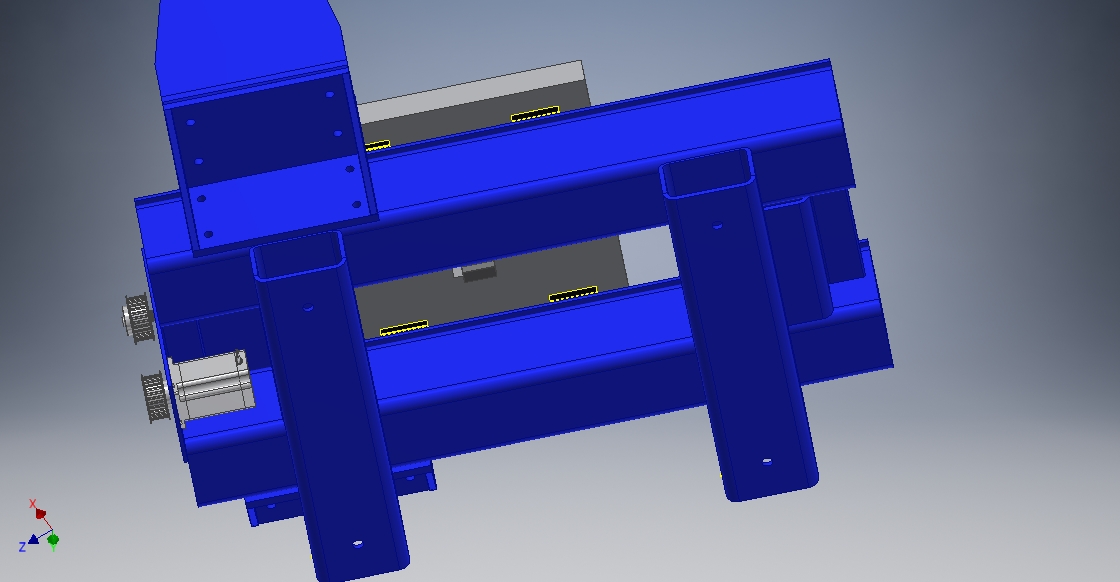

    thanks all i.ll edit rail spacing at some point,still playing about in cad
