    Hi folks,

    I have a new 3d printer so instead of being only a toy, let me sell you something here


    In short after about 10 prototypes and extensive testing i am happy with a model of a dust shoe that i use now on my machine. On pictures is seen for 100mm OD spindle and 40mm OD hose, but as i have designed it myself from 0, i can make and print any spindle hose combination you like. So its ideal for spindles to 100mm and to hoses up to 100mm.

    You could order it via my ebay add item number 272512578617


    Below is my "sales pitch" from the ebay add with more details , but in short it will work with chip extractors without choking them and will work with any workshop vacuum cleaner. At the same time will have enough clearance to unlock the collet nut witha wrench and use 3mm, 6mm and 12mm bits without a problem. I explain more on video. Will be happey to answer more questions and suggestions.

    Price. Well, the price I believe is great. 40 Euro plus 15 shipping in Europe. 60 euro if you like your logo and custom colors. Its cheaper than the cheapest quote i received on 3d hubs for a much lower quality and lower infill print, when i wanted to print it for my self. And that including the shipping cost to you. Plus the custom fit, remember.

    Tell me what you think, good or bad, you know i accept criticism. Dean ?





    I have used various commercial and DIY solutions for Dust Shoe / Boot/ the last years. Unfortunately most of them had some minor or bigger flaws, which made them unusable with the time. So i decided to develop some simple and working dust shoe for my machine, that will cover the typical scenario.



    A word of forewarning: On many product videos where they try to sell you a product, you will see how the dust shoes perfectly suck the dust and and not even a single chip is left on the table. Unfortunately in real life there is almost not such situation. On product videos dust boots are connected to powerful industrial "suckers" and 100% showing you the best scenario where a sheet is cut. So the dust boot traps 99% of dust and chips.
    However what i typically do at my workshop is exactly the opposite. I cut out a shape from a wood block which is raised on a vacuum fixture, so it could be said that this is the worst case scenario. As chips and dust try to escape from the clearance between table and work block. Hence when i designed the dust shoe i had always in mind worst case scenarios, not ideal situations from product videos



    What i offer here to your attention is an Universal Dust Shoe/ Boot/ which i call the Turbo Dust Shoe.


    ***Good for High and Low pressure vacuum cleaners and chip extractors***

    -Designed for excellent flow. Big chips have excellent passage and will not get stuck inside the body.

    -Hi volume Low pressure chip extractors in the 100mm hose range will not choke and loose power.

    -Hi pressure workshop vacuum cleaners will work excellently with it. Even a small home vacuum cleaner will be enough to suck 100% of the fine dust and most of the chips.

    -Best extractor for the job will be a typical brand shop vac with 2 stage minimum, even better 3 stage motor in the 40-60mm hose range. Where Hi Volume High pressure is achieved.




    ***Truly Customized for You***


    -Custom made Excellent Fit - I custom print it exactly for you. That means it will fit your spindle and hose perfectly. No need for adapters and other ugly creations.

    -will fit 65mm / 0.8kw/ 80mm/ 2.2kw/ 100mm/3kw/ water cooled spindles directly to the body of spindle / 10mm of spindle body is needed to be fixed. / Contact me for different size throats and spindles or routers.

    - 30 to 100mm vacuum hose fit. If bigger than 100mm is needed contact me i will make one for you .

    -After you order, contact me and tell me your spindle size or model and what exact size hose you will use. I need to know if the hose goes inside or will be clamped outside!!! For example i use 40mm OD hose which i simply push inside without clamping it, but a hose 100mm has to be clamped from outside. Plus almost all hoses are different, so exact diameter has to be measured. But that is the good thing, all will fit excellently when the Dust Shoe is custom made for you!!!



    ***More Customization***


    Want your name there instead of mine? A custom color for the shoe and for the dust brush adapter? I will do one for you . Contact me with a message and tell me how you envision it. It will be only a bit more money.



    ***The brush and the brush attachment***

    I use thin plastic sheet instead of brush, as i could cut it for each job to size, its cheap and easy to obtain. The sheet is cut to shape with scissors for a minute and attached with rubber band or cable tie. Of course proper brushes could be used. Even semi permanently attached via hot glue gun/ if need to remove just apply alcohol using brush and it will unstick for a second/




    ***More Details***


    -It is custom FDM printed exactly for you. I use Ingeo 3D850 plastic which is very strong and temp resistant to 80C as ABS. Its stronger than ABS and common plastics. Much stronger than those Lexan Dust shoes. Its printed at 0.3mm layer, 50% infill and 3 outer leyers. Body is 5mm thick. It may have some small marks and imperfections but nothing ugly. FYI it takes more than 24h to print both pieces.

    -Its very strong, but try not to crash it! Nothing to worry when normally used.

    -The price is Great. If you order it anywhere else custom printed it will cost you more money, than i offer it here and i mean including the shipping to you!

    -Its Open Source. You have a 3d printer? Here are the files so you can print yourself one. http://www.thingiverse.com/thing:2019569


    ****Pictures ***

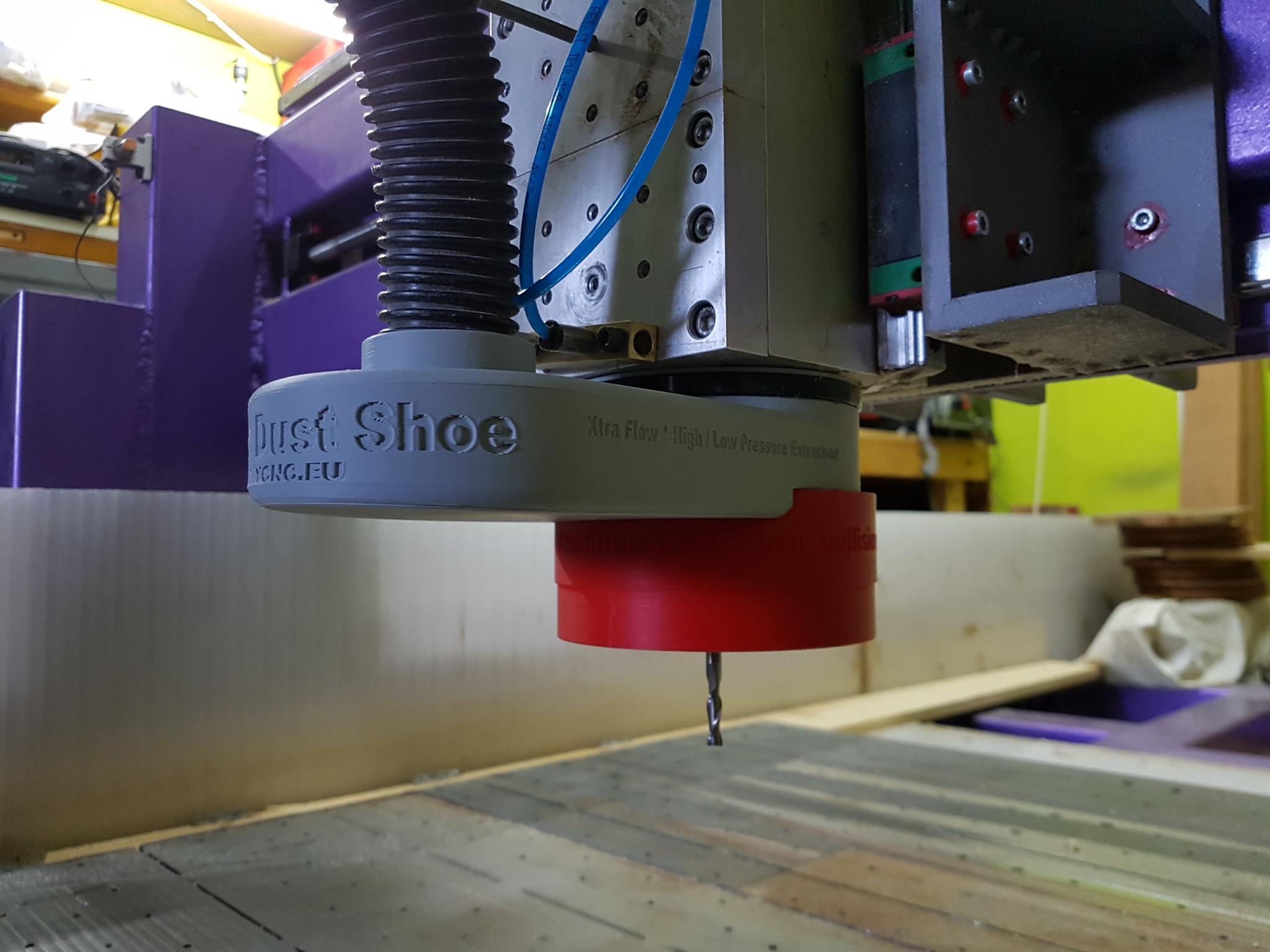

    On pictures you could see how it looks on my machine. 100mm spindle / 3kw/ and 40mm OD hose. Pictures show 3mm bit, 6mm bit and 12mm bit. As you could see even when used 3mm bit there is enough clearance so brush attachment will not hit the surface, in fact its flush with bottom of collet.




    ***Whats included***

    The Turbo Dust Shoe body and brush attachment. 1 piece of sheet so you could cut 5-6 custom sized brushes. More sheets could be included.

    Questions? Contact me. I will be happy to help you.


    Pictures, sb please rotate my pictures here???

    Click image for larger version.

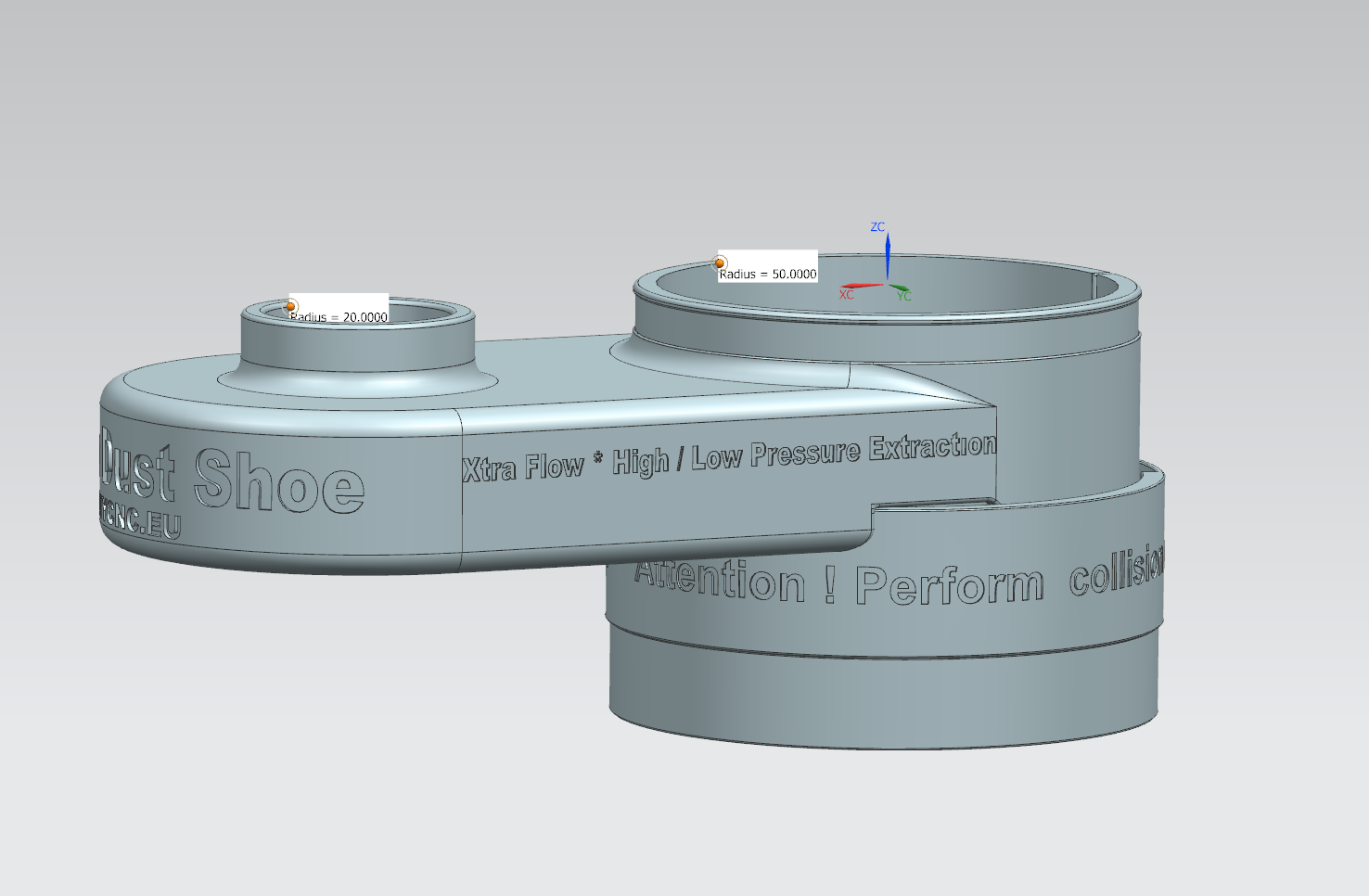

Name:	dust boot 100mm spindle 40mm hose.PNG
Views:	2310
Size:	171.0 KB
ID:	20241Click image for larger version.

Name:	Universal Turbo dust Shoe (3).jpg
Views:	1471
Size:	202.7 KB
ID:	20244 Click image for larger version.

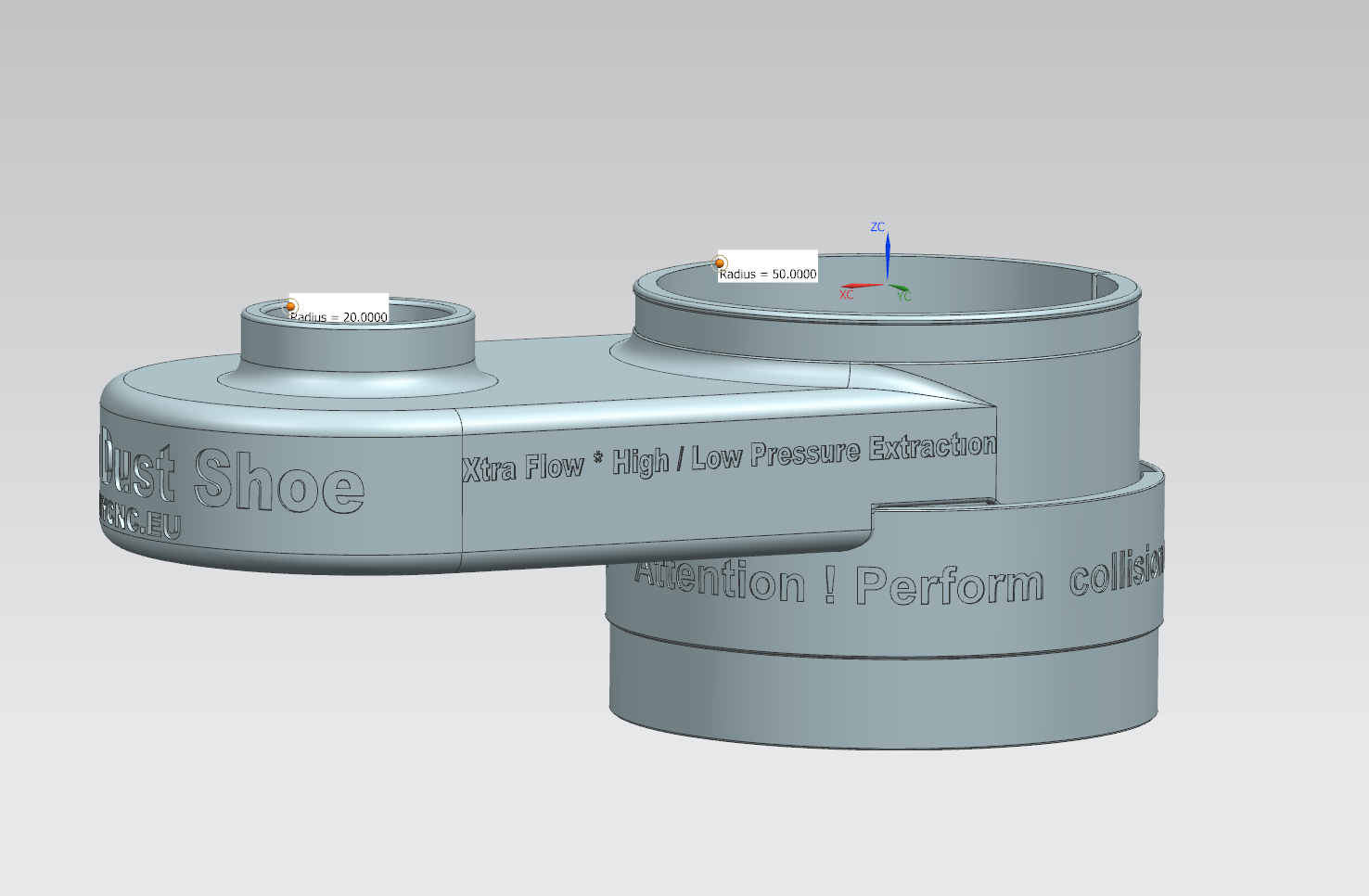

Name:	Universal Turbo dust Shoe (4).jpg
Views:	1027
Size:	257.2 KB
ID:	20245Click image for larger version.

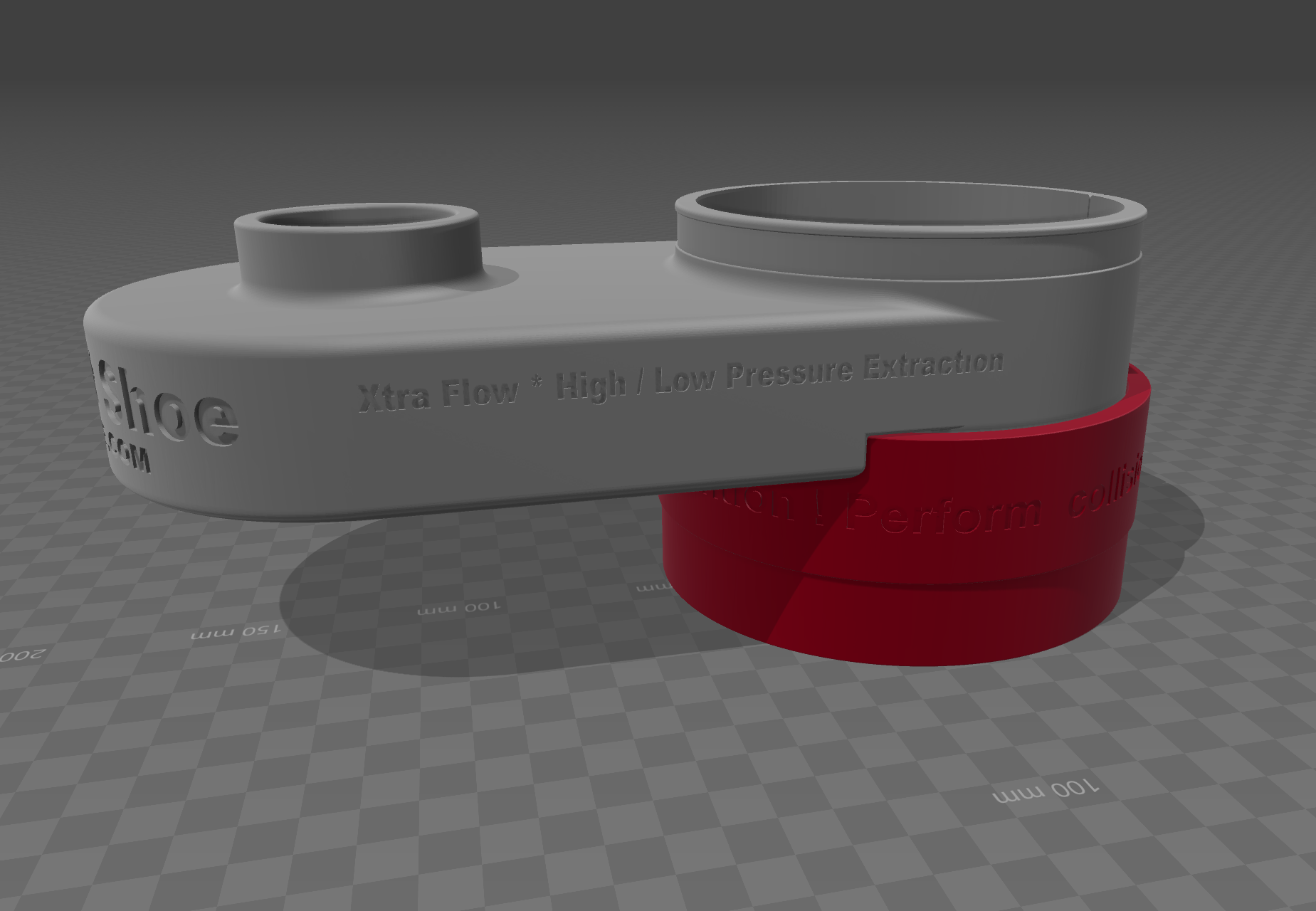

Name:	Universal Turbo dust Shoe (5).jpg
Views:	1088
Size:	238.5 KB
ID:	20246 Click image for larger version.

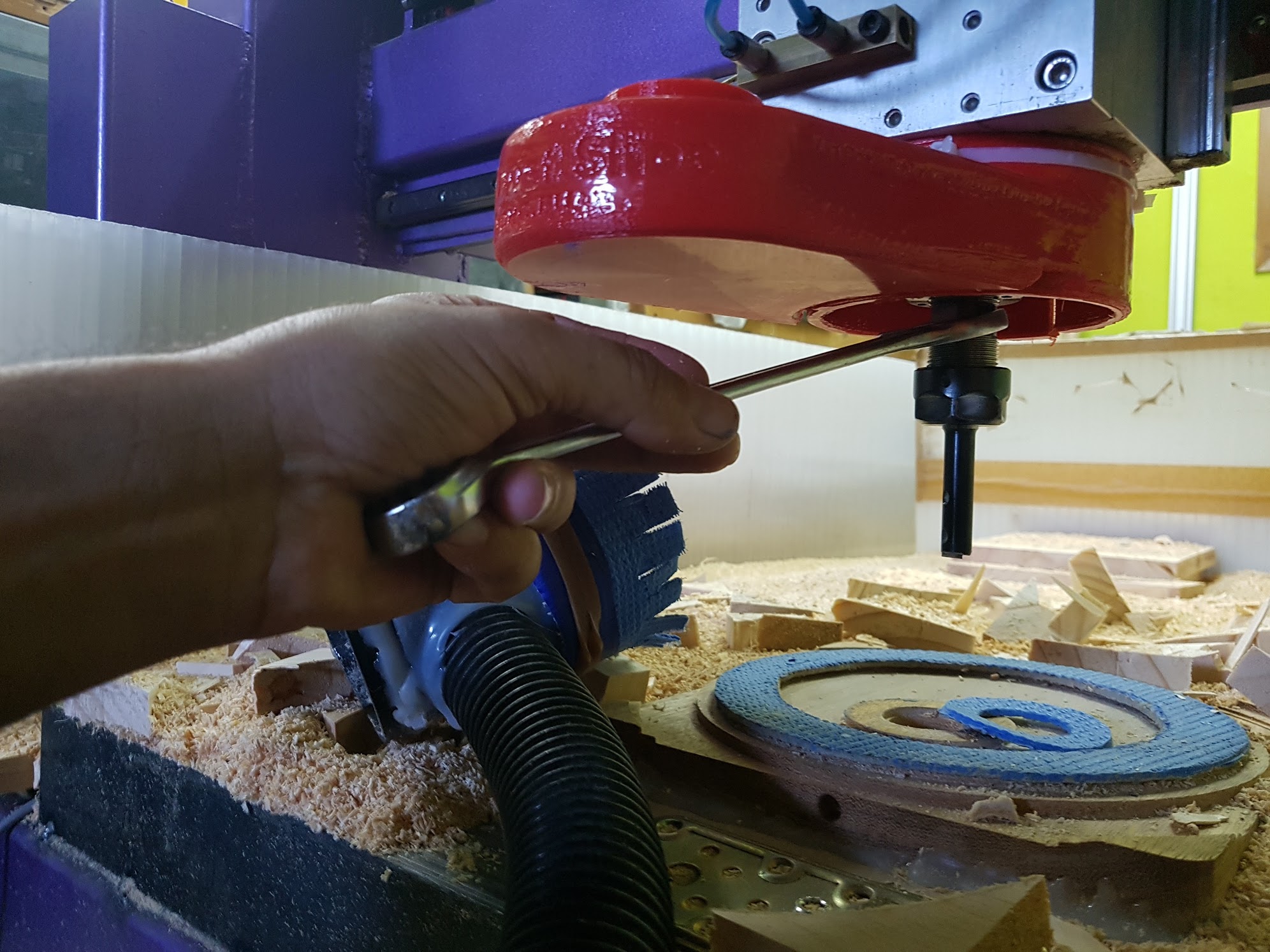

Name:	Universal Turbo dust Shoe (6).jpg
Views:	1967
Size:	226.5 KB
ID:	20247 Click image for larger version.

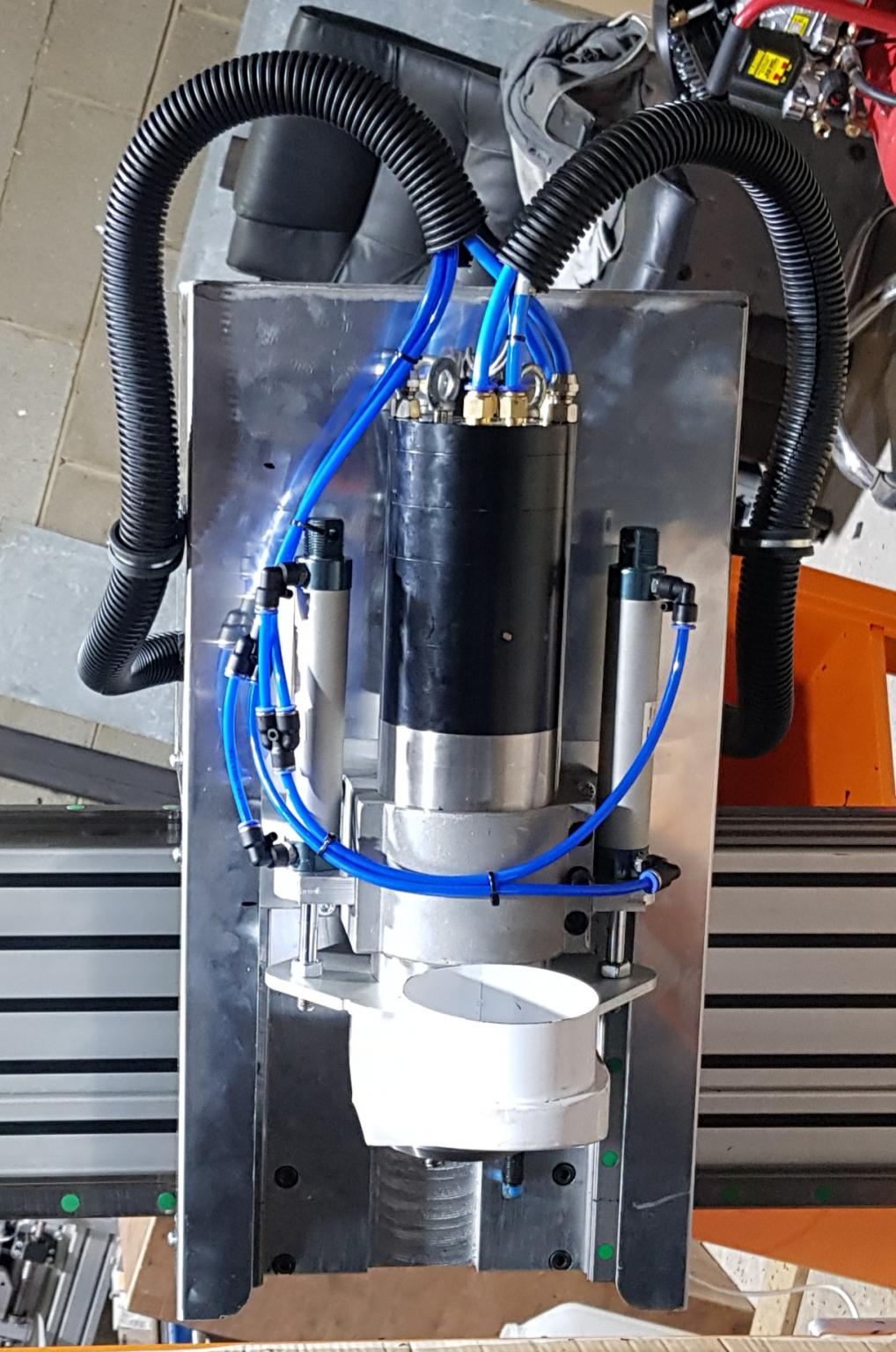

Name:	Universal Turbo dust Shoe (2).jpg
Views:	1261
Size:	249.3 KB
ID:	20243

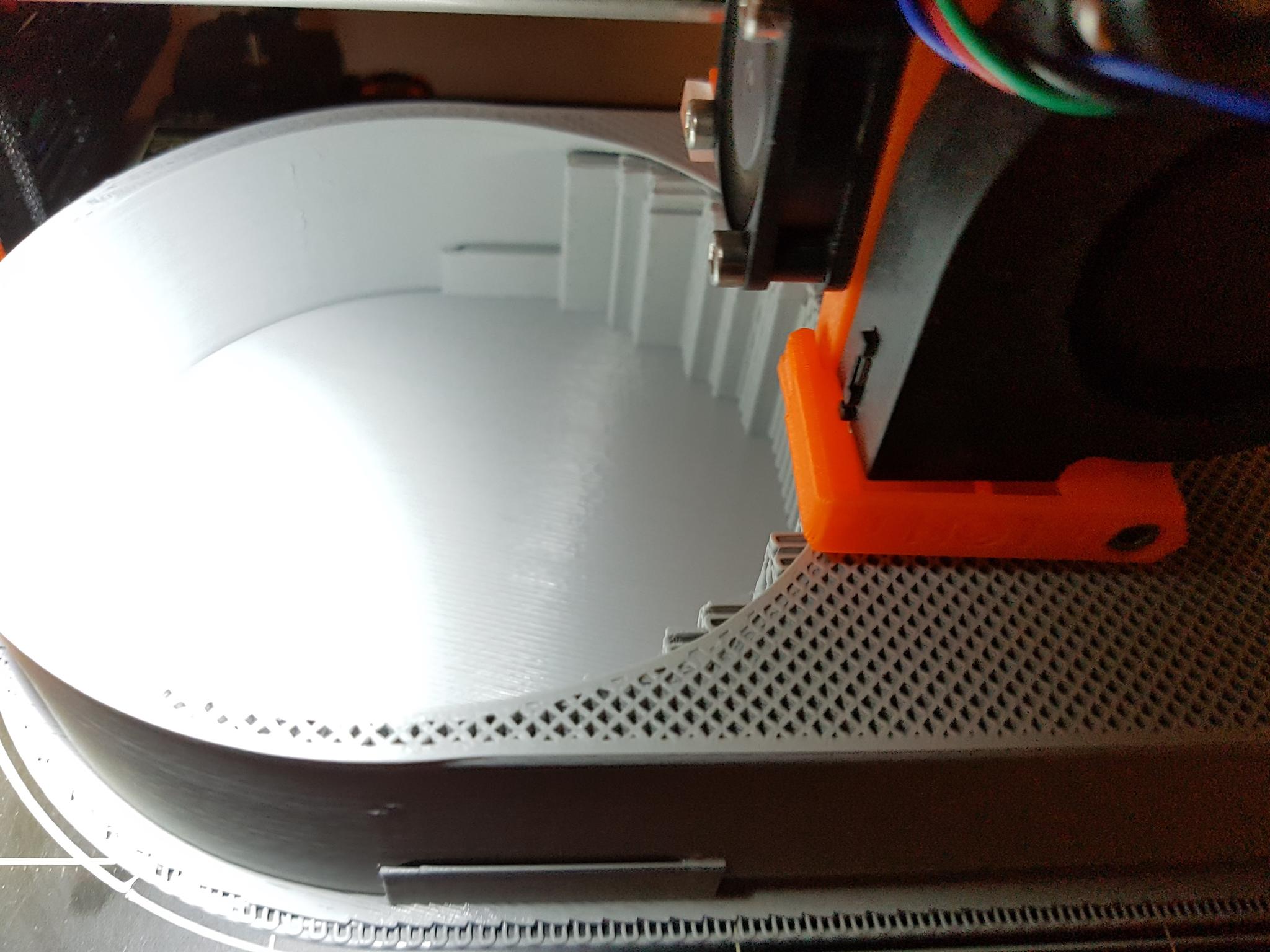

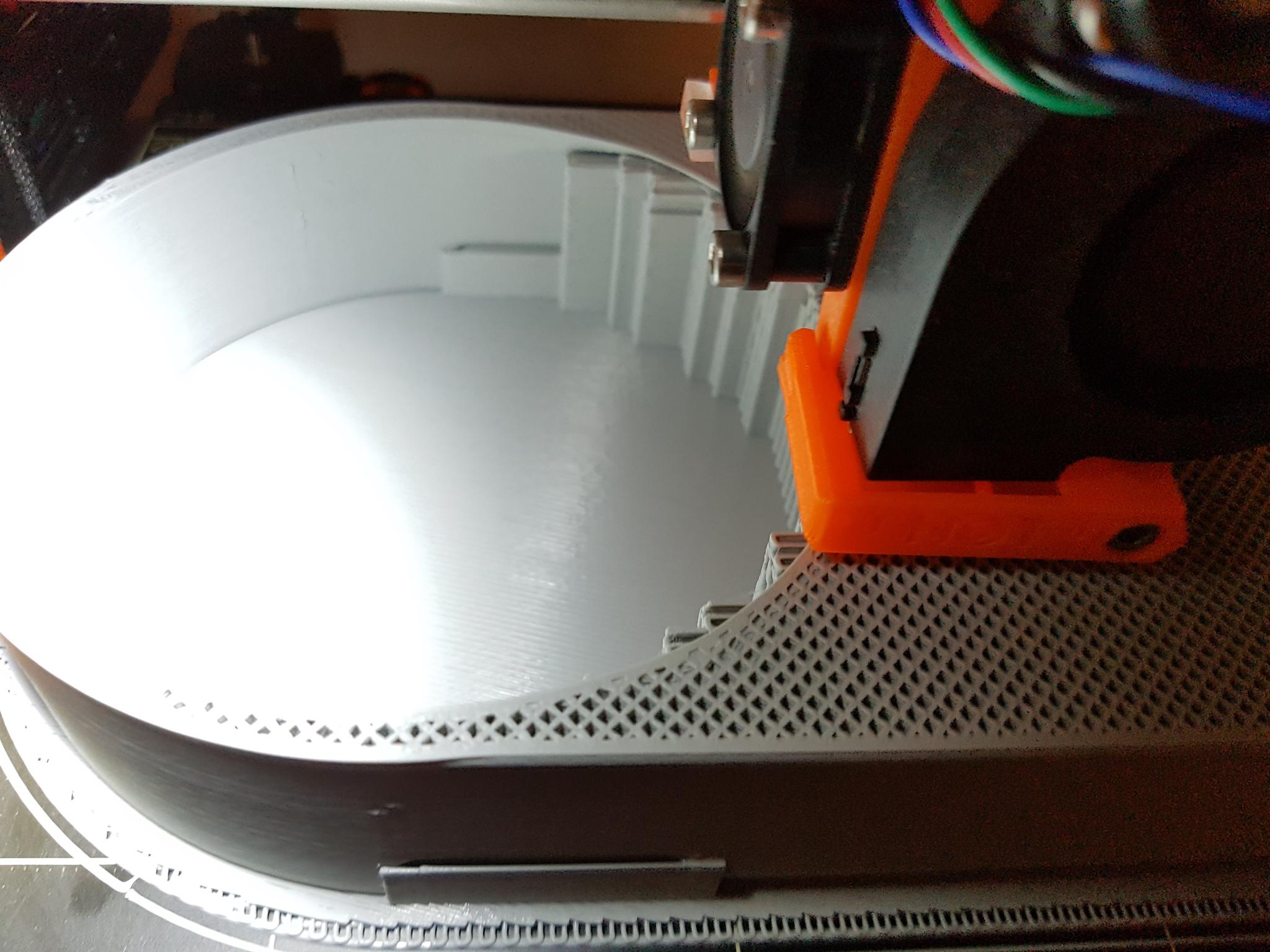

    From the prototyping stages
    Click image for larger version.

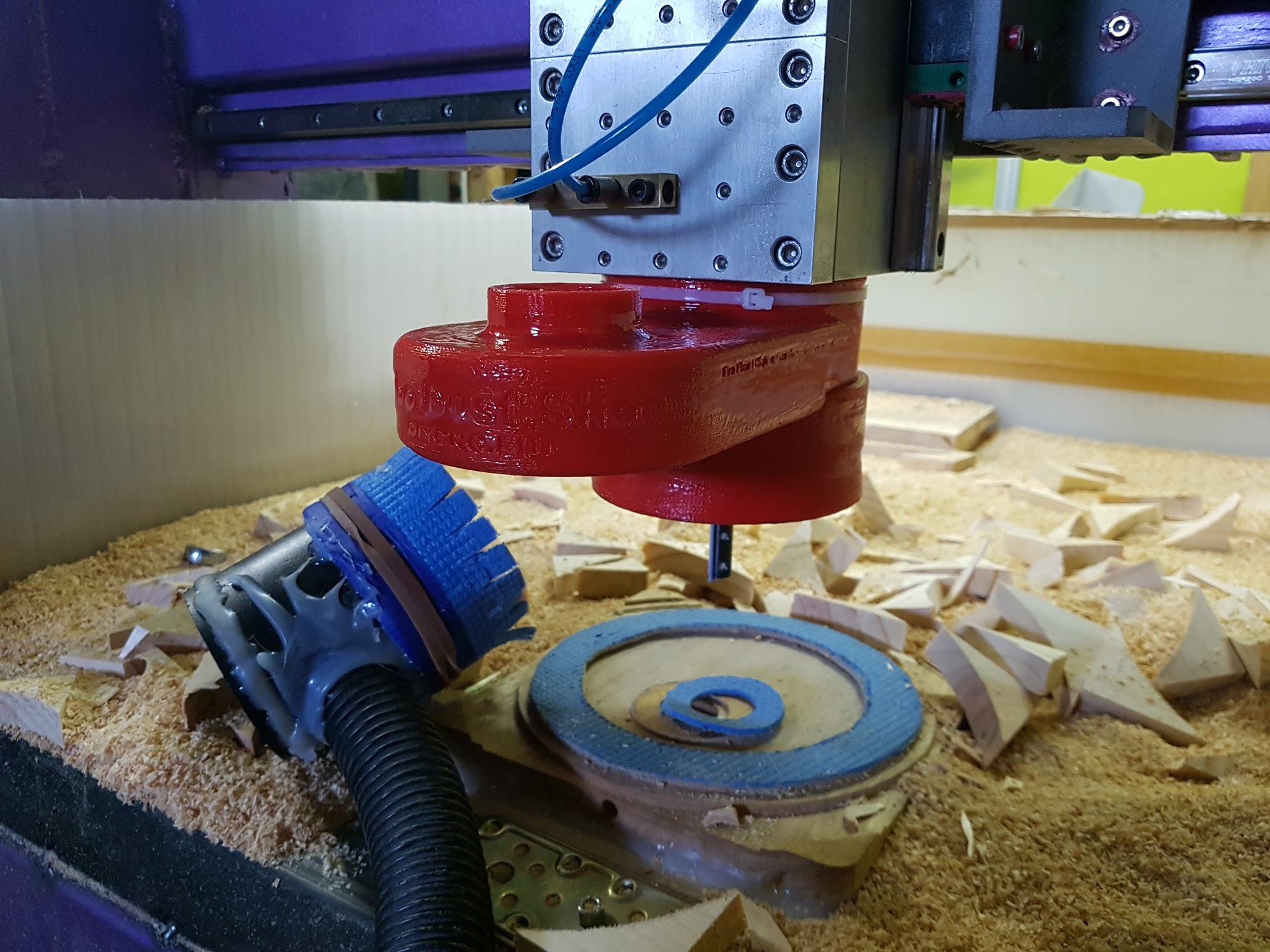

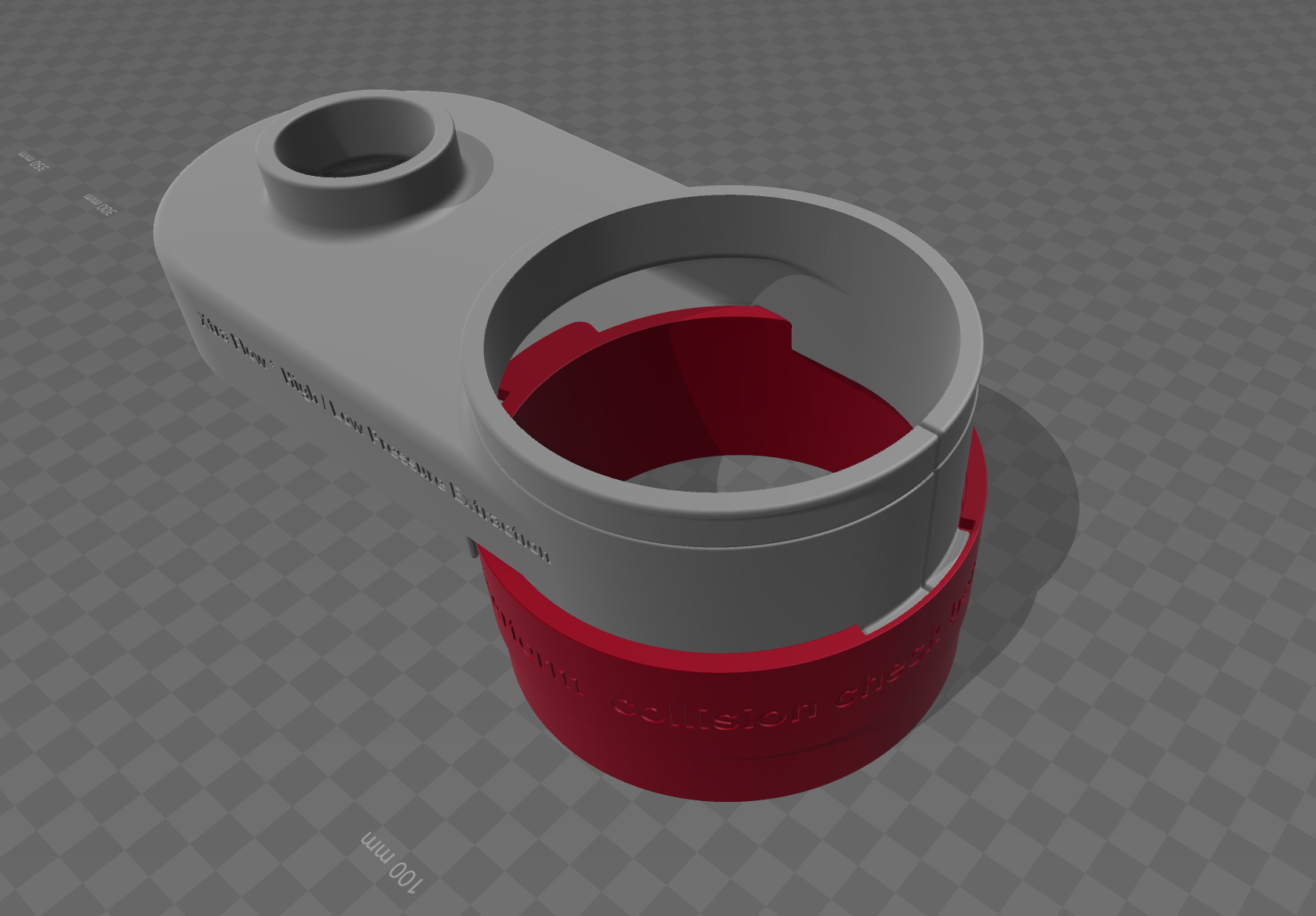

Name:	Universal Turbo dust Shoe (7).jpg
Views:	1353
Size:	607.3 KB
ID:	20248 Click image for larger version.

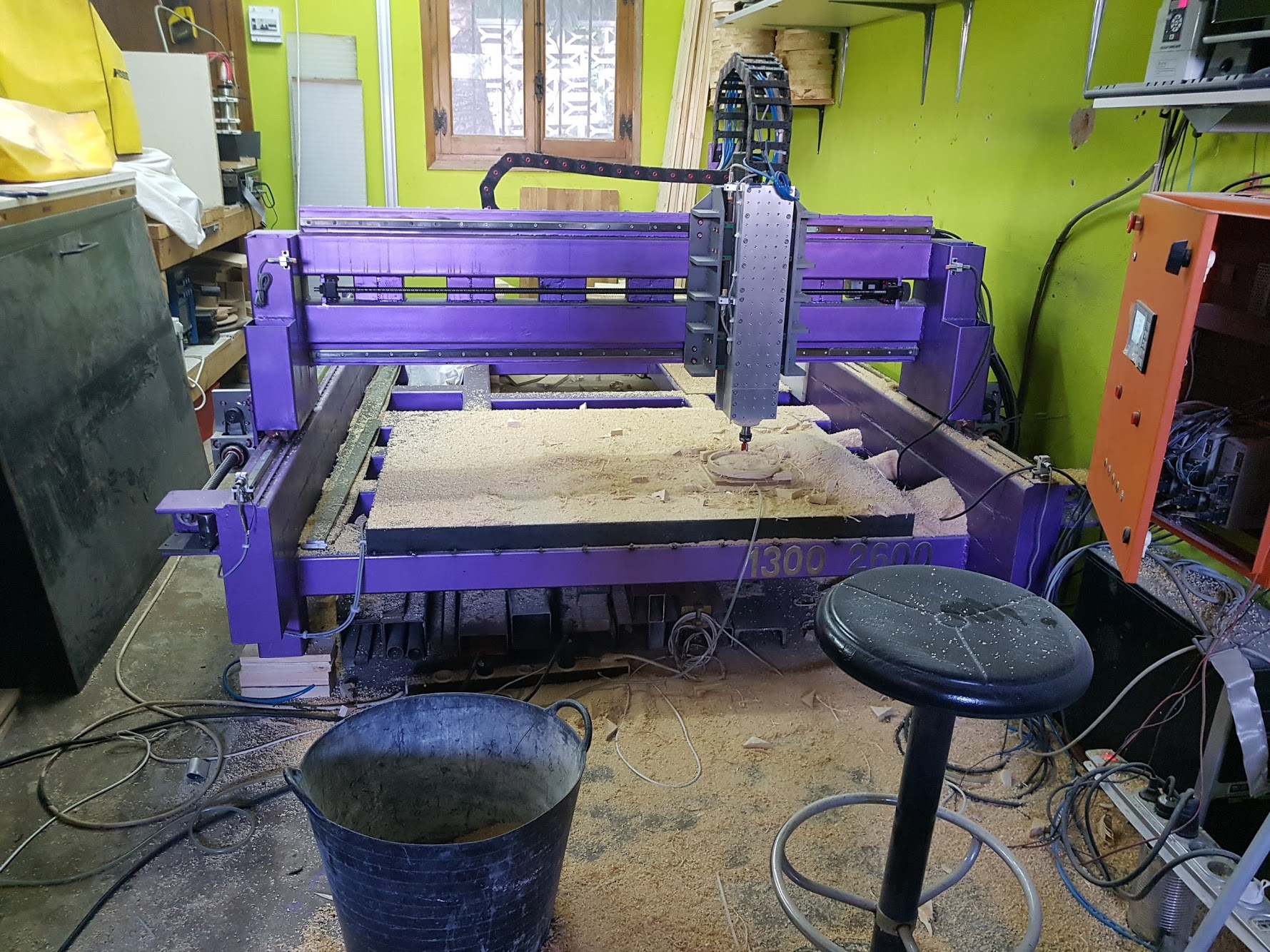

Name:	Universal Turbo dust Shoe (8).jpg
Views:	1319
Size:	467.0 KB
ID:	20249 Click image for larger version.

Name:	Universal Turbo dust Shoe (1).jpg
Views:	1465
Size:	448.4 KB
ID:	20242
    Last edited by Boyan Silyavski; 10-01-2017 at 02:25 PM. Reason: adding photos
    project 1 , 2, Dust Shoe ...

  2. The Following 2 Users Say Thank You to Boyan Silyavski For This Useful Post:


  3. #2
    Some Updates

    -Changed material to more expensive PETG which made it almost virtually unbreakable, and not only by hand i mean. Plastic Coca Cola bottles, if you wonder what is PETG. Imagine then a 5mm thick Coca-cola bottle.

    -After making a different dozen of them for different machines and spindles and altering the design with each next one, i believe now its much more refined. Bellow are the most recent models i have made, various combinations of spindles and hose sizes.

    -I sell it at ebay- item 272549828311 but also launched a new website http://cncdustshoe.com/

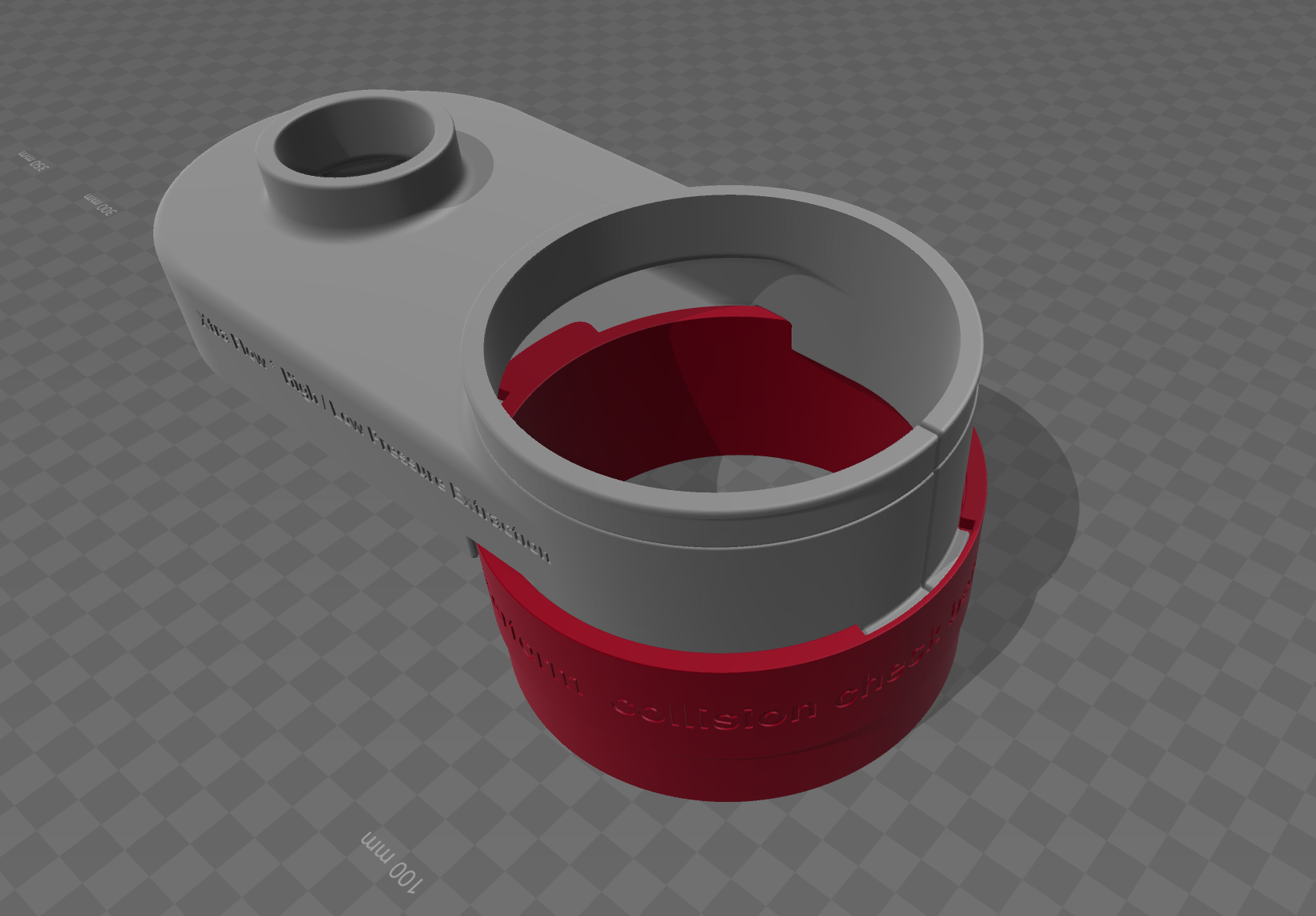

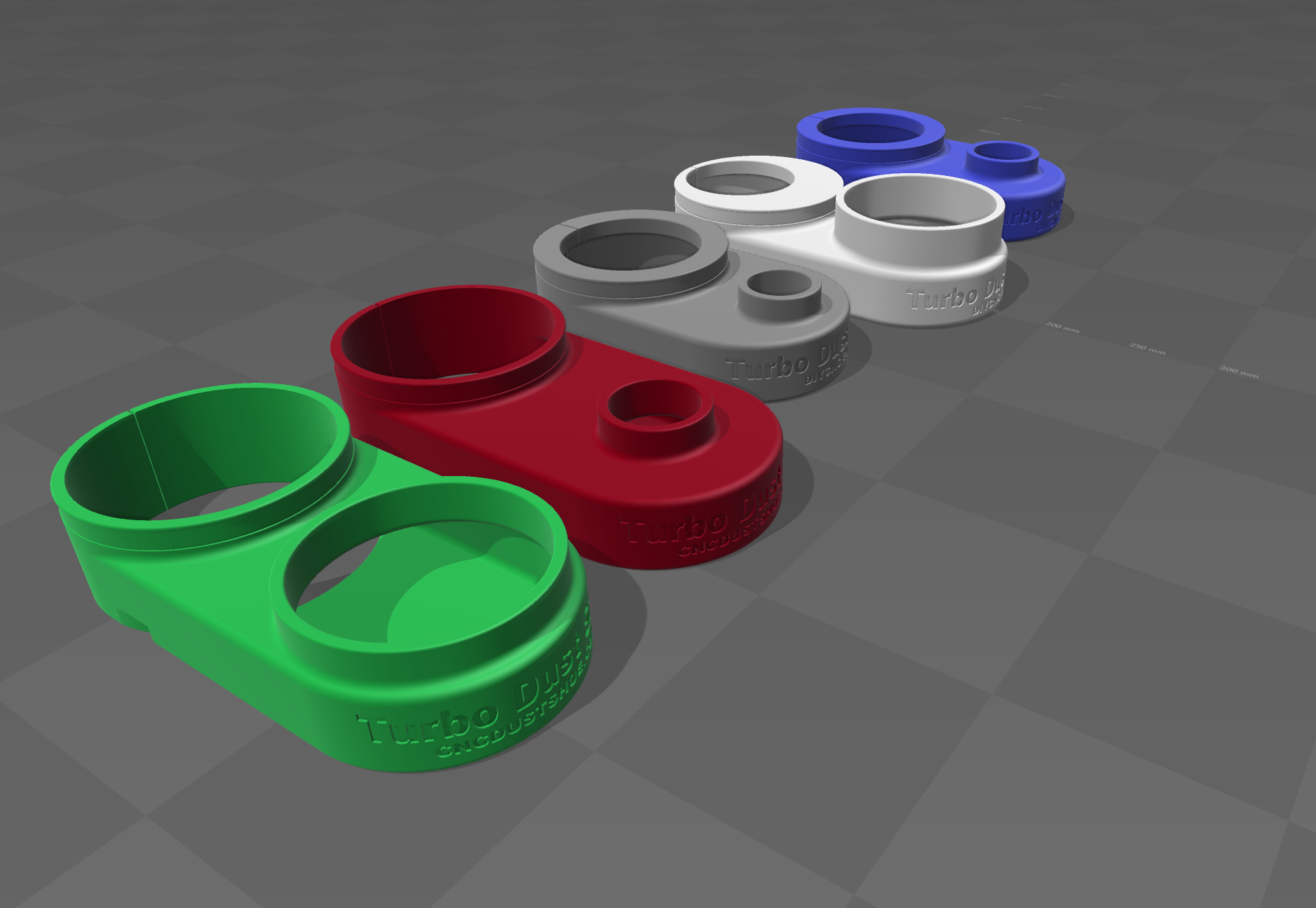

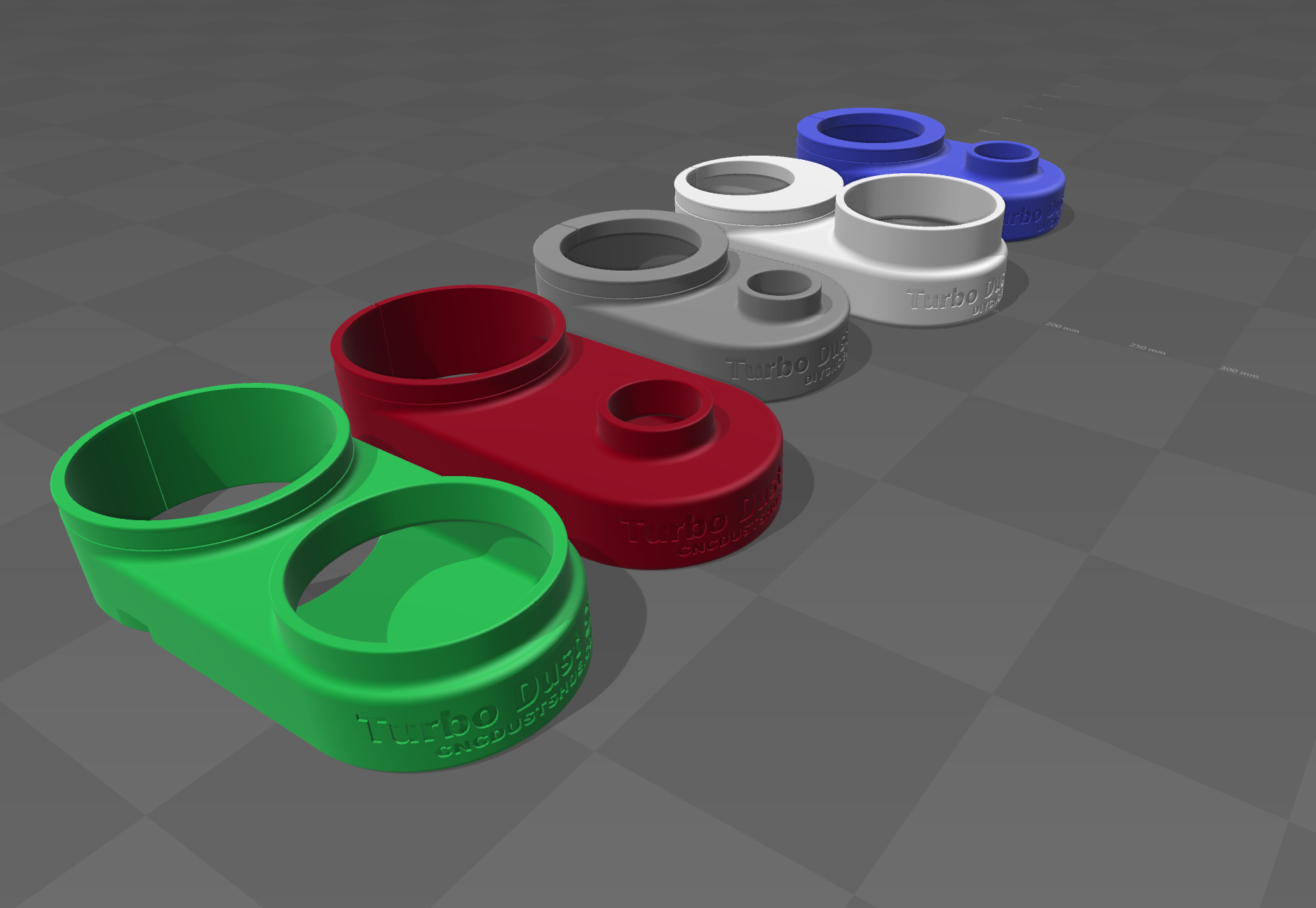

    Click image for larger version.

Name:	Dust boot 10mm 3kw spindle 40mm hose.PNG
Views:	900
Size:	451.2 KB
ID:	20981 Click image for larger version.

Name:	Dust shoe for cnc air flow.PNG
Views:	860
Size:	391.2 KB
ID:	20982 Click image for larger version.

Name:	Turbo CNC Dust shoe brush attachment.PNG
Views:	833
Size:	391.9 KB
ID:	20983 Click image for larger version.

Name:	Various custom size cnc dust shoes.PNG
Views:	1173
Size:	487.8 KB
ID:	20984


    Printing it resulted to be a very tricky business due to the shape and so was adjusting the prints to be precise size. Tried various colors but the Grey/Red combo looks best. Though finding the Grey color PET in Europe was challenging.
    project 1 , 2, Dust Shoe ...

  4. #3
    Looks nice, hope you sell a few :)

    Must take you ages to print though? I love my 3D printer for making stuff for myself, but the speed is always the issue whenever I think of selling stuff I make with it... just doesn't really seem viable given how cheap people expect to buy things for these days.

  5. #4
    Thanks! The printer never stops, it works 24h, there is always something to print and now i am making 2 more printers, which i designed.

    It takes more or less 20h for the shoe and 5h for the attachment. Half an hour design for the particular combo and half an hour cleaning support material. ~1/2kg of PETG for the print.

    But the versatility to make a specific size product with no additional adapters is incredible. I believe major step was to print PETG and keep same price, as you know PETG is double the price of ABS.


    Still nobody from the forum have bought one but it sells on ebay.


    People expect to buy very cheap, i know. But at the end you get what you pay for. If you have a printer you know then its cheaply priced for what it is. Anyone having a CNC can fabricate a Dust Shoe, i have done that in past in various occasions. But was not 100% happy with result. To design a well thought one and make it reality takes quite some time.

    Before i had a printer on 3dhubs i was quoted cheapest 65 euro plus shipping for PLA and better materials were around 90 euro. So i offer an unbeatable price with the added benefit of helping developing further the design and helping the designer. if thats not enough, it will never be...
    project 1 , 2, Dust Shoe ...

  6. #5
    Oh yeah absolutely, I think it's extremely fairly priced (actually seems too cheap to me given the time and material!) but that was rather my point - for the amount of work and time it's very hard to make a fair return using 3D printing. The great unwashed don't appreciate that these things can take so long to print...

    When I designed a dust shoe (bit more basic than yours) I just ended up putting it on thingiverse as you did and didn't bother selling any as it wasn't worth the effort.

    Hopefully you can make a bit of pocket money out of it though!
    Last edited by Zeeflyboy; 06-03-2017 at 09:47 PM.

  7. #6
    Sorry to resurrect this one, but now as many members may have a 3d printer. If someone needs exact fit dust shoe for his machine, i can send custom STL, as i can draw it very fast as my design is parametric.
    Its on Thingiverse also.

    So if you need , drop me a line with details and your email and i will send ASAP an STL / for free/ of a dust shoe your spindle size and your hose size.

    Plus now i have 3 brush attachments, short, normal and bell like for using big surfacing cutters. All tested in production environment.
    project 1 , 2, Dust Shoe ...

  8. The Following 2 Users Say Thank You to Boyan Silyavski For This Useful Post:


  9. #7
    Boyan do you have a version that suits ATC. By that I mean one that is not fastened directly to spindle body and allows the hood to be retracted so tool holder can be accessed.?

    I don't require one and I'm not asking for me, I'm thinking it would be another product to your line because they are not easily found and more and more people are using ATC spindles.

  10. #8
    Quote Originally Posted by JAZZCNC View Post
    Boyan do you have a version that suits ATC. By that I mean one that is not fastened directly to spindle body and allows the hood to be retracted so tool holder can be accessed.?

    I don't require one and I'm not asking for me, I'm thinking it would be another product to your line because they are not easily found and more and more people are using ATC spindles.
    If it has ATC a pause can be introduced before tool change, spindle stop, brush attachment removed by hand, tool change, attachment on, spindle on and follow.

    But in real life the people that have tool change and use the shoe, remove the stripes or change to shorter attachment so tool change can be done. You know, some dust on table but not in the air, which is more important


    I have had queries but at the end that's how we proceed, as above. Main problem on what you are saying is that most of the Z axis on most of the machines are not clean and well thought like mine or yours so there is always some obstruction that impedes that.
    project 1 , 2, Dust Shoe ...

  11. #9
    Quote Originally Posted by Boyan Silyavski View Post
    If it has ATC a pause can be introduced before tool change, spindle stop, brush attachment removed by hand, tool change, attachment on, spindle on and follow.

    But in real life the people that have tool change and use the shoe, remove the stripes or change to shorter attachment so tool change can be done. You know, some dust on table but not in the air, which is more important
    That's defeats the whole point of ATC. The very reason for ATC is so it can be left unattended to get on with the job, if you have to baby sit the vacuum it's a waste of time having the ATC. Nobody who fits an ATC and wants to use it to it's full potential would accept your suggestion.

    Those who have a need and can afford an ATC spindle will most probably have a clean Z-axis setup or at least the abilty to modifiy the Z-axis. A retractable or movable dust shoe is a MUST for an ATC to function correctly if it uses a typical Fork or carosel type slide in tool rack.

    Edit: It wouldn't be a massive change to stick some wings on it, open up the spindle hole a little and use the setup as I made here. The customer would just need to make brackets for the pneumatic actuators which can fasten either to the front plate or like I did here on the spindle mount itself so comes off as a unit with spindle mount.

    Click image for larger version.

Name:	20200408_120447.jpg
Views:	453
Size:	200.6 KB
ID:	27749
    Last edited by JAZZCNC; 08-04-2020 at 12:10 PM.

  12. #10
    Quote Originally Posted by JAZZCNC View Post
    That's defeats the whole point of ATC. The very reason for ATC is so it can be left unattended to get on with the job, if you have to baby sit the vacuum it's a waste of time having the ATC. Nobody who fits an ATC and wants to use it to it's full potential would accept your suggestion.

    Those who have a need and can afford an ATC spindle will most probably have a clean Z-axis setup or at least the abilty to modifiy the Z-axis. A retractable or movable dust shoe is a MUST for an ATC to function correctly if it uses a typical Fork or carosel type slide in tool rack.
    I agree and am more than happy to design and fabricate the setup above for a paying customer, obviously the design time for such a specific job has to be on top of the dust shoe price
    project 1 , 2, Dust Shoe ...
