    I just realised i have never made an introduction thread for me or Lucy.

    I am Bam, I have used a CNC machine whilst at school, but that was about 20 years ago (god i feel old).
    I recently purchased a used (i think self build) machine.

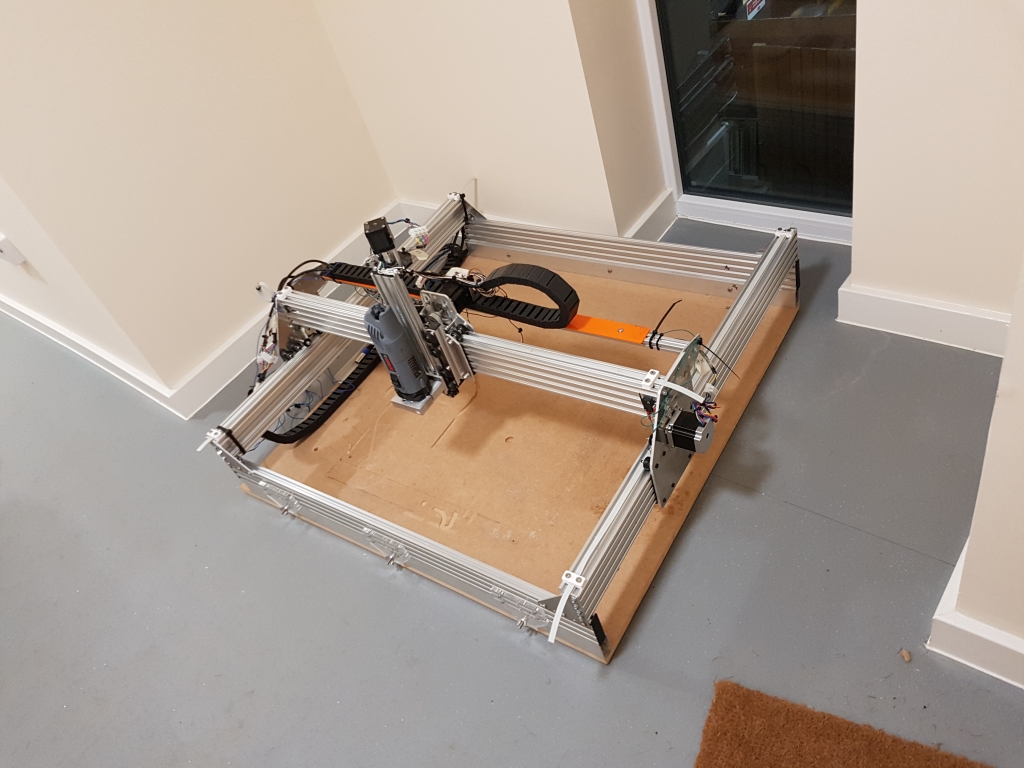

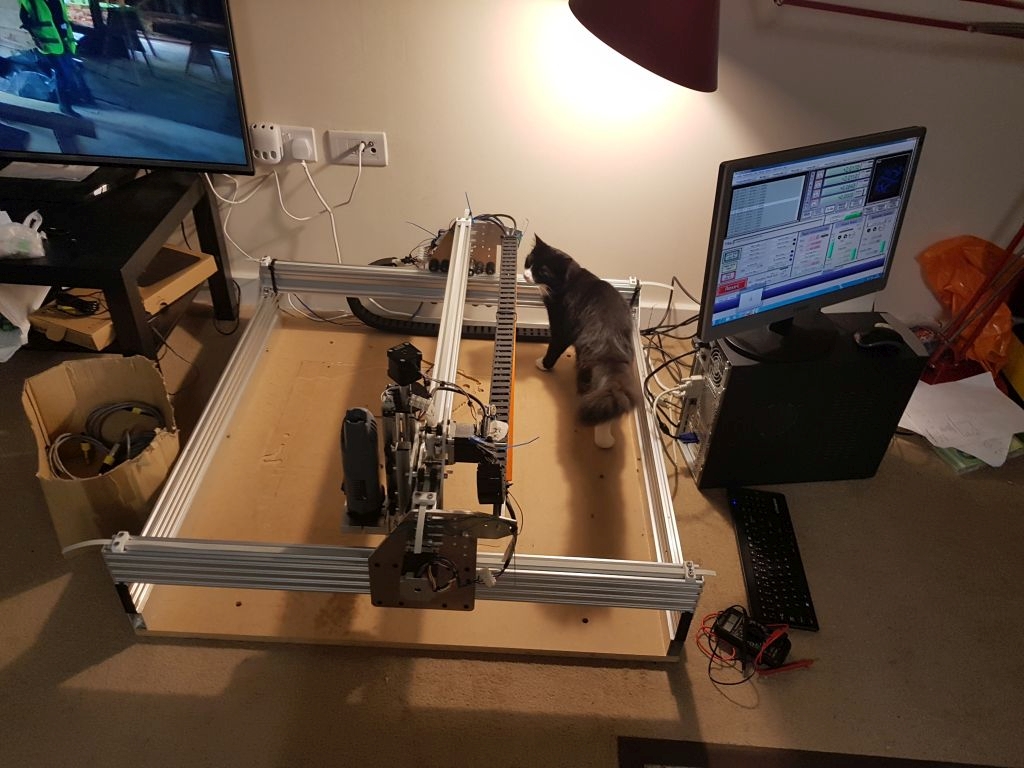

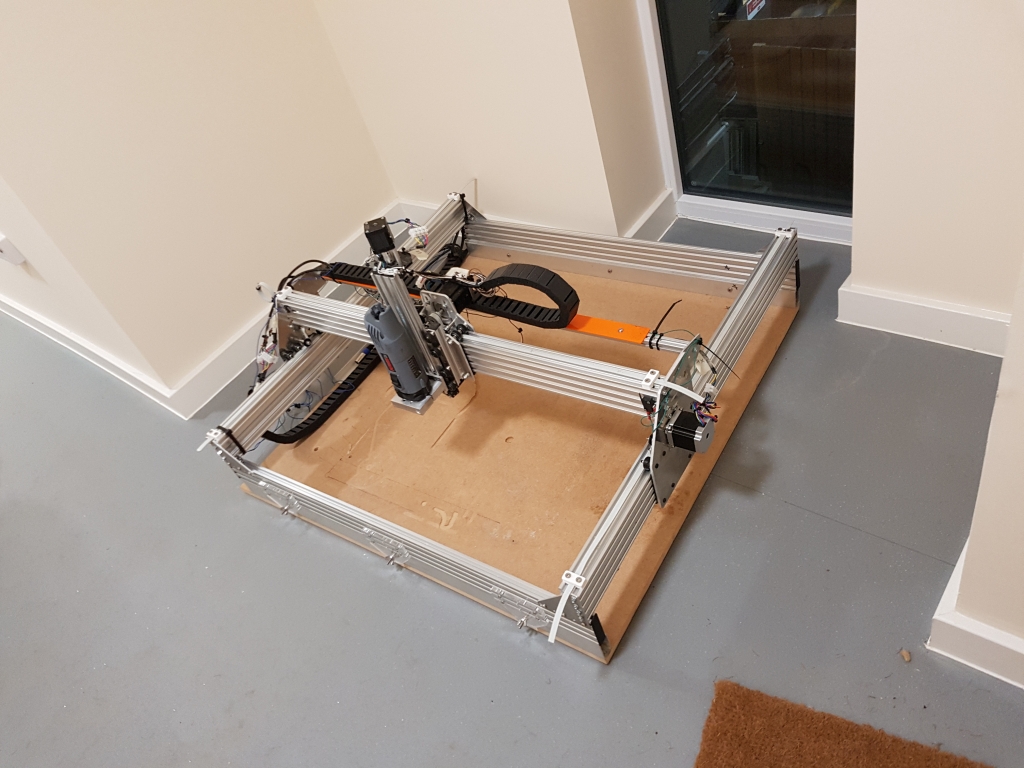

    About Lucy, The machine:

    Dimensions: X: 1000mm Y: 1000mm
    Cutting area: X: 800mm Y: 720mm
    Interface: Parallel
    Software: Mach3, Vectric Aspire, Adobe Illustrator

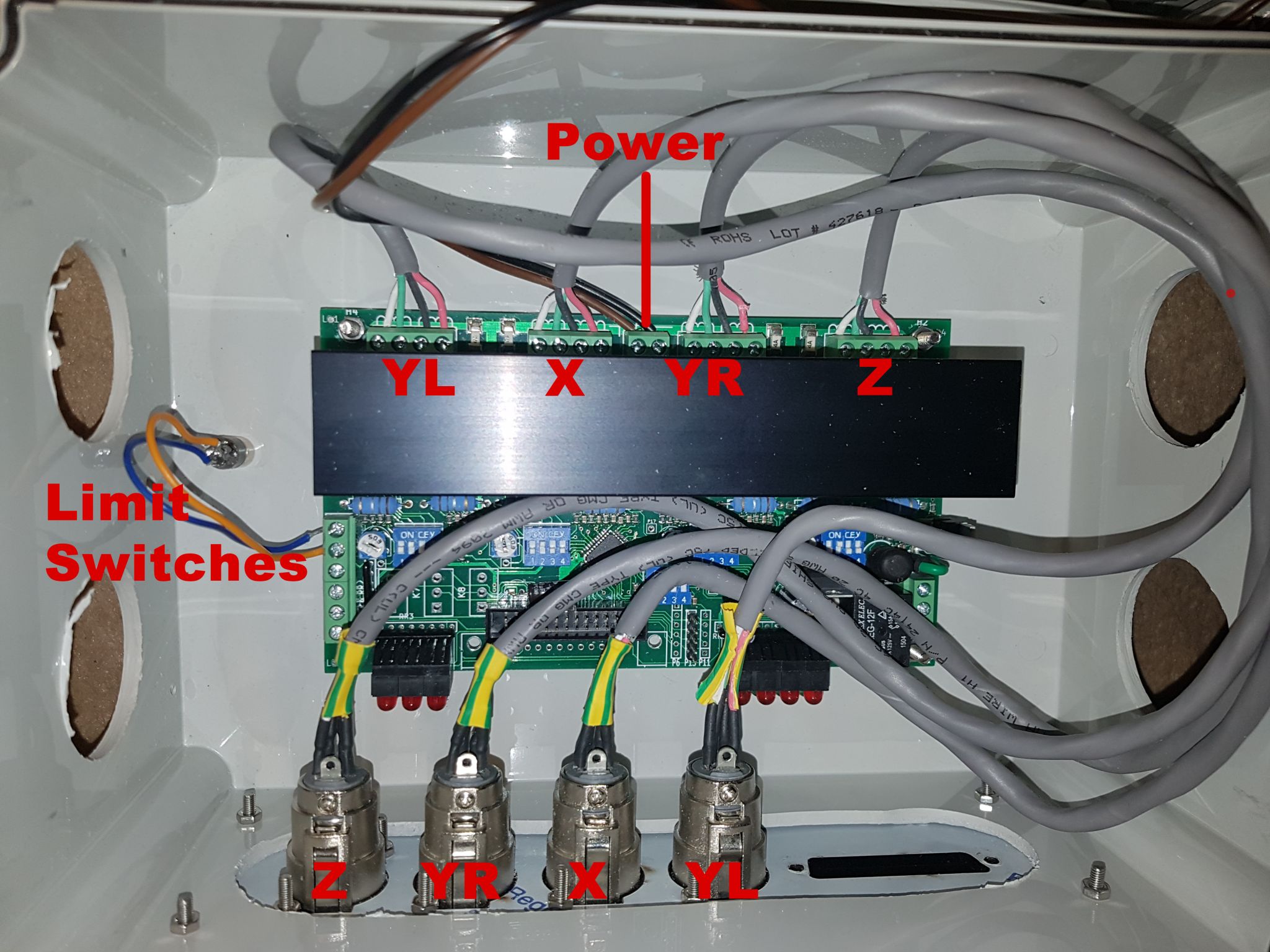

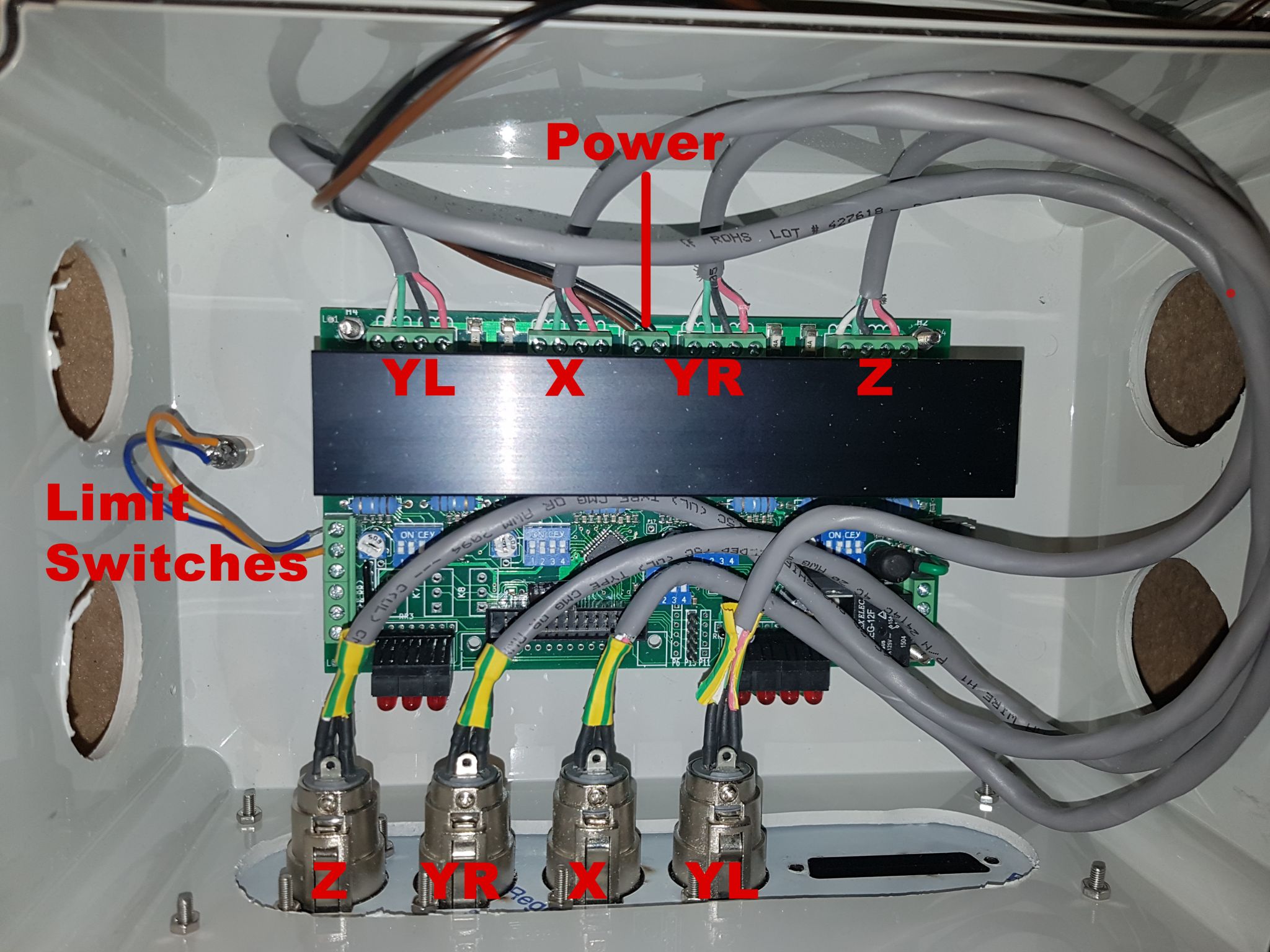

    Driver board: CNC4X45A
    Limits: Home: X, Y, Z End: X,Y,Z e-Stop
    Base: 12mm MDF

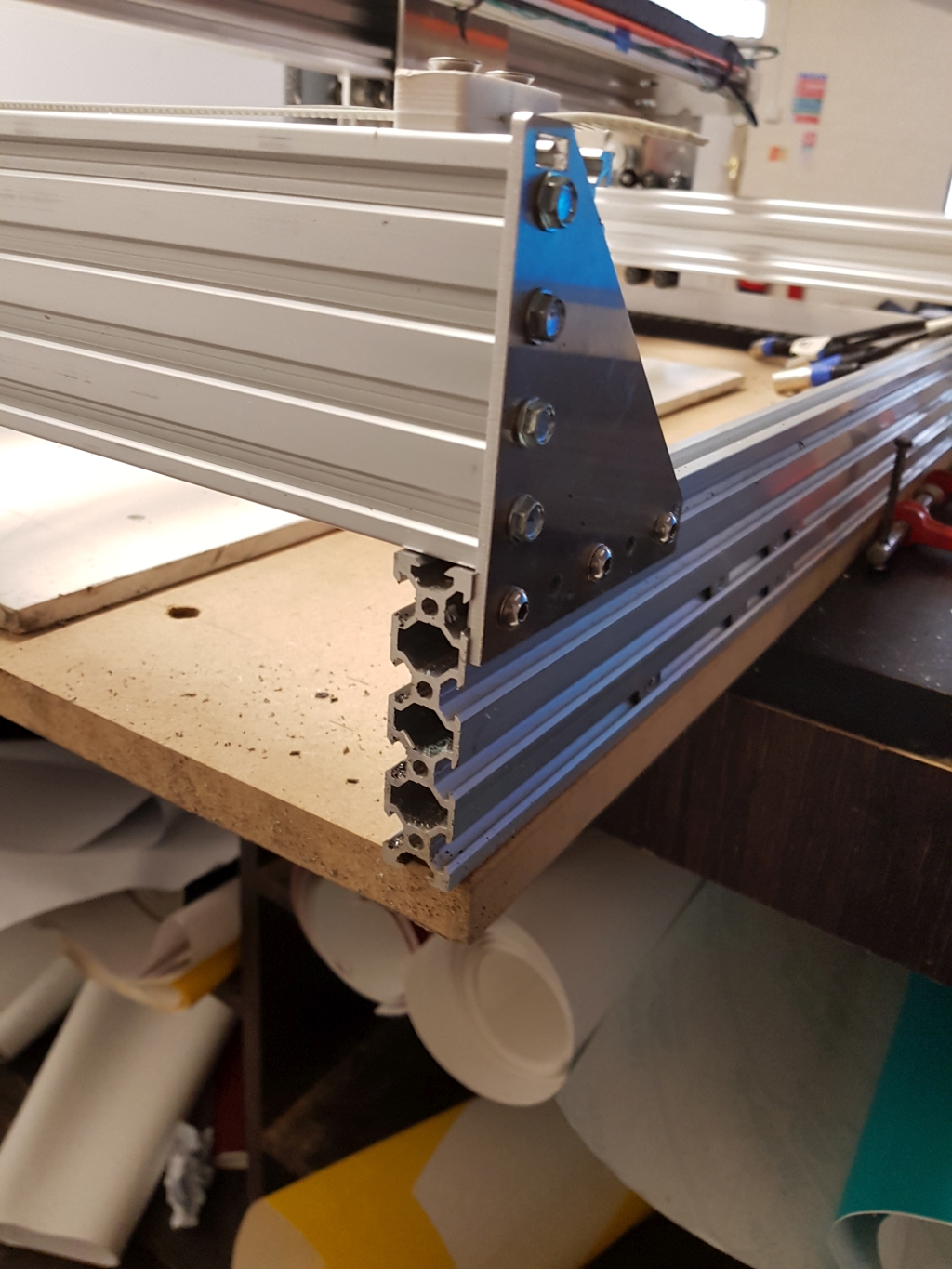

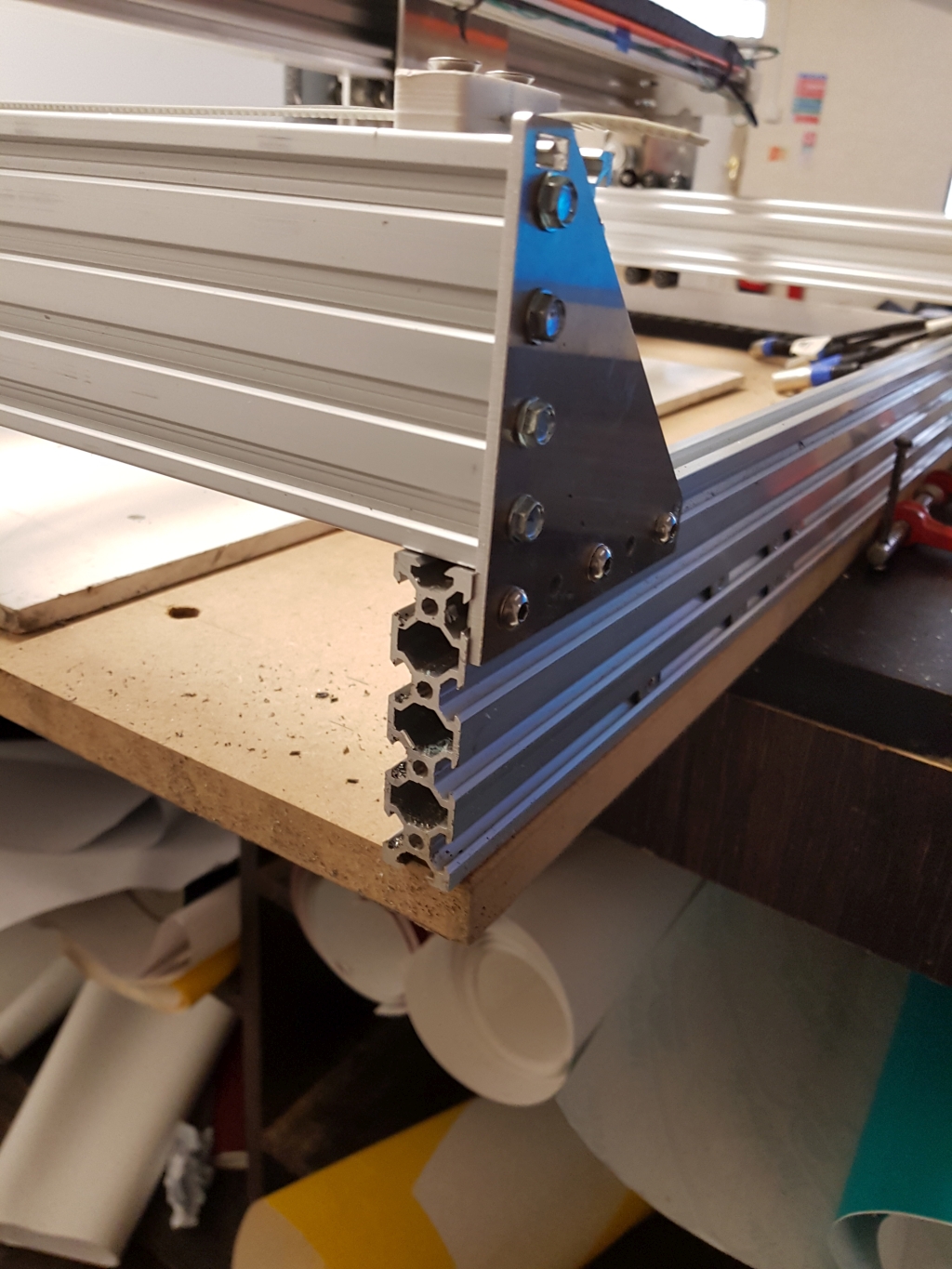

    Gantries: 20x800mm Aluminum V-Slot

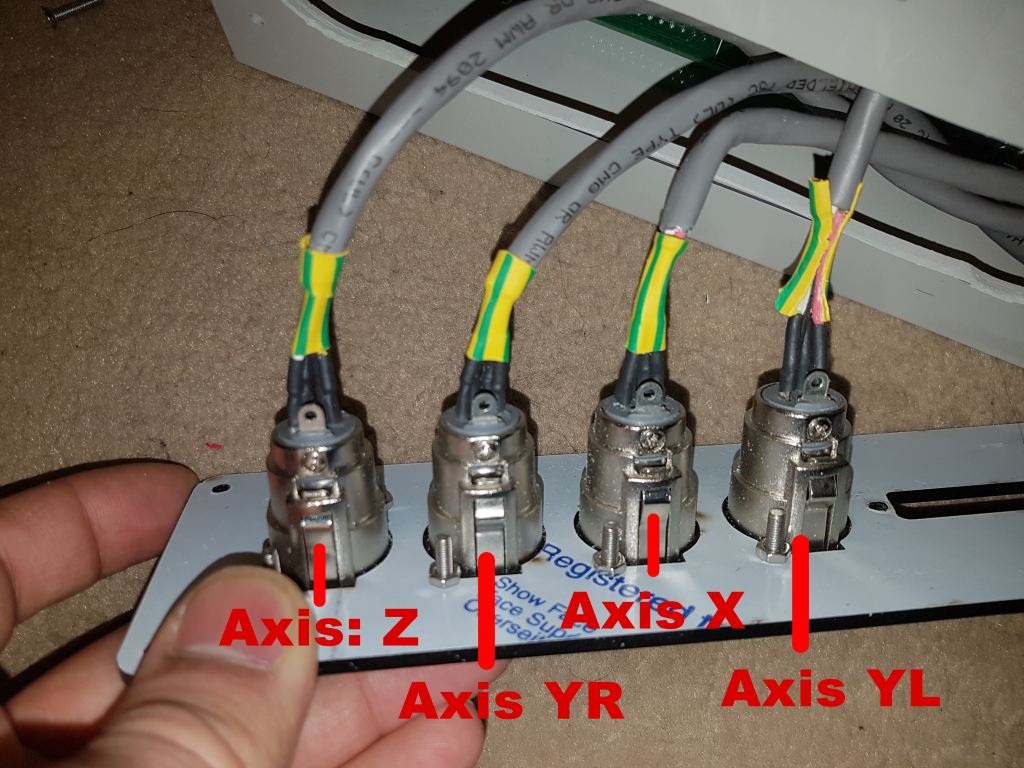

    Steppers: Y: 2 x Nema 23's ACT 23HS8630B (Nema23)*Step Angle:*1.8*Holding Torque:*1,5Nm*V/A:*2.7V / 3.0A

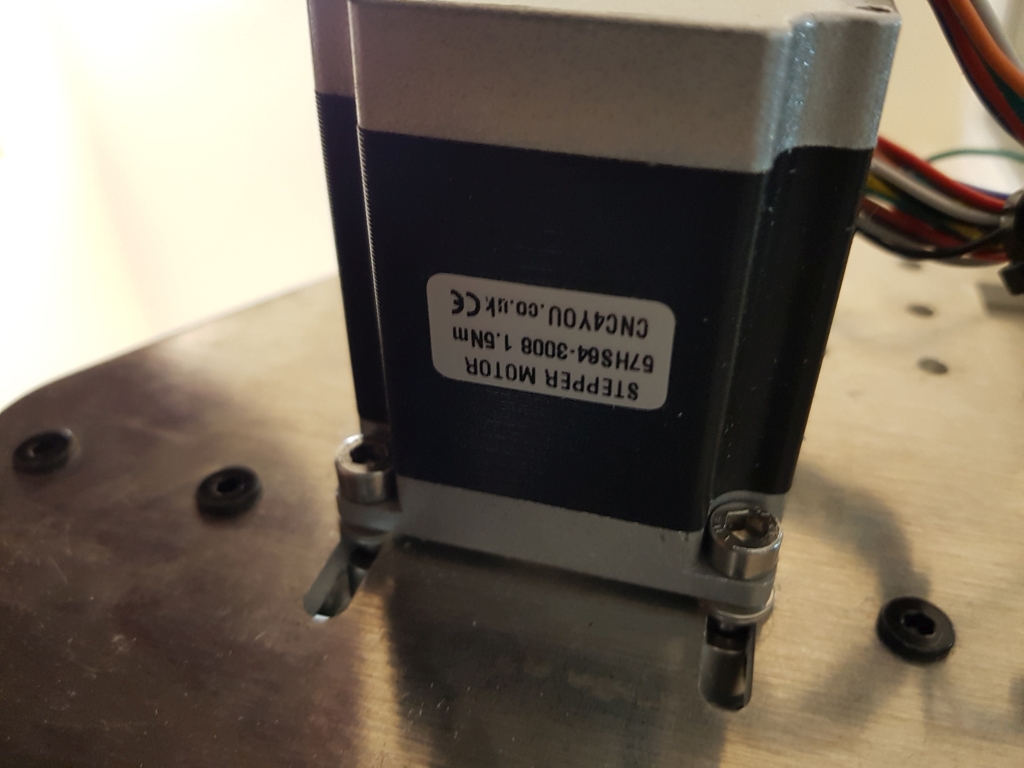

    X: 1 x Nema 23 57HS64-3008*Step Angle:*1.8 HOlding*Torque:1.5Nm *V/A:*1.6V / 4..2 A (http://cnc4you.co.uk/resources/57HS64-3008.pdf)

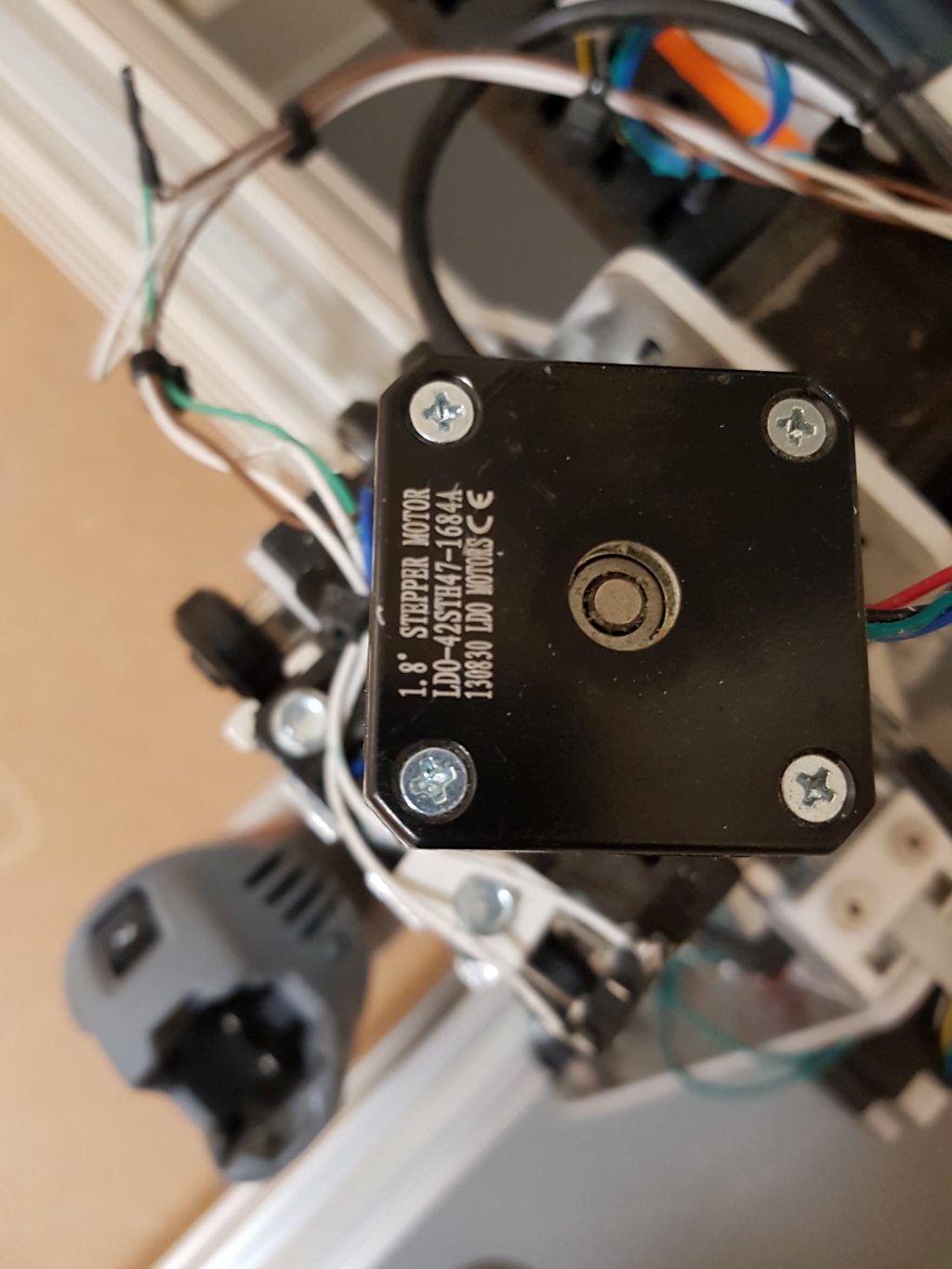

    Z: 1 x Nema 17 LDO Motors*LDO-42STH47-1684A (NEMA17)*Step Angle:*1.8*Holding Torque:*50 Ncm*V/A:*2.8V / 1.68A (http://reprap.org/wiki/NEMA_17_Stepper_motor)
    Drives: Y: Belt
    X: Belt
    Z: Ball and Screw

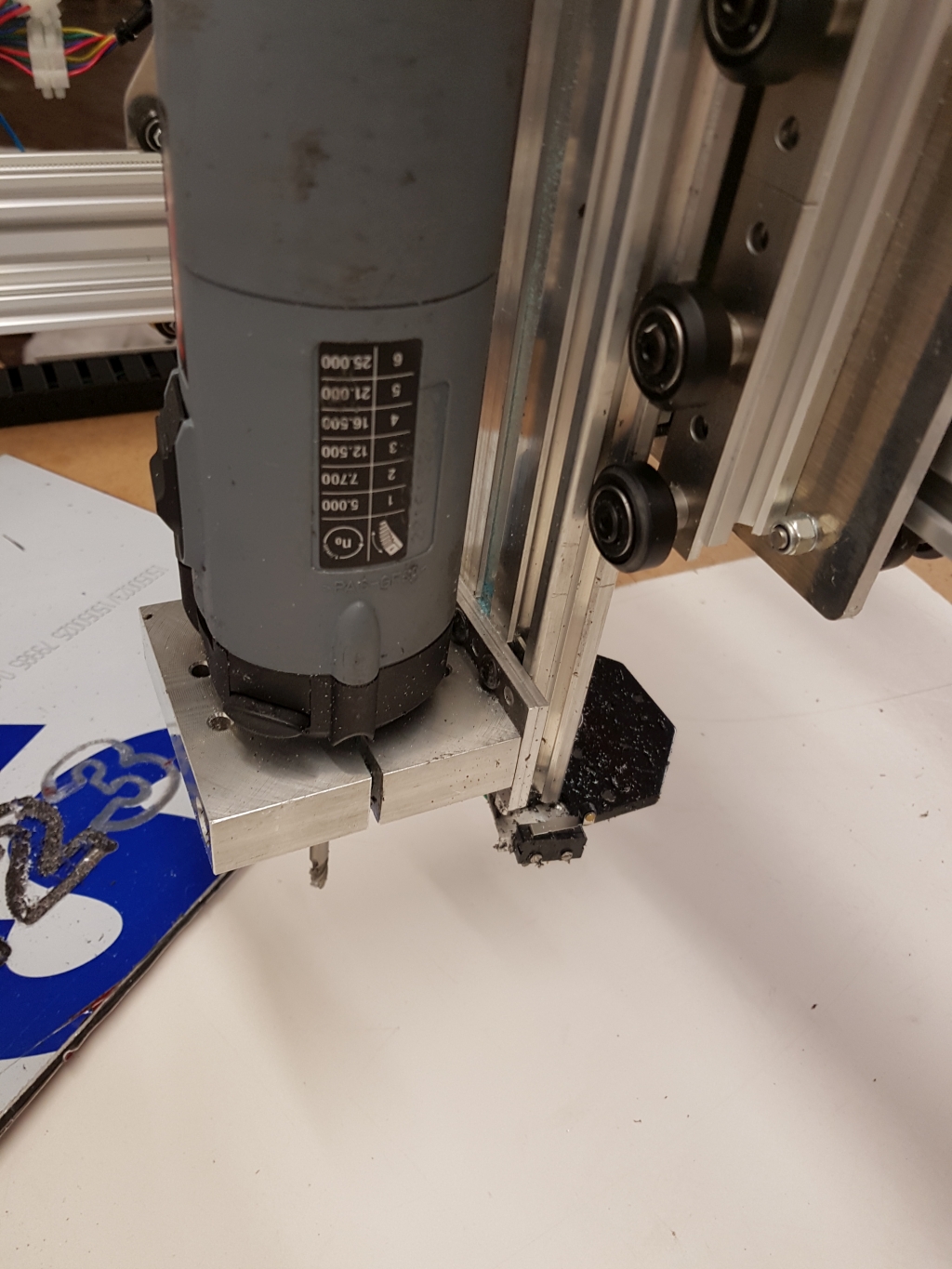

    Spindle: Kress 1050-FME

    I think originally was designed for modeling foam. So she isn't very heavy duty.

    The machine lives in Bradford, Although, for various reasons i am Usually in Manchester, London, Hertfordshire and Bradford.

    Click image for larger version.

Name:	CNC_20170131-001.jpg
Views:	32
Size:	566.9 KB
ID:	21085 Click image for larger version.

Name:	CNC_20170131-002.jpg
Views:	35
Size:	370.2 KB
ID:	21086 Click image for larger version.

Name:	CNC_20170131-003-s.jpg
Views:	40
Size:	345.8 KB
ID:	21087 Click image for larger version.

Name:	CNC_20170131-005.jpg
Views:	43
Size:	687.6 KB
ID:	21088 Click image for larger version.

Name:	CNC_20170131-006.jpg
Views:	37
Size:	371.0 KB
ID:	21089 Click image for larger version.

Name:	cnc_20170228-001-Frame.jpg
Views:	34
Size:	772.5 KB
ID:	21090 Click image for larger version.

Name:	cnc_20170228-002-Loose Kress.jpg
Views:	37
Size:	701.4 KB
ID:	21091 Click image for larger version.

Name:	hobbies-cnc_20170125-002.jpg
Views:	46
Size:	452.1 KB
ID:	21092
    Last edited by CrazeUK; 14-03-2017 at 03:45 AM.

  2. #2
    P.s. how do i add a link to this thread in my footer?
