  1. #1
    Got a machine in for repair and it's fitted with one of Roy's System 3 board so looking for the PDF booklet on it if anyone has one.

    Can't ask Roy as he's retired to Spain and sold out to R-Tech, the welding people but they have discontinued all the CNC parts.
    John S -

  2. #2
    Now sorted, many thanks.
    John S -

  3. #3
    Hi John
    I have just had a look here -
    https://web-beta.archive.org/web/*/h...cnc.co.uk:80/*

    see next to bottom file

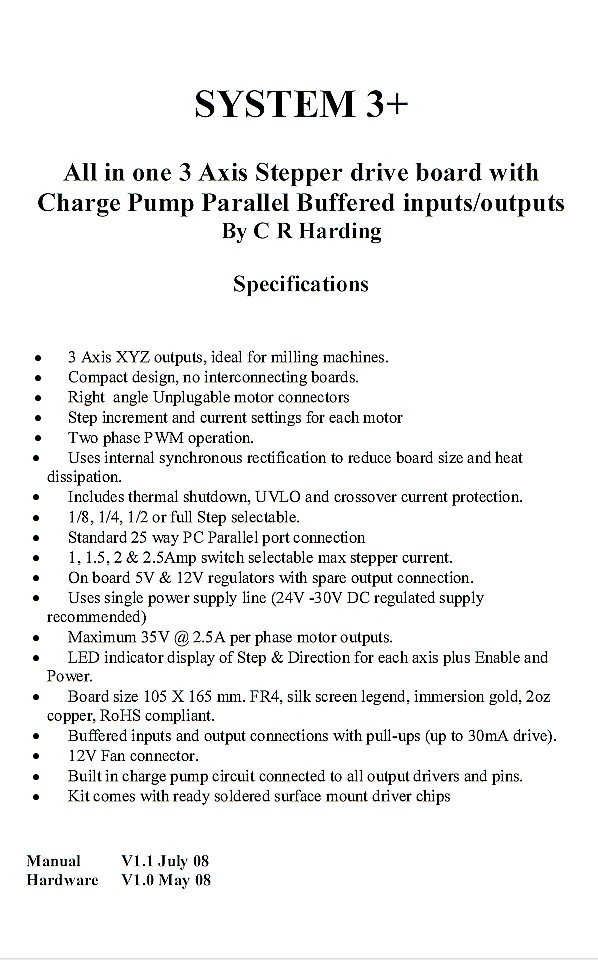

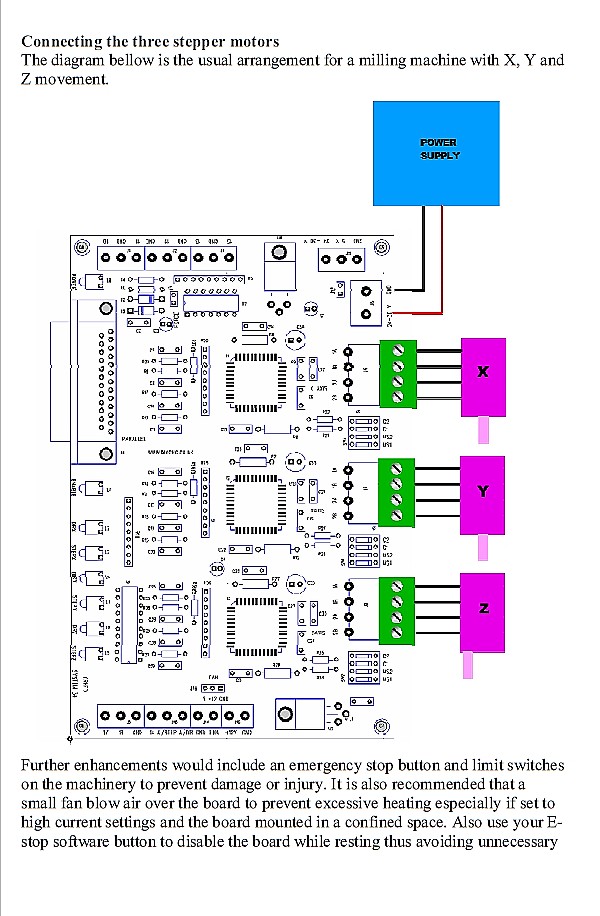

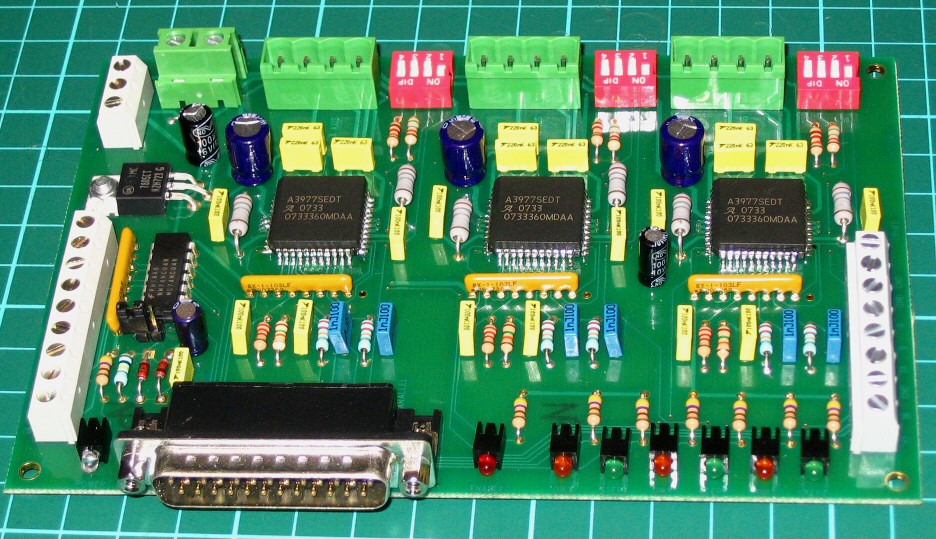

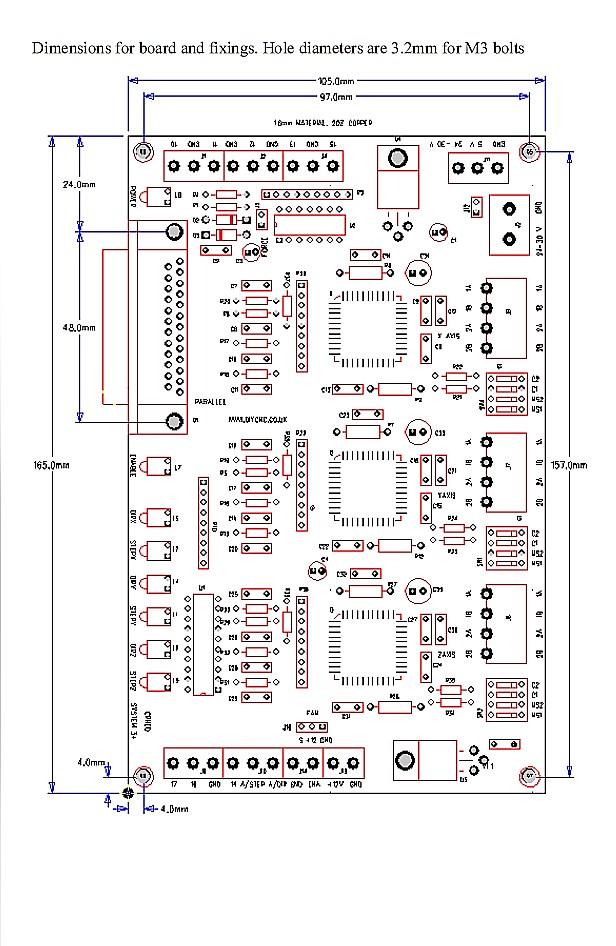

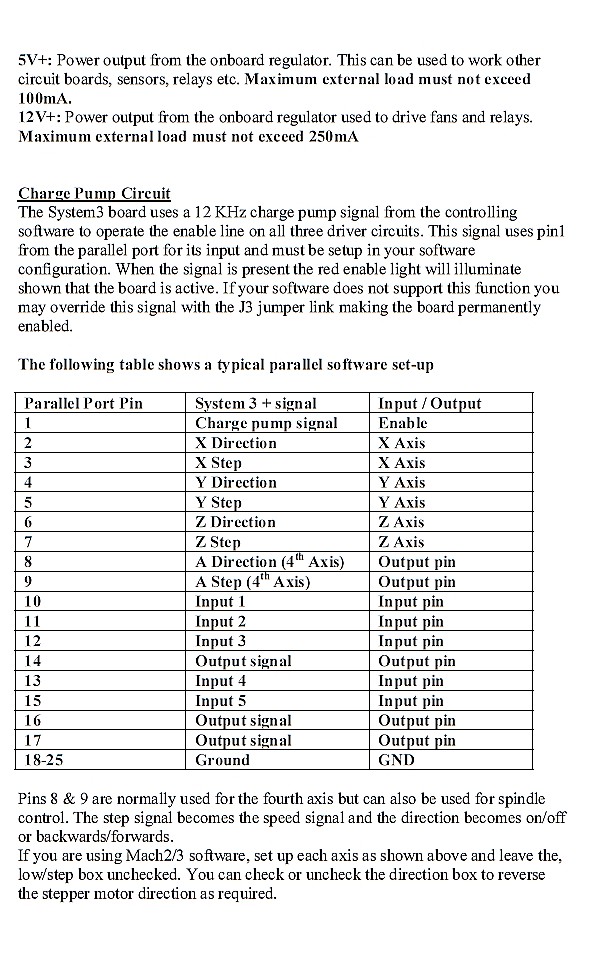

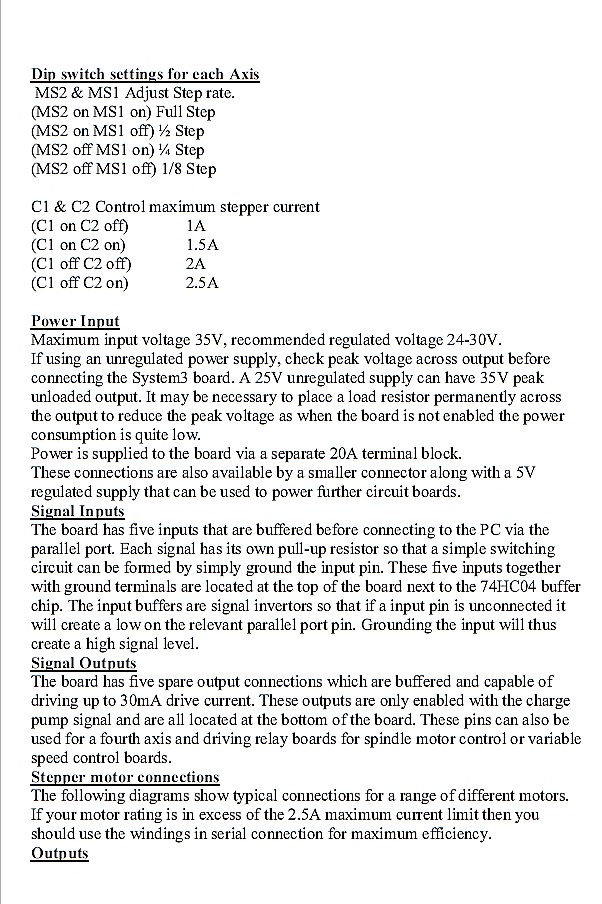

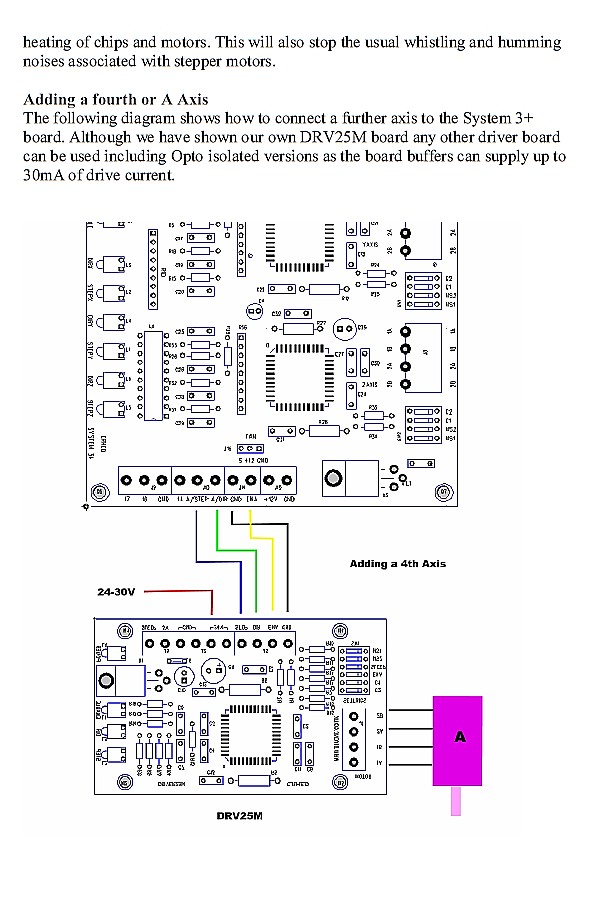

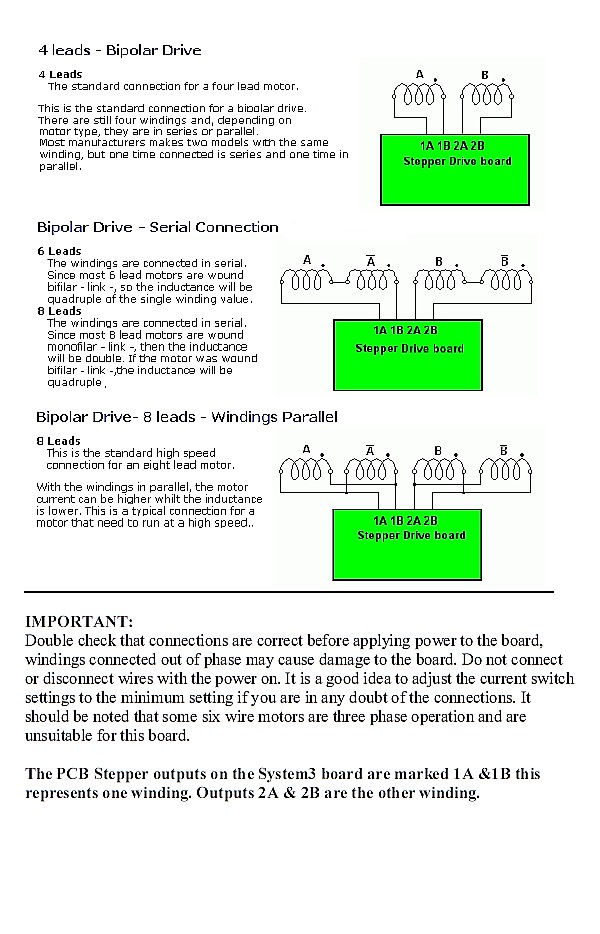

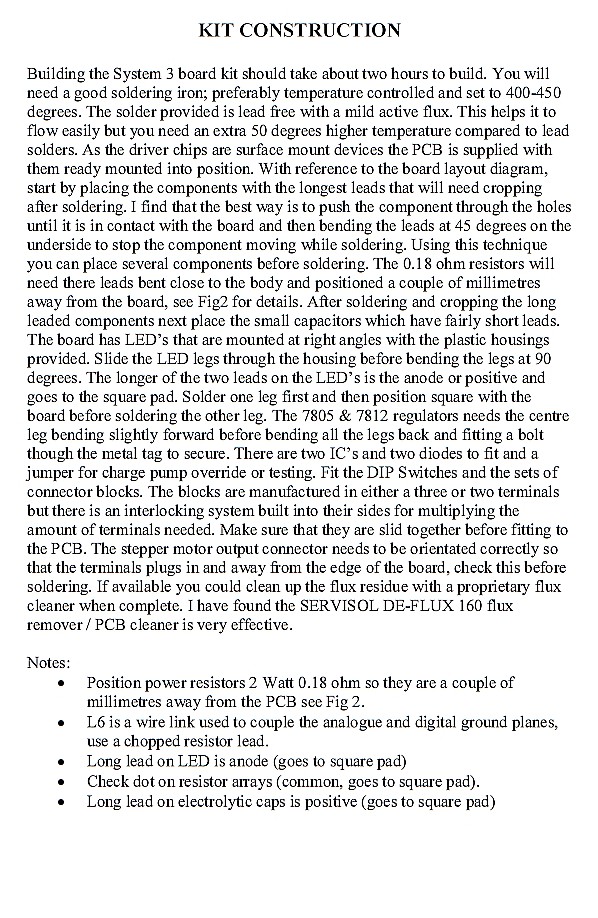

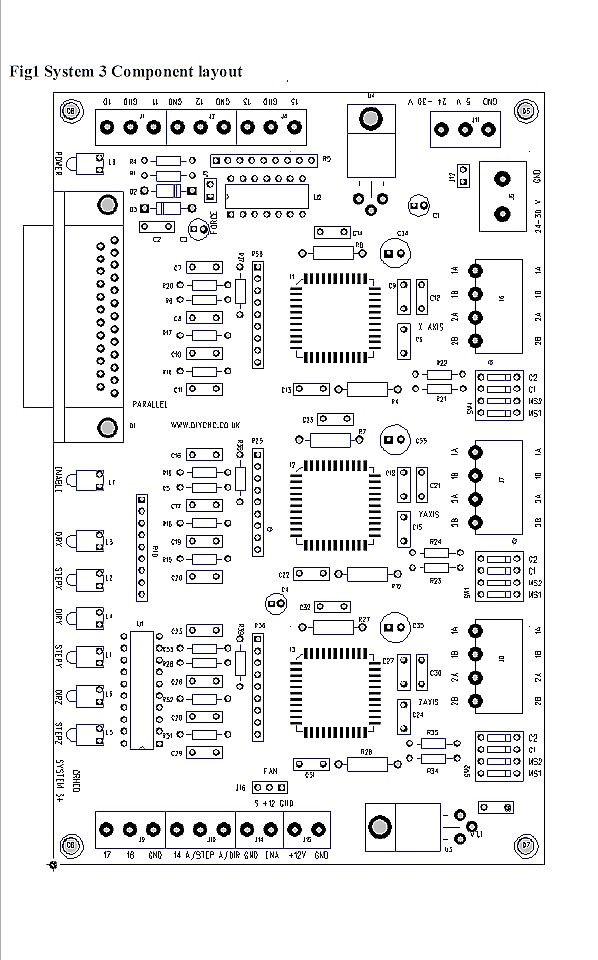

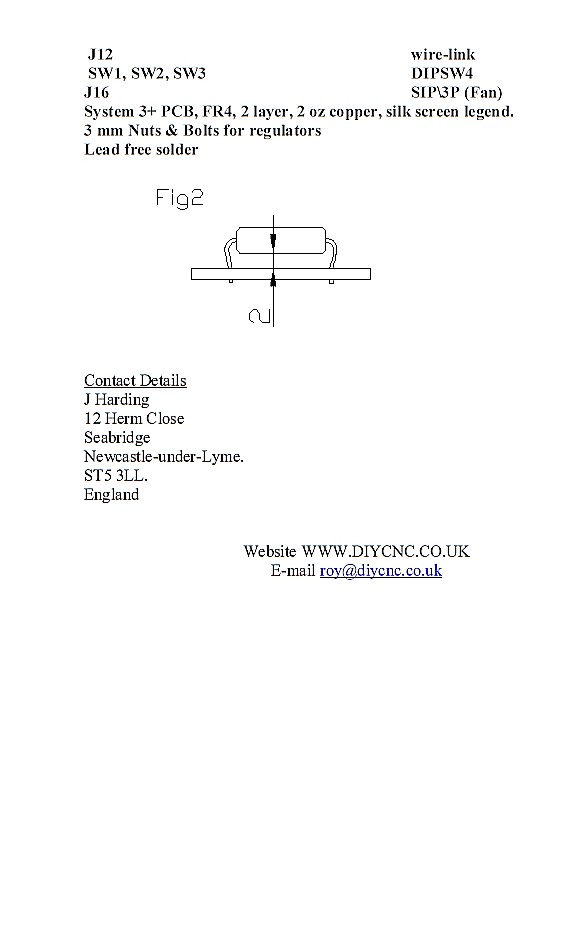

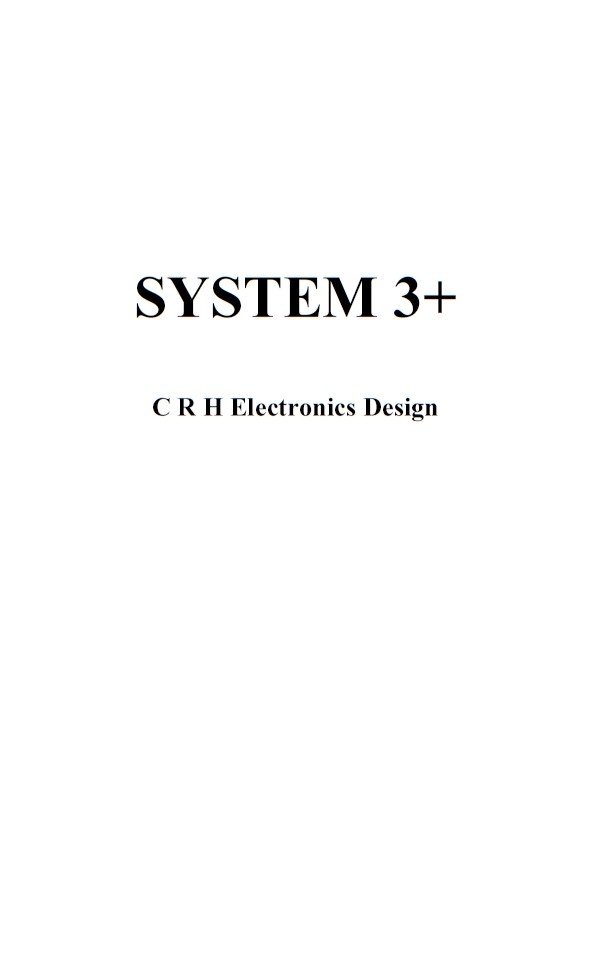

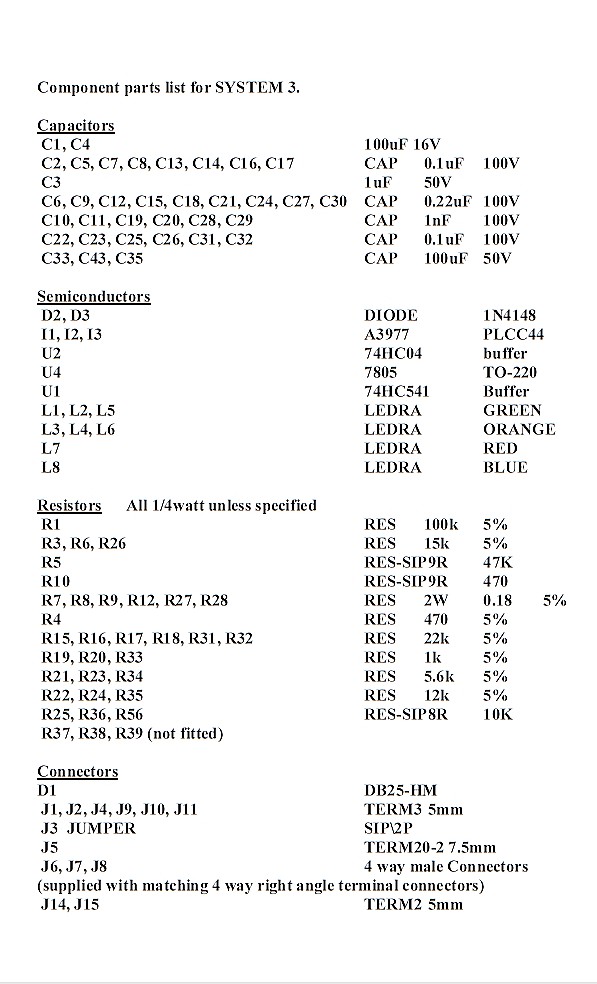

    found the system3 manual and a photo

    for some reason I cant upload the manual !!!
    I'l try and save the pages as jpegs
    Click image for larger version.

Name:	system3A.jpg
Views:	201
Size:	205.3 KB
ID:	21231


    John

    Click image for larger version.

Name:	1.jpg
Views:	181
Size:	20.9 KB
ID:	21232Click image for larger version.

Name:	2.jpg
Views:	178
Size:	140.4 KB
ID:	21233Click image for larger version.

Name:	3.jpg
Views:	166
Size:	191.7 KB
ID:	21234Click image for larger version.

Name:	4.jpg
Views:	200
Size:	182.6 KB
ID:	21235Click image for larger version.

Name:	5.jpg
Views:	163
Size:	156.0 KB
ID:	21236Click image for larger version.

Name:	6.jpg
Views:	197
Size:	149.1 KB
ID:	21237Click image for larger version.

Name:	7.jpg
Views:	170
Size:	154.4 KB
ID:	21238Click image for larger version.

Name:	8.jpg
Views:	173
Size:	133.4 KB
ID:	21239Click image for larger version.

Name:	9.jpg
Views:	158
Size:	246.8 KB
ID:	21240Click image for larger version.

Name:	10.jpg
Views:	218
Size:	118.3 KB
ID:	21241Click image for larger version.

Name:	11.jpg
Views:	156
Size:	42.5 KB
ID:	21242Click image for larger version.

Name:	12.jpg
Views:	186
Size:	156.7 KB
ID:	21243
    Last edited by john swift; 24-03-2017 at 02:01 AM.

  4. #4
    John,
    Thanks for that but after doing a bit of searching earlier on the same site I determined it was a System 4 but with only three cards fitted.
    I now have about 5 copies of the various iterations of that System4 book.

    Many thanks anyway.

    Will have some more question is a fresh thread as this machine a Boxford 160 has a toolchanger fitted and it's been roughly converted to Mach3 [ one axis moves ] but it's lacking the tool changer macro.

    However I need to do some homework for myself first and then if still stuck, start a new thead.
    John S -

  5. #5
    Hi John

    good to see you have found the information you needed

    I've found the internet archive wayback machine use full several times when web sites I've searched for have closed

    my reply still use full if it brings the archive to the attention other members here

    John

  6. #6
    Hi John

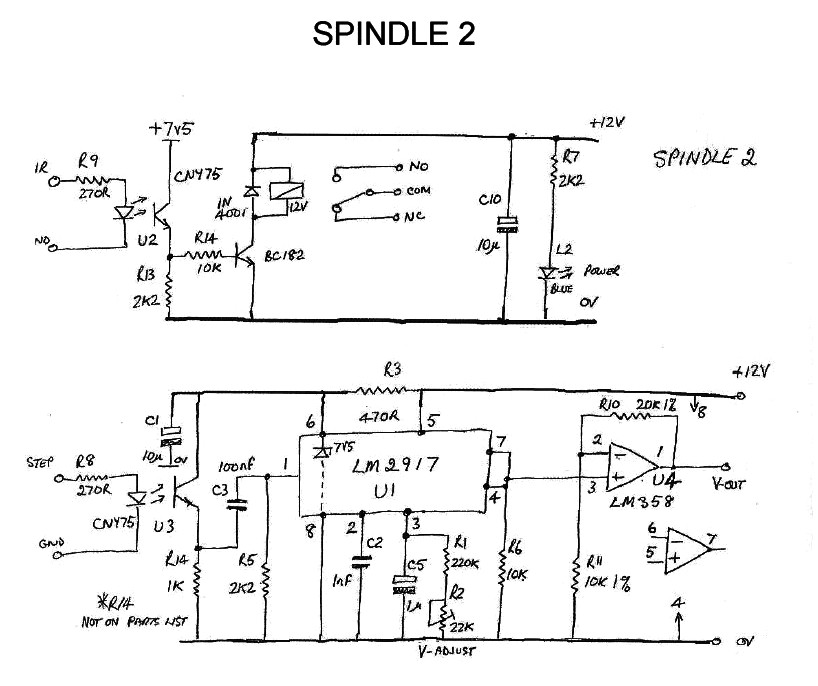

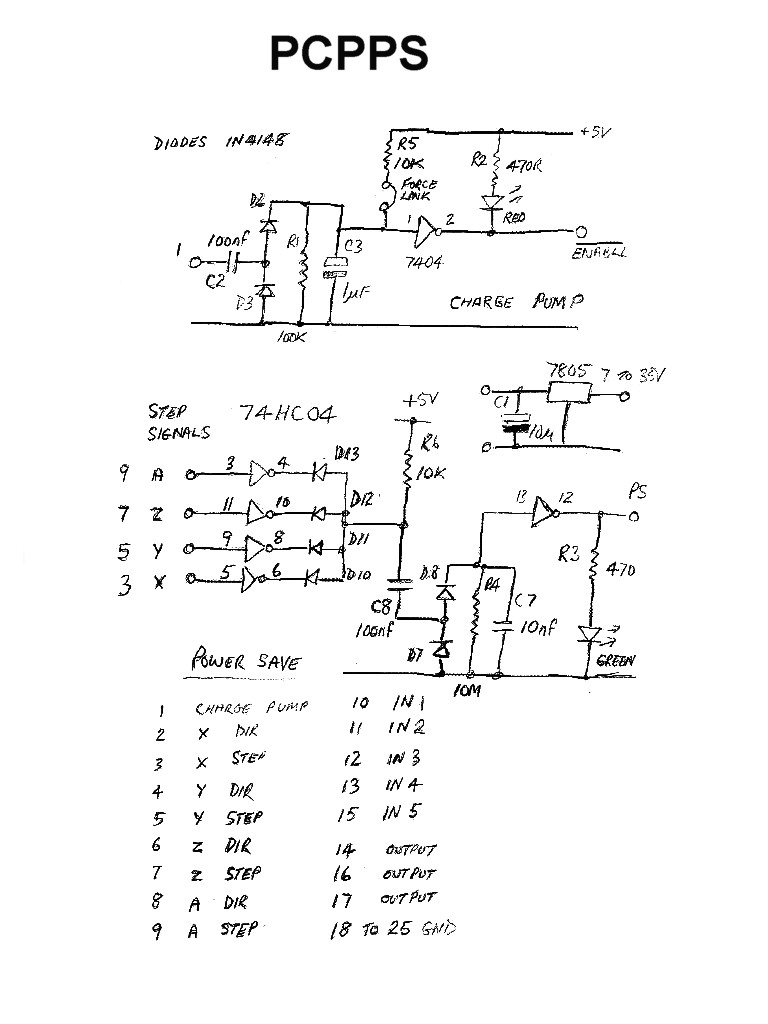

    spindle 2 & pcpps circuits to add to your CRH Design archive

    Click image for larger version.

Name:	spindle 2 .jpg
Views:	240
Size:	96.0 KB
ID:	21247

    Click image for larger version.

Name:	pcpps.jpg
Views:	202
Size:	101.6 KB
ID:	21248

    John
    Last edited by john swift; 24-03-2017 at 12:51 PM.
