    Quote Originally Posted by Clive S View Post
    Not sure what you mean by this the two profile are fitted together to make an L so the lower one is horizontal with the other one sitting on top vertical, the BK and BF bearings for the screw will fit the slots in the profile
    You are correct as always ;) but I think the smaller 80x40 was okay strength wise, just alot more handy with the 90x45 because of the bearings and the clever bolt on approach

    Skickat från min SM-N910C via Tapatalk

  2. #32
    Quote Originally Posted by Nr1madman View Post
    You are correct as always ;) but I think the smaller 80x40 was okay strength wise, just alot more handy with the 90x45 because of the bearings and the clever bolt on approach

    Skickat från min SM-N910C via Tapatalk
    Exactly, better job all round the bolt holes are perfect for the 45x90
    ..Clive
    The more you know, The better you know, How little you know

  3. #33

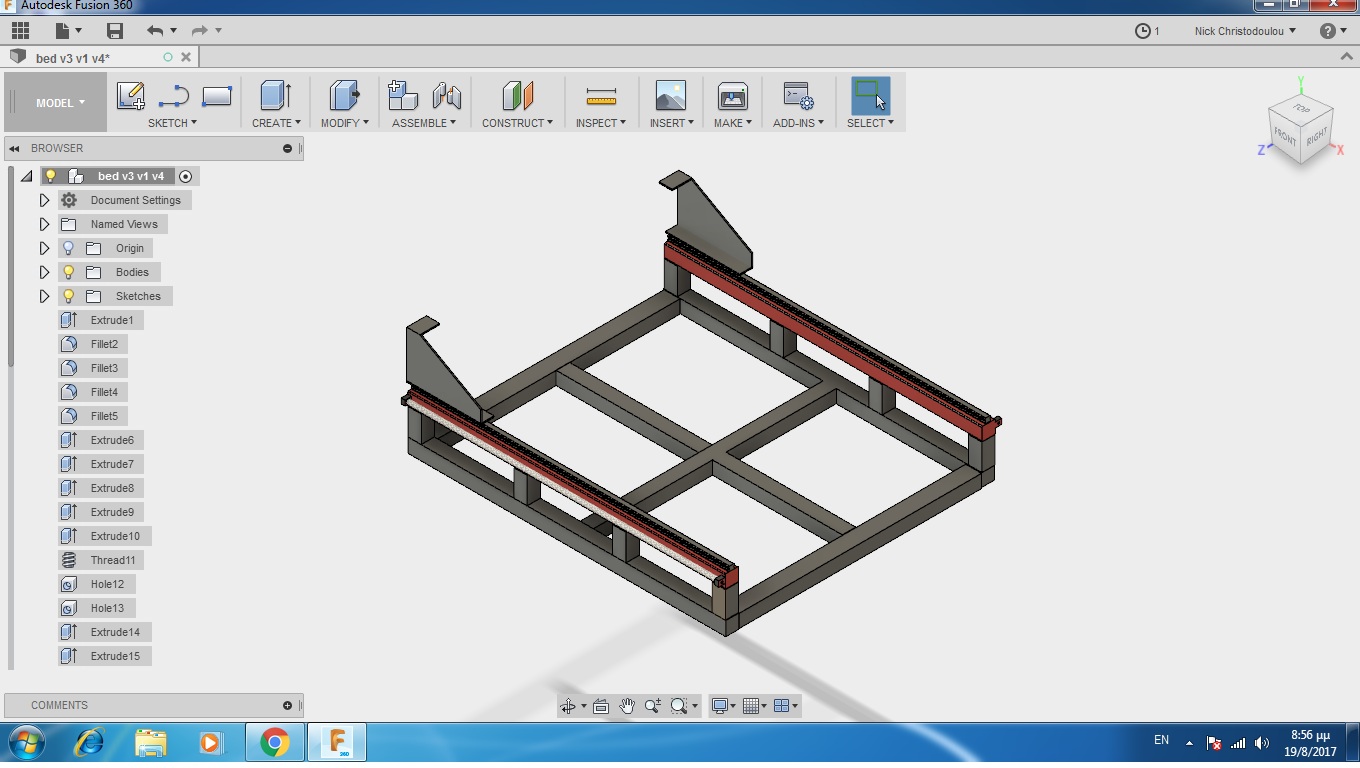

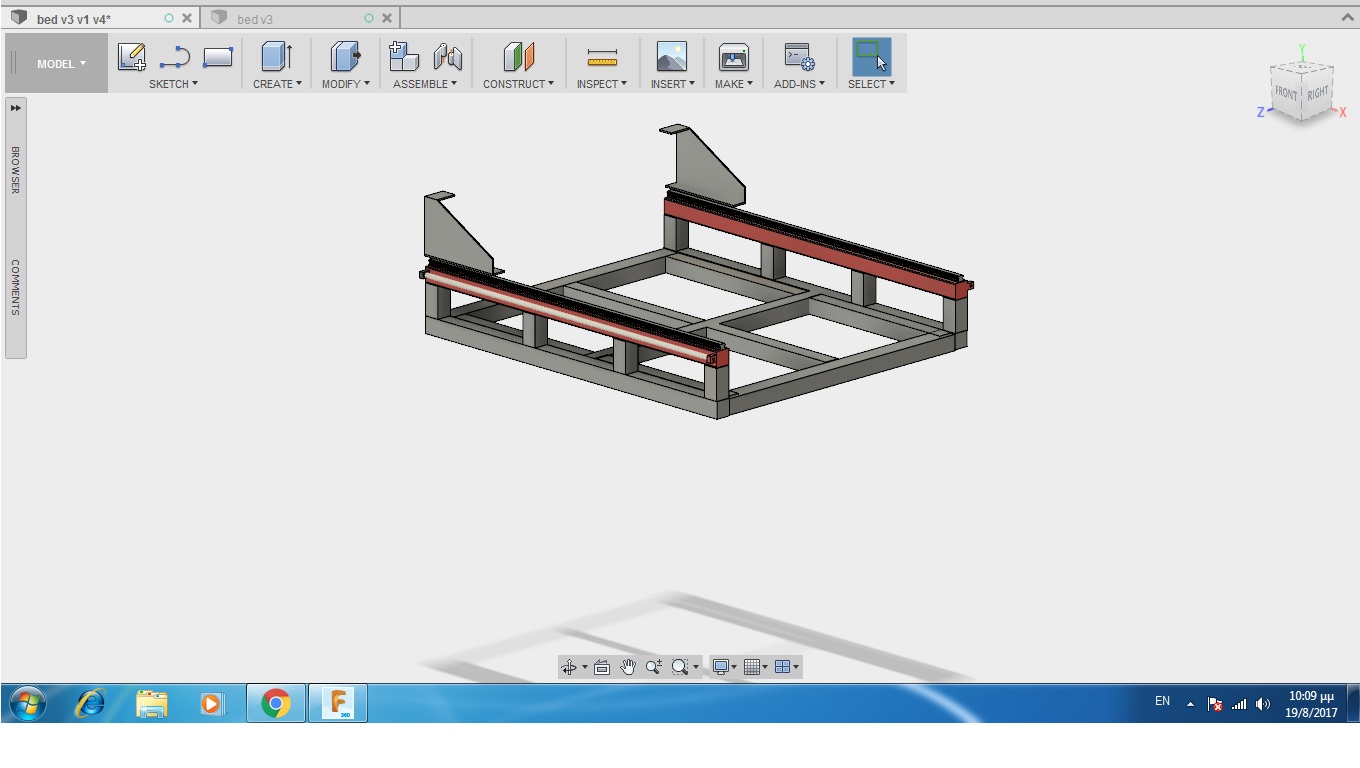

    After some sleepless nights watching some video tutorials about Fusion 360 CliveS point me, thanks Clive, I came up with this.

    The questions now are:
    Can I use two pieces from this aluminum extrusion for the Y axis, not complete on the photo, and screw them them at left and right on the supports?
    And what extrusions can I use for the X(long) axis, to support the Hiwin rails and screws.

    http://www.ebay.co.uk/itm/like/17233...?ul_noapp=true
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	bed and x axis.jpg
Views:	58
Size:	175.3 KB
ID:	22613   Click image for larger version.

Name:	bed and x axis.jpg
Views:	43
Size:	123.1 KB
ID:	22614
    Last edited by Nickhofen; 01-09-2017 at 08:40 PM.

  4. #34
    I was thinking the option of using aluminum extrusions for the axis, since this way there is no need for drilling ,tapping and leveling with epoxy!

  5. #35
    Can I use two pieces from this aluminum extrusion for the Y axis, not complete on the photo, and screw them them at left and right on the supports?
    Yes use two pieces one flat and one upright like an L. Then drill the upright one down the channel slot and bolt it to the flat one with tee nuts M6 90mm cap head
    ..Clive
    The more you know, The better you know, How little you know

  6. The Following User Says Thank You to Clive S For This Useful Post:


  7. #36
    Thanks Clive, always so helpful!
    Can I use the same extrusion for the x(long axis ) to bolt 20mm rails and ballscrew on? Or I need a thicker extrusion?

  8. #37
    Quote Originally Posted by Nickhofen View Post
    Thanks Clive, always so helpful!
    Can I use the same extrusion for the x(long axis ) to bolt 20mm rails and ballscrew on? Or I need a thicker extrusion?
    Its very nice using extrusion (heavy duty) because the slots it the 90x45 are exactly correct for the bk and bf bearings and can be mounted with tee nuts 6MM the 20mm rails will also mount into on top of the slots. You would have to work out how to fix the extrusion to your frame.

    The ends of the extrusion can also be tapped without drilling for M12 bolts. with a spiral tap in an electric drill.
    ..Clive
    The more you know, The better you know, How little you know

  9. #38
    I see that they are not as cheap as steel tubing but that save me from a lot of work and time!
    Thank you Sir!

  10. #39
    Quote Originally Posted by Nickhofen View Post
    I see that they are not as cheap as steel tubing but that save me from a lot of work and time!
    Thank you Sir!
    Yes if you decide on them get the company to cut them to length
    ..Clive
    The more you know, The better you know, How little you know

  11. #40
    I will message the seller,Thanks!
    One more silly question..For X (long axe) what side is better the extrusion lay on the bed side, the sort(45) or the thick(90), for matter of stability.
