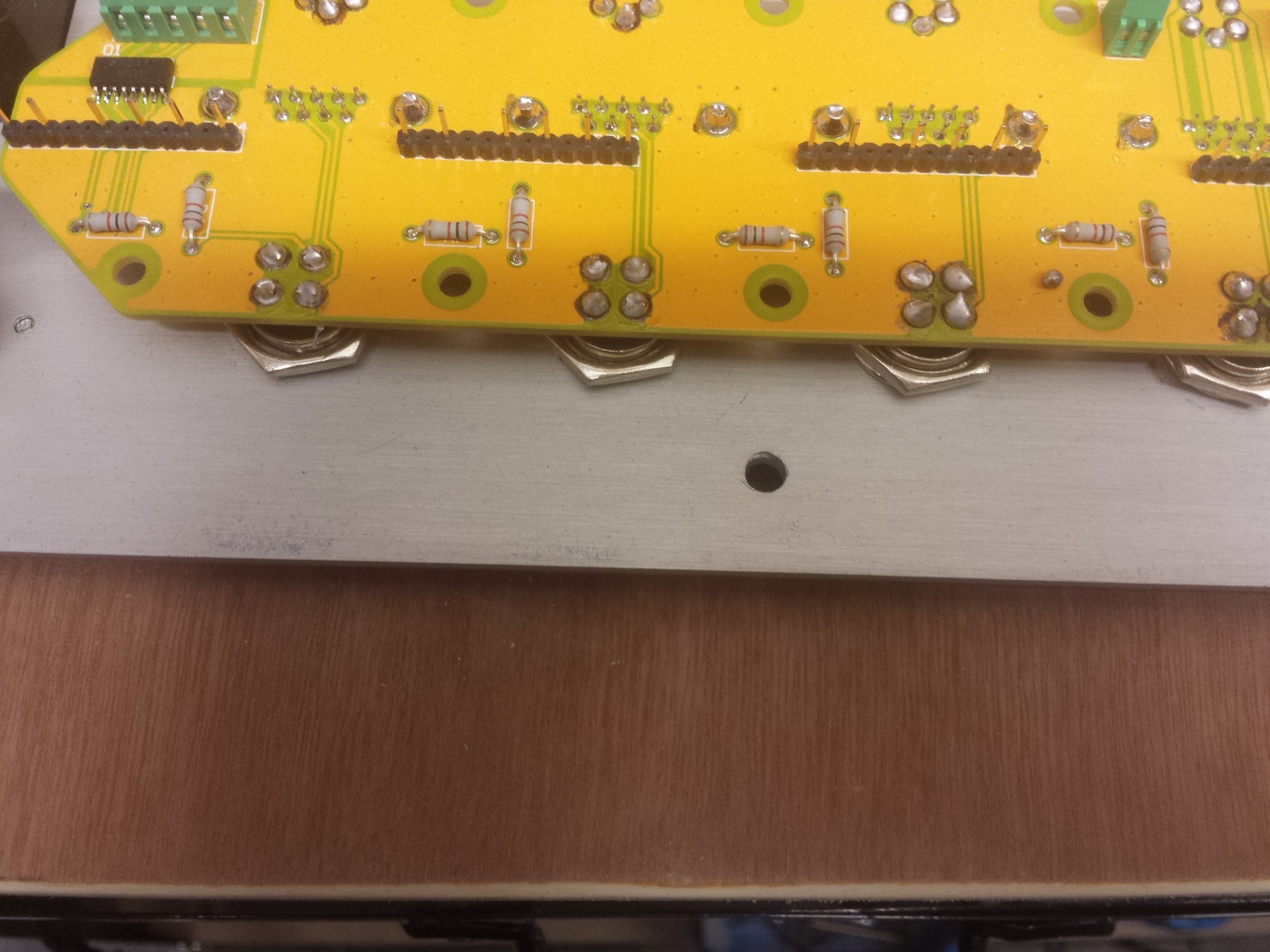

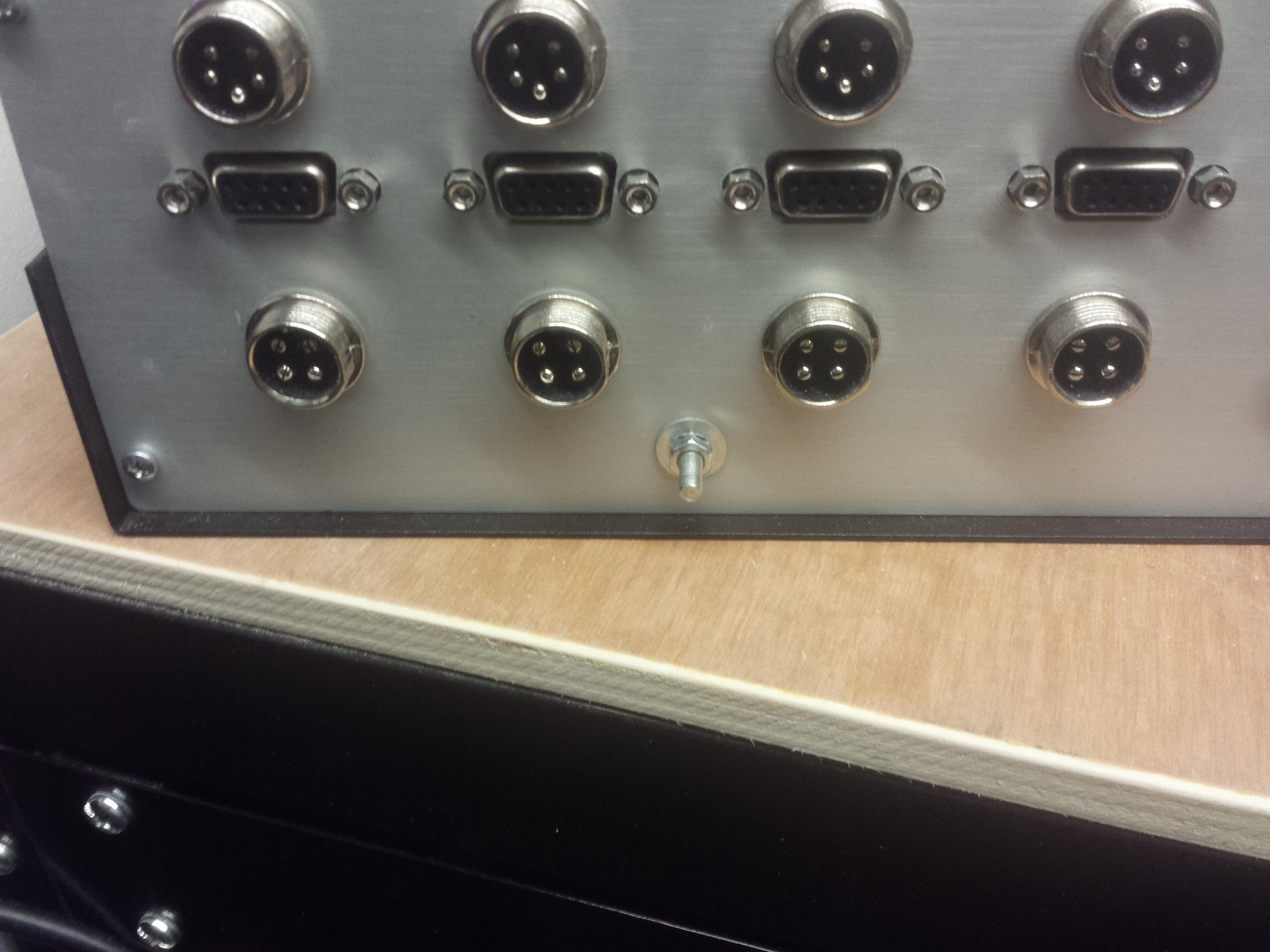

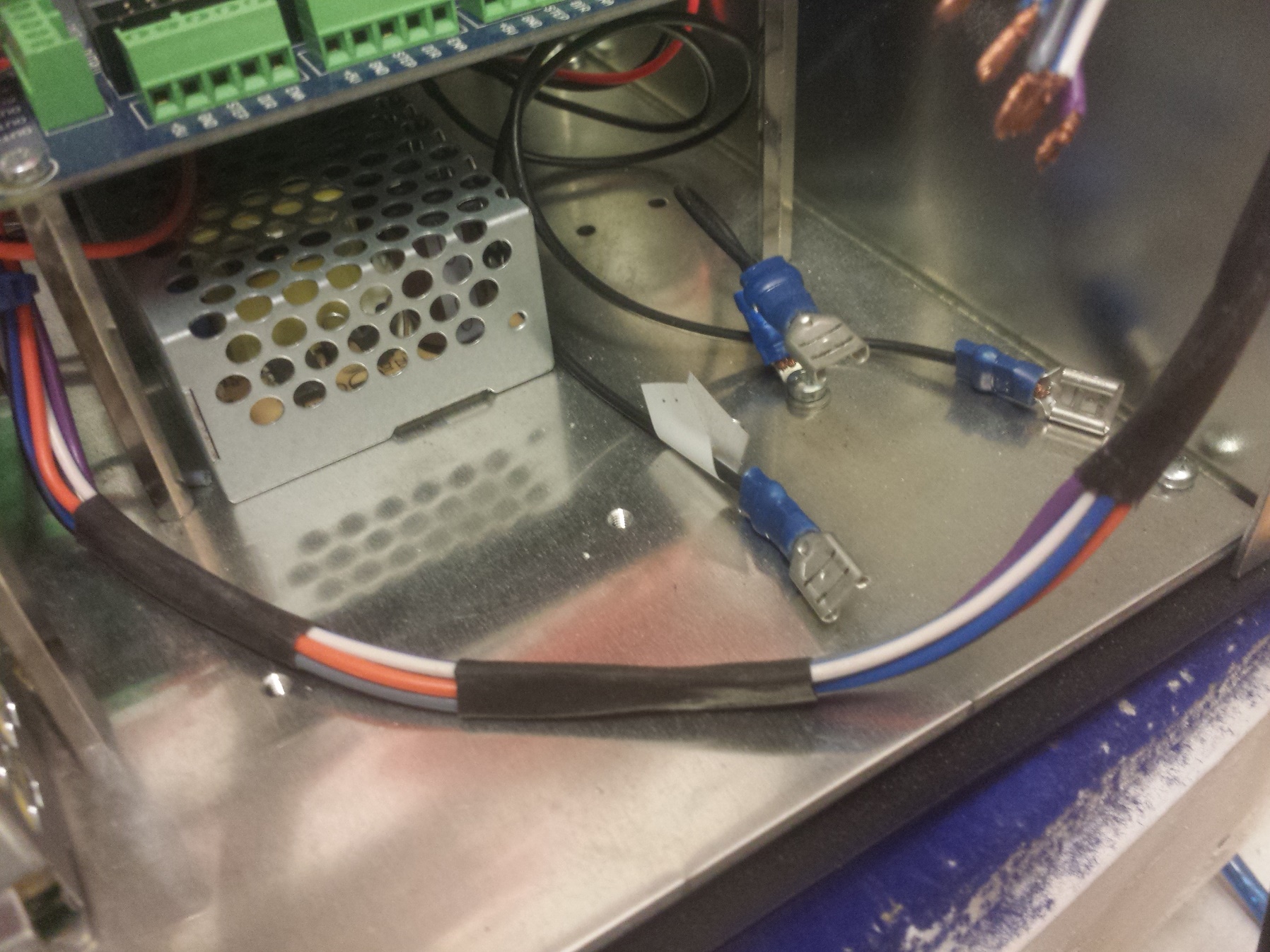

  1. After you all explained what a star was in the box it was obvious where it was when I opened it up. I have drilled a small hole near the motor connections and linked a bolt to the star so I can attached the earthed wires from the motor cable screens to it

    Click image for larger version.

Name:	20170729_153105.jpg
Views:	39
Size:	655.0 KB
ID:	22416Click image for larger version.

Name:	20170729_153115.jpg
Views:	31
Size:	528.5 KB
ID:	22417Click image for larger version.

Name:	20170729_153121.jpg
Views:	34
Size:	718.8 KB
ID:	22418Click image for larger version.

Name:	20170729_154000.jpg
Views:	39
Size:	581.7 KB
ID:	22419
    Enthusiastic with CNC stuff but a proper novice so be gentle
    My build blog:
    Chinese 3020t Build

  2. The Following User Says Thank You to ravihotwok For This Useful Post:

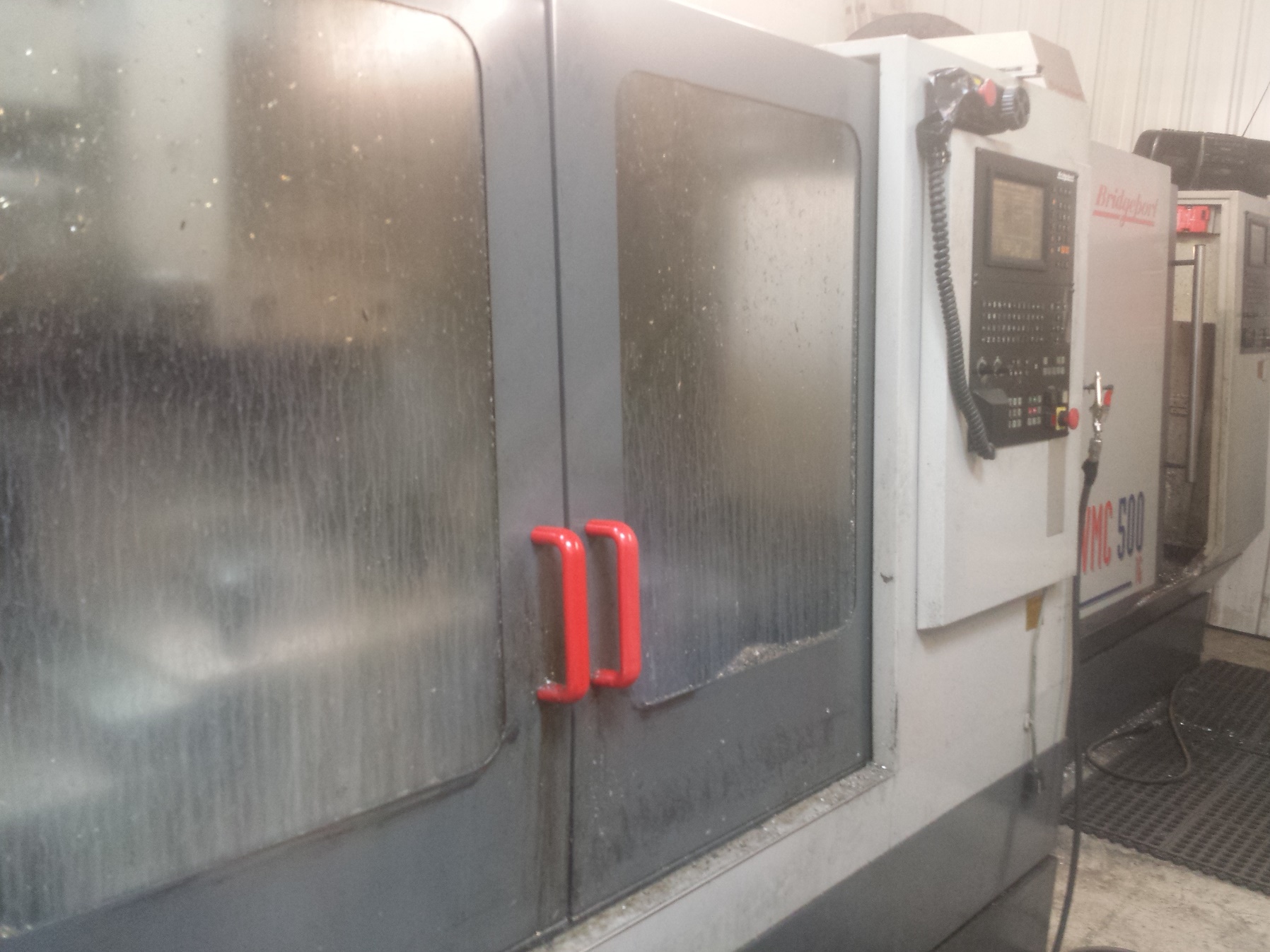

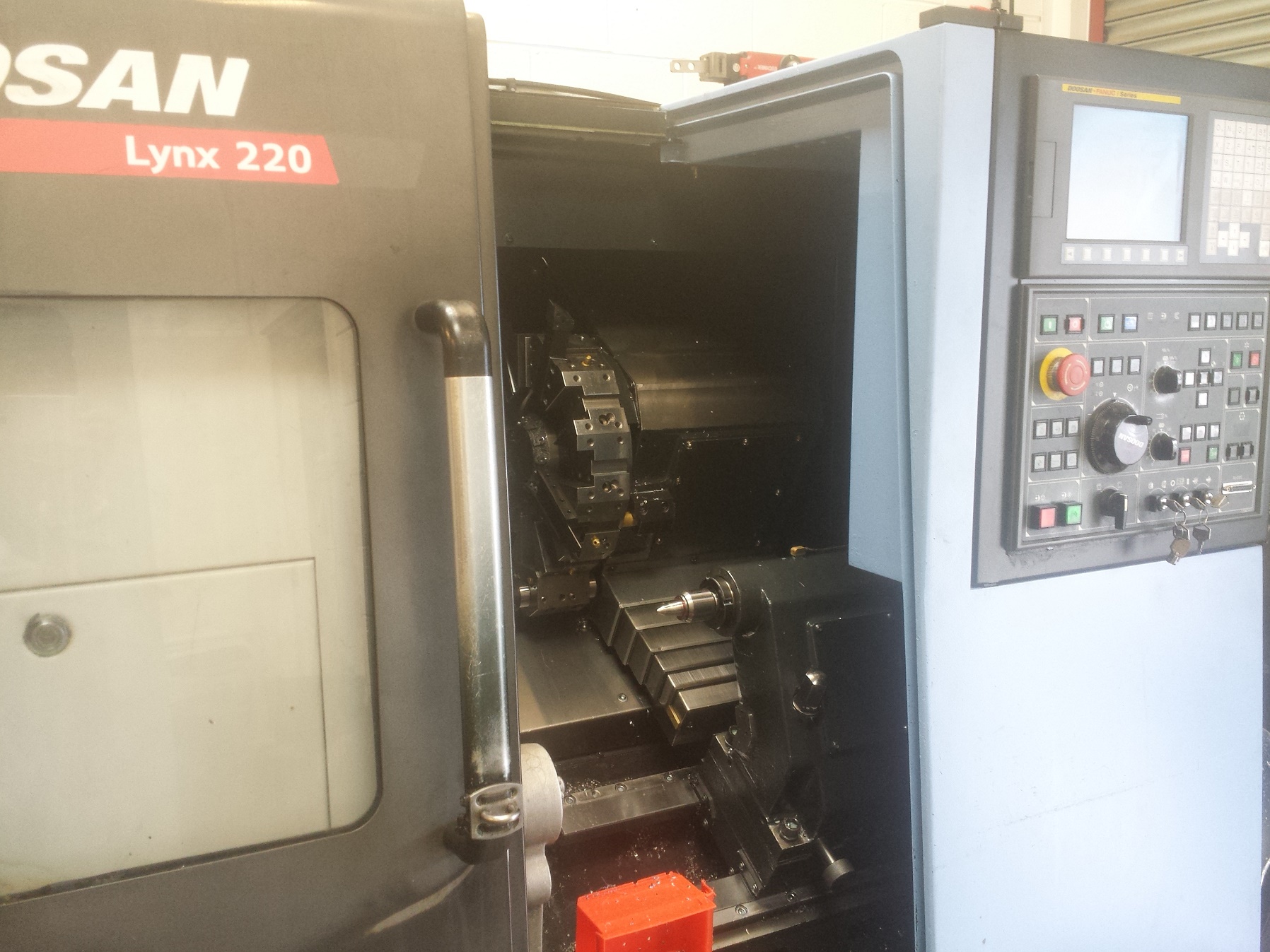

  3. also popped to my best mates workshop, he has a few little toys ;-)

    Click image for larger version.

Name:	20170729_115153.jpg
Views:	31
Size:	610.7 KB
ID:	22420Click image for larger version.

Name:	20170729_115159.jpg
Views:	31
Size:	545.3 KB
ID:	22421
    Enthusiastic with CNC stuff but a proper novice so be gentle
    My build blog:
    Chinese 3020t Build

  4. #73
    Quote Originally Posted by ravihotwok View Post
    singed the board coating a little but the solder had made a solid connection and like I say plent of solder has flowed into the conection
    Yep looks much better, you can see now how they resemble the other original joints more, nice job.

    Quote Originally Posted by ravihotwok View Post
    also popped to my best mates workshop, he has a few little toys ;-)
    :) Mates with benefits a , your plan for the control box and the earthing looks to be ok.
    Last edited by Lee Roberts; 31-07-2017 at 02:15 PM.
    .Me

  5. thanks very much lee, still a bit iffy but the main thing is I now know the theory behind it.

    Yeah my mate does a lot of contracting to a few aerospace firms and has helped me out a fair bit with advice, nearly pissed himself when I showed him my 4 axis machine lol
    Enthusiastic with CNC stuff but a proper novice so be gentle
    My build blog:
    Chinese 3020t Build

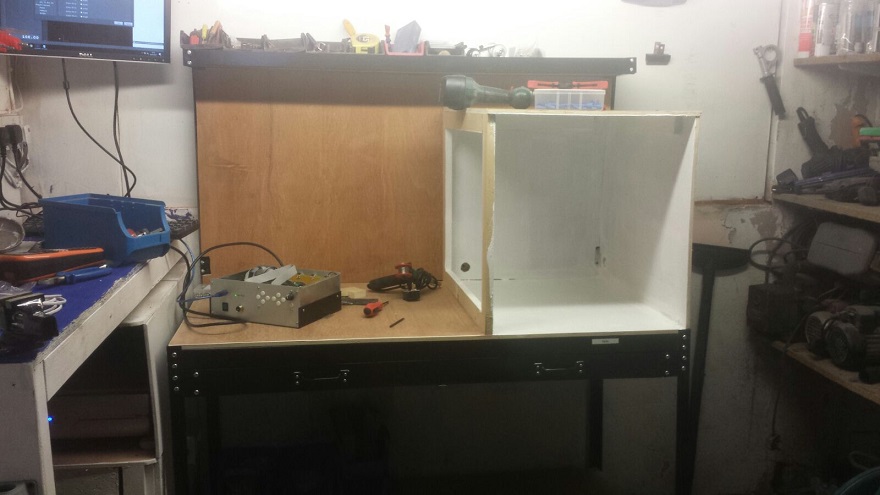

  6. Work has been crazy busy at the moment so only been able to do a little bit on the build. I have started to create an enclosure for the machine, this will consist of a sealed unit with 2 led strip light running at the top of the enclosure front to back each side. One side of the enclosure will be perspex and and front will be a hinged perspex door. There will be an extraction system installed on the side opposite the perspex. Its a very make-shift idea but it will serve a purpose I think and help keep the area as clean as possible.

    I have replaced all the wood on the workbench from cheap thin mdf to 12mm thick ply wood for stability, weight and strength.

    Click image for larger version.

Name:	IMG-20170729-WA0011.jpg
Views:	37
Size:	100.5 KB
ID:	22433

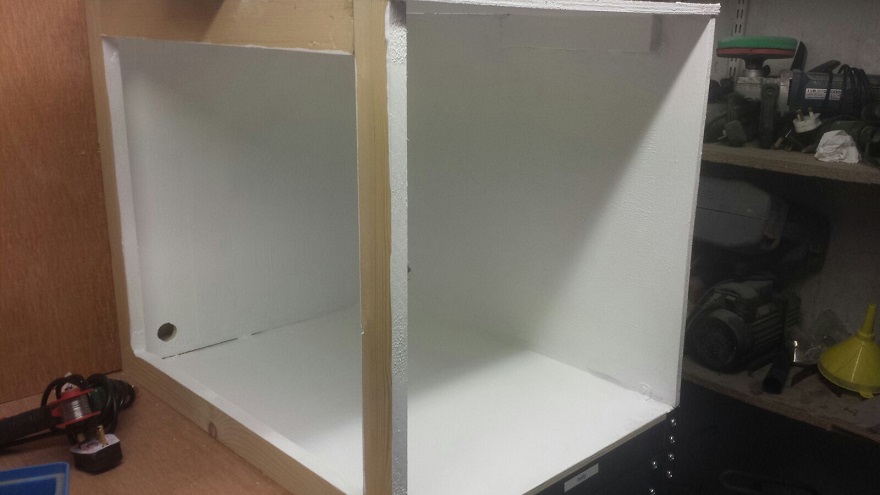

    Now I have added a few coats of paint to the inside of the enclosure to aid lighting
    Enthusiastic with CNC stuff but a proper novice so be gentle
    My build blog:
    Chinese 3020t Build

  7. The Following User Says Thank You to ravihotwok For This Useful Post:


  8. Click image for larger version.

Name:	IMG-20170729-WA0013.jpg
Views:	27
Size:	96.6 KB
ID:	22434Click image for larger version.

Name:	IMG-20170729-WA0016.jpg
Views:	22
Size:	82.1 KB
ID:	22435

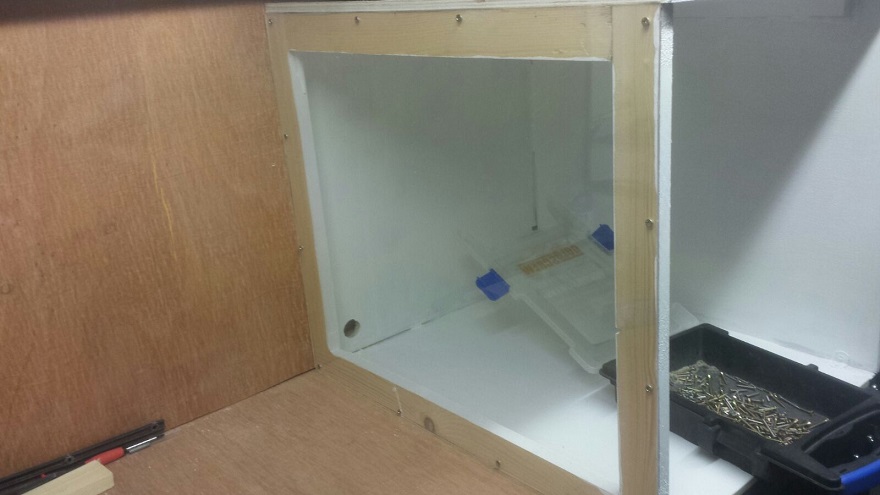

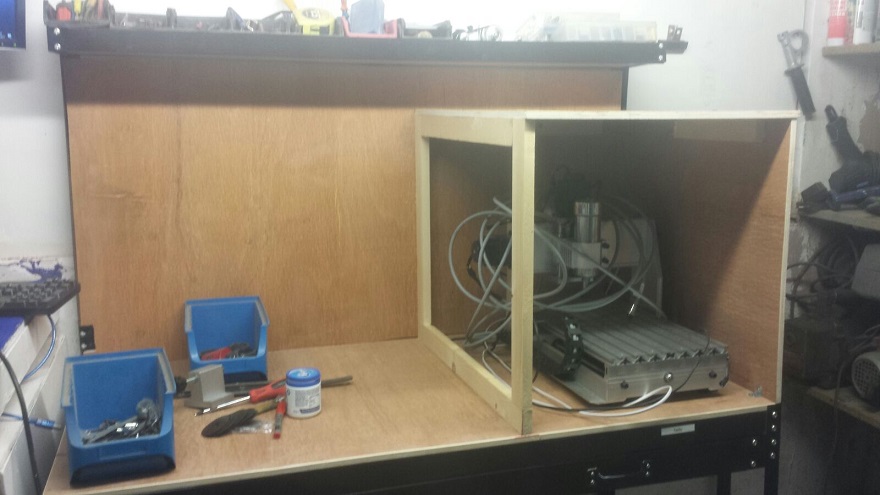

    And here is the side perspex screen installed
    Click image for larger version.

Name:	IMG-20170730-WA0001.jpg
Views:	25
Size:	89.7 KB
ID:	22436
    Enthusiastic with CNC stuff but a proper novice so be gentle
    My build blog:
    Chinese 3020t Build

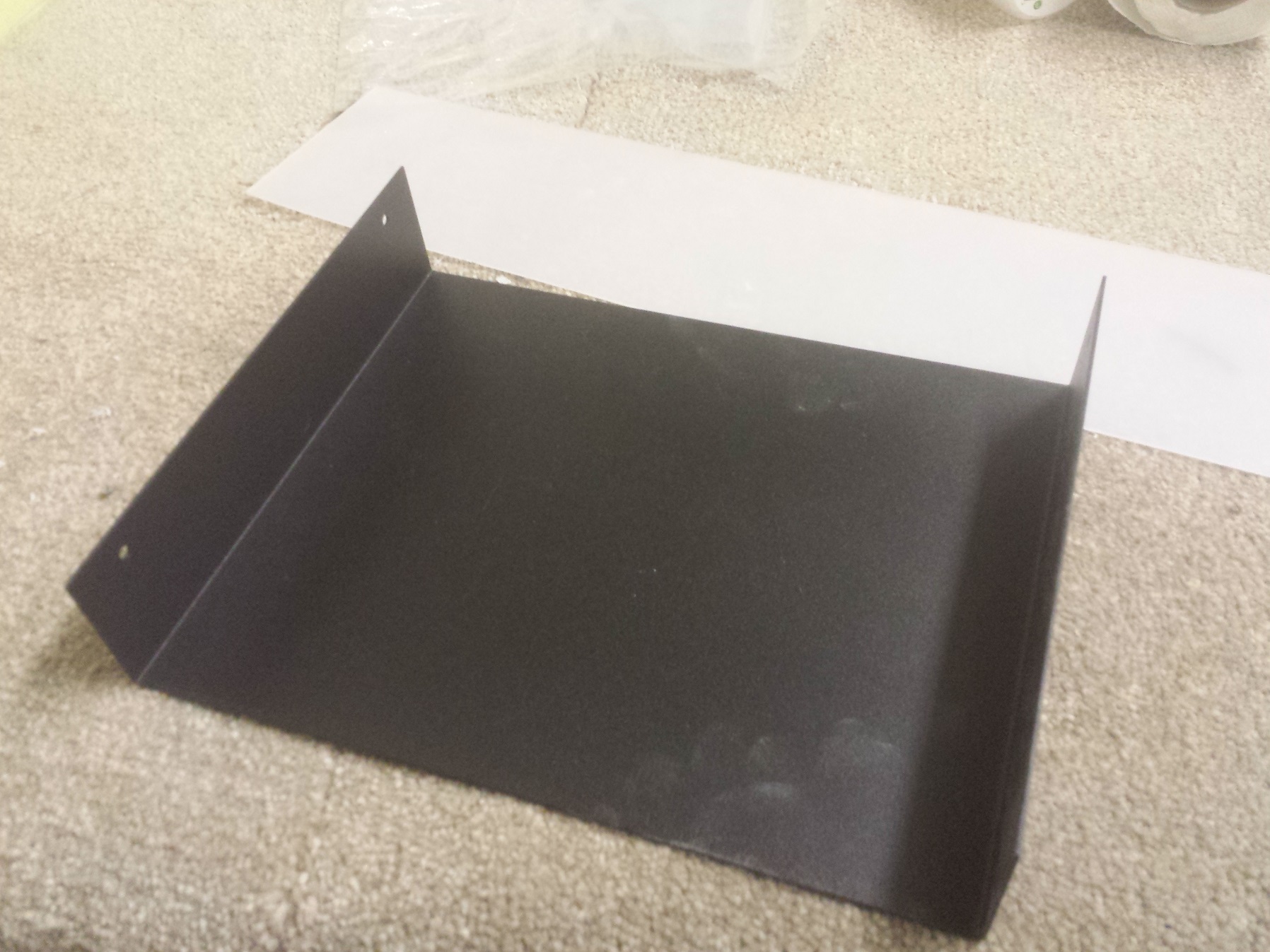

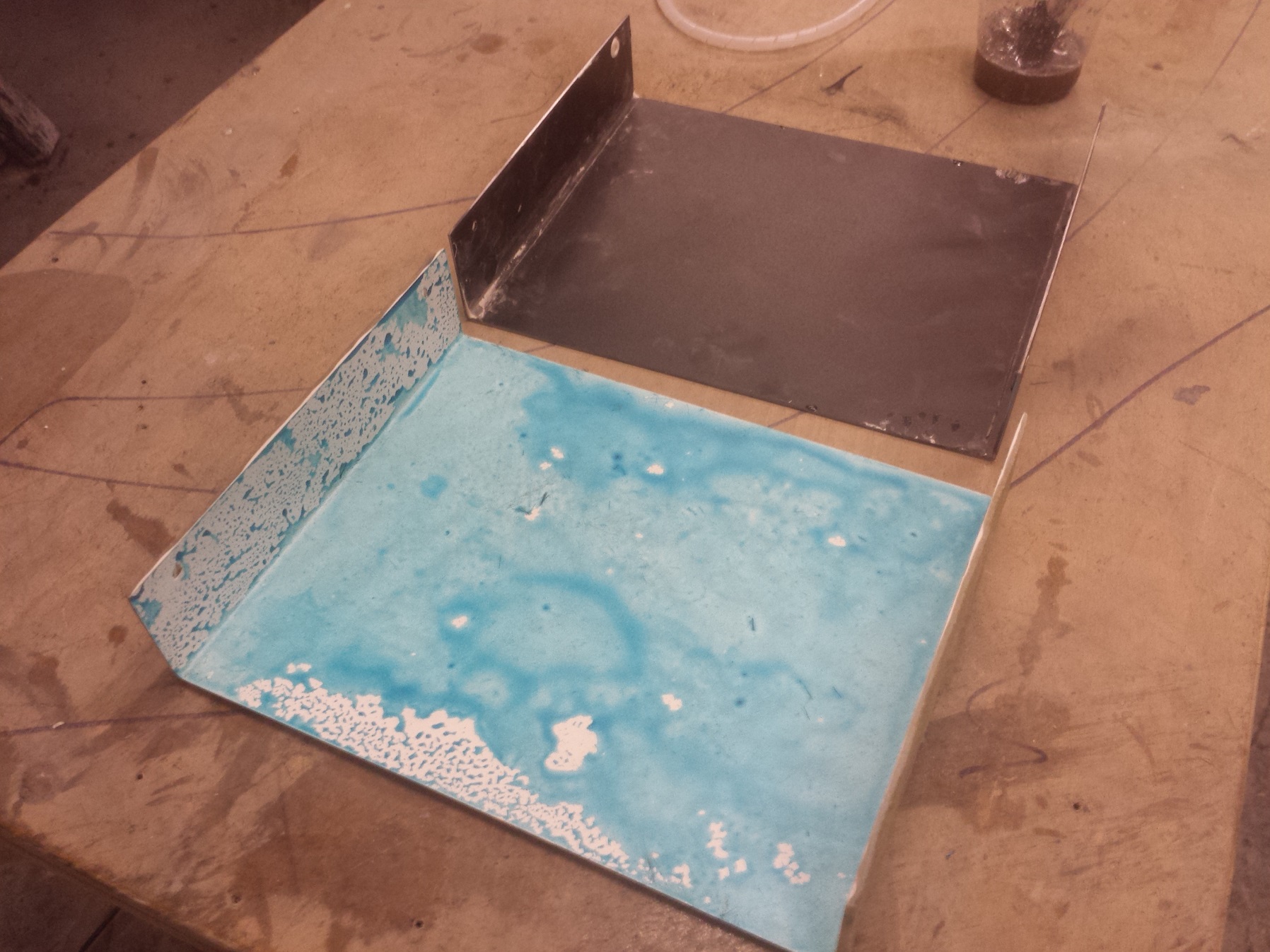

  9. One other issue I have is that I now have a additional power supply/controller for my 600w spindle which wont fit within my planet control box. I have decided to fabricate another box lid which will fit and attach to the top of the existing planet box. Here is the grp mould I have made so far to achieve this
    Click image for larger version.

Name:	20170708_105713.jpg
Views:	24
Size:	496.6 KB
ID:	22437Click image for larger version.

Name:	20170731_195054.jpg
Views:	19
Size:	576.4 KB
ID:	22438

    Nothing really that interesting and still haven't registered the license correctly since changing from the crap control box to the new one so hopefully I will be able to sort this at the weekend and make some progress on finishing the wiring. All in all enjoying the small amounts of time I spend on this so far which is great. More to come :-)
    Enthusiastic with CNC stuff but a proper novice so be gentle
    My build blog:
    Chinese 3020t Build

  10. #78
    Have you had it cutting yet?
    http://www.mycncuk.com/threads/10880...60cm-work-area My first CNC build WIP 120cm*80cm

    If you didn't buy it from China the company you bought it from did ;)

  11. christ no lol

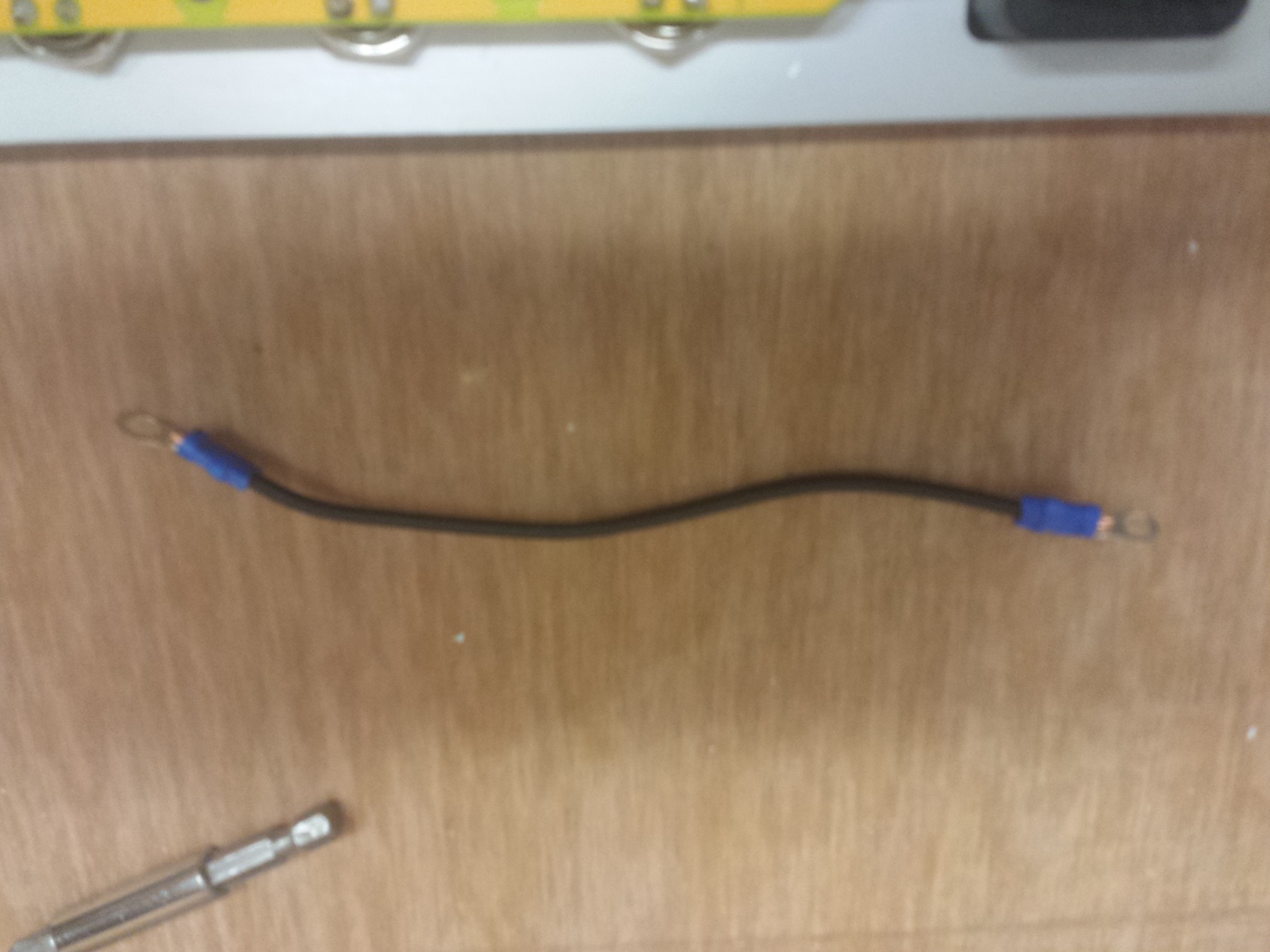

    waiting on some more cable track to feed the limit switch cables through, also need to solder the earths onto the motor cables, trying to run the cables as separate as possible hence the additional cable track, once the enclosure is finished I can work out the exact length of the cable so they are as short as possible.

    Im not too keen on firing the machine up when its half way through installation as I know I will start making loads of stuff and just make a mess everywhere lol
    Enthusiastic with CNC stuff but a proper novice so be gentle
    My build blog:
    Chinese 3020t Build

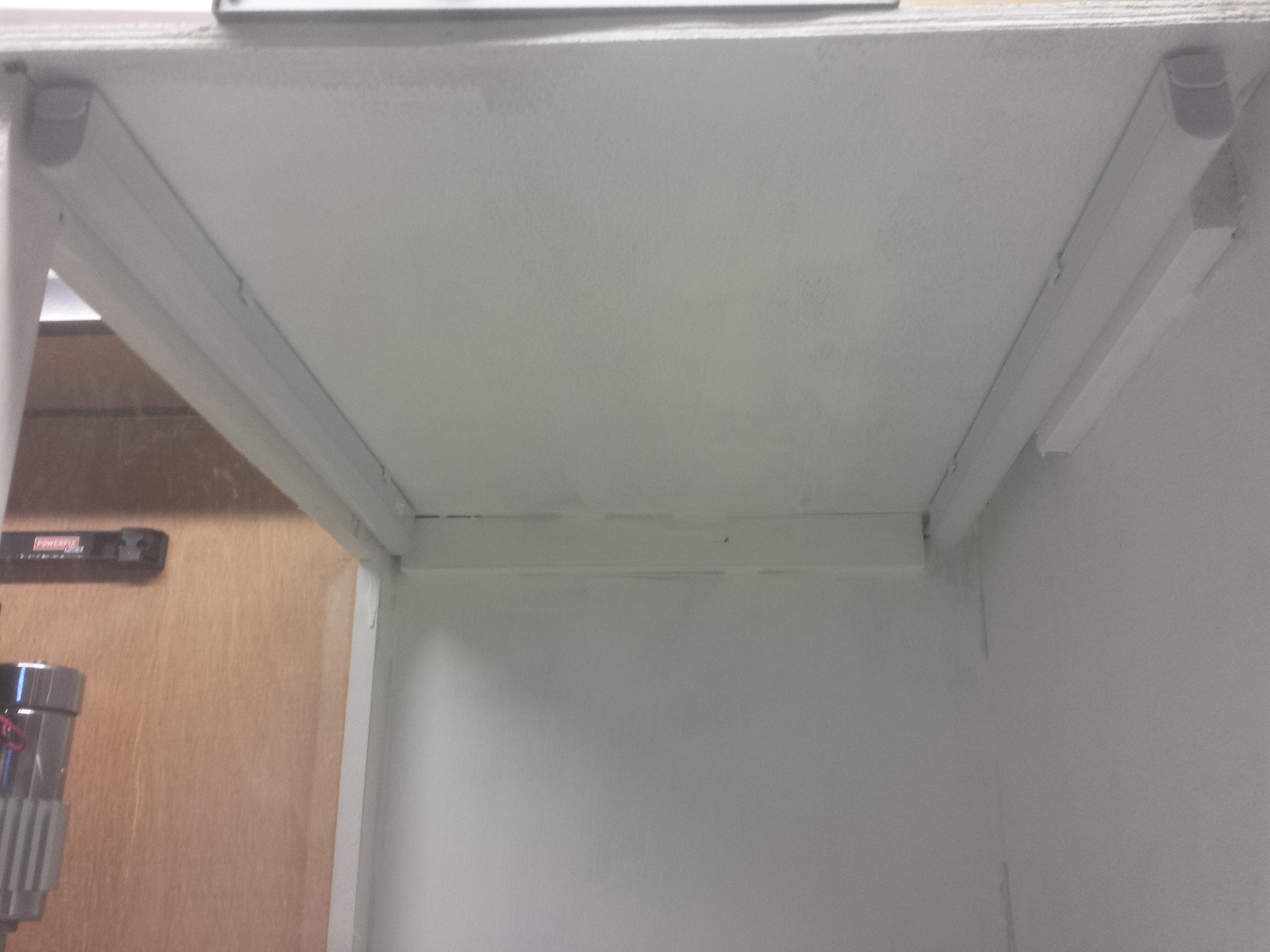

  12. Spent a few mins last night installing the new LED strip lights inside the enclosure, just need to sort a switch out then they will be fully functional.

    Click image for larger version.

Name:	20170802_212831.jpg
Views:	28
Size:	424.7 KB
ID:	22449
    Enthusiastic with CNC stuff but a proper novice so be gentle
    My build blog:
    Chinese 3020t Build
