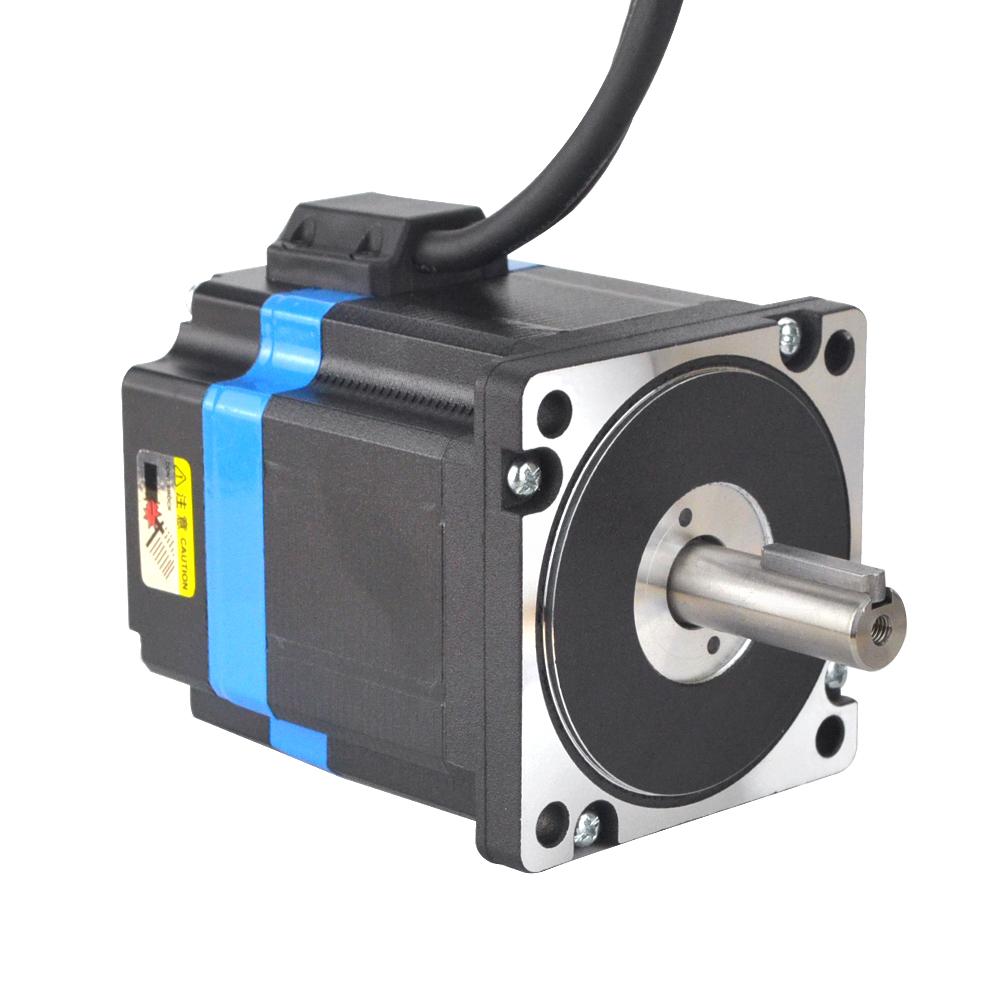

    Click image for larger version.

Name:	CL86T-1000x1000.jpg
Views:	300
Size:	106.5 KB
ID:	26414
    Click image for larger version.

Name:	CM2M-20-1000x1000.jpg
Views:	288
Size:	38.5 KB
ID:	26415
    Click image for larger version.

Name:	CE2M-1000x1000.jpg
Views:	277
Size:	46.4 KB
ID:	26416

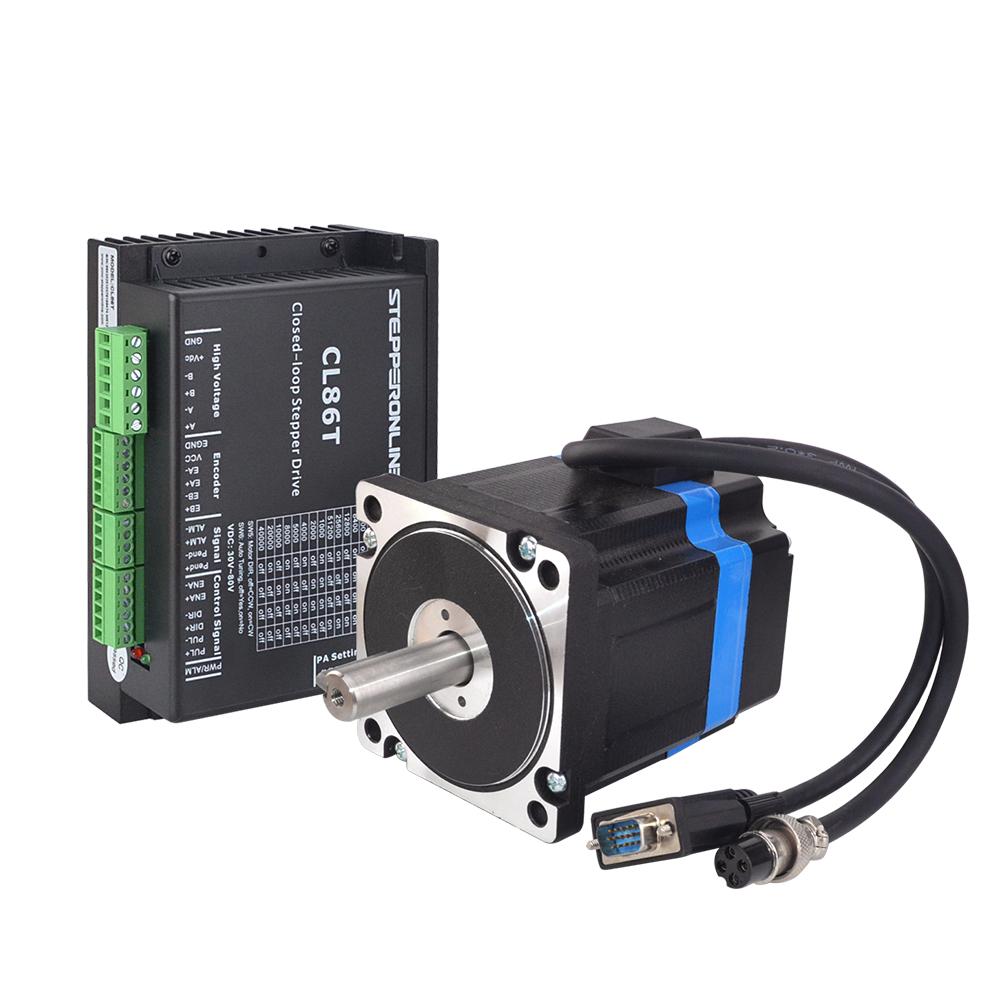

    This CNC kit included:
    1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor
    1 x Nema 34 Closed Loop Stepper Motor 4.6Nm/651.54oz.in Encoder 1000CPR

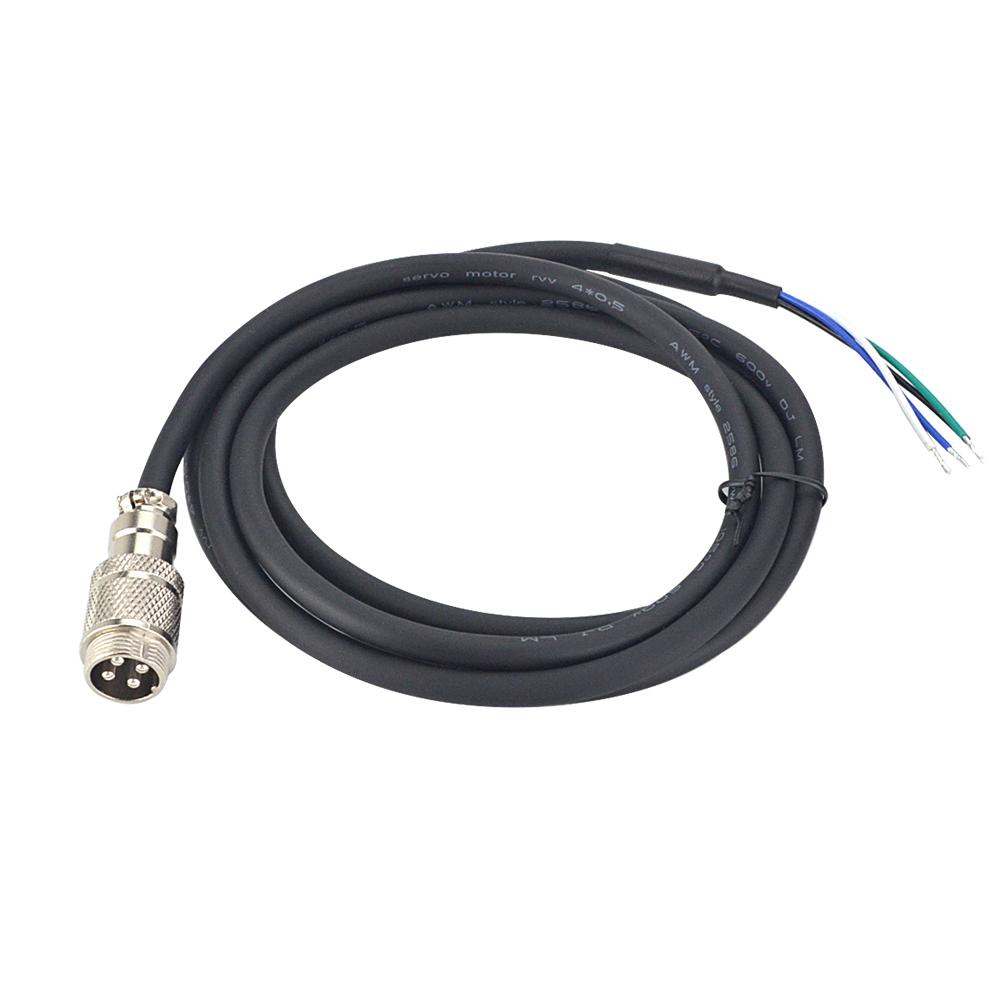

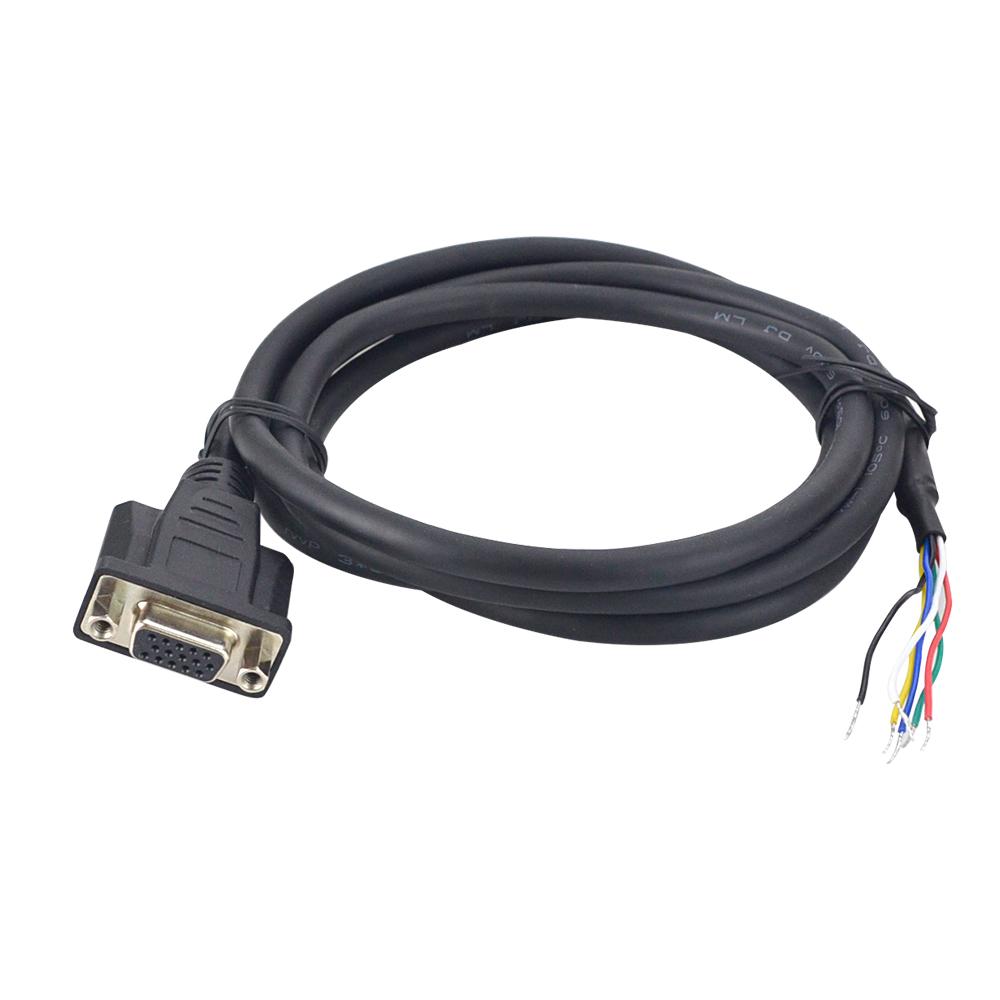

    1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver
    1 x RV-4 AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug for Nema 34 Closed Loop Stepper Motors(Just for aviation-plug model motor)
    Motor Specification
    Manufacturer Part Number: 34HS31-6004D-E1000
    Motor Type: Bipolar Stepper
    Step Angle: 1.8 deg
    Frame Size: 86 x 86 mm
    Holding Torque: 4.6 N.m(651.54 oz.in)
    Rated Current/phase: 6 A
    Shaft Diameter: Φ14 mm
    Shaft Length: 40 mm
    Key-Way Length: 25 mm
    Phase Resistance: 0.3 ohm
    Inductance: 2.3 mH ± 20%(1KHz)
    Number of Leads: 4
    Lead Length: 300 mm
    Driving Voltage : 5V
    Output current : 55mA
    Resolution : 1000ppr
    Output Signal : 2 Channels
    Bore Diameter : Φ8mm
    Output Frequency : ≤1MHz
    Running Speed : ≤5000rpm
    IP Protection : IP20

    https://www.omc-stepperonline.com/cl...or-driver.html

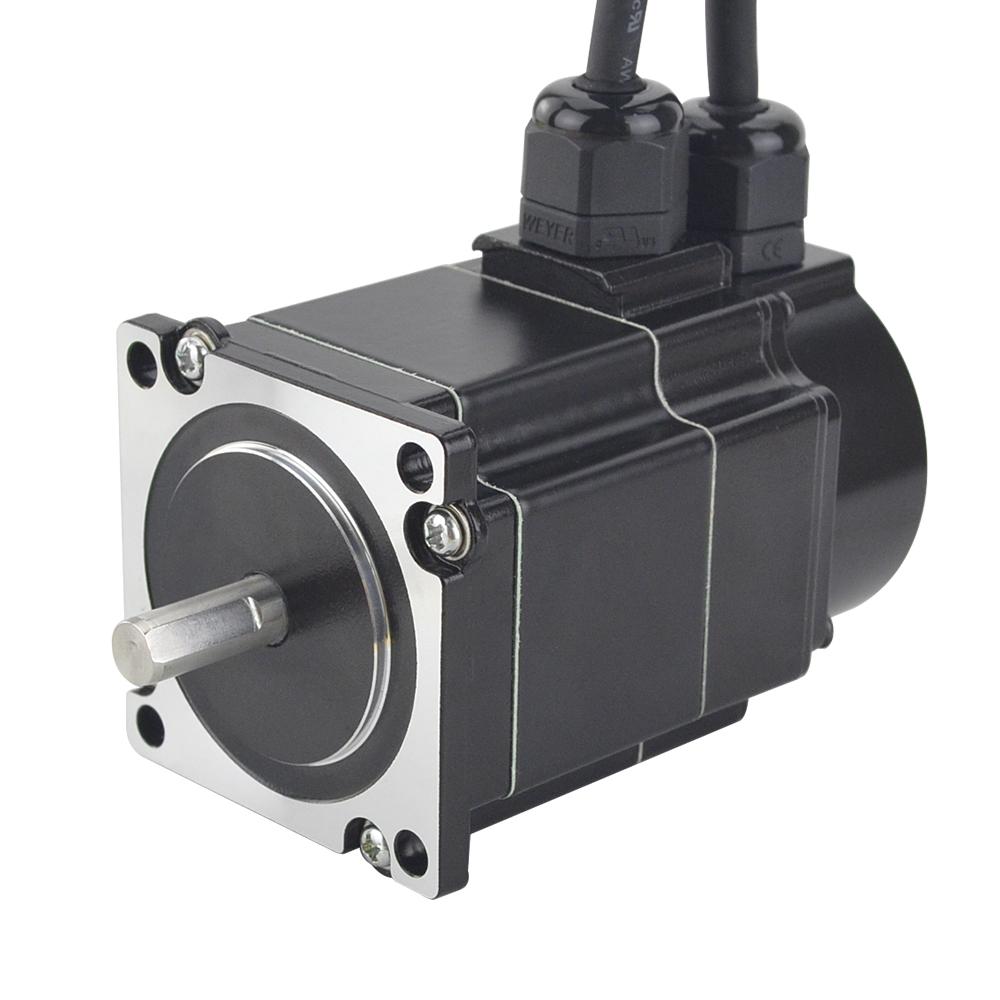

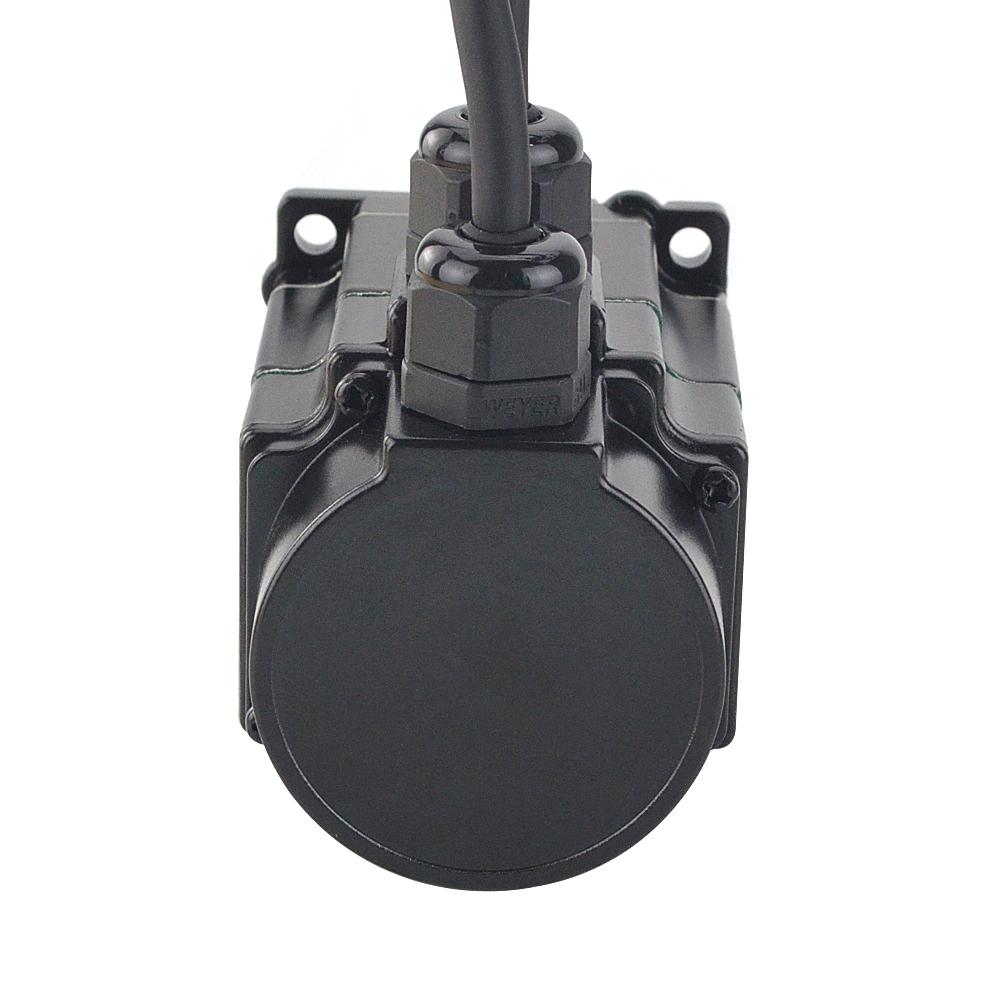

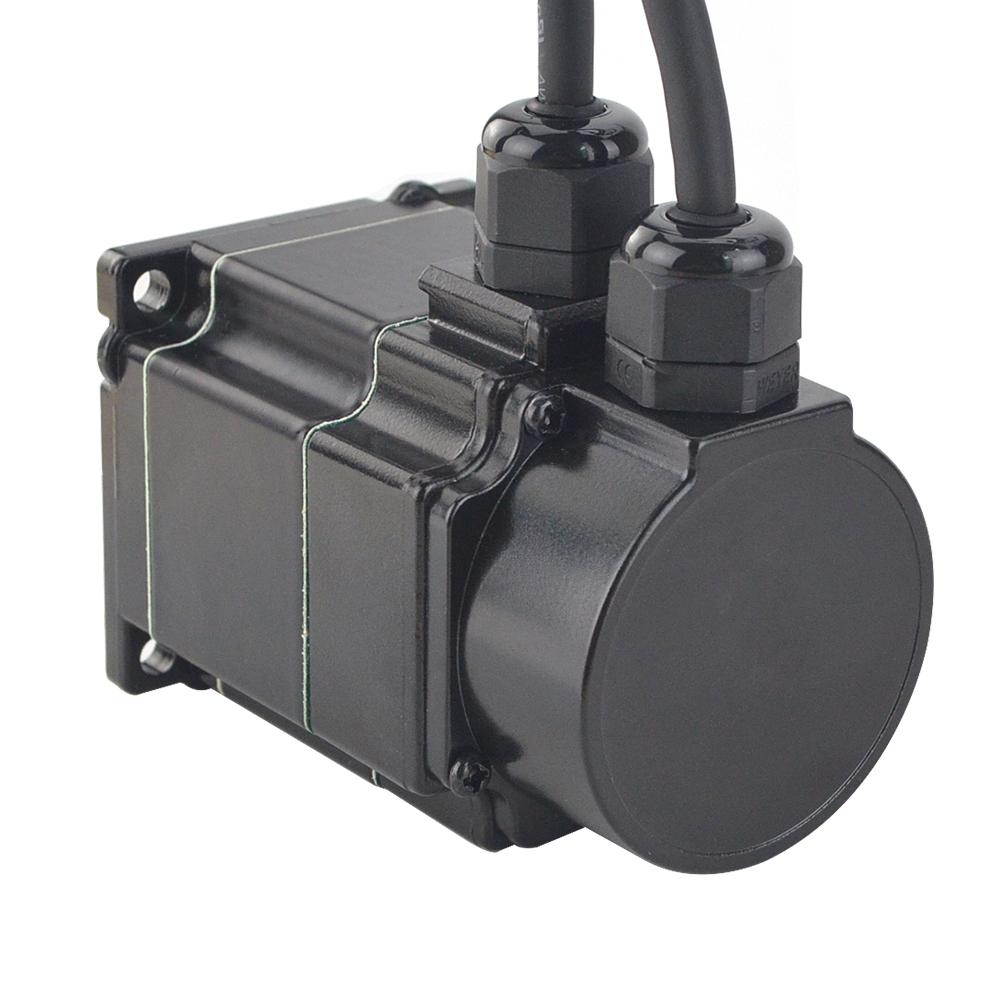

    Click image for larger version.

Name:	23E1KIP65-12 1-1000x1000.jpg
Views:	283
Size:	61.4 KB
ID:	26423 Click image for larger version.

Name:	23E1KIP65-12 3-1000x1000.jpg
Views:	285
Size:	58.9 KB
ID:	26424Click image for larger version.

Name:	23E1KIP65-12 4-1000x1000.jpg
Views:	288
Size:	76.3 KB
ID:	26425
    Click image for larger version.

Name:	23E1KIP65-12 5-1000x1000.jpg
Views:	291
Size:	61.0 KB
ID:	26426Click image for larger version.

Name:	23E1KIP65-12 6-1000x1000.jpg
Views:	286
Size:	68.6 KB
ID:	26427
    https://www.omc-stepperonline.com/wa...r-1000cpr.html
    Electrical Specification
    Number of phase: 2
    Step Angle: 1.8 deg
    Holding Torque: 1.2 Nm(169.97 oz.in)
    Rated Current/phase: 4.0 A
    Phase Resistance: 0.45 ohms
    Inductance: 1.4 mH ± 20%(1KHz)
    Physical Specification
    Frame Size: 57 x 57 mm
    Body Length: 65 mm
    Shaft Diameter: Φ8 mm
    Shaft Length: 21 mm
    D-Cut Shaft Length: 15 mm
    Lead Length: 1000 mm
    Weight: 0.8 kg

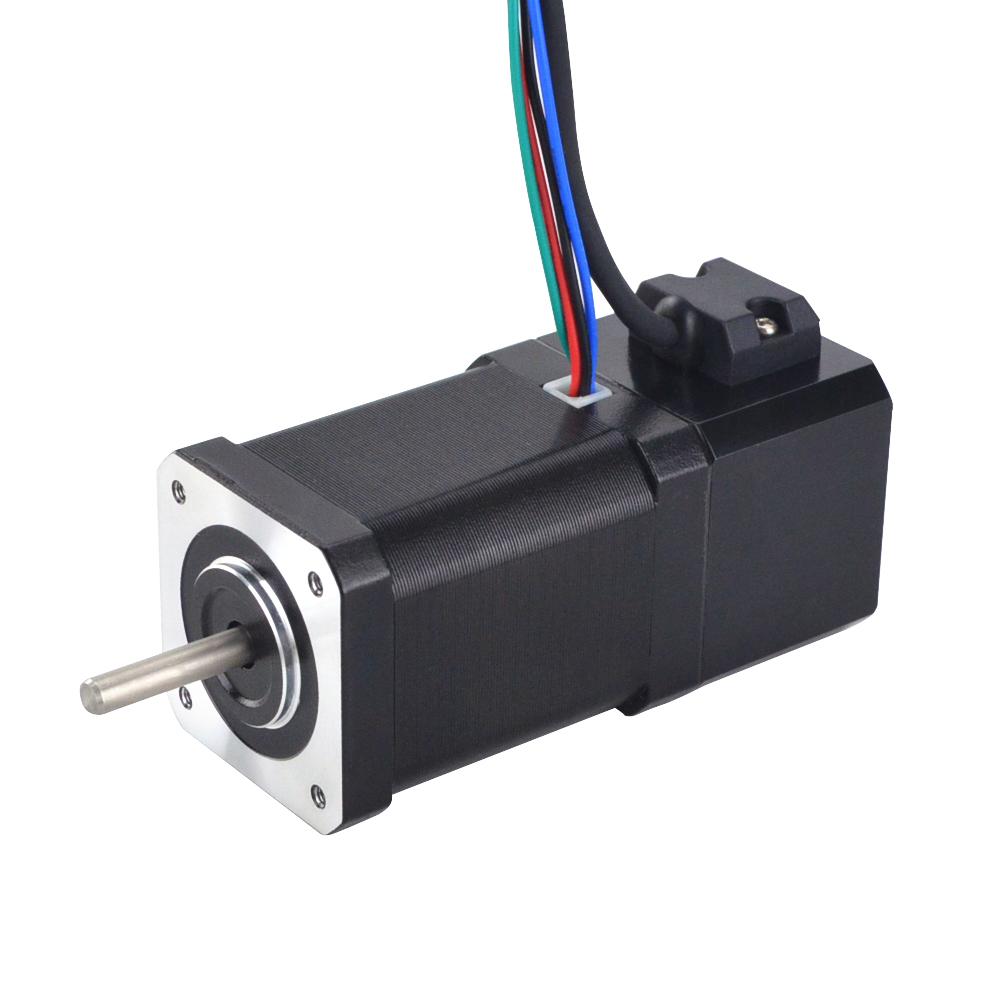

    Encode Control(1000CPR)
    Black--GND
    Red--+5VCC
    Blue/White--EA-
    Blue--EA+
    Orange/White--EB-
    Orange--EB+

    Click image for larger version.

Name:	17BK05-07 1-1000x1000.jpg
Views:	272
Size:	52.6 KB
ID:	26431 Click image for larger version.

Name:	17BK05-07 2-1000x1000.jpg
Views:	310
Size:	42.2 KB
ID:	26432 Click image for larger version.

Name:	17BK05-07 3-1000x1000.jpg
Views:	291
Size:	47.9 KB
ID:	26433
    Click image for larger version.

Name:	17BK05-07 4-1000x1000.jpg
Views:	321
Size:	37.5 KB
ID:	26434 Click image for larger version.

Name:	17BK05-07 6-1000x1000.jpg
Views:	295
Size:	49.5 KB
ID:	26435 Click image for larger version.

Name:	17BK05-07 7-1000x1000.jpg
Views:	271
Size:	50.7 KB
ID:	26436
    https://bit.ly/2md8s3P

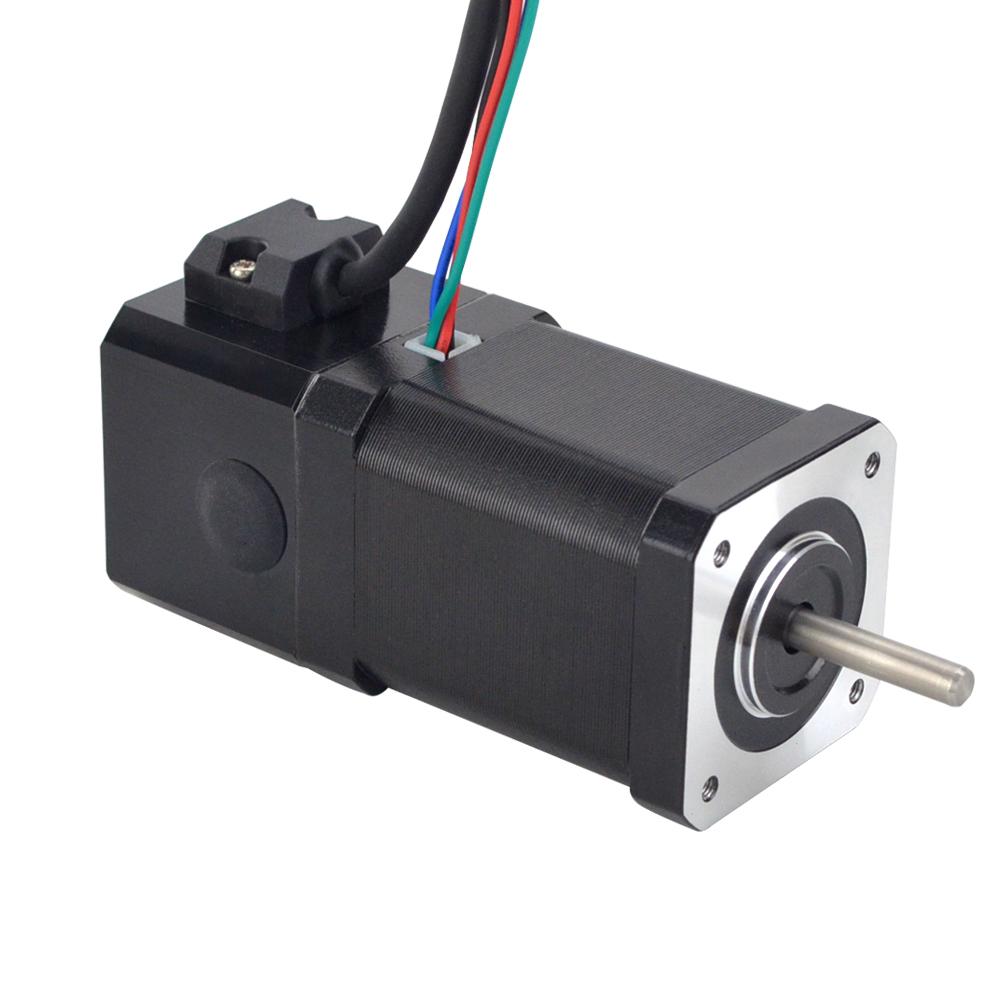

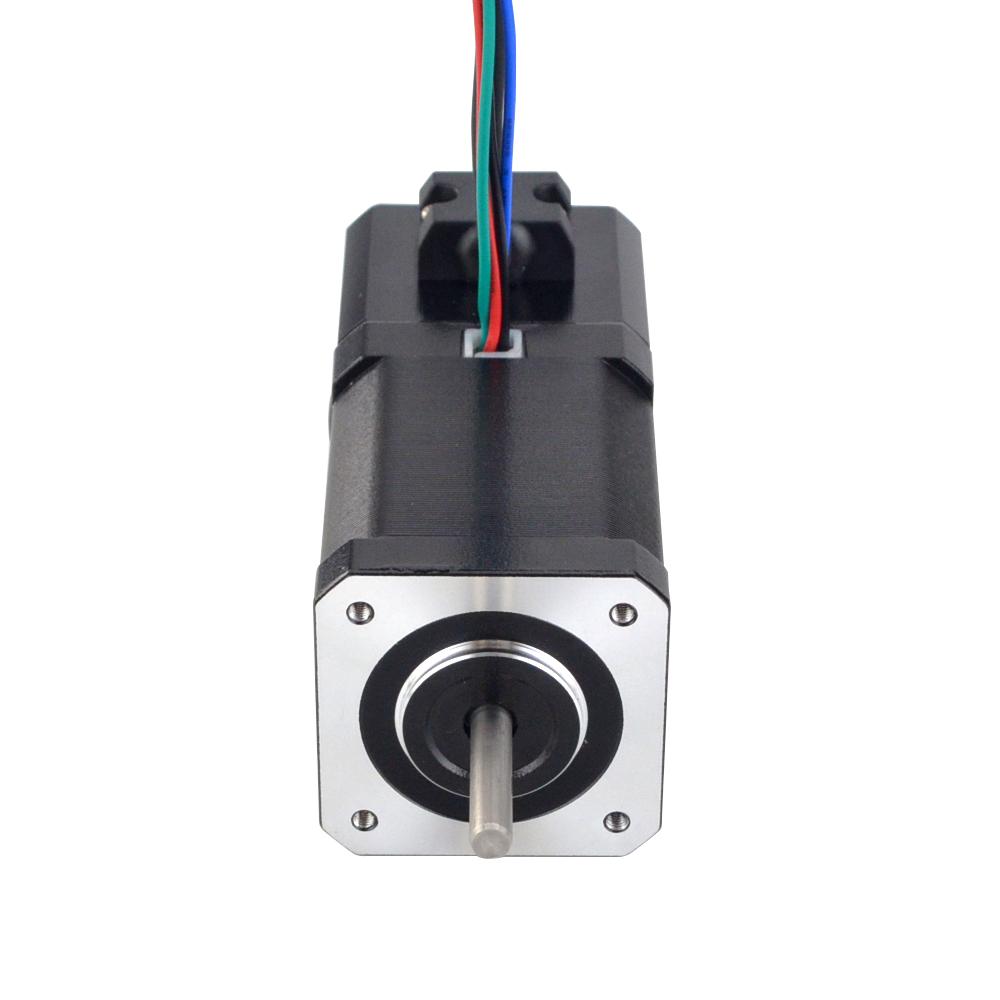

    Electrical Specification
    Number of phase: 2
    Step Angle: 1.8 deg
    Holding Torque: 72 Ncm(101.98 oz.in)
    Rated Current/phase: 2.0 A
    Phase Resistance: 1.75 ohms
    Inductance: 4.0 mH ± 20%(1KHz)
    Physical Specification
    Frame Size: 42 x 42 mm
    Body Length: 60 mm
    Shaft Diameter: Φ5 mm
    Shaft Length: 24 mm
    D-Cut Shaft Length: 15 mm
    Number of Leads: 4
    Lead Length: 450 mm
    Weight: 0.5 kg

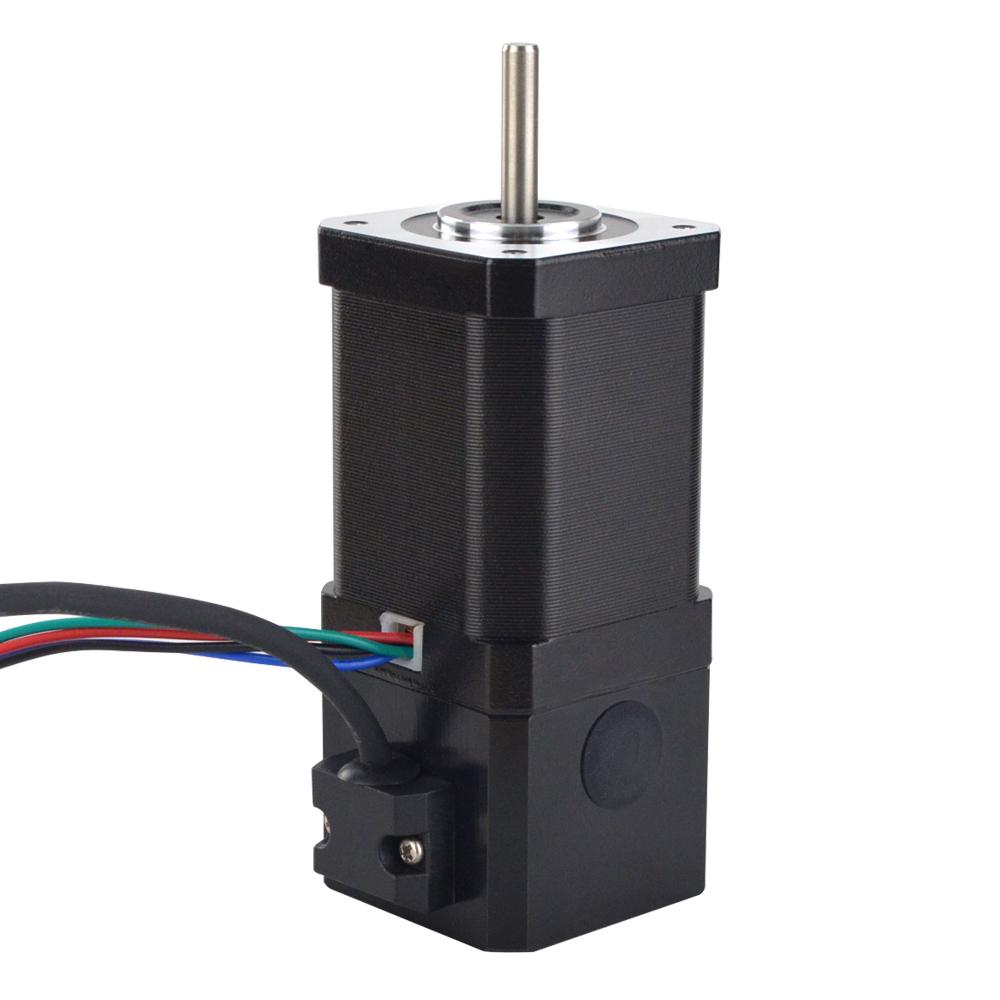

    Brake Connections
    Red--24V+
    Red--24V-
    0.5Nm
    Last edited by Lee Roberts; 19-09-2019 at 12:15 PM.

  2. #2
    These commercial adverts should be in the Manufacturer News section, not in Classified Ads.

  3. The Following 2 Users Say Thank You to AndyUK For This Useful Post:


  4. #3
    OMC,

    Please note:
    We strictly DO NOT accept and/or tolerate any form of spam, our members are very proactive in reporting this kind of behaviour and you WILL be reported !

    We have a special sub forum to accommodate you, please post your future offerings there, see below link:

    Manufacturer News
    This is our commercial forum, submission to any other is strictly prohibited.

    All threads have been merged, re titled and moved accordingly.

    ---------------------------------------------------------------------------------------------

    Andy,

    Thanks for spotting this and responding
    Last edited by Lee Roberts; 19-09-2019 at 11:41 AM. Reason: grammer
    .Me

  5. #4
    Additionally,

    I've been able to arrange a 5% discount code for forum members to use!

    The code is below, simply add it to your cart when checking out on their website and the discount will be applied.

    Code:
    Coupon Code: MYCNCUK
    I have also tested their service and ordered a set of their Nema24 3.1Nm stepper motors: Nema 24 CNC Stepper 3.1Nm (24HS34-3008D), they seem to be a very good match spec wise on the 3.1Nm motors we typically use and recommend on the forum.

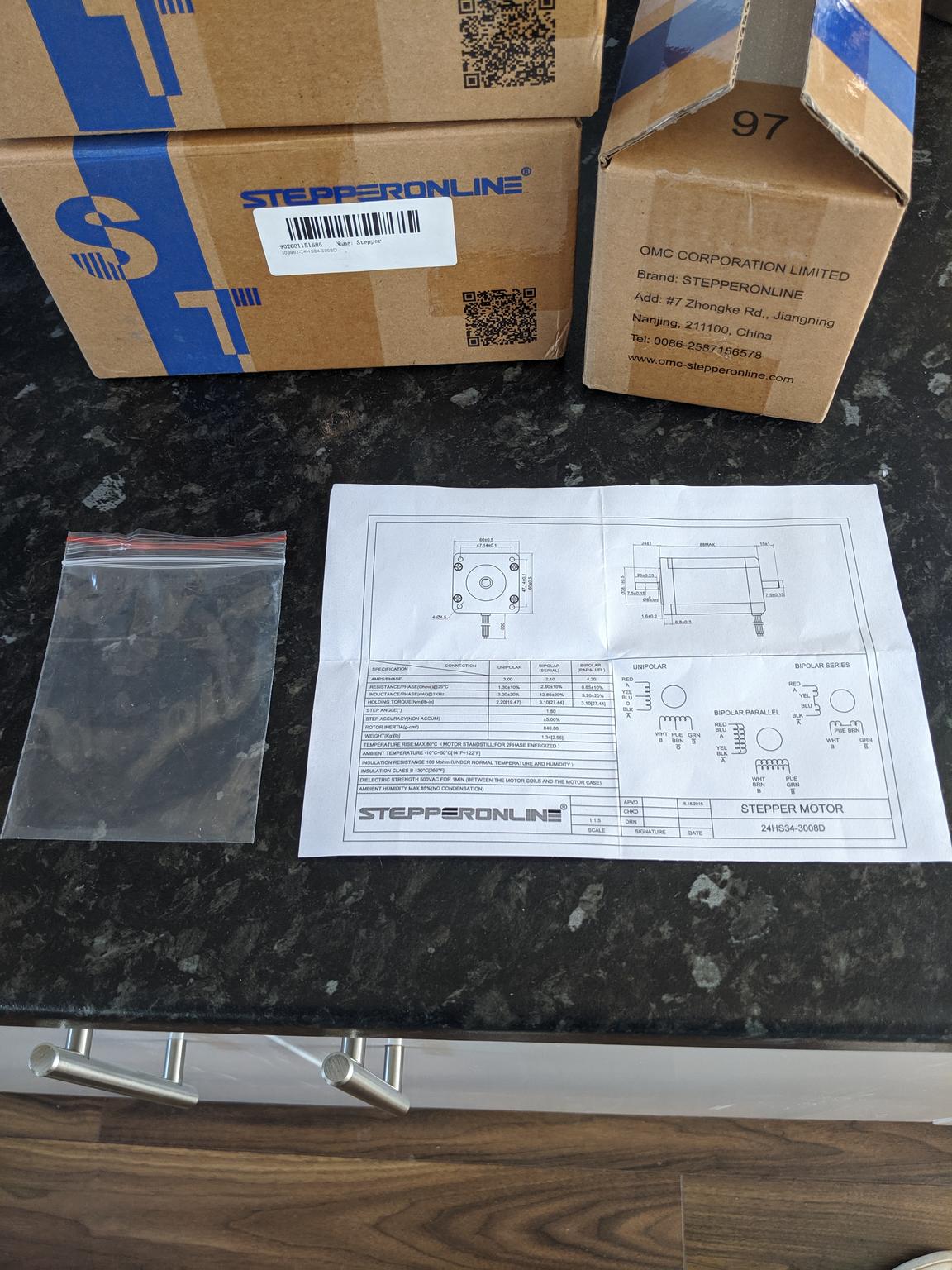

    I've attached some pics of how I received the motors and everything went well:

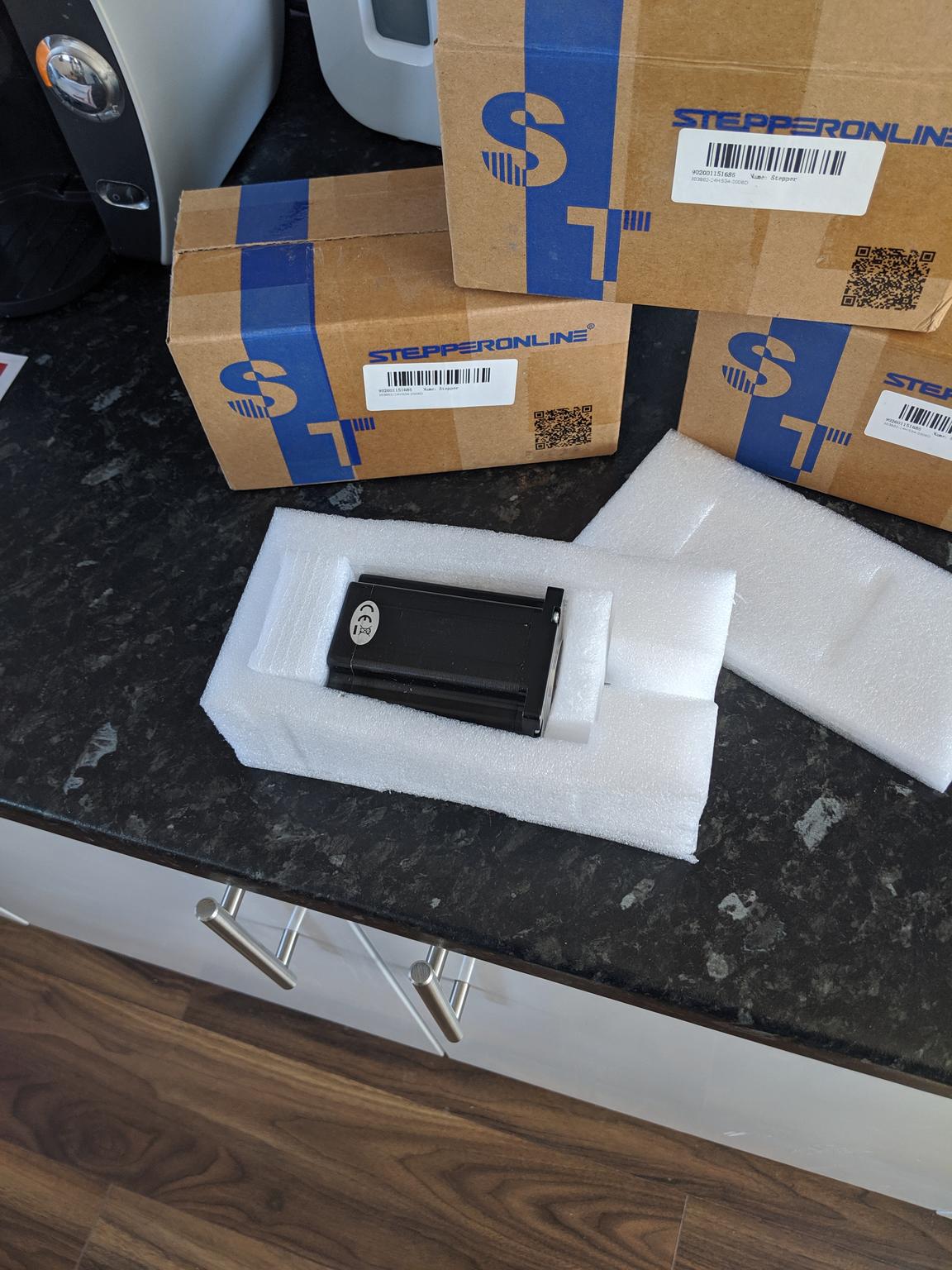

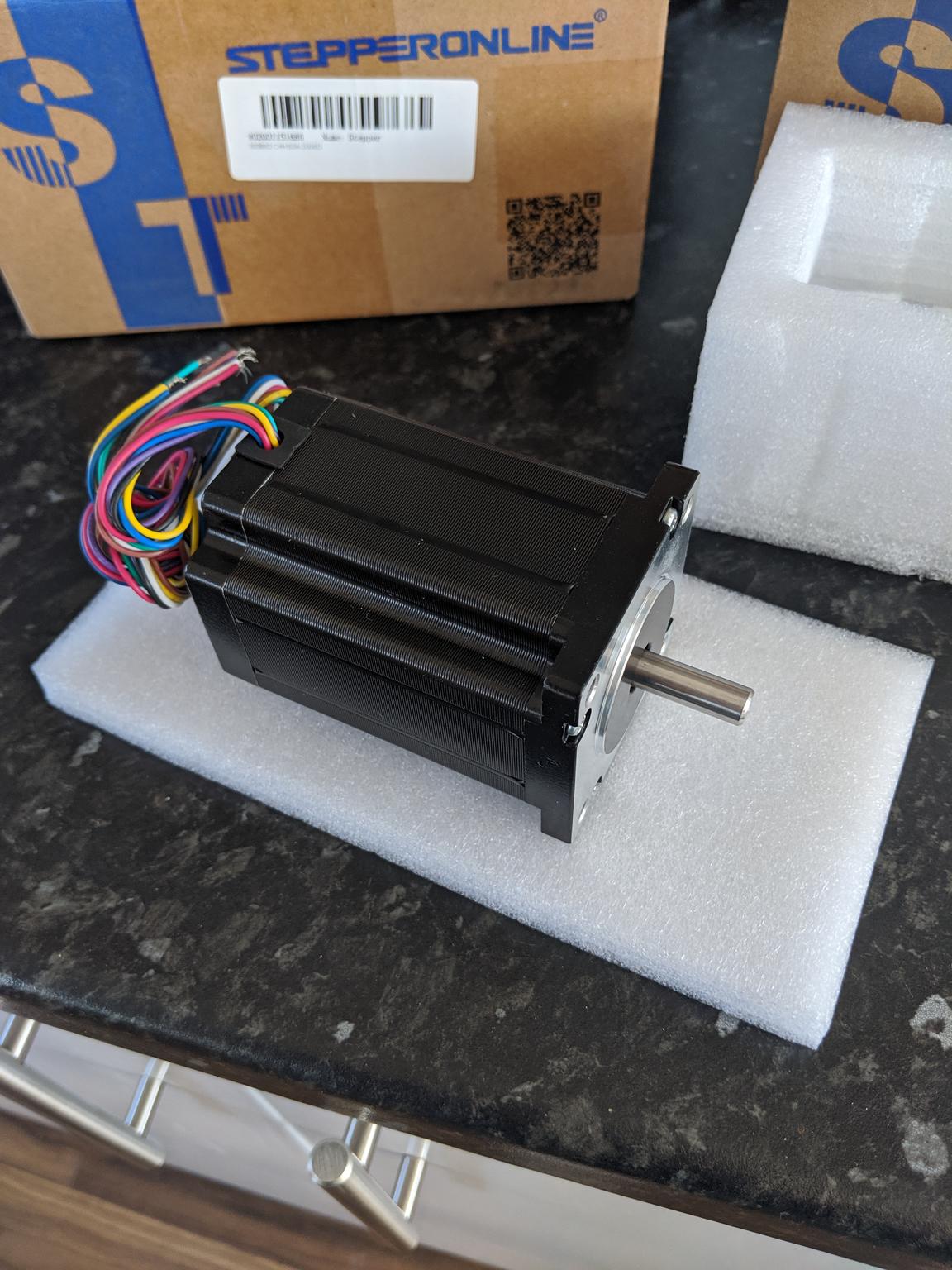

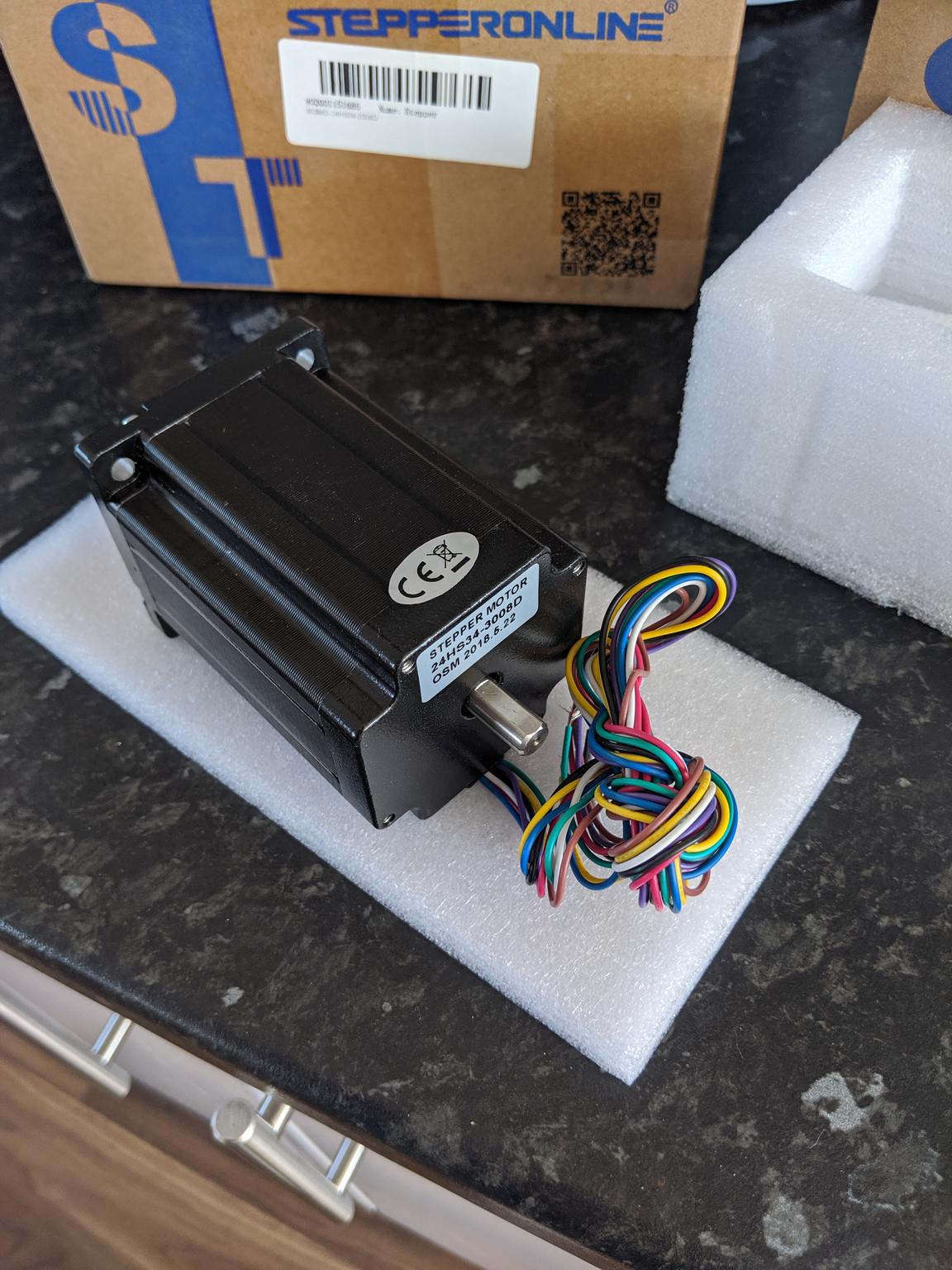

    Click image for larger version.

Name:	IMG_20190919_120052.jpg
Views:	295
Size:	216.1 KB
ID:	26459Click image for larger version.

Name:	IMG_20190919_120031.jpg
Views:	272
Size:	194.8 KB
ID:	26458Click image for larger version.

Name:	IMG_20190919_120123.jpg
Views:	286
Size:	213.6 KB
ID:	26460Click image for larger version.

Name:	IMG_20190919_120142.jpg
Views:	280
Size:	221.9 KB
ID:	26461Click image for larger version.

Name:	IMG_20190919_120311.jpg
Views:	263
Size:	245.2 KB
ID:	26462

    DataSheet: Click image for larger version.

Name:	24HS34-3008D.pdf
Views:	322
Size:	154.6 KB
ID:	26457

    http://www.mycncuk.com/attachment.ph...7&d=1568888995

    You'll note I said Nema24 not Nema23 ?

    As far as I could tell at the time, the 3.1Nm motors we usually suggest from CNC4YOU: Stepper Motor Kit 3.1Nm x 3 Axis + 3 Mounts Nema23, are pretty much the same, the only difference I could see was the Rear Shaft and Wire length.

    DataSheet: Click image for larger version.

Name:	Stepper Motor Nema 23 60BYGH301B 3.1Nm.pdf
Views:	1489
Size:	825.4 KB
ID:	26456

    http://www.mycncuk.com/attachment.ph...6&d=1568888945

    They have UK stock for allot of items and multiple EU warehouse locations they can ship from, I actually had to wait for their UK stock to be replenished and as i wasn't in a rush that's what I did, of course they always have stock in their China location if you don't mind waiting longer and would be happy to pay any import costs.

    I ordered on Saturday and the motors turned up at 11:00 Wednesday morning, top marks for the packaging:

    Dual Shaft Nema 24 CNC Stepper 3.1Nm (439 oz.in) 60x60x80mm 8 Wires
    - Ship from: United Kingdom

    Sub-Total: £79.48
    Coupon (MYCNCUK): £-3.97
    Royal Mail Tracked 48: £2.83
    Total: £78.33
    .Me

  6. The Following User Says Thank You to Lee Roberts For This Useful Post:


  7. #5
    Well done Lee!

    I've bought motors and drivers from Stepperonline (usually the Australian warehouse) for several projects and always been happy with the service, prices and products.

    Kit
    An optimist says the glass is half full, a pessimist says the glass is half empty, an engineer says you're using the wrong sized glass.

  8. #6
    Quote Originally Posted by Lee Roberts View Post
    You'll note I said Nema24 not Nema23 ?

    As far as I could tell at the time, the 3.1Nm motors we usually suggest from CNC4YOU: Stepper Motor Kit 3.1Nm x 3 Axis + 3 Mounts Nema23, are pretty much the same, the only difference I could see was the Rear Shaft and Wire length.
    Have you measured the Outside Lee. Usually nema 24 are 60mm while nema23 are 56mm.!

  9. #7
    It's my understanding that the NEMA size is the width of the frame in tenths of an inch.

    Kit
    An optimist says the glass is half full, a pessimist says the glass is half empty, an engineer says you're using the wrong sized glass.

  10. #8
    No because I new that already...or did you want me to so as to confirm?

    That's what caught my eye, I think the units from 4U are actually Nema24 because the tech doc for their motors says a 60 frame...

    They do have other nema 23 stepper motor listings, the x3 offer is here: https://www.cnc4you.co.uk/Stepper-Mo...YGH301B-Nema23, that shows a slightly different model number of 60BYGH301B vs the doc for all of the motors reading 60BYG301B...

    Those listings do show a different looking unit...they all show as out of stock at the mo...maybe there phasing out the ones below or something:

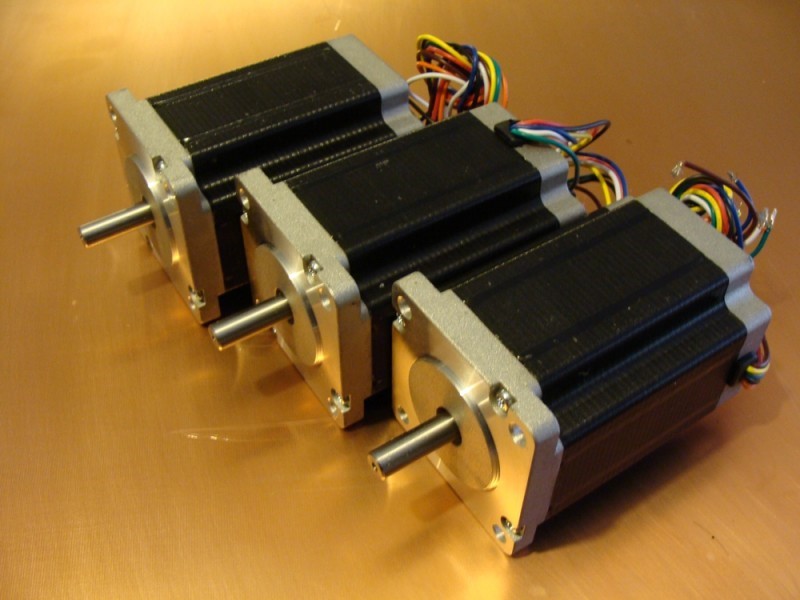

    Click image for larger version.

Name:	3 steppers-800x600.jpg
Views:	268
Size:	81.9 KB
ID:	26464

    I don't suppose any of this matters really just my observations, all I really wanted to do is share that OMC are cheaper and seem to have a pretty ridiculously good like for like motor...

    If the CNC4YOU listings and documents are correct of course...

    Thanks Kit,

    Yea its 2.3" and 2.4", I've always just called them 57mm or 60mm...
    .Me

  11. #9
    Hi Lee, thanks for your support! We are offering big discounts on some hot sale products, up to 43% off! Have a look if you are interested. https://www.omc-stepperonline.com/sale.html/

  12. #10
