    Hi everyone.

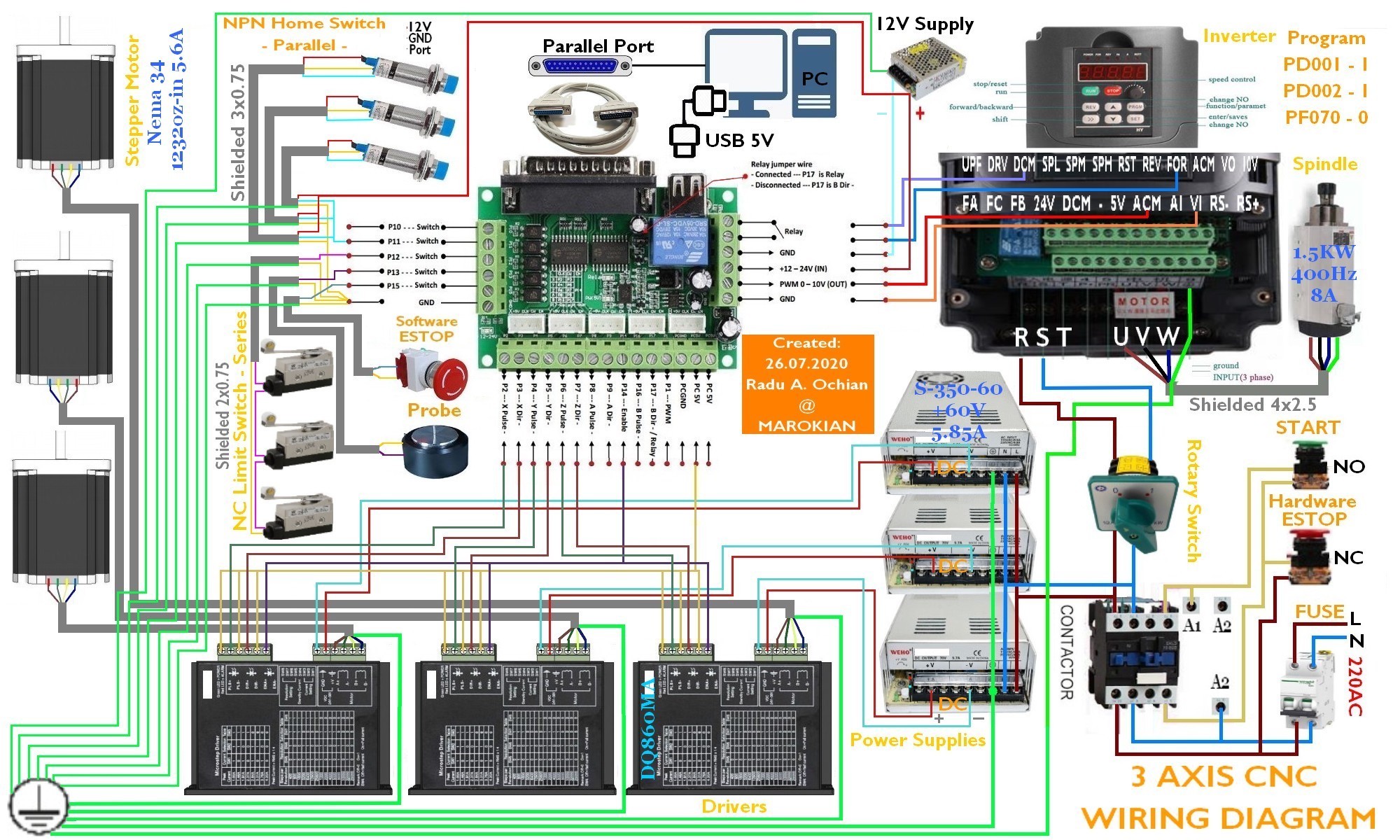

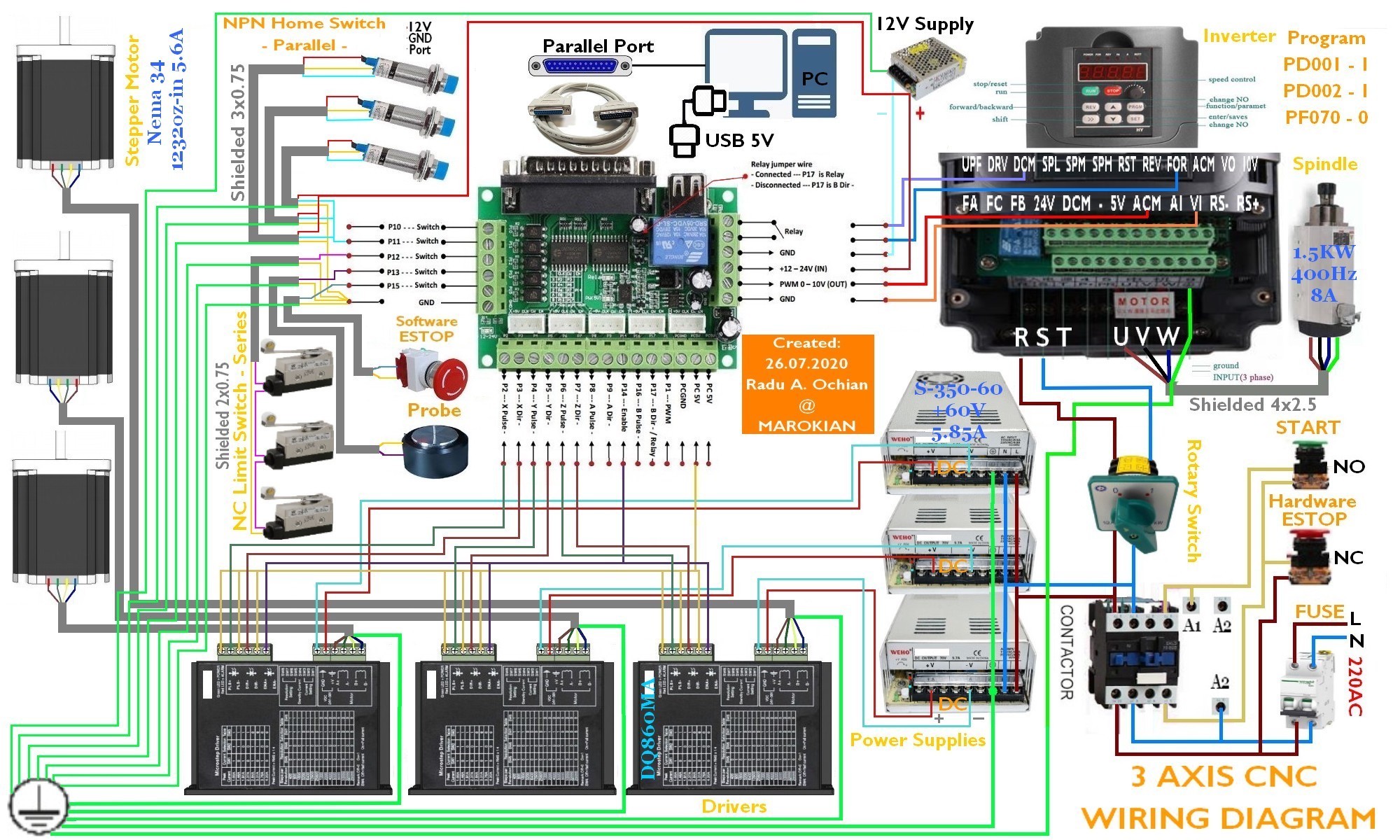

    I've put together a wiring diagram which contains most, if not all, components necessary for building a basic 3 axis cnc.
    Click image for larger version.  Name: PERFECT.jpg  Views: 103  Size: 625.9 KB  ID: 28656

    Feel free to let me know if I have done any mistakes in it, and hope it is of use to someone in here.

    Cheers.
