    Hi everyone
    Currently I am programming Mazak machines
    but I was assigned a new machine.
    Where I use G-codes
    I have a problem with rays, arcs.

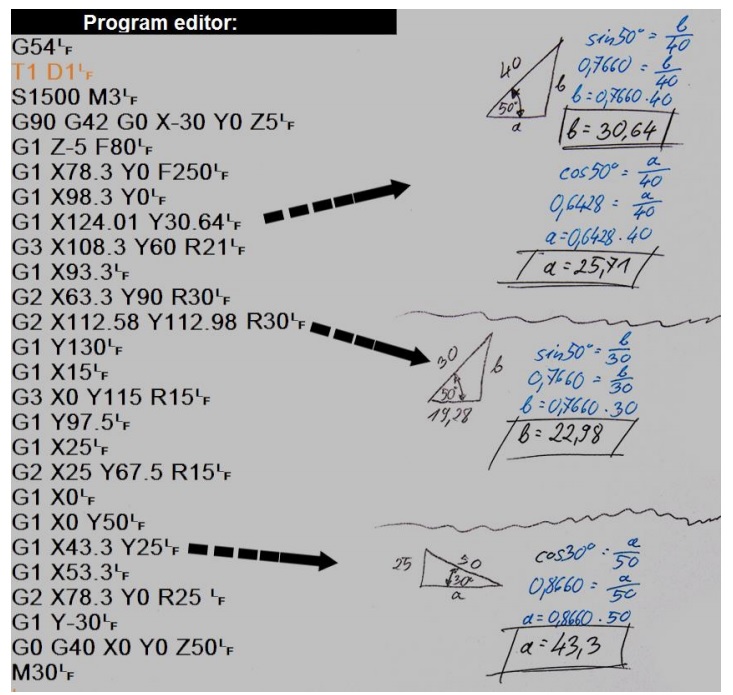

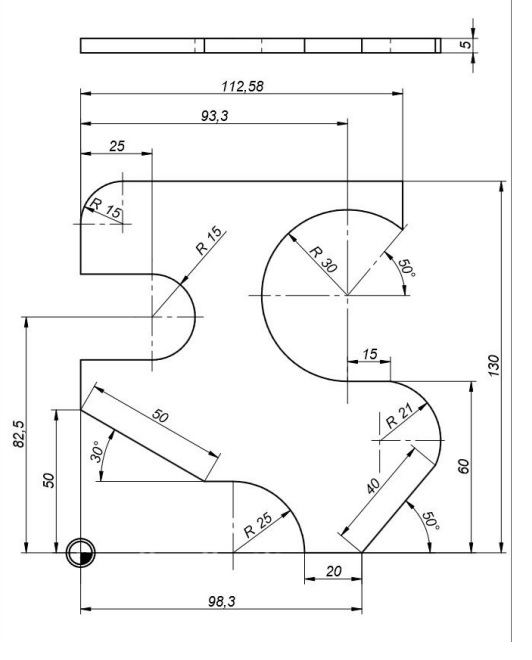

    I made the first example myself using g2 / g3 / R


    Click image for larger version.

Name:	R RYSUNEK.jpg
Views:	175
Size:	50.4 KB
ID:	29623

    Click image for larger version.

Name:	R RYSUNEK - CNC G CODE.jpg
Views:	190
Size:	133.9 KB
ID:	29624

    In the second example, I am supposed to use I, J
    I am looking for some materials but they are hard to understand for me.

    Does anyone have any material on using I, J for arcs and radius

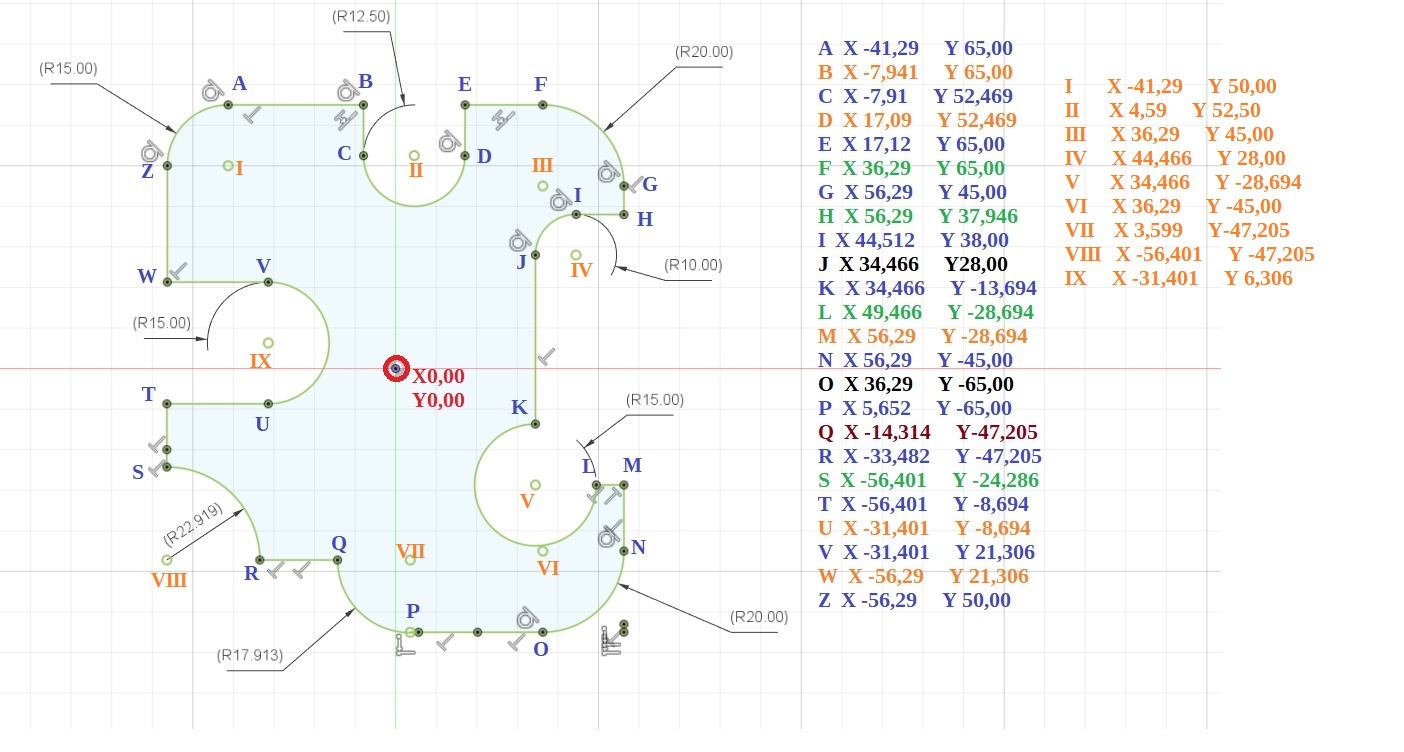

    Click image for larger version.

Name:	I J RYSUNEK.jpg
Views:	143
Size:	223.5 KB
ID:	29625

    Please write some code for this drawing
    Use the I, J functions maybe then on this example I can understand how the commands work

    Regards,

  2. #2
    bump
