    Good morning -

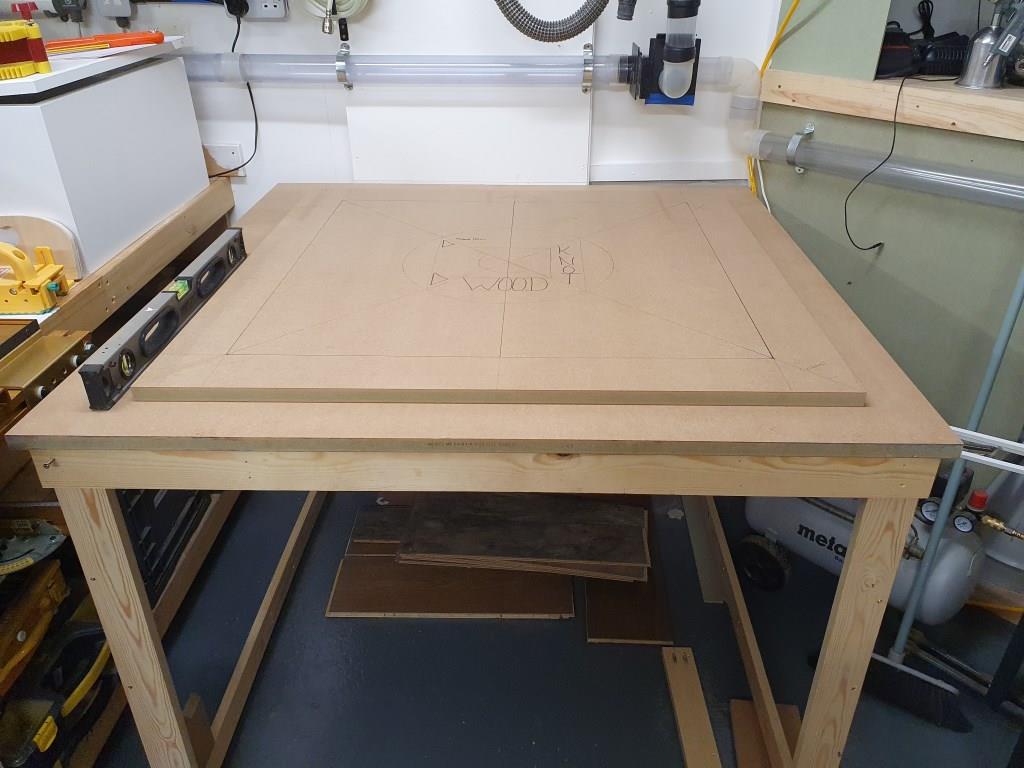

    I decided that i really needed to lay out the top for the table and see how much room it really will take up.

    Click image for larger version.

Name:	CNC Table 2 Mock up.jpg
Views:	161
Size:	122.8 KB
ID:	30085

    So a half sheet of 22mm MR MDF on a mock up frame to get the feel for it.

    Click image for larger version.

Name:	CNC Table 1 Mock up.jpg
Views:	170
Size:	79.1 KB
ID:	30086

    It does cause me some issues and will have to move some stuff around yet again!!

    The top square sheet is a 1000mmx1000mm board that i was going to use for my spoiler board.

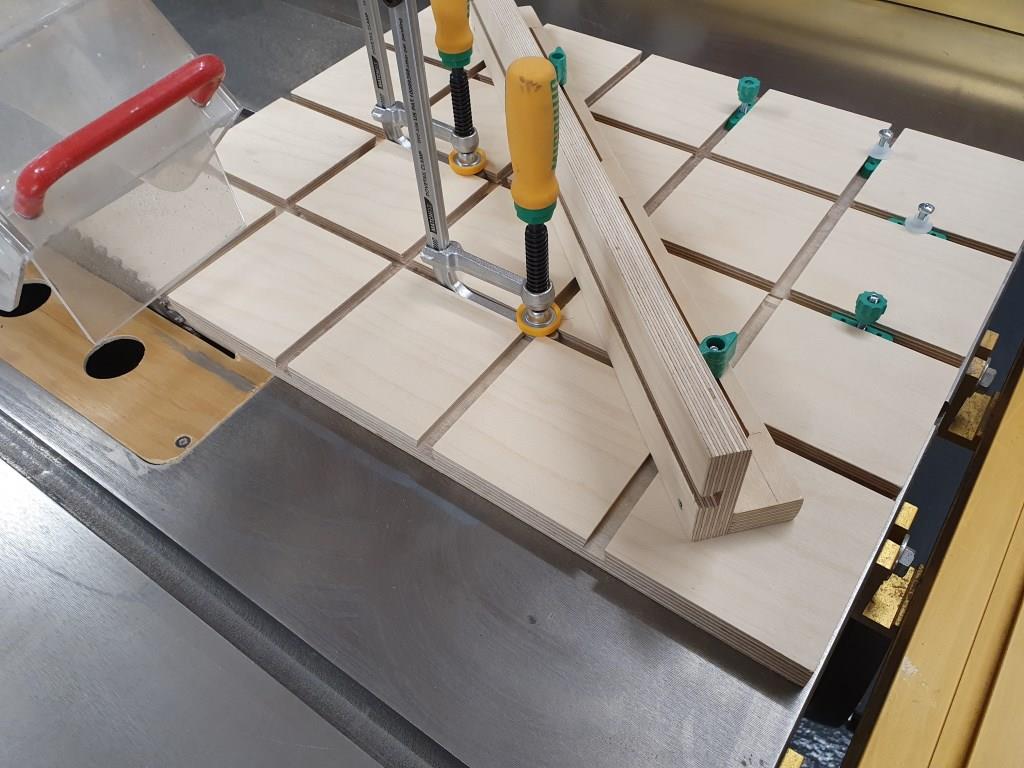

    I was thinking of making this up like my microjig system, a pattern of dove tailed rebates to create a flexible hold down grid.

    I appreciate i can't use the clamps as per the image

    Click image for larger version.

Name:	Microjig System.jpg
Views:	164
Size:	92.6 KB
ID:	30087

    So, its a tight fit, but i can squeeze it in -

    Time to go and purchase some 4x2 framing timber to make a good solid sturdy frame with plenty of braces.

    It will also make me a large lower storage area. I was also thinking of having a large pull out drawer underneath for the electronics and laptop.

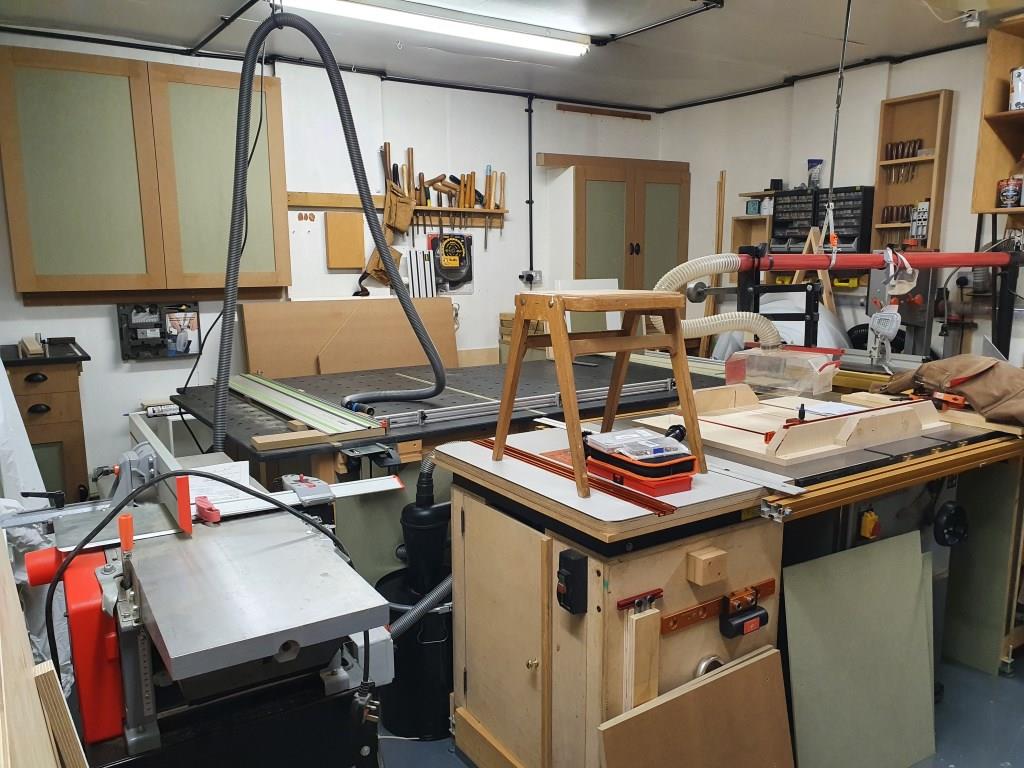

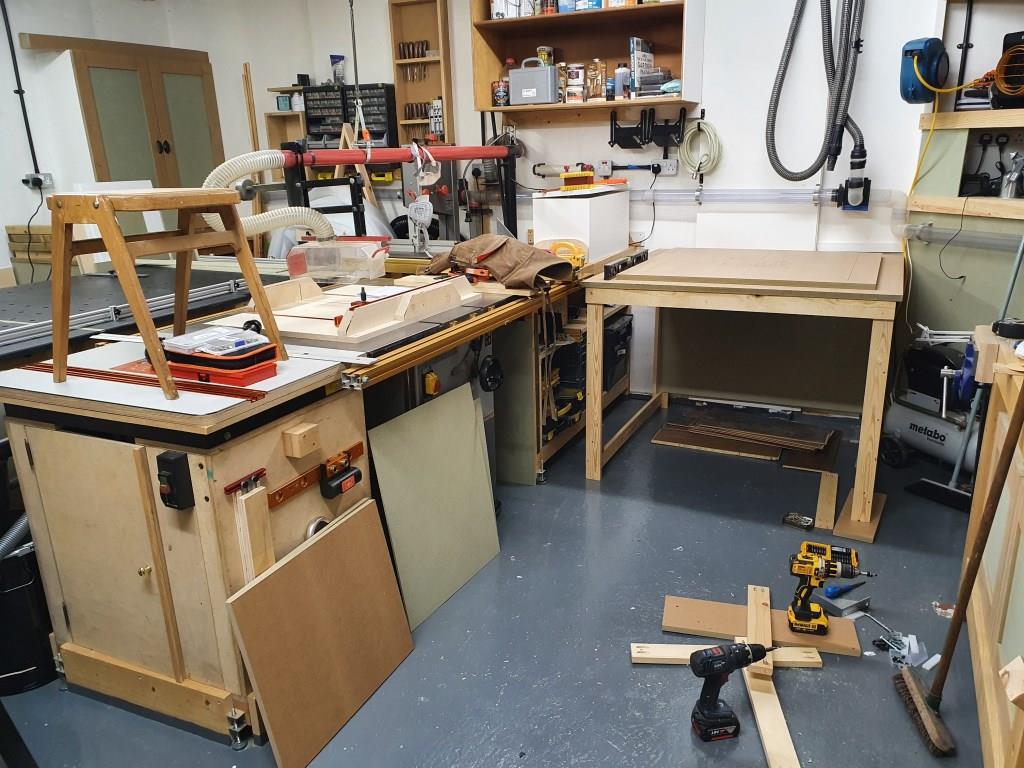

    Another image of my workshop, Where i eat sawdust Doddy!!

    Click image for larger version.

Name:	CNC Table  Mock up.jpg
Views:	151
Size:	117.4 KB
ID:	30088

    WoodKnot

  2. #2
    An update on my build.

    So took the mock up down, purchased 40mtrs of 75mmx45mm redwood and started the build

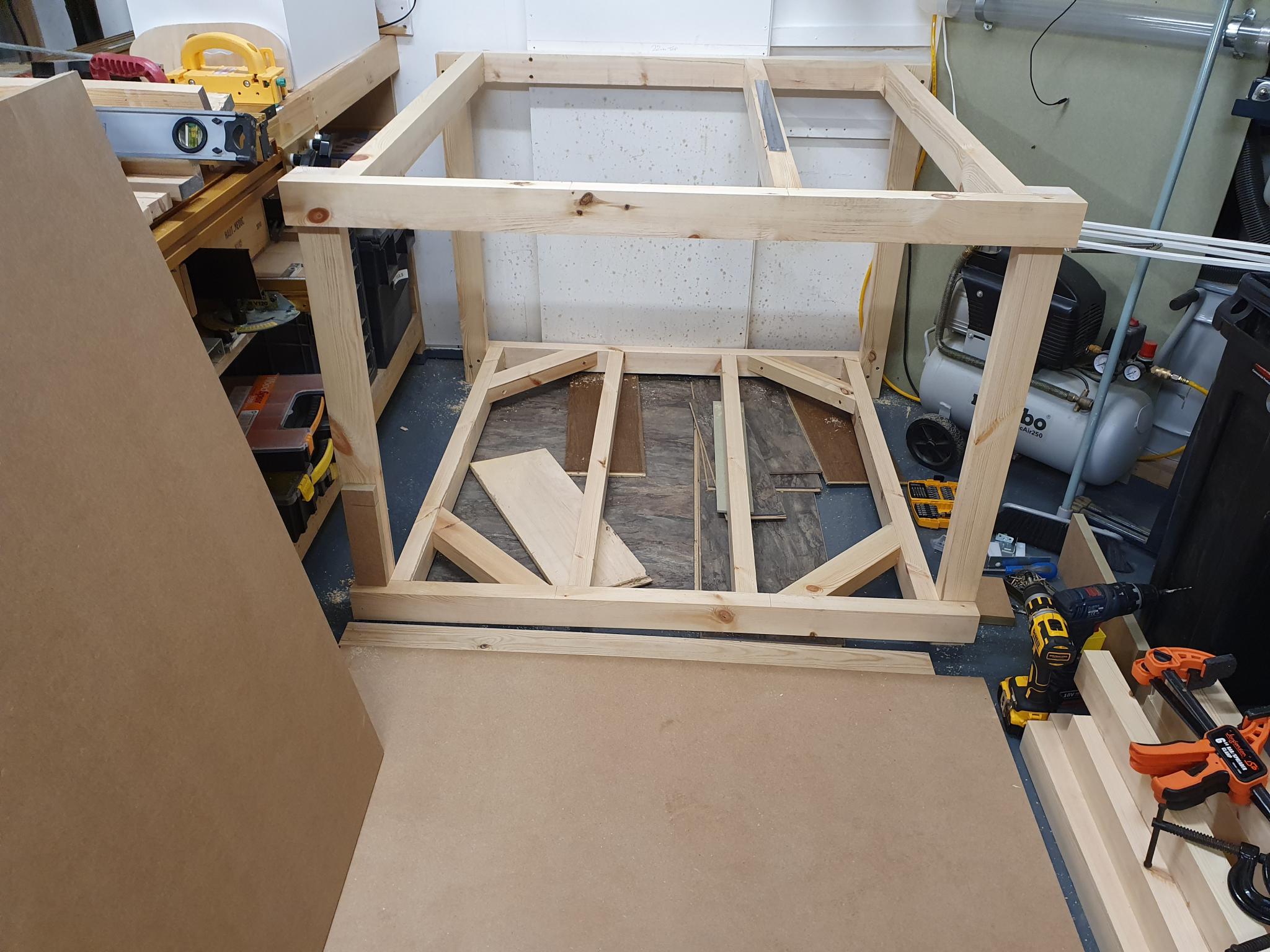

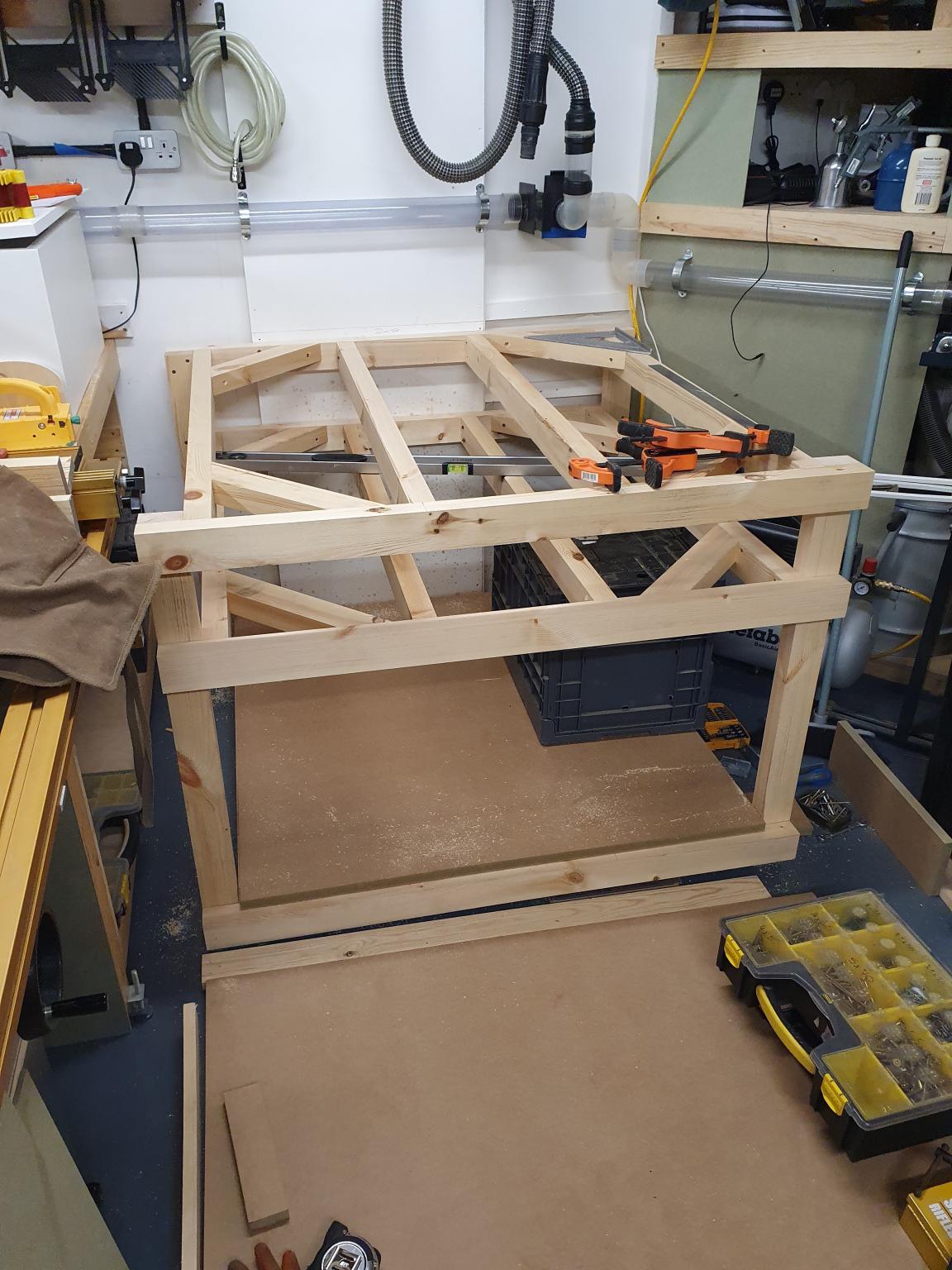

    Click image for larger version.

Name:	CNC Table Build 1.jpg
Views:	162
Size:	332.5 KB
ID:	30096Click image for larger version.

Name:	CNC Table Build 2.jpg
Views:	147
Size:	210.9 KB
ID:	30097Click image for larger version.

Name:	CNC Table Build 3.jpg
Views:	138
Size:	326.7 KB
ID:	30098

    Will carcass the sides out with 22mm as well and it already weighs a tonne.

    Then some shaker style panel doors and a large drawer/pull out shelf to put all the electrics - will update as it goes along

    Oh, for anyone with eagle eyes, the floor runs out back to front, but is dead on square and level!!

    WoodKnot
    Last edited by WoodKnot; 21-06-2021 at 08:51 AM.
