    Hello, i need some help from someone who has set up system4 on mach3

    i've even got the info that comes with the board in front of me, but i must be doing something wrong as the enable light won't come on.

    if anyone can guide me through what ports and pins they used on the 'motor outputs' and 'output signals' on mach3 i'd be really really gratefull
    Reply With Quote Reply With Quote
  2. 18-01-2010 #2
    Dan Brown's Avatar
    Lives in bristol, United Kingdom.
    Dan Brown
    Last Activity: 12-12-2011 Has been a member for 9-10 years. Has a total post count of 47.

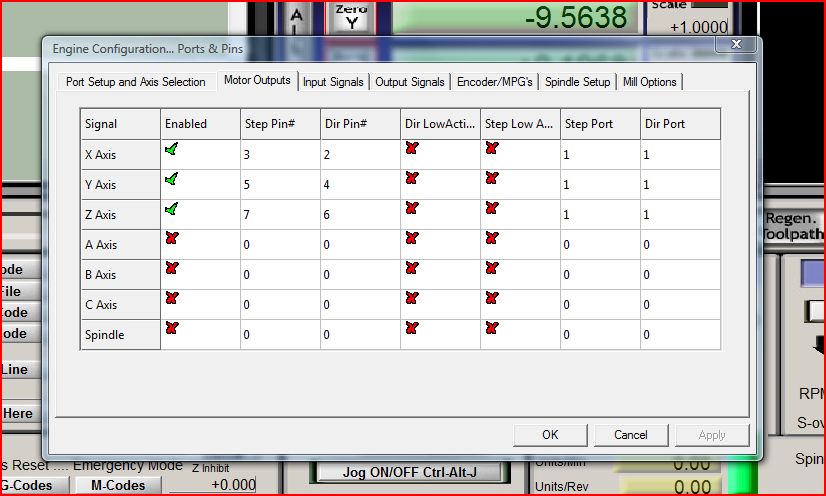

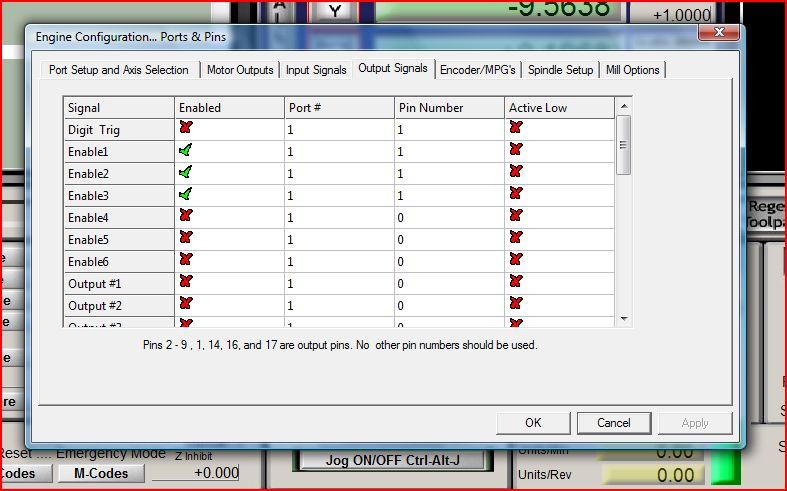

    i still can't work out what i'm doing wronClick image for larger version.  Name: mach3 outputsignals.JPG  Views: 1250  Size: 85.7 KB  ID: 1478g here, i'm going to post a couple of screenshots of my configuration and maybe one of you will spot something stupid that iClick image for larger version.  Name: mach3 motor outputs.JPG  Views: 3230  Size: 84.1 KB  ID: 1477'm missing, you can't see it in the screenshot but i've enabled the charge pump option and entered '1'in both port and pin

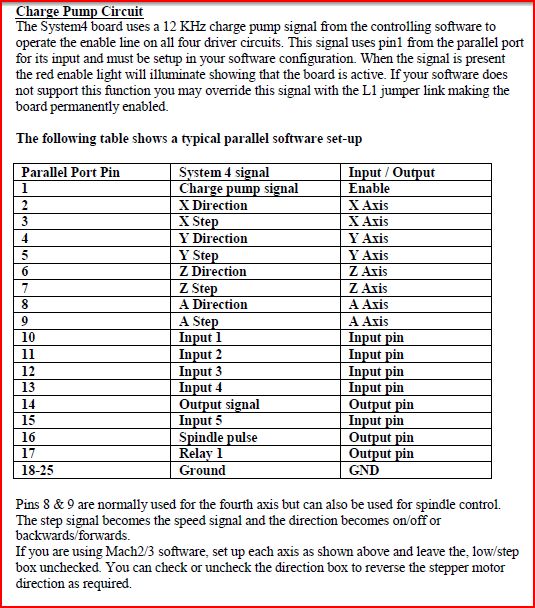

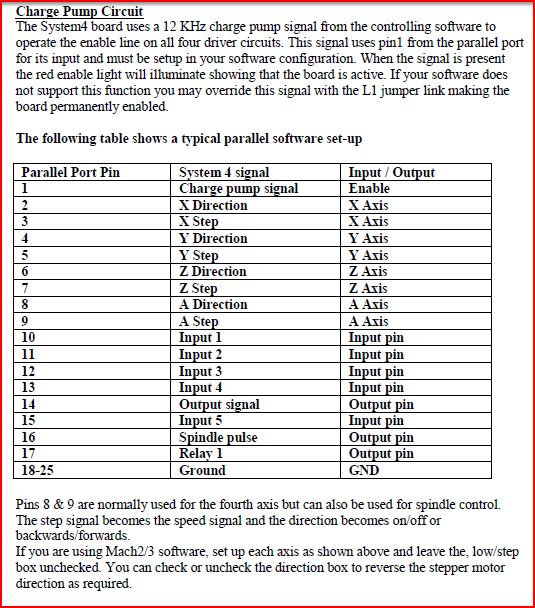

    Click image for larger version.  Name: sys4 instructions.JPG  Views: 474  Size: 107.7 KB  ID: 1476
    Reply With Quote Reply With Quote
  3. 18-01-2010 #3
    Dan Brown's Avatar
    Lives in bristol, United Kingdom.
    Dan Brown
    Last Activity: 12-12-2011 Has been a member for 9-10 years. Has a total post count of 47.
    wow what the hell happened there?? those pics were supposed to be at the bottom
