    How did you get it so quick ?

  2. #202
    Quote Originally Posted by EddyCurrent View Post
    How did you get it so quick ?
    Next day delivery as standard, can't fault their service...although I've not had a reply to my email yet.


  3. #203

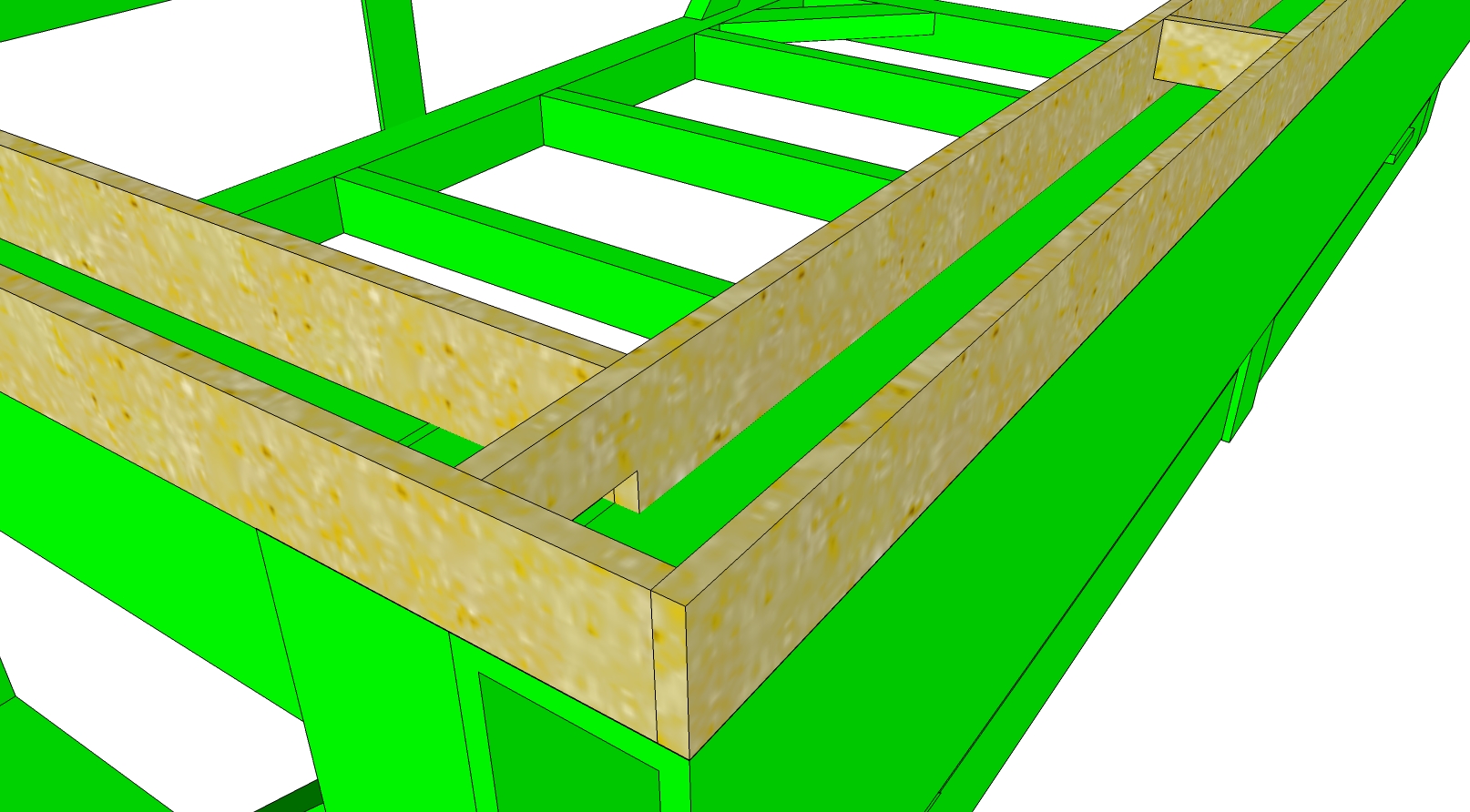

    This is how I'm going to have my fence for pouring the epoxy, I might put an extra cross channel near the front of the frame as an extra channel for self levelling.

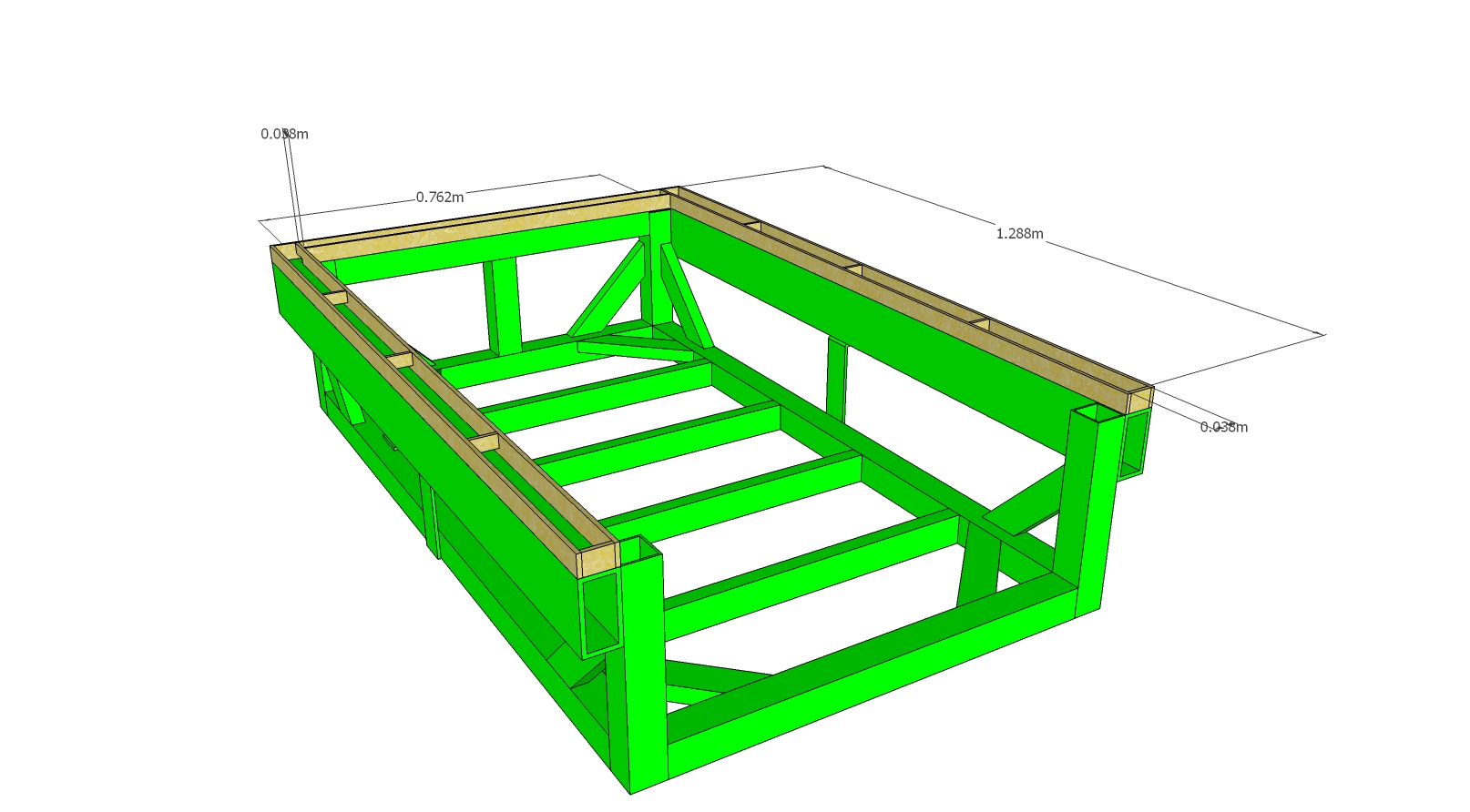

    Click image for larger version.

Name:	Epoxy_Frame_1.jpg
Views:	184
Size:	363.4 KB
ID:	11405Click image for larger version.

Name:	Epoxy_Frame_2.jpg
Views:	176
Size:	558.5 KB
ID:	11404


  4. #204
    Depending on how good it flows I was thinking about either a central aqueduct (epoxyduct ?) or two, one at each end. Obviously two are more wastefull than one. You don't fancy using the draught excluded idea then for the fences then ?
    Last edited by EddyCurrent; 29-01-2014 at 02:57 PM.

  5. #205
    I'm going to test on a miniature set of welded steel first using some steel offcuts. I'll weld up a practice piece first like this...

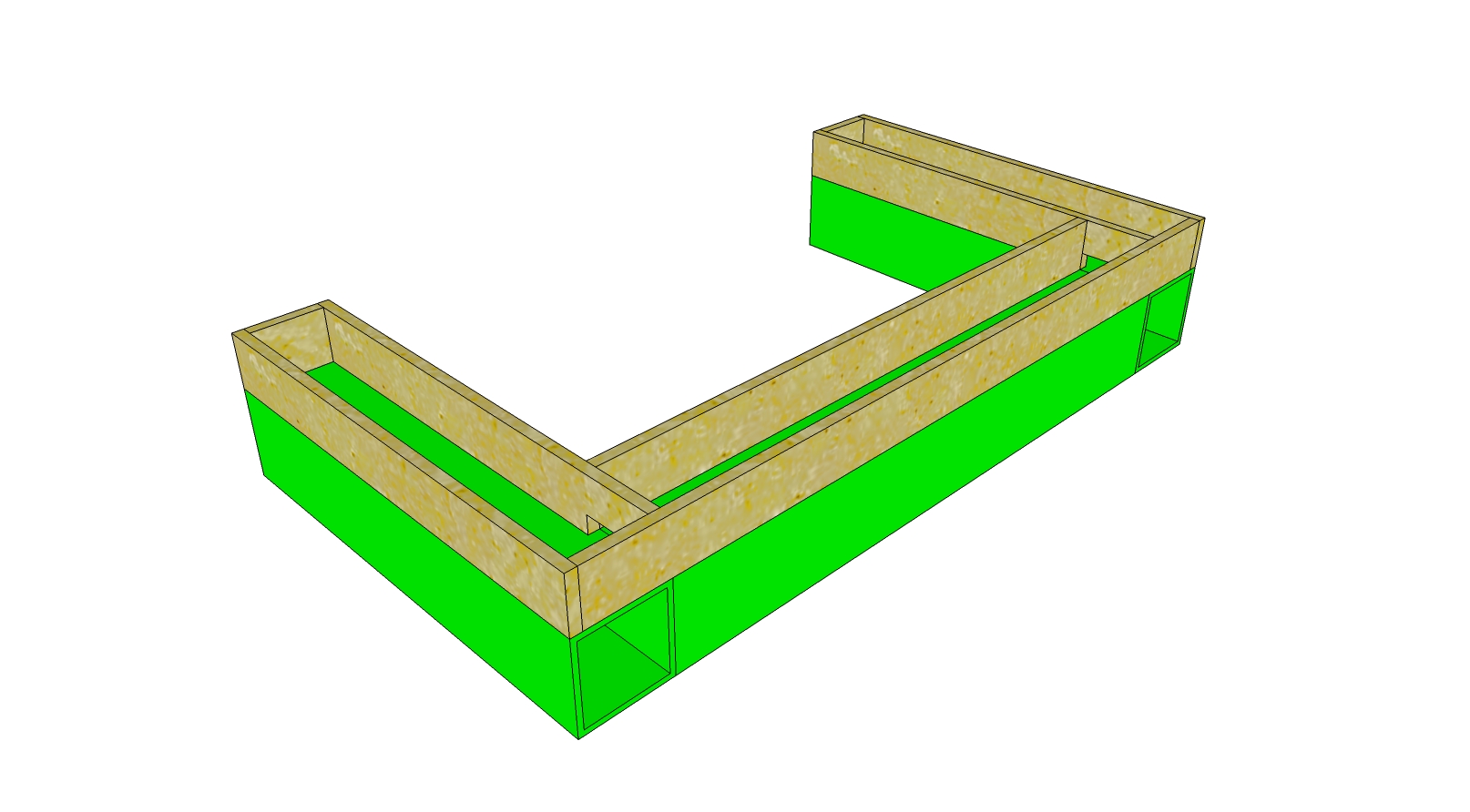

    Click image for larger version.

Name:	Epoxy_Practice.jpg
Views:	116
Size:	275.3 KB
ID:	11408

    Just hope it doesn't use too much epoxy...

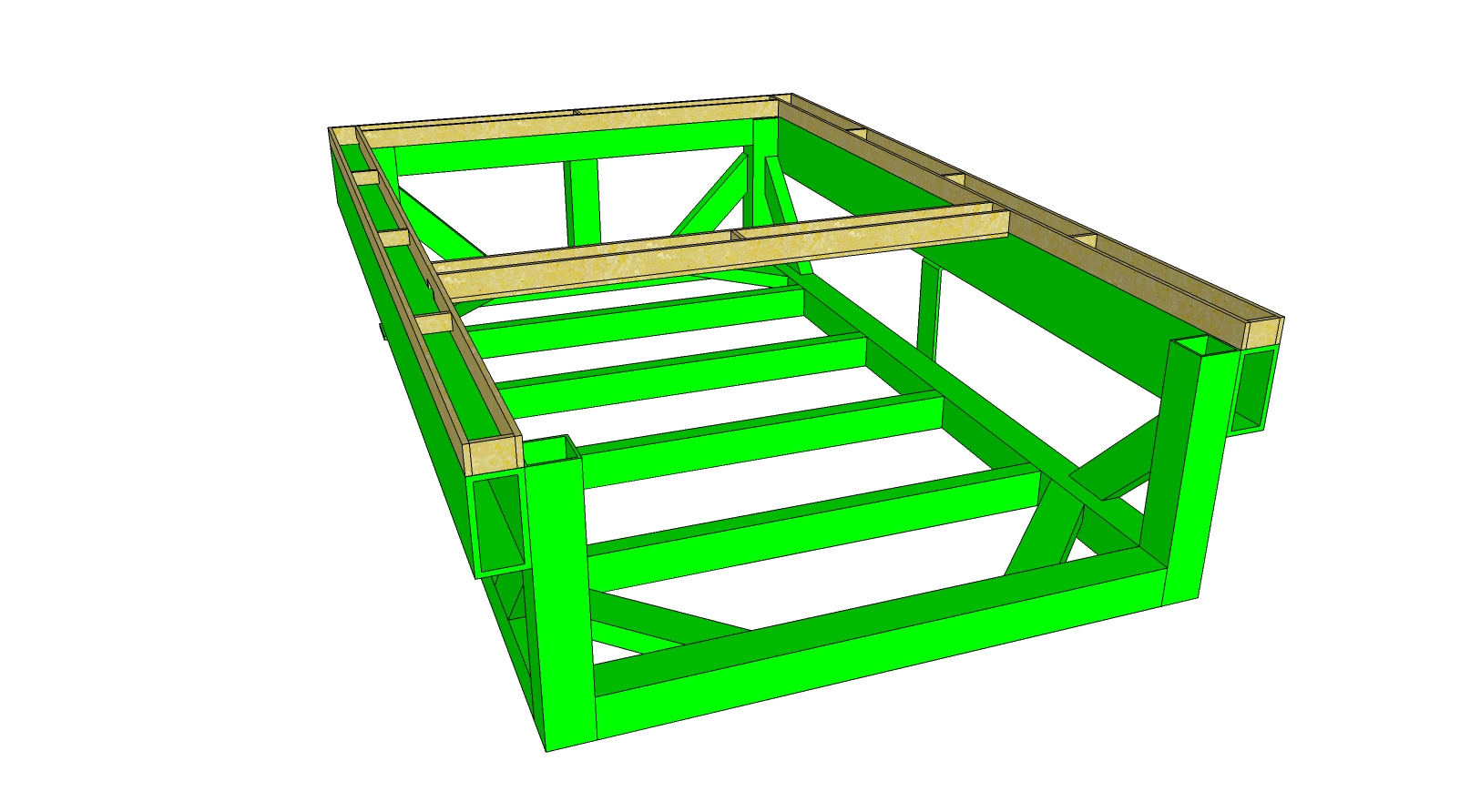

  6. #206
    Additional epoxyduct added....

    Click image for larger version.

Name:	Epoxy_Frame_3.jpg
Views:	141
Size:	388.6 KB
ID:	11409

    Might try the draught excluder on the test piece....can see it being messy to get off after the epoxy sets?
    Last edited by njhussey; 29-01-2014 at 03:16 PM.

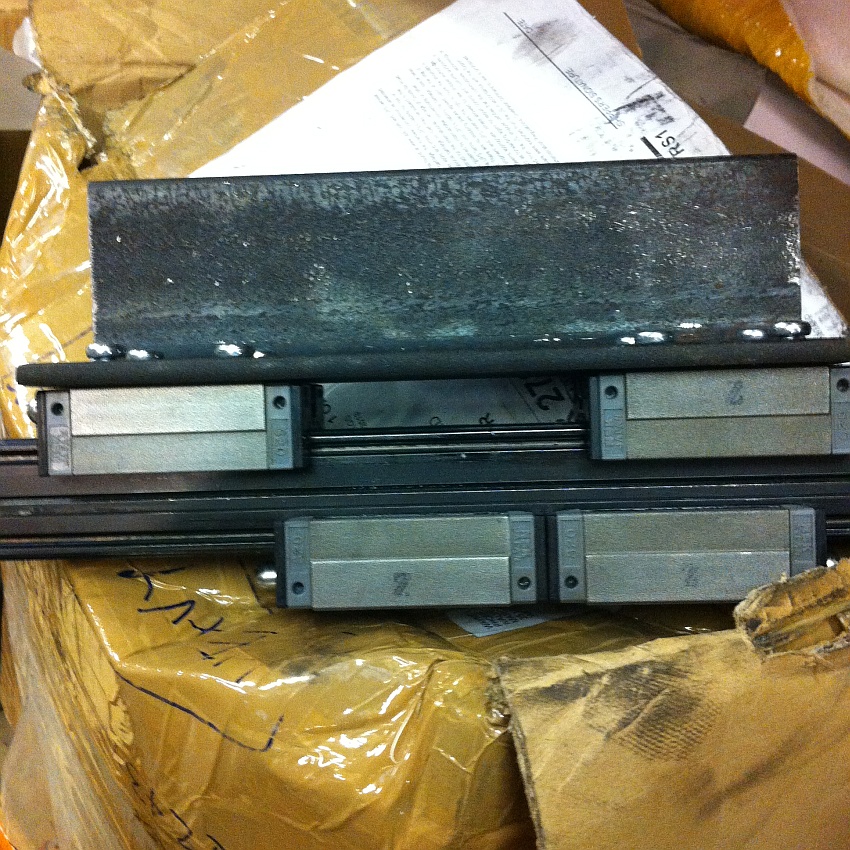

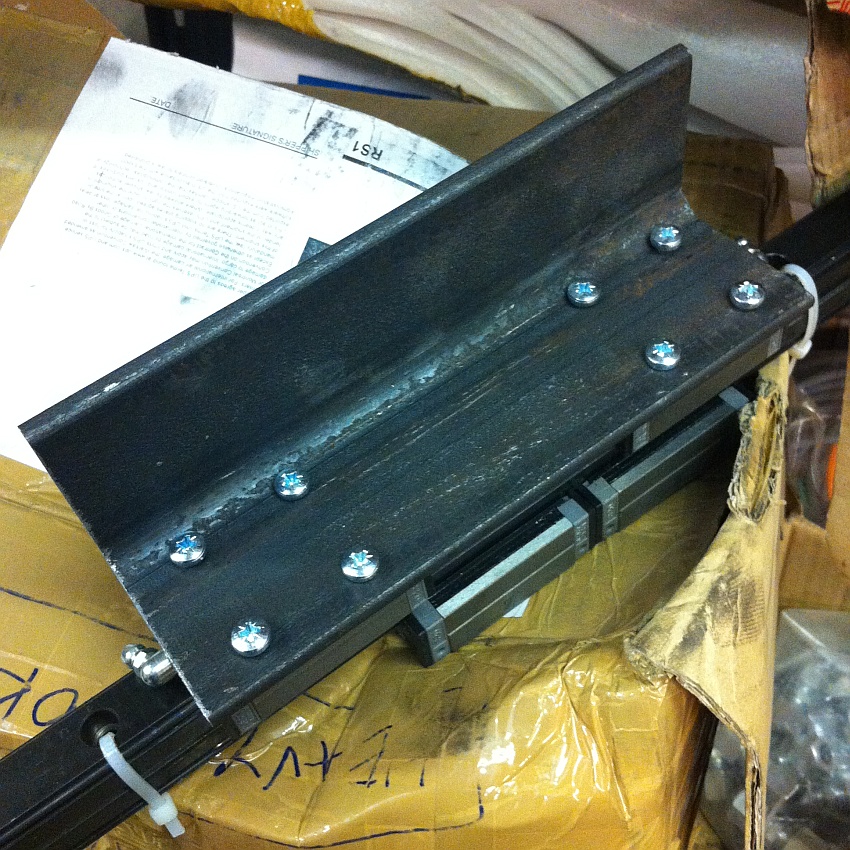

  7. #207
    Had a little play at lunch with the pillar drill and a bit of 60x60x5 RSA as I was thinking of making the dummy gantry base out of steel (plenty in the scrap bins at work cou"stock"gh) to cut up and mess with. I printed the hole pattern out on some paper and taped this to the bottom of the angle and centre punched the hole positions (high tech stuff this) prior to drilling them. Used a 6mm drill bit for a bit of clearance as the holes on the carriages are Tapped M5. Bolted the carriages to the angle and I reckon it should work OK and will save me spoiling a good bit of 10mm 6082 Ali plate.

    I will get some draught excluder and try Eddie's moat method on the underside of the angle so as to get a level surface to mount the carriages on. I know for the sake of getting the rails parallel I don't need to do this but it means I can try the epoxy out to see how good it is and also try Eddie's foam moat idea at the same time

    Click image for larger version.

Name:	Temp_X_carriage-1.jpg
Views:	172
Size:	374.5 KB
ID:	11428Click image for larger version.

Name:	Temp_X_carriage-2.jpg
Views:	176
Size:	399.5 KB

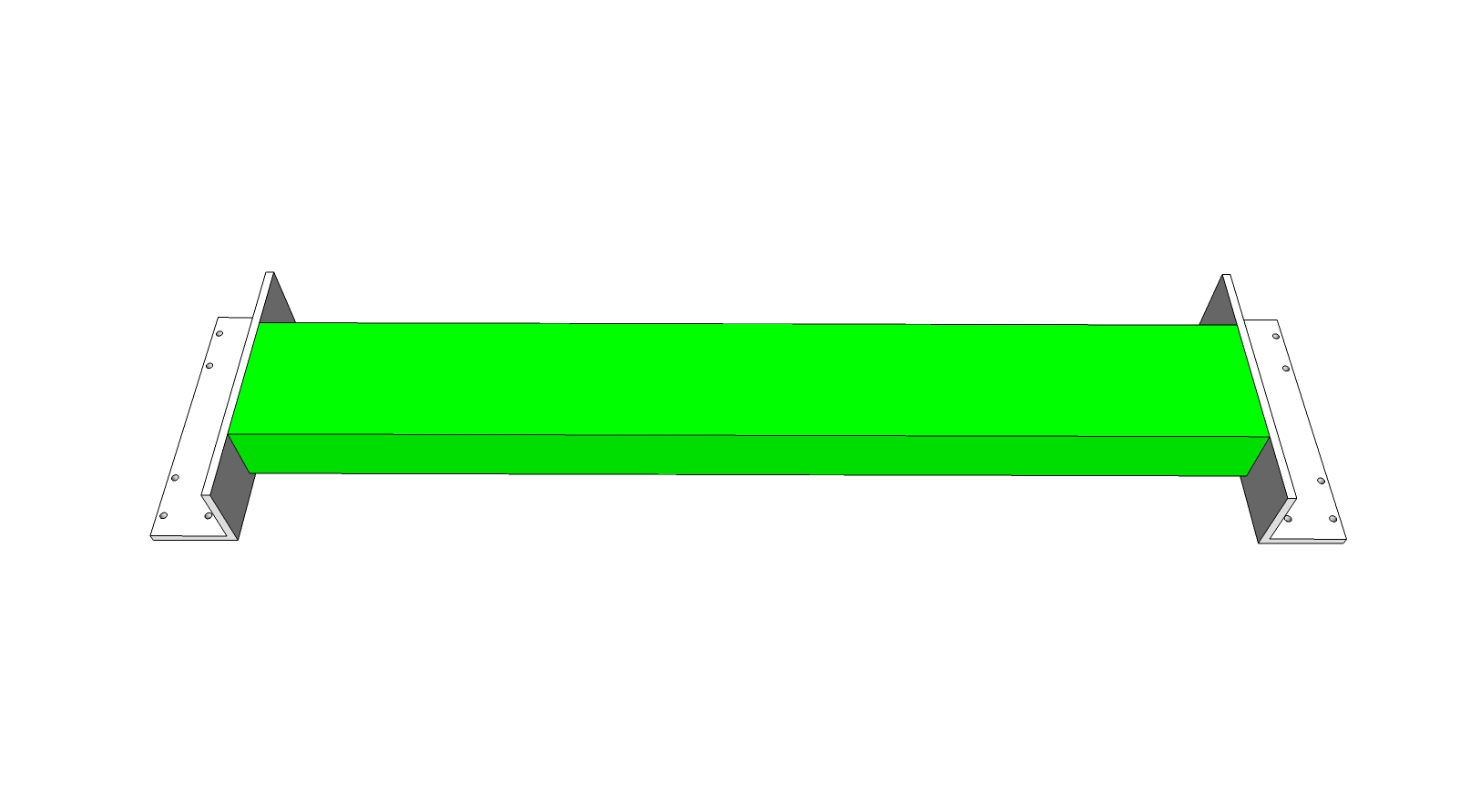

ID:	11427Click image for larger version.

Name:	Temp_X_gantry.jpg
Views:	139
Size:	71.6 KB
ID:	11429


  8. #208
    I did a test pour today and it's looking good. The draught excluder worked fine but where two pieces butt up at corners it needs a bit of glue between as there was a slight leakage through the joint. I'll do a full report in my own thread after it has cured. Also I'm thinking that when the moat is removed the edges of the epoxy would look a lot better if a bead of liquid nails was run down, like you would with sealant, then run your finger along it to create a nice fillet that will set hard and can be painted over.
    It looks like the epoxy did not penetrate into the foam, which was my biggest worry, and I think that's because the foam is waterproof.
    Last edited by EddyCurrent; 30-01-2014 at 09:45 PM.

  9. The Following User Says Thank You to EddyCurrent For This Useful Post:

  10. #209
    That's excellent news! I look forward to seeing the results Eddy.


  11. #210

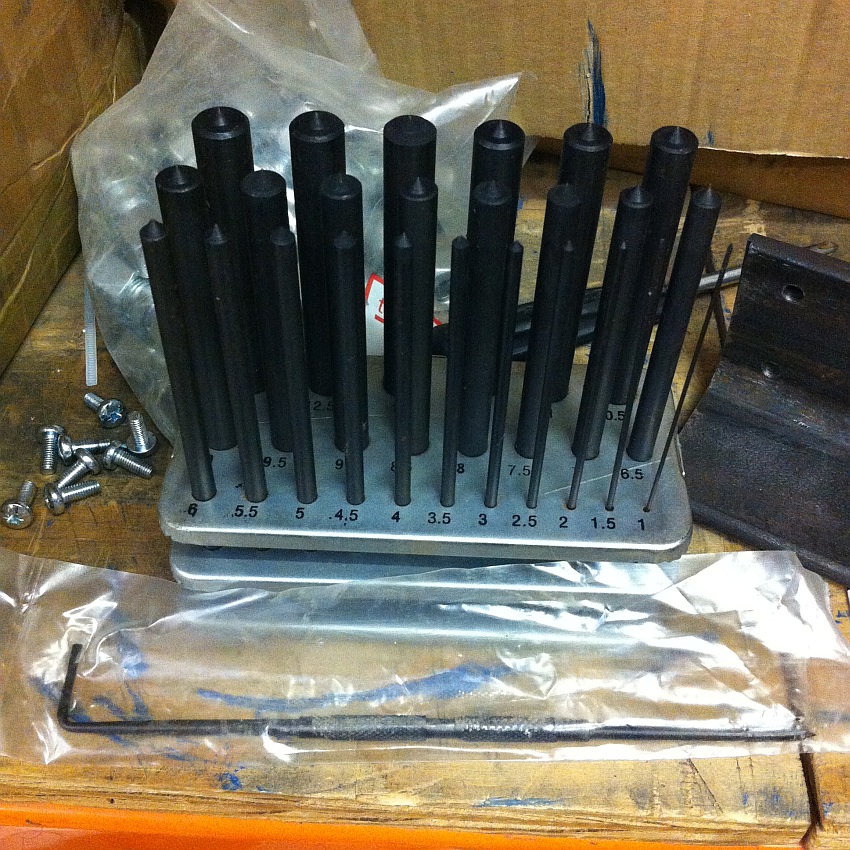

    Splashed out on some transfer punches to transfer the hole patterns to the other piece of 60x60x5 angle. Will weld up the cross member next week...really want to spend more than 45 minutes on it at one time.

    I'm selling off all my RC Helicopters so there's more room in the shed so I should be able to get out in it and do some work on the gantry soon I hope. Just have to man up and try cutting the ali plate and stop worrying about messing it up

    Click image for larger version.

Name:	Transfer_punches.jpg
Views:	136
Size:	369.9 KB
ID:	11449
