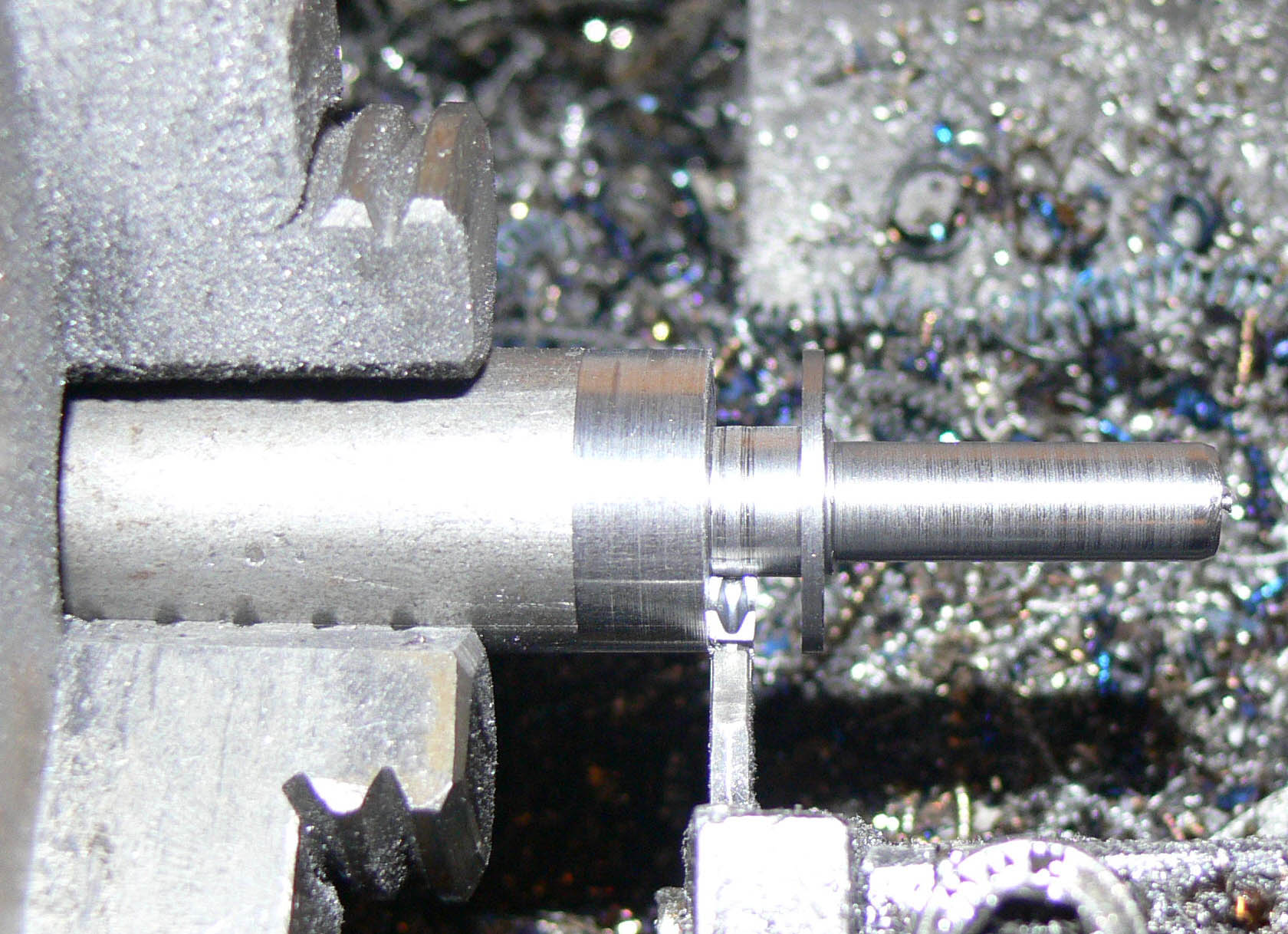

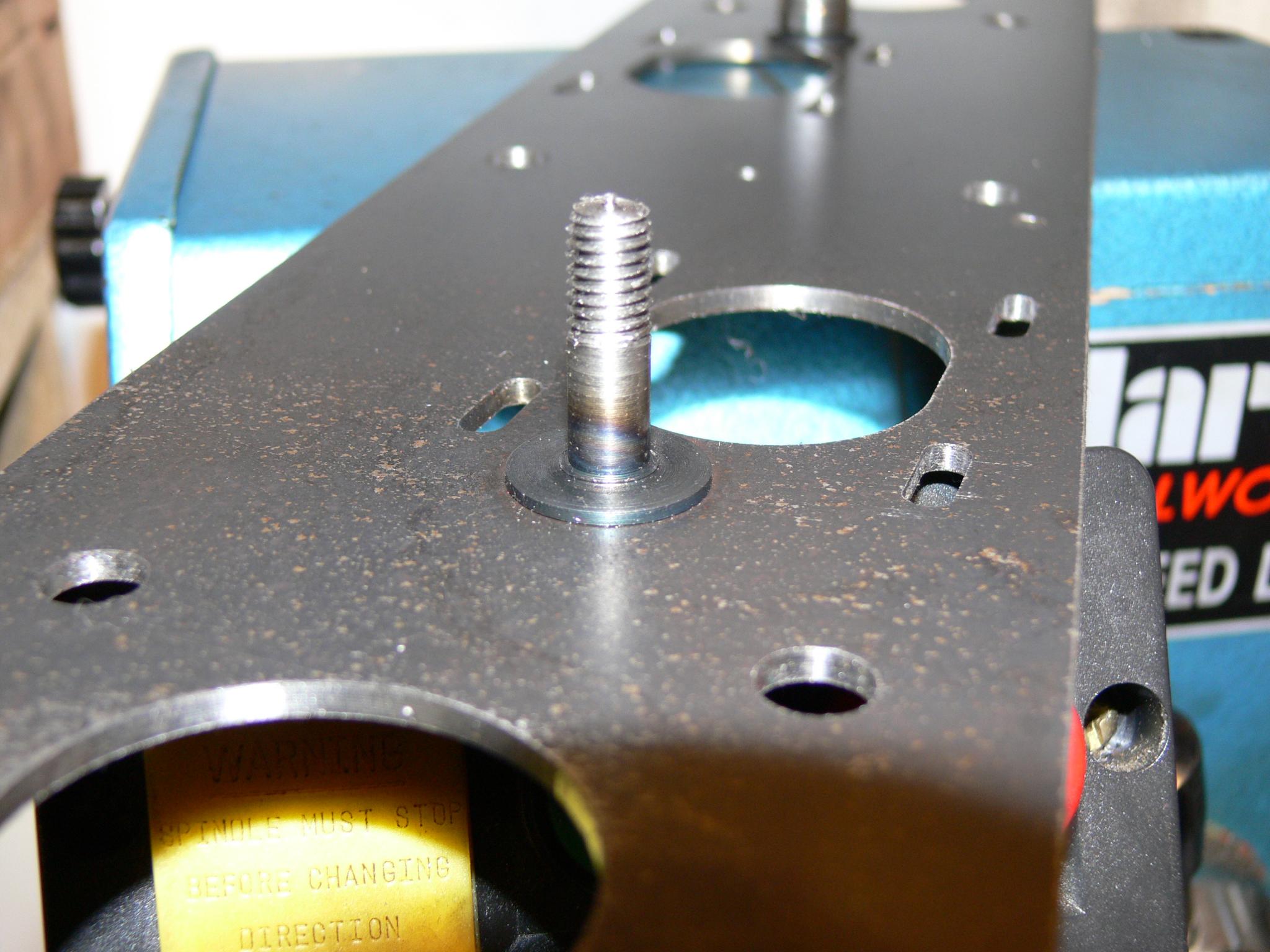

  2. Tensioner shaft
    Click image for larger version.

Name:	P1160587.jpg
Views:	606
Size:	295.4 KB
ID:	3778 Click image for larger version.

Name:	P1160588.jpg
Views:	1540
Size:	269.7 KB
ID:	3777

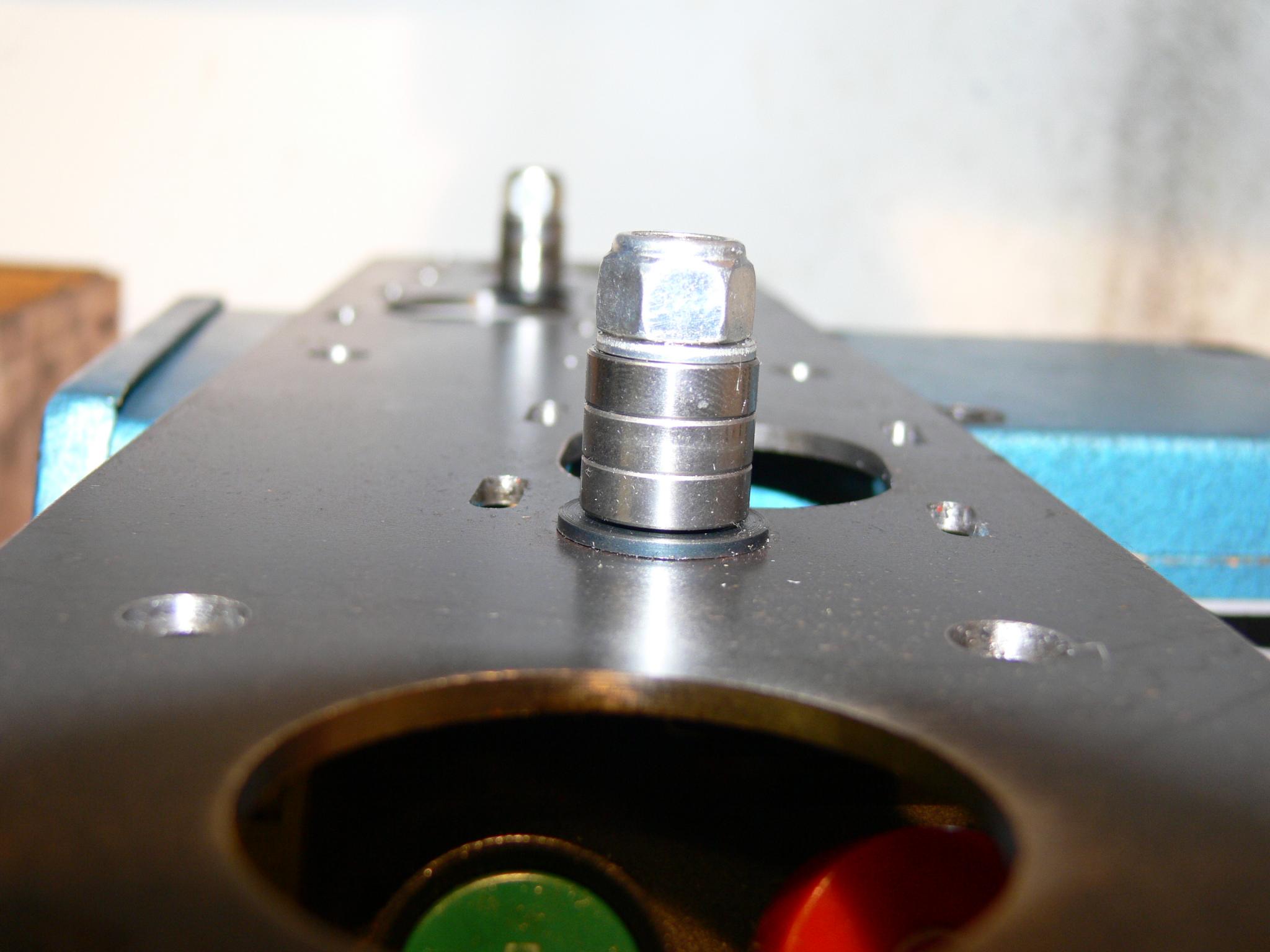

    with 3 pieces of 688z bearings each
    Click image for larger version.

Name:	P1160589.jpg
Views:	326
Size:	166.1 KB
ID:	3779 Click image for larger version.

Name:	P1160592.jpg
Views:	694
Size:	406.1 KB
ID:	3780

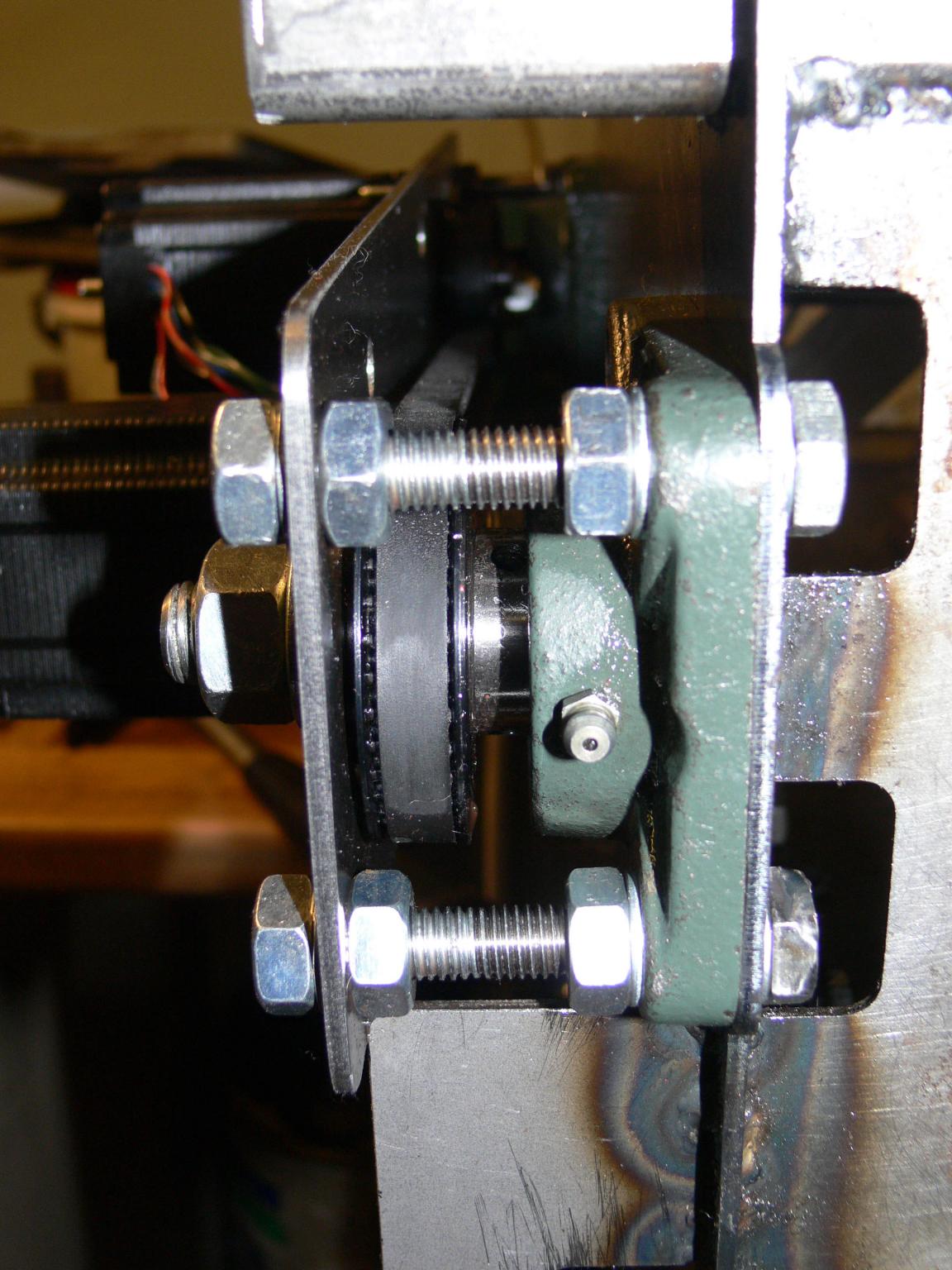

    Job finally done :)
    Click image for larger version.

Name:	P1160594.jpg
Views:	432
Size:	395.2 KB
ID:	3781 Click image for larger version.

Name:	P1160596.jpg
Views:	370
Size:	331.3 KB
ID:	3782 Click image for larger version.

Name:	P1160597.jpg
Views:	1339
Size:	197.0 KB
ID:	3776

  3. #23

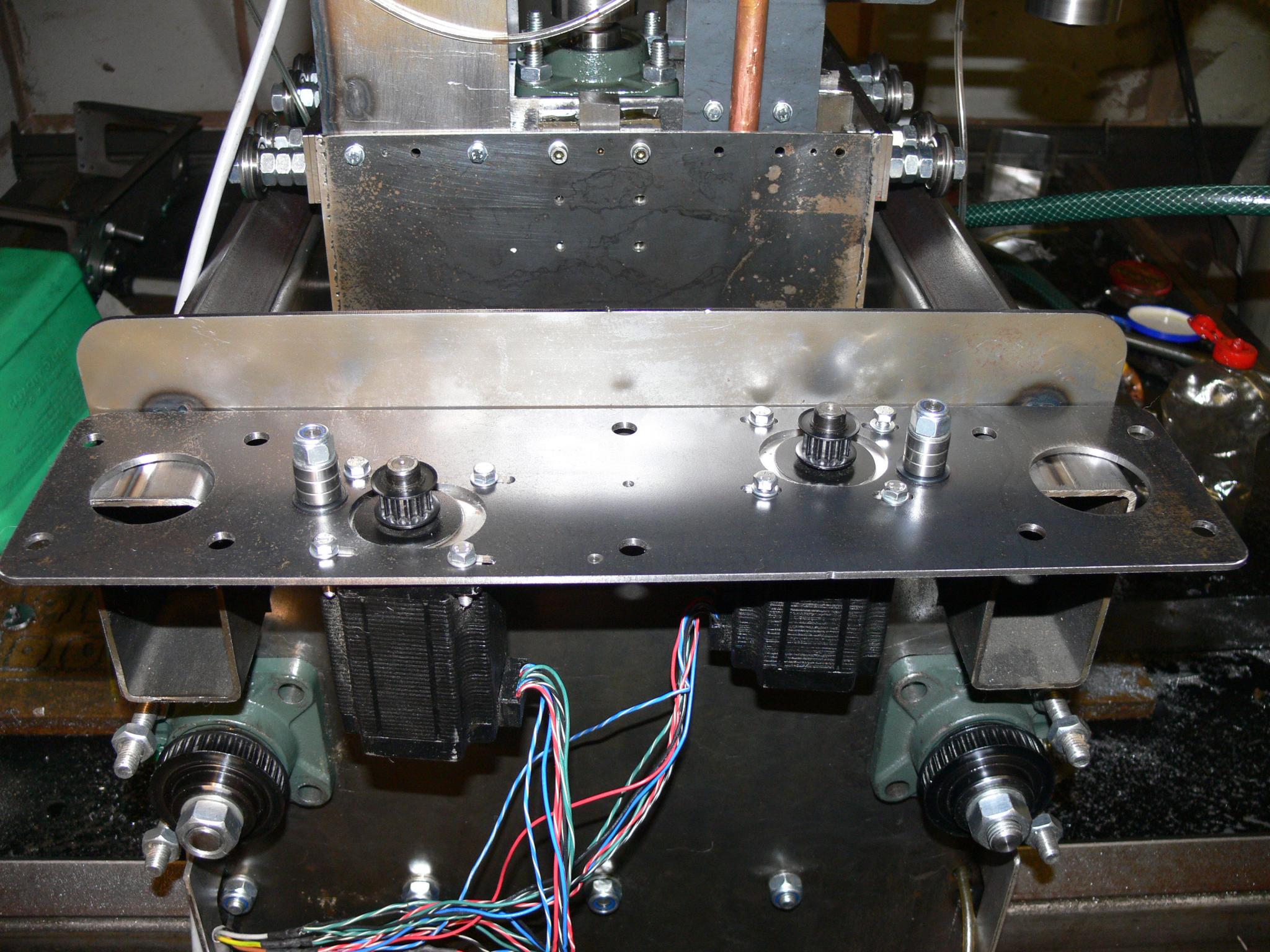

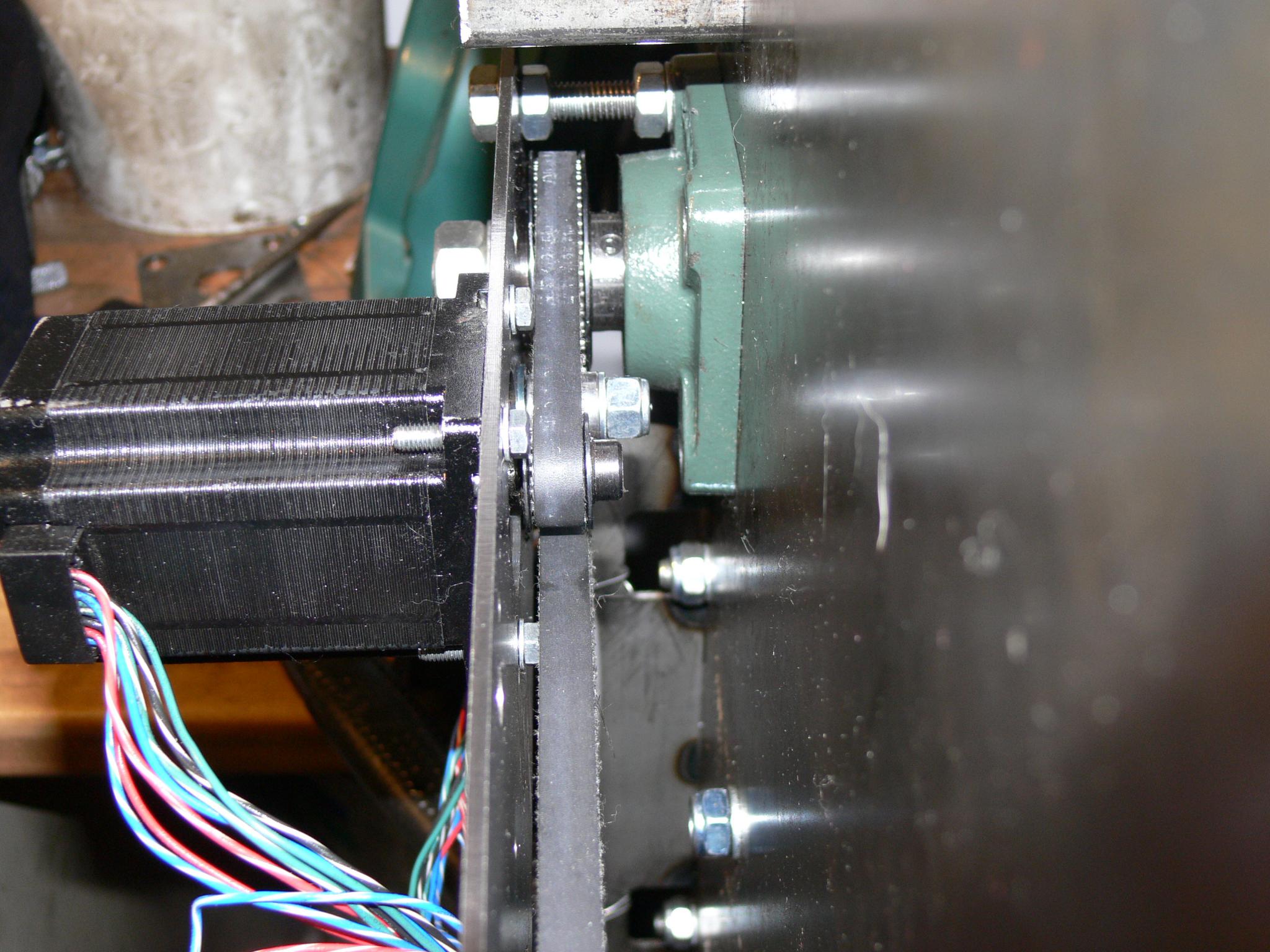

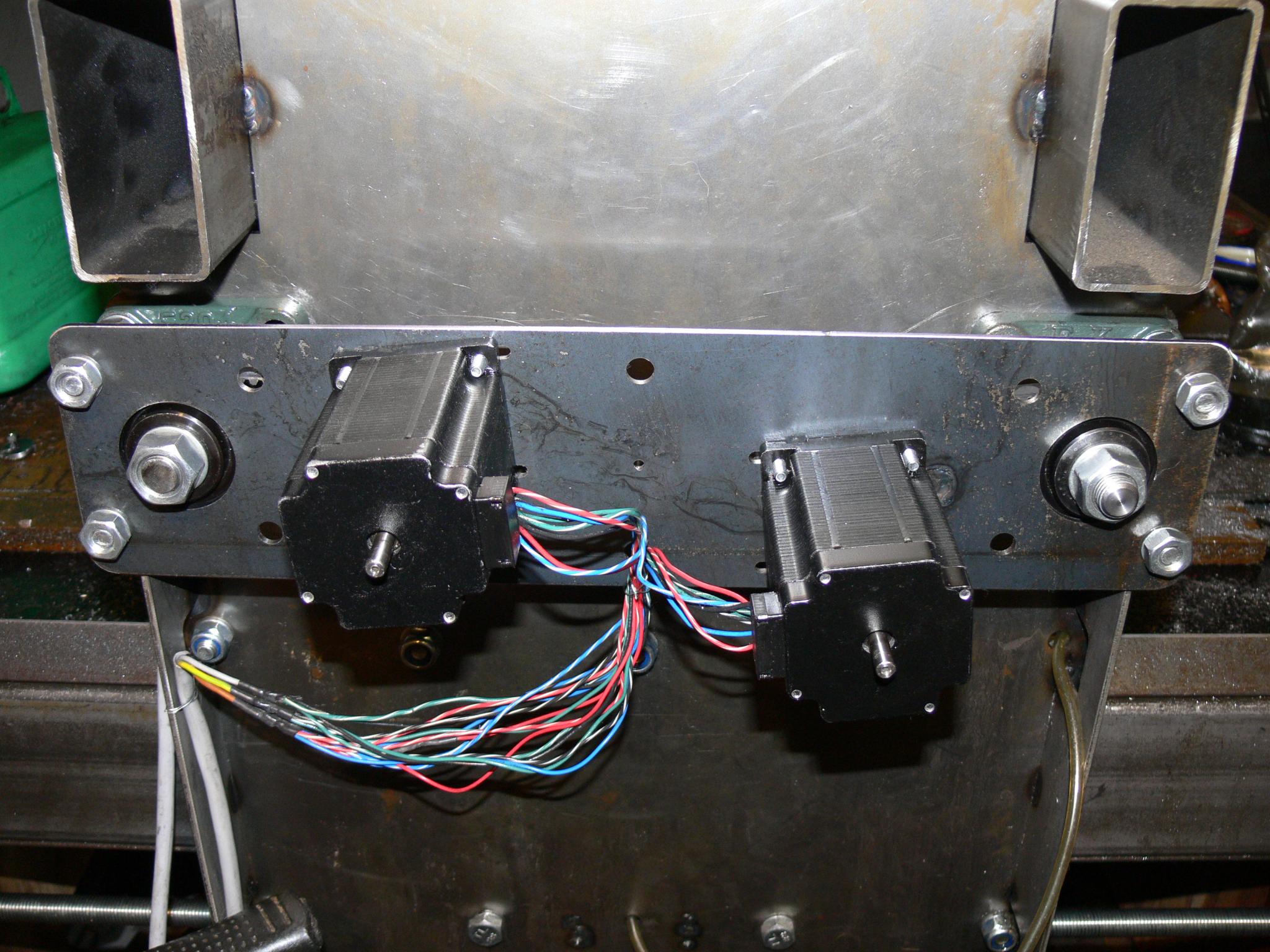

    That looks neat. I can't really think of a good reason why, but having both motors running on the same belt doesn't seem like a good idea. Why not just have one going to each ballscrew? At the very least that means shorter belts, so lower inertia (probably negligeble). I guess the only thing it gains is preventing racking occuring.
