  1. #11

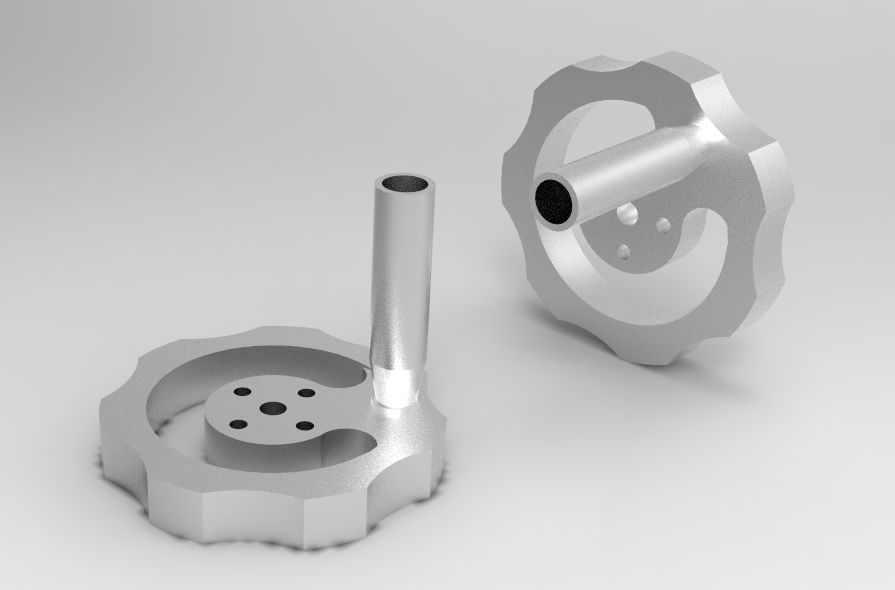

    More like this?Click image for larger version.

Name:	1.PNG
Views:	137
Size:	92.3 KB
ID:	5506

  2. #12

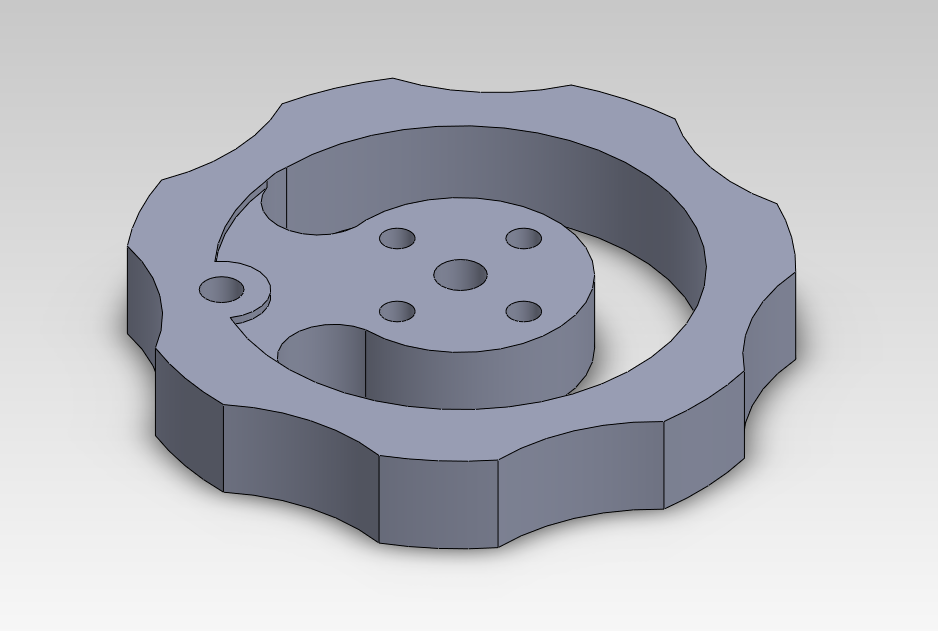

    Quick RenderClick image for larger version.

Name:	2.PNG
Views:	142
Size:	218.4 KB
ID:	5507

  3. #13
    Nice!, think i would rather see the handle as a solid bar with no tapered fixing, with a dome/ball finish on the protruding end.

    Maybe also move/rotate the 25mm radials on the outside of the wheel so that the handle has more material on its outside edge. Should keep Pete (ptjw7uk) happy also ;-)

    What did you draw this up in ? solidworks ?
    Last edited by Lee Roberts; 18-03-2012 at 09:20 PM. Reason: spelling
    .Me

  4. #14
    m_c's Avatar
    Lives in East Lothian, United Kingdom. Last Activity: 2 Hours Ago Has been a member for 9-10 years. Has a total post count of 1,834. Received thanks 192 times, giving thanks to others 5 times.
    Quote Originally Posted by Lee Roberts View Post
    I may re-invent this wheel at some point :idea:
    Admit it. You started this thread just so you could get that in, didn't you?

  5. #15
    ok ok i hold my hands up :wave: yes i started this thread back in 2008 and now finally i was able to say it

    .Me

  6. #16
    Quote Originally Posted by Lee Roberts View Post
    Maybe also move/rotate the 25mm radials on the outside of the wheel so that the handle has more material on its outside edge. Should keep Pete (ptjw7uk) happy also ;-)
    Not sure I follow???

    Hows thisClick image for larger version.

Name:	3.PNG
Views:	126
Size:	73.7 KB
ID:	5508

  7. #17
    Almost...

    Like this for the handle see pic (more contact area for Pete :lol:).

    Then swap the red with the green, so rotate your arc's around the wheel.

    .Me
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	3.PNG
Views:	96
Size:	51.4 KB
ID:	5509
    .Me

  8. #18
    Like this????Click image for larger version.

Name:	4.PNG
Views:	135
Size:	111.2 KB
ID:	5510Click image for larger version.

Name:	5.PNG
Views:	123
Size:	89.2 KB
ID:	5511

  9. #19
    I like what you have done with the handle but no not what i was suggesting...

    See my pic and look at the fixing point for the handle, you will see it has no taper to it yours looks fine though mate.

    With regards to the outside arc's, i was meaning to move/rotate them around the wheel so that the widest part was inline with the handle, see my ruff pic for an idea of what i was meaning.

    .Me
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	3.PNG
Views:	124
Size:	57.9 KB
ID:	5512
    .Me
