1. #1


    I guess a diy cnc is never quite finished but this one is about as finished as its going to get

    im pretty happy with how well it all worked out :)

    good luck to all you buggars half way through your build.... try not to sup to much WD40 :)

  2. #2
    Nice one. Im glad you got it all finished. Nice bit of video too.

    Regards

    Ian

  3. #3
    ecat's Avatar
    Location unknown. Last Activity: 08-02-2014 Has been a member for 6-7 years. Has a total post count of 157. Received thanks 5 times, giving thanks to others 8 times.
    Grats! Excellent video :)

  4. #4
    Agreed, nicely edited video. Have you got any high resolution pictures from it? It looks like you've made another spindle and put a fly cutter made from a lathe tool in it?
    Last edited by Jonathan; 15-05-2011 at 11:42 PM.

  5. #5
    Quote Originally Posted by Jonathan View Post
    Have you got any high resolution pictures from it?
    of the machine or the spindle ?

    It looks like you've made another spindle and put a fly cutter made from a lathe tool in it
    your half right jonathan
    Click image for larger version.

Name:	_MG_1667.JPG
Views:	536
Size:	435.5 KB
ID:	4023

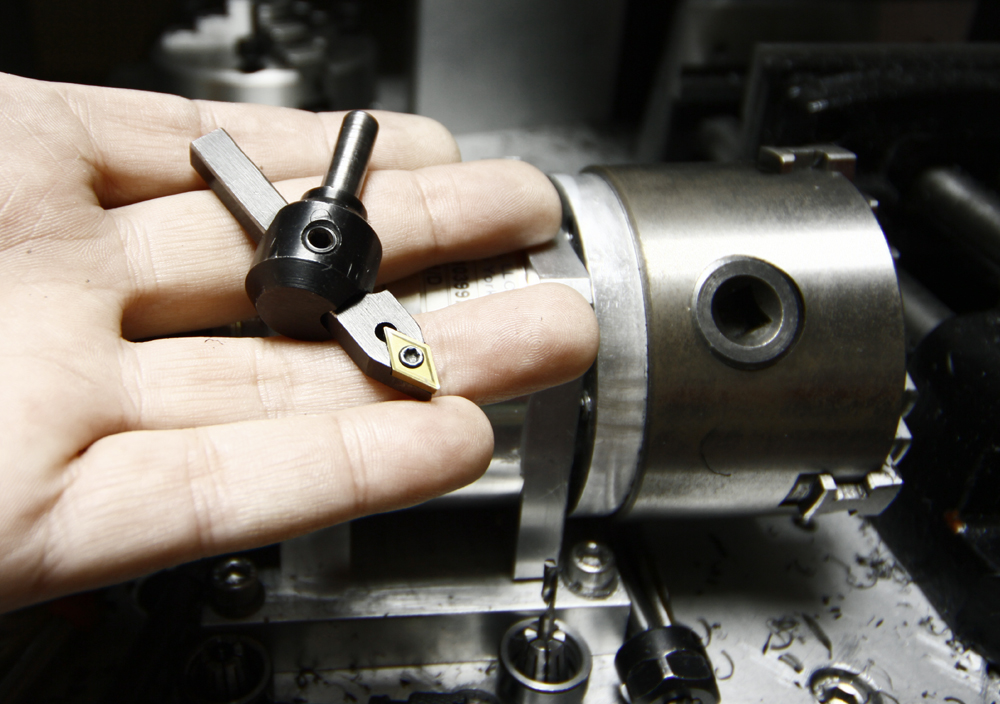

    its the same 2000w spindle with a simple flycutter i modified, (my main work horse.. the other two spindles i made dont get used very often)

    Click image for larger version.

Name:	_MG_1664.JPG
Views:	320
Size:	540.8 KB
ID:	4024

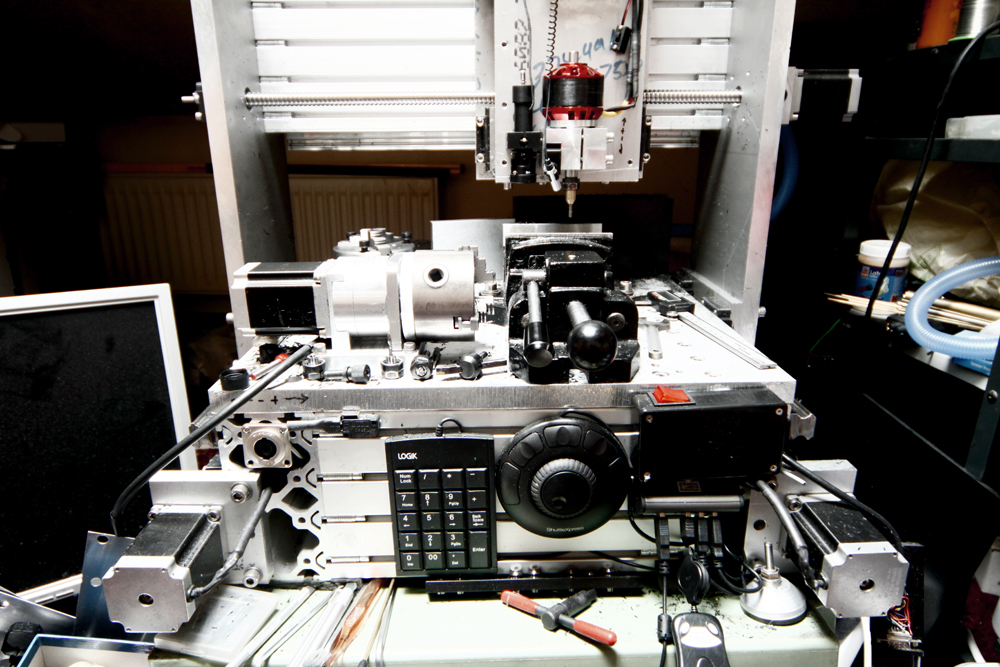

    the un-holy jumbles of it all is hidden in the video (art ) but here it is naked and looking scruffy, it works nice though

    this is the last thing i made for the machine
    Click image for larger version.

Name:	_MG_1668.JPG
Views:	275
Size:	343.8 KB
ID:	4025

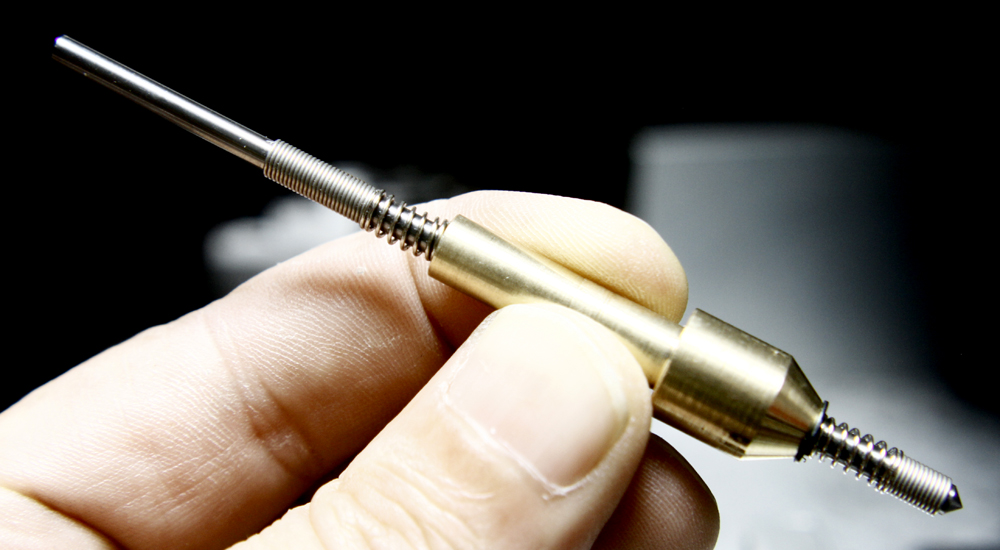

    3.175mm carbide shaft through brass, i cut up a torsion spring from a large shaft oil seal as the stops, simple and easy to adjust
    Click image for larger version.

Name:	_MG_1669.JPG
Views:	220
Size:	291.9 KB
ID:	4026

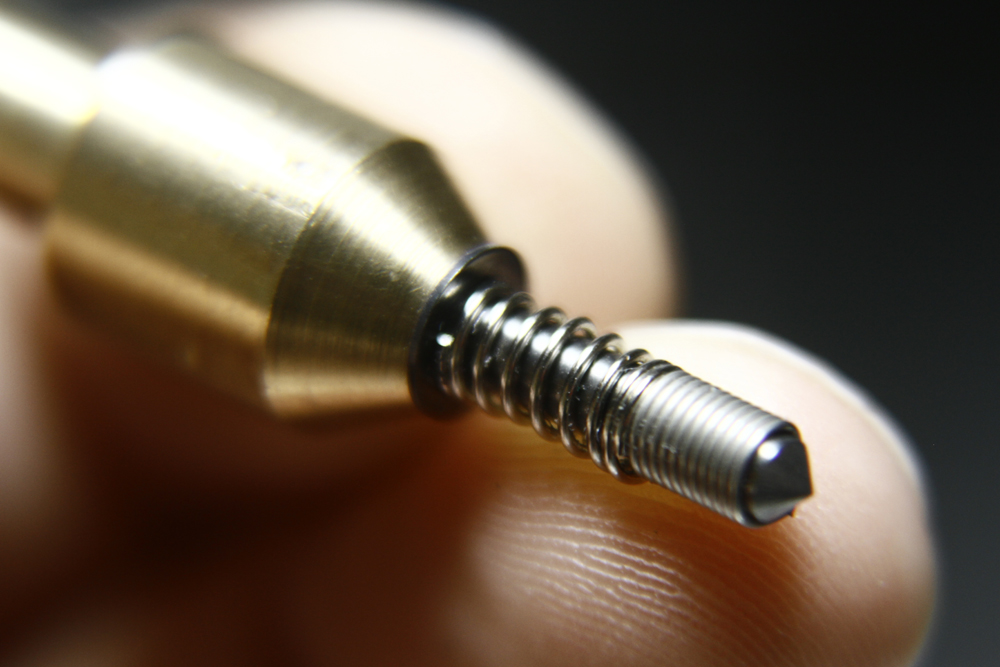

    i think the secret to getting these drag engavers to work well is grinding a good accurate point, i could probaby do with trying a more shallow angle with this one but its working well enough for me to just let it be untill it needs sharpening :)
