    I am after 3 mounts for the nema 23 like the one's on this listing but would rather buy from the uk

    http://www.ebay.co.uk/itm/Nema-23-St...ht_1367wt_1139

    it looks like Lee has stopped producing cnc parts ??

    as I have see some of his stuff in old posts any one interested in supplying them for me


    James :dance::dance:
    Last edited by luke11cnc; 27-07-2011 at 08:39 AM. Reason: spelling

  2. #2
    I could cnc mill some like that for you. Will hopefully be able to do them cheaper ... I'll work it out...
    How many do you need, 3? I've got enough aluminium in stock for 3, maybe 4.

    Quote Originally Posted by luke11cnc View Post
    as I have see some of his stuff in old posts any one interested in supplying them for me
    If there's anything else, let me know...
    Last edited by Jonathan; 27-07-2011 at 10:31 AM.

  3. #3

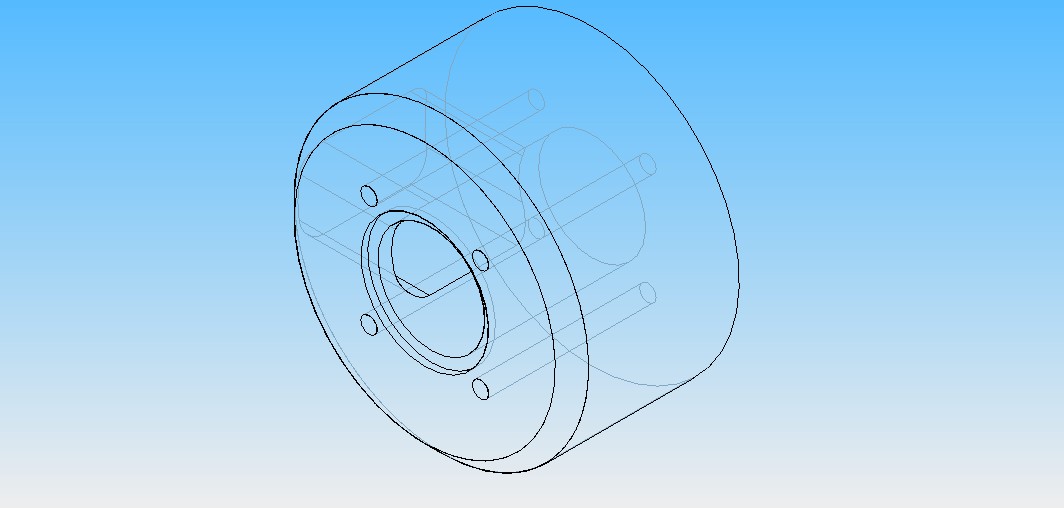

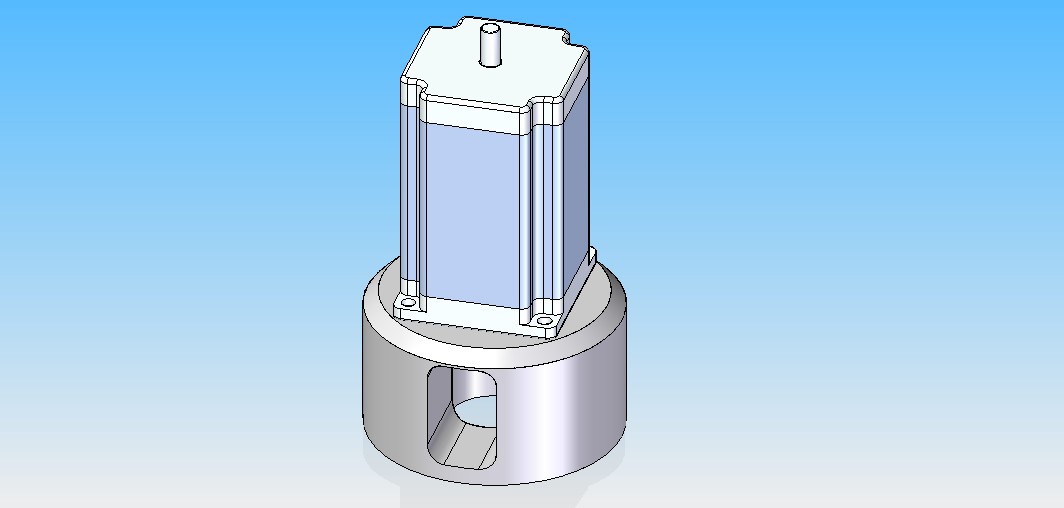

    Does this look ok?

    Click image for larger version.

Name:	Nema 23 stepper mount 1.jpg
Views:	647
Size:	44.5 KB
ID:	4282
    Click image for larger version.

Name:	Nema 23 stepper mount 2.jpg
Views:	518
Size:	55.8 KB
ID:	4283

    Hopefully you can open it in sketchup:

    Nema 23 motor mount.zip

  4. The Following User Says Thank You to Jonathan For This Useful Post:


  5. #4
    I've done a dimensioned drawing of the mount in case anyone else would like one/more:

    Click image for larger version.

Name:	Nema 23 Stepper mount.jpg
Views:	880
Size:	258.0 KB
ID:	4298

    (The 4 holes in the 3D drawing in my previous post are in the wrong place...)

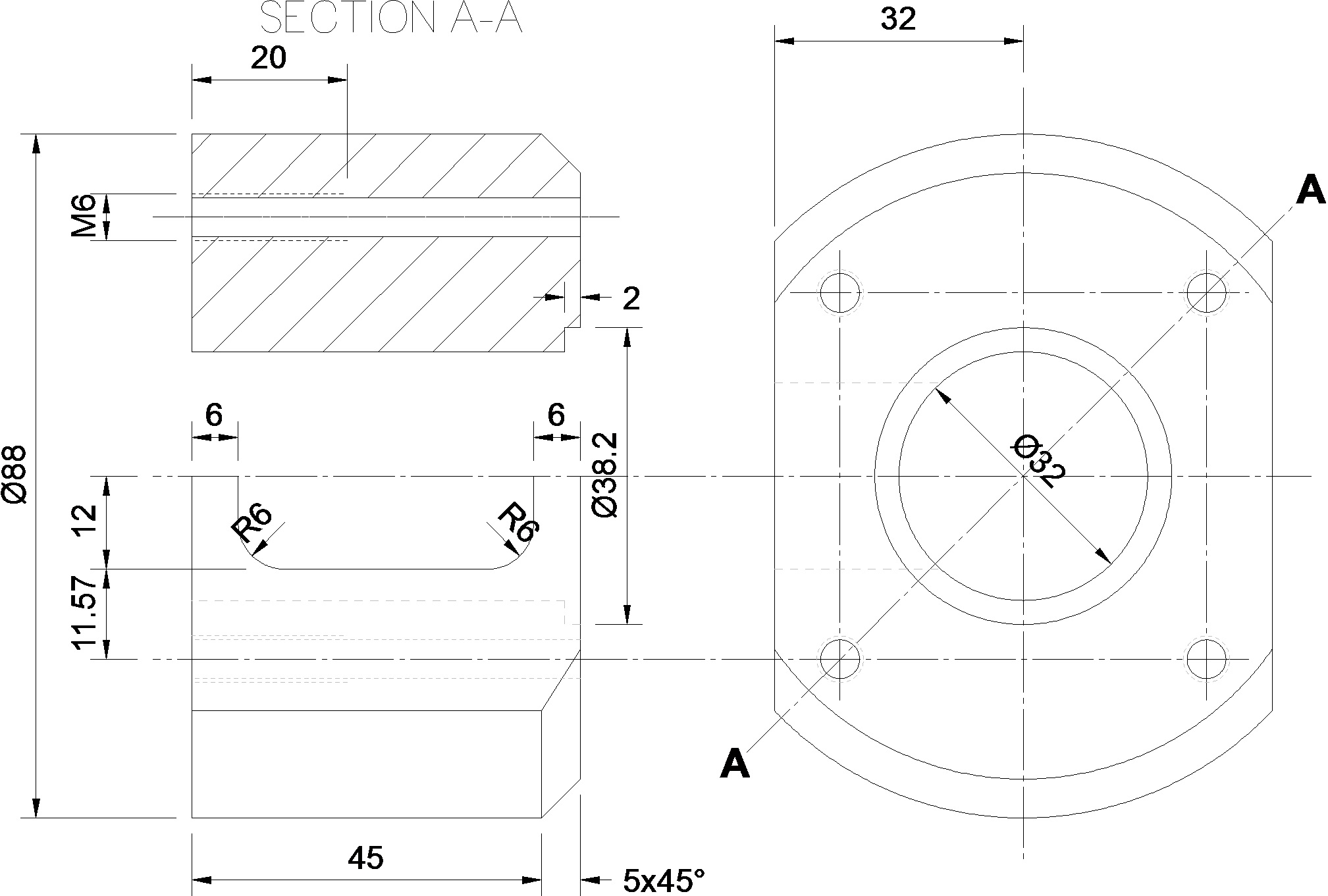

  6. #5
    Coupling OD is also a factor for this type of motor mount, what max OD have you allowed for Jonathan?
    .Me

  7. #6
    32mm.
    It's on the drawing in code, only dressmakers and the BBC dimension diameters as radii.
    John S -

  8. #7
    Quote Originally Posted by John S View Post
    only dressmakers and the BBC dimension diameters as radii.
    On the BBC they'd skip the interesting bit with dimensions!

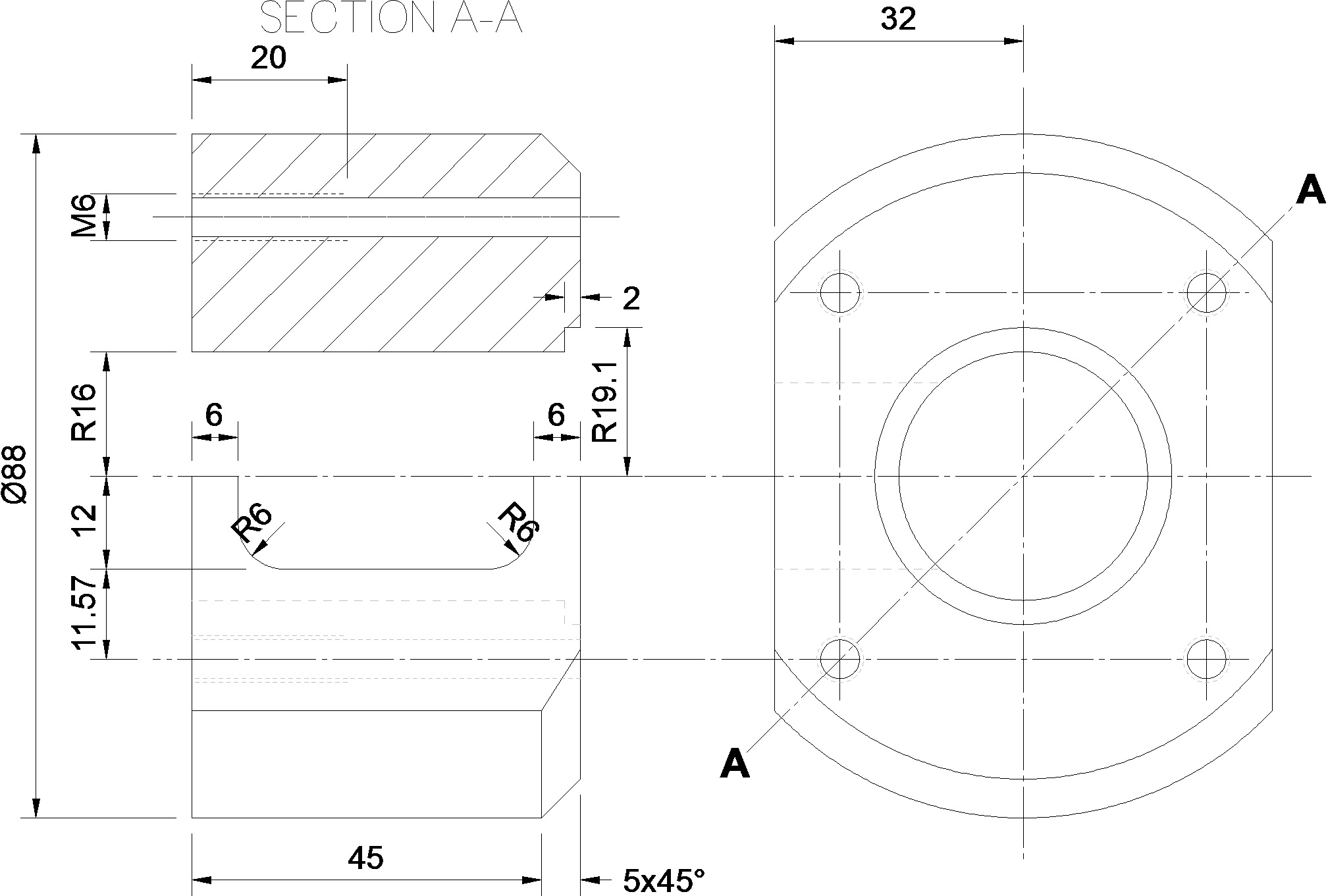

    I thought it was neater to dimension the radii, here's a version with mostly diameters:

    Click image for larger version.

Name:	Nema 23 Stepper mount2.jpg
Views:	1748
Size:	262.8 KB
ID:	4303

    I can obviously make that hole bigger if required, up to about 50mm.

  9. #8
    Jonathan

    I can bring the items over to you if you want when they arrive I don't mind waiting if you want

    I'm in no hurry to complete my cnc I figure it's going to take me three or four months to do anyway

    Plus it would be nice to see a DIY cnc up close

    James

  10. #9
    Quote Originally Posted by luke11cnc View Post
    I can bring the items over to you if you want when they arrive I don't mind waiting if you want ... Plus it would be nice to see a DIY cnc up close
    Your welcome ...

  11. #10

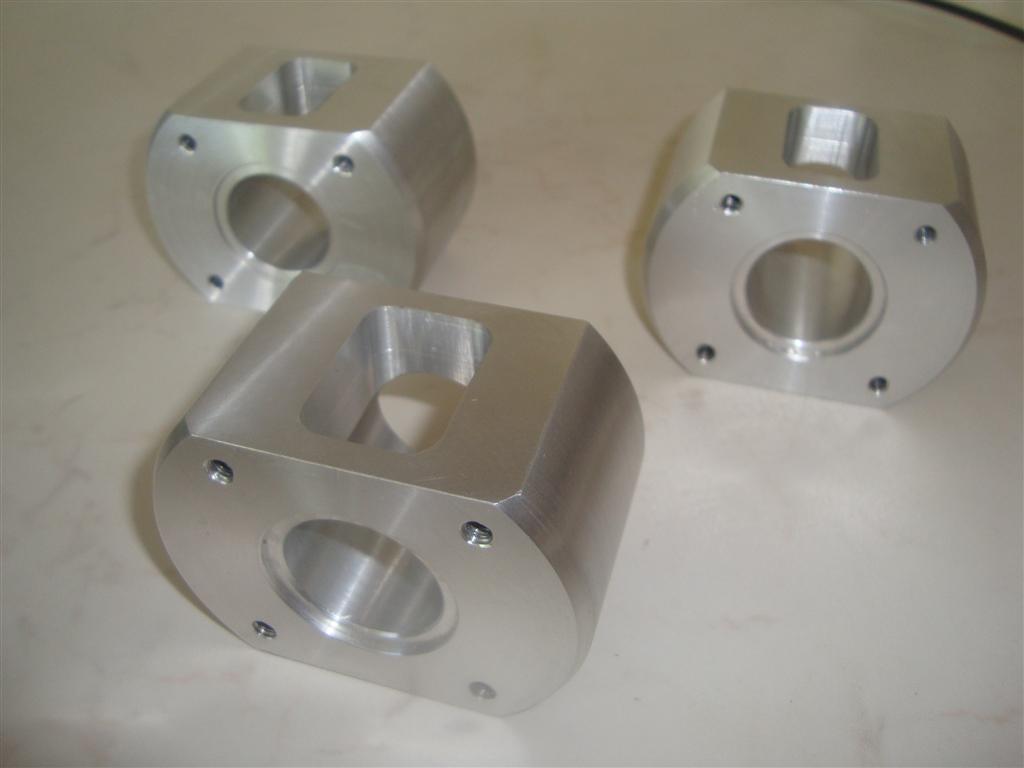

    Here's one or rather twenty one I made today.

    Click image for larger version.

Name:	stepper_mounts.jpg
Views:	1446
Size:	108.9 KB
ID:	4310
    John S -
