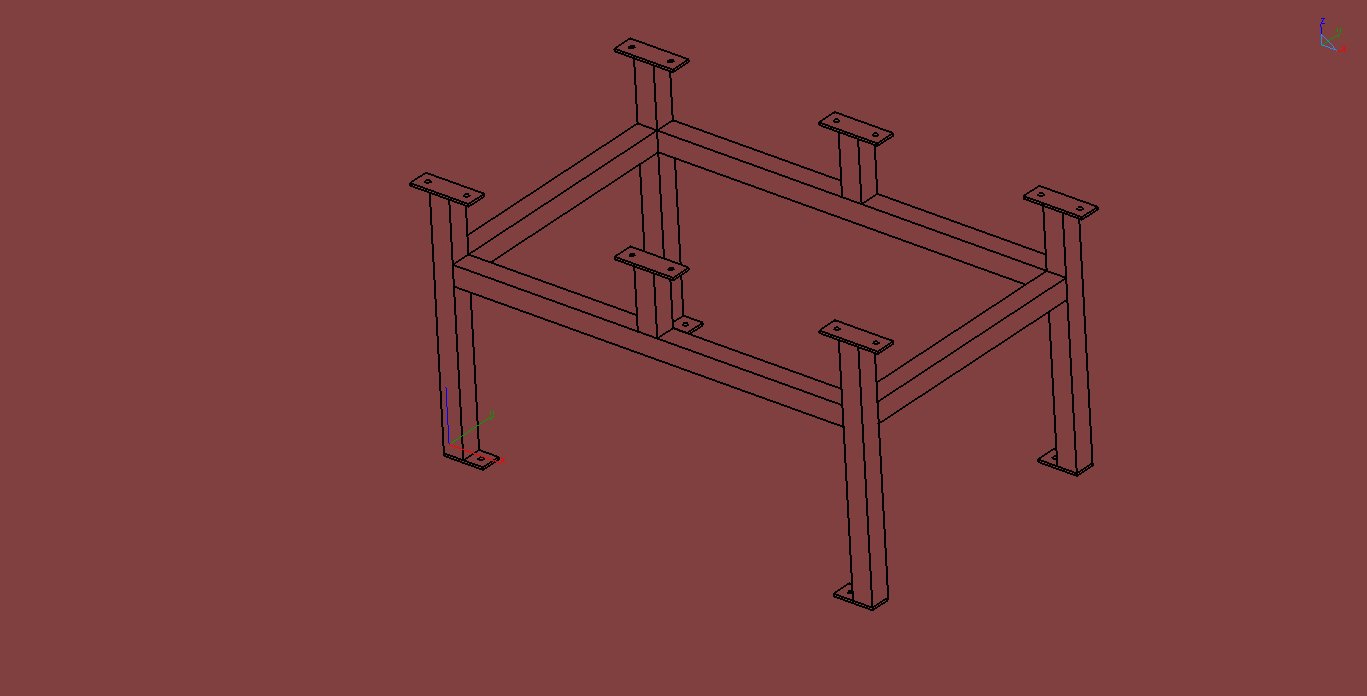

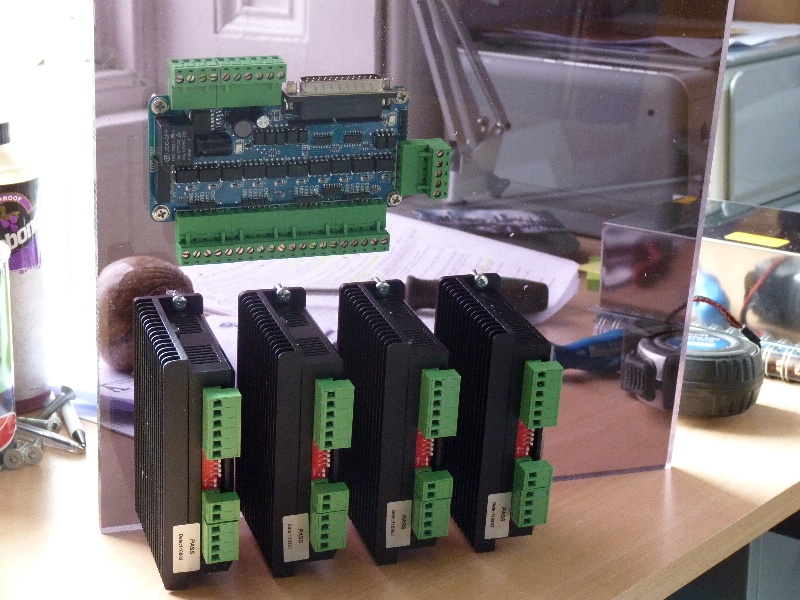

    Okay base is on the way and looks more like a jazz base then the previously drawn tea trolley. So I am starting on the electrics. Laid out a few components and will hopefully get some wire, plugs, connectors etc tomorrow.

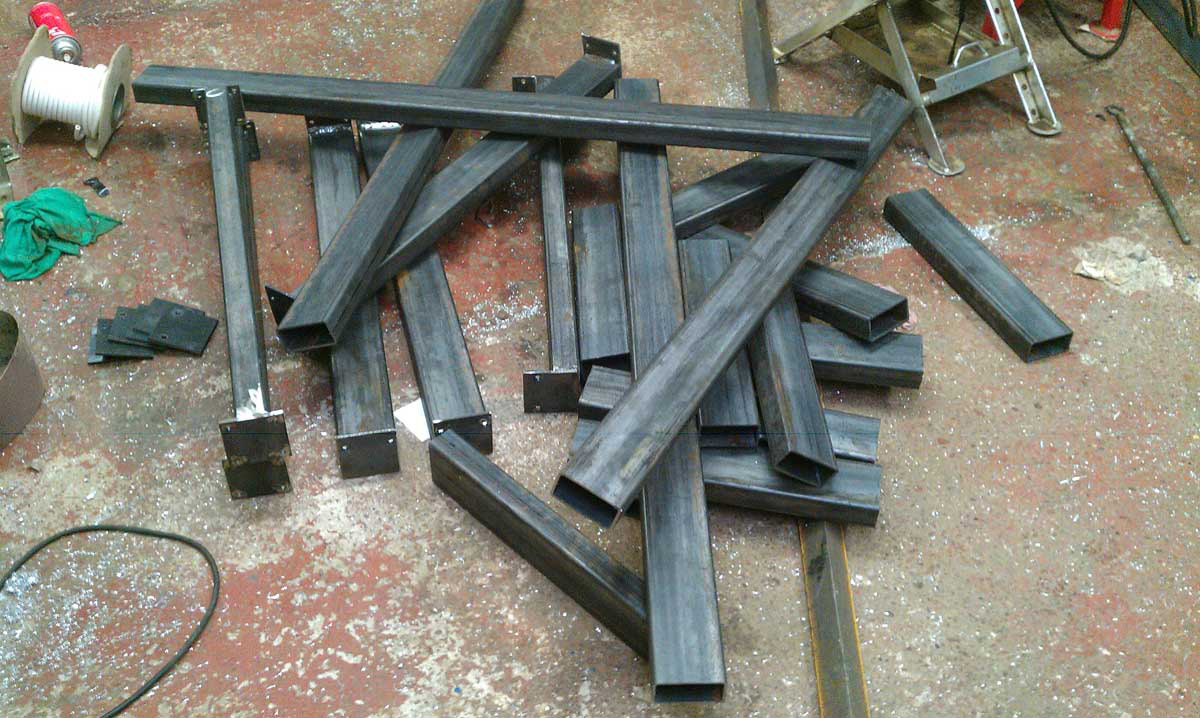

    Fillets and bracing added by the blacksmith.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	base 5.jpg
Views:	131
Size:	51.0 KB
ID:	5805   Click image for larger version.

Name:	P1010394.JPG
Views:	148
Size:	386.3 KB
ID:	5806
    The more I know, I know, I know the less. (John Owen)

  2. #122
    Quote Originally Posted by motoxy View Post
    Okay base is on the way and looks more like a jazz base
    Don't blame me and anyway it looks nowt mine.!!. . .Click image for larger version.

Name:	pile_1.jpg
Views:	168
Size:	331.0 KB
ID:	5807

  3. #123
    Oh come on jazz, Lick of paint and its done......................
    The more I know, I know, I know the less. (John Owen)

  4. #124
    Looking to get the limit switches now and was wondering if the chinese 10 for a bowl of rice are worth the effort.
    I presume that I will need to get some 0.2 2 core shielded cable.

    Bruce
    The more I know, I know, I know the less. (John Owen)

  5. #125

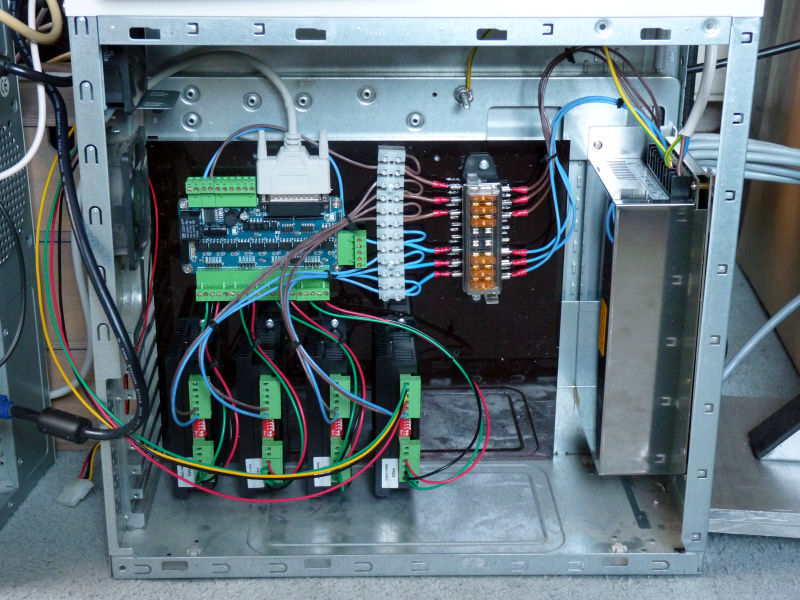

    Today it took its first breath of life. The control box is almost complete. I just have to get some 5 pin plugs and sockets for the motors. I decided to make a temporary connection to a motor and try it out. Ya beauty! Worked a treat. Got some good advice from Michael and I am well pleased.

    Some more ally arrived yesterday so as soon as possible I can continue the build.

    In the photo of the control box the wires hanging out the side are the temp connection to the motor.

    Bruce
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	control box.jpg
Views:	218
Size:	421.5 KB
ID:	5892
    The more I know, I know, I know the less. (John Owen)

  6. #126
    Looks like you have made a good job of that control box.

  7. #127

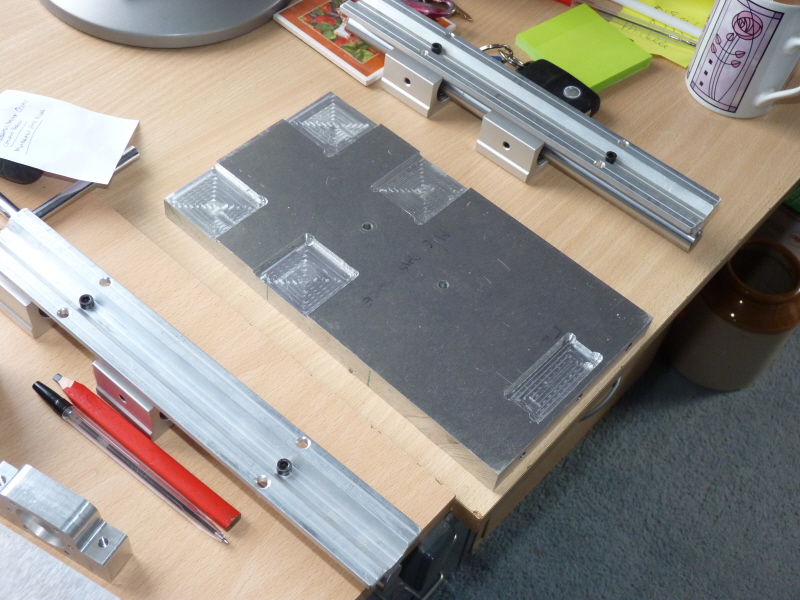

    A great big thanks to Michael for machining my z plate registers for me. There has been some progress recently. I have started making the x rails and will get some piccies as soon as I can.
    Hows this for an interesting way of losing business. I went to my blacksmith with whom I have concluded about 10,000 of busines this year to make me my base. He wanted 200 which was reasonable. Then I went in after a couple of weeks to check on progress he had not started it but thought that it would not matter as it was just for my 'hobby'. Grrr

    Bruce
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	P1010412.JPG
Views:	178
Size:	293.9 KB
ID:	5961
    The more I know, I know, I know the less. (John Owen)

  8. #128

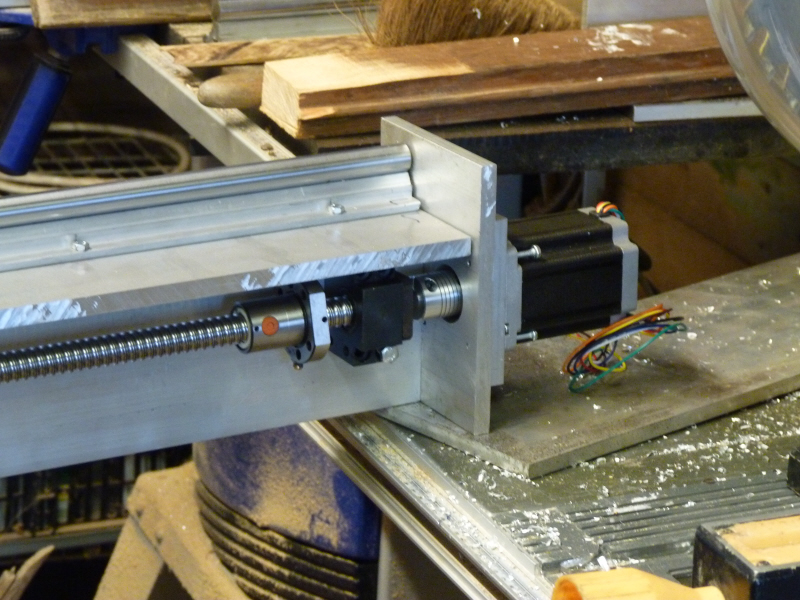

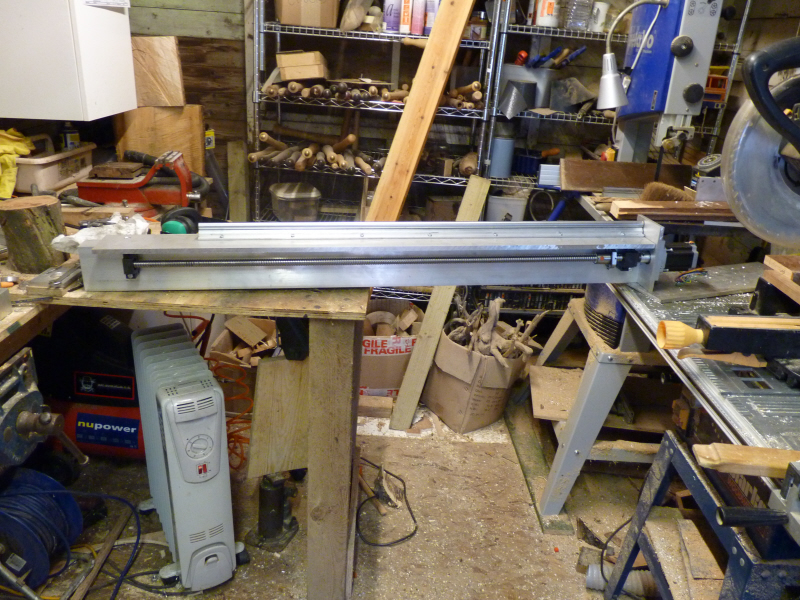

    X runners almost completed.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	P1010425.jpg
Views:	199
Size:	474.8 KB
ID:	5969   Click image for larger version.

Name:	P1010426.jpg
Views:	220
Size:	352.4 KB
ID:	5970   Click image for larger version.

Name:	P1010428.jpg
Views:	197
Size:	428.3 KB
ID:	5971
    The more I know, I know, I know the less. (John Owen)

  9. Looking good Bruce, looking very good indeed.

    Michael

  10. #130

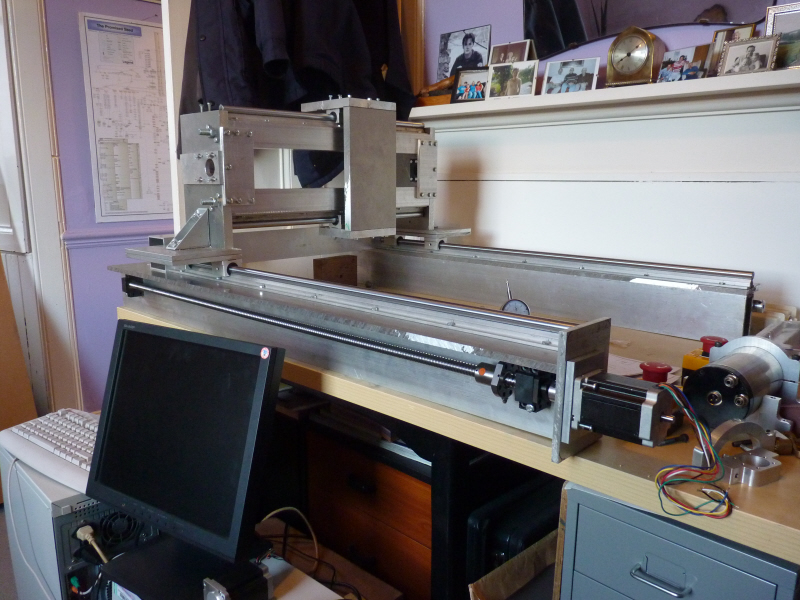

    had to baby sit an 8 year old tonight. Brilliant someone with the same engineering awareness as myself. So we set up the rig as a temp and checked a few things out. Definitely going to have to do a bit of light shimming but all in all........who am i kidding there is quite a bit to do but it is all doable. One of the bearings is loosing its balls so that will eventually have to be replaced. But I have to say it is all very exciting.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	P1010429.jpg
Views:	209
Size:	316.7 KB
ID:	5981   Click image for larger version.

Name:	P1010430.jpg
Views:	222
Size:	284.2 KB
ID:	5982
    The more I know, I know, I know the less. (John Owen)
