Purelogic CNC breakout board PLC4x-G2

[Purelogic R&D]

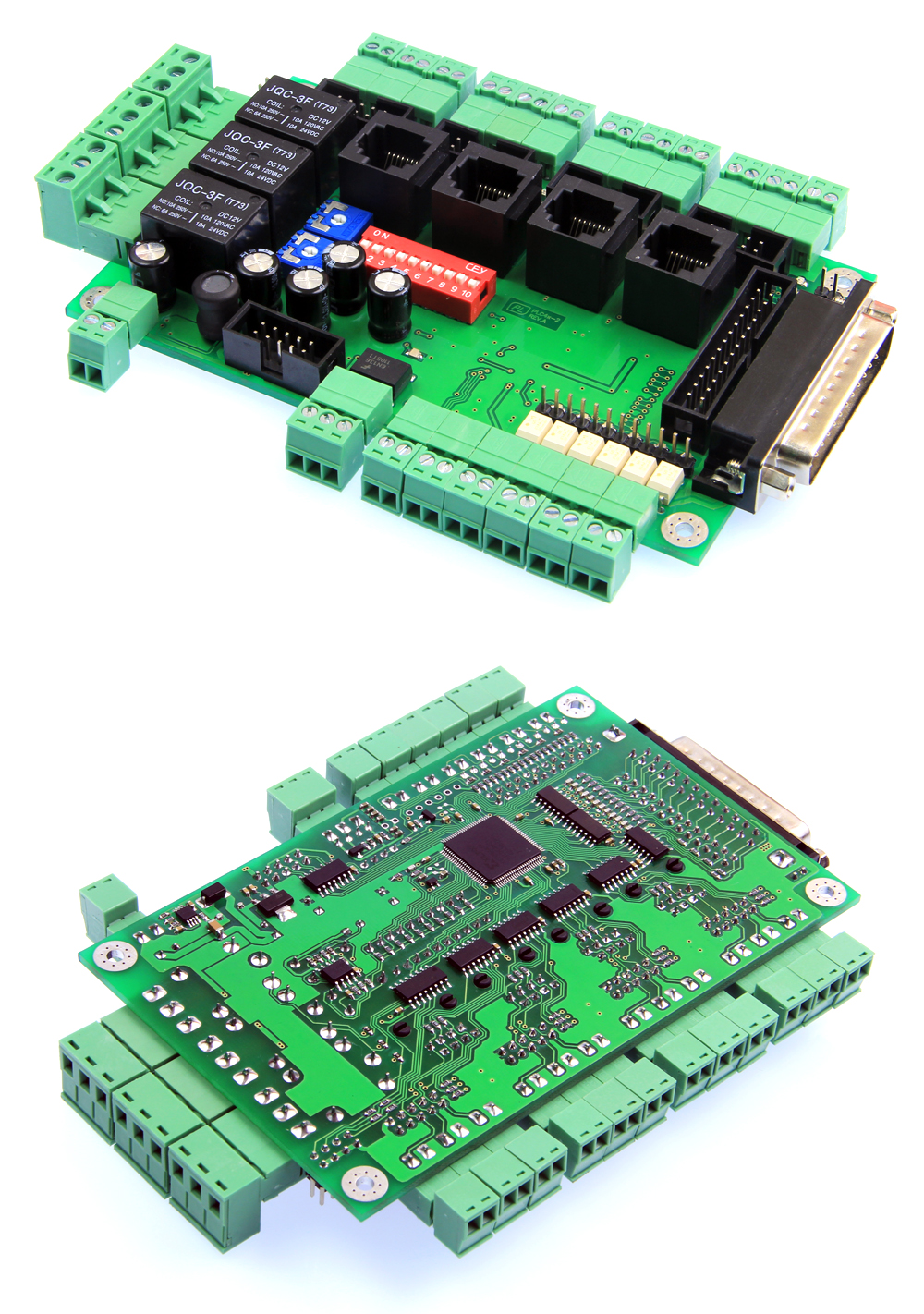

New Purelogic 4(6) axis CNC breakout board

PLC4x-G2
Supply voltage: 12V, Max current: 200mA

Brand new PLD-based board have following main features:

• Compatible with any LPT СNC software (STEP/DIR - Mach, TurboCNC, etc.).
• Charge Pump support
• Advanced PWM->voltage converter
• 6 optoisolated inputs, 3 power outputs(high-current 6A/220V relays control)
• Coolant pump timer
• Motor connection by IDC10 or RJ45 jack
• STEP pulse built-in test oscillator

• One supply voltage is used for the whole circuit; board smooth start system.
• Simultaneous control of up to 6 stepper/servo motor drivers.
• Control signal buffering. All control signals from LPT-port of PC pass through current amplifying buffer cell (each contact current is amplified to 10mA). LPT-port signals are buffered to prevent failure of port. Board can be connected to any port with 3.3-5V logical unit.
• Connection to LPT-port via standard DB-25M type or IDC-26 type connector.
• Connection of external back-up LED for relay trip and optical inputs is provided.


  User manual is here
  How to buy: check "contacts" page on http://plmotion.com or email me: avv at purelogic.ru.
  Price: 77USD
  More info about Purelogic RnD breakout boards is here: Breakout boards (BOBs)
