    Gents,

    I'm trying to build an L shaped box which has a z axis assembly mounted on it. Looking for someone who can CNC the following in MDF, plywood or alu (it's a prototype to try out an idea, so I'm trying to keep the costs down):



    The plates will need holes for screws / bolts and a few larger holes for bearings. MDF / plywood would need to be 15mm, alu would be 10mm thick.

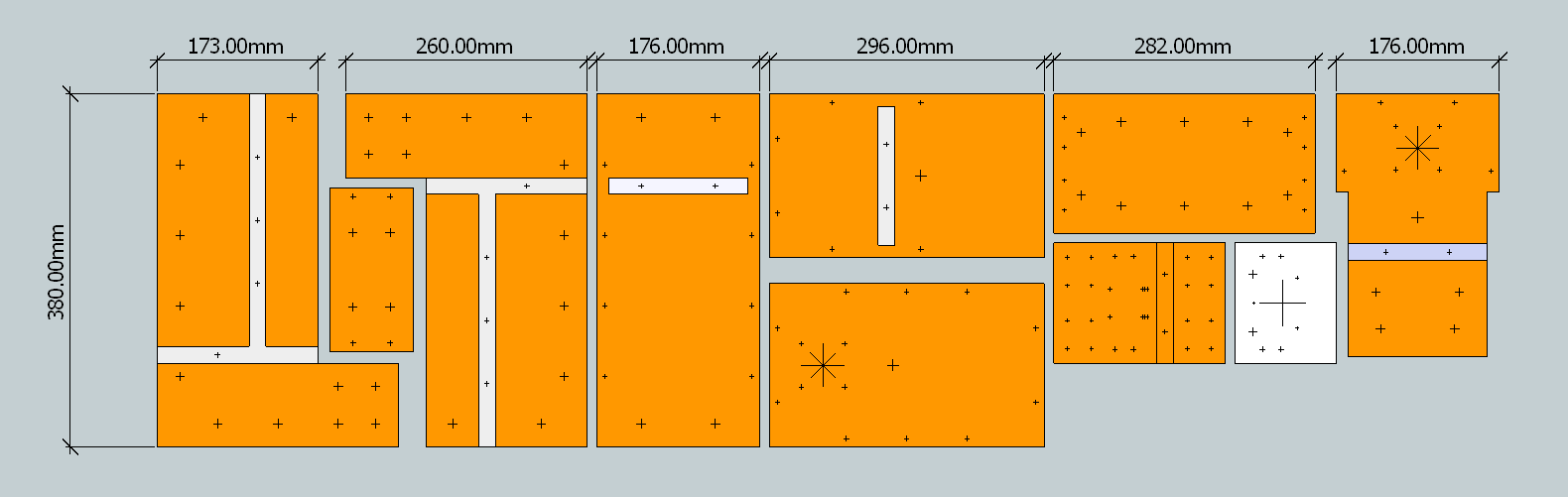

    The above drawing is a rough estimate of how many plates are needed and the dimensions, I can of course provide more precise drawings for the job.

    Regards,
    dsc.
    Last edited by dsc; 04-01-2013 at 04:26 PM.

  2. #2
    Did you manage to get these cut?

  3. #3
    dsc's Avatar
    Lives in Lincoln, United Kingdom. Last Activity: 19 Hours Ago Has been a member for 5-6 years. Has a total post count of 248. Received thanks 1 times, giving thanks to others 9 times.
    Hi D-man,

    nope, no offers yet. Would you be interested?

    Regards,
    dsc.

  4. #4
    Yeah I could be interested. However I don't get back until wed. If you like I can drop you a line then. In the meantime drop me a more accurate file over.

  5. #5
    All in mdf ok for you?

  6. #6
    dsc's Avatar
    Lives in Lincoln, United Kingdom. Last Activity: 19 Hours Ago Has been a member for 5-6 years. Has a total post count of 248. Received thanks 1 times, giving thanks to others 9 times.
    Yup, all MDF is the plan. PM sent.

    Regards,
    dsc.

  7. #7
    dsc's Avatar
    Lives in Lincoln, United Kingdom. Last Activity: 19 Hours Ago Has been a member for 5-6 years. Has a total post count of 248. Received thanks 1 times, giving thanks to others 9 times.
    Just a quick update of the overall view, going with 18mm MDF and cross dowels for assembly:



    Regards,
    dsc.

  8. #8
    dsc's Avatar
    Lives in Lincoln, United Kingdom. Last Activity: 19 Hours Ago Has been a member for 5-6 years. Has a total post count of 248. Received thanks 1 times, giving thanks to others 9 times.
    Gents,

    this now needs cutting in 15mm Ecocast Alu:

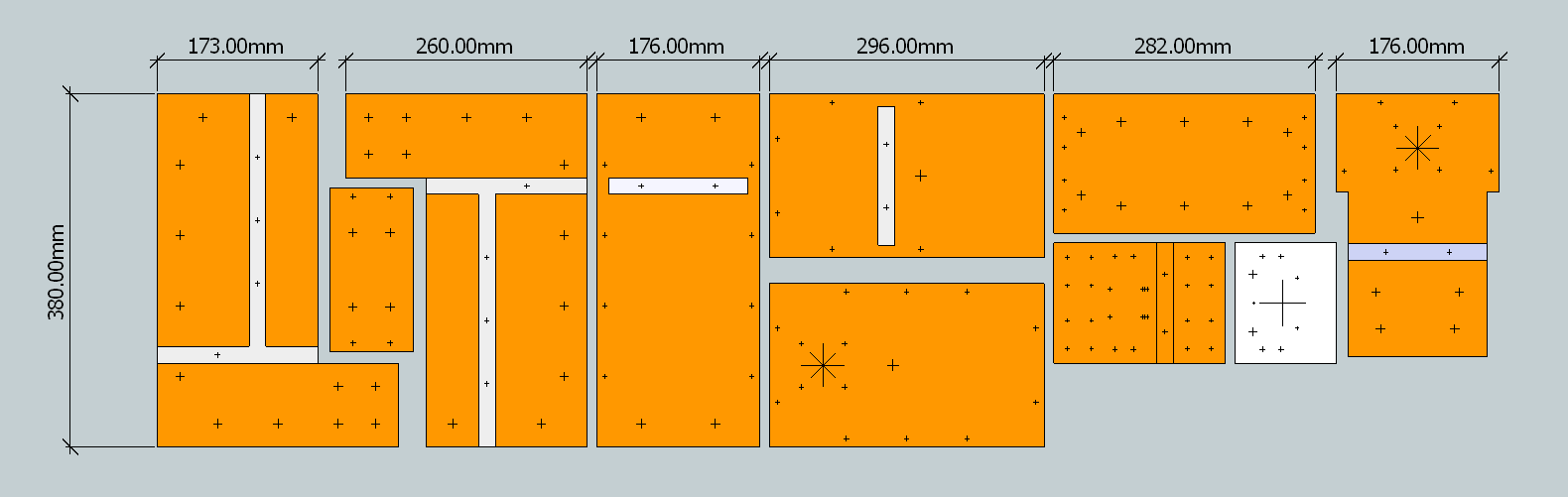

    Click image for larger version.

Name:	quick_dims.png
Views:	216
Size:	32.5 KB
ID:	7858

    Any good souls willing to cutting this please PM. Material is Ecocast 15mm, which will probably needs supplying as I haven't got the means to transport 500mm x 1500mm 15mm thick plate.

    Regards,
    dsc.
