    Hello,

    I have started one year ago cnc project and would like to share it here :) Motors are Nema34 from China, Drivers also from the same place. Linear rails are V groove bearings, got the rails a little used but in good working condition. Also created 3:1 belt reduction with HTD 3M timing belts. Drive system is rack and pinion, module 1.5, accuracy i have at this moment is about 0.2mm.
    The first job with my cnc was dust Cyclone, works perfect.

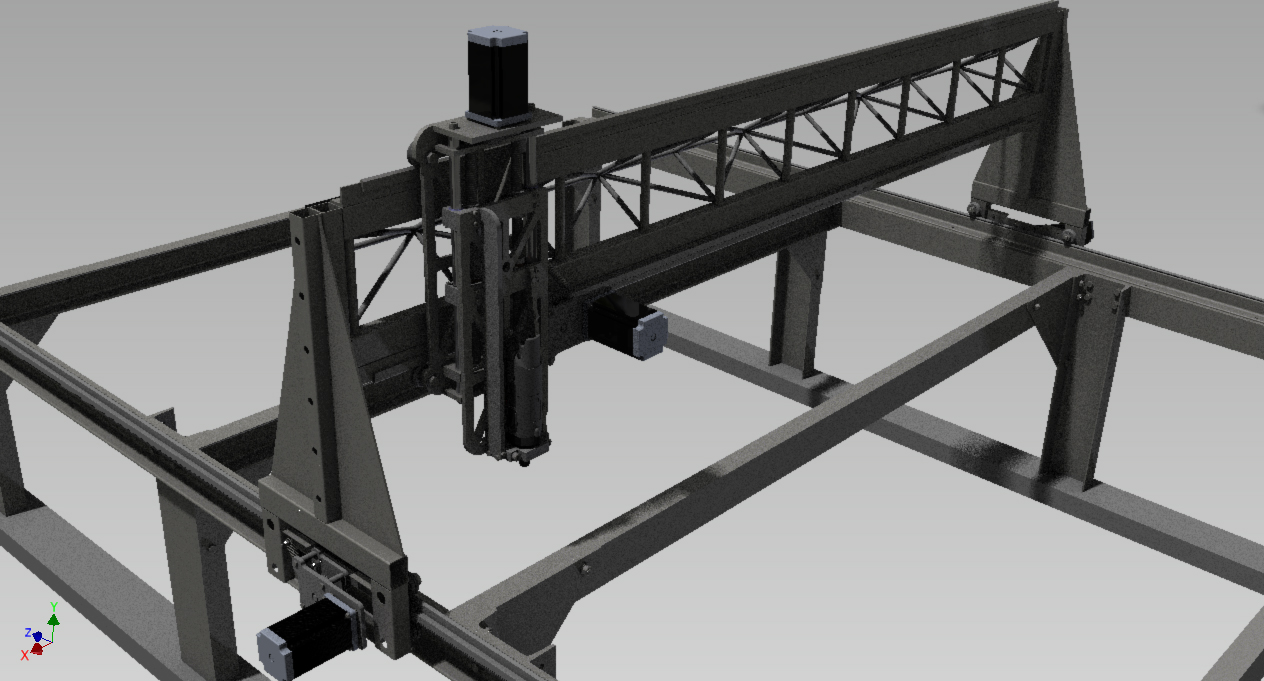

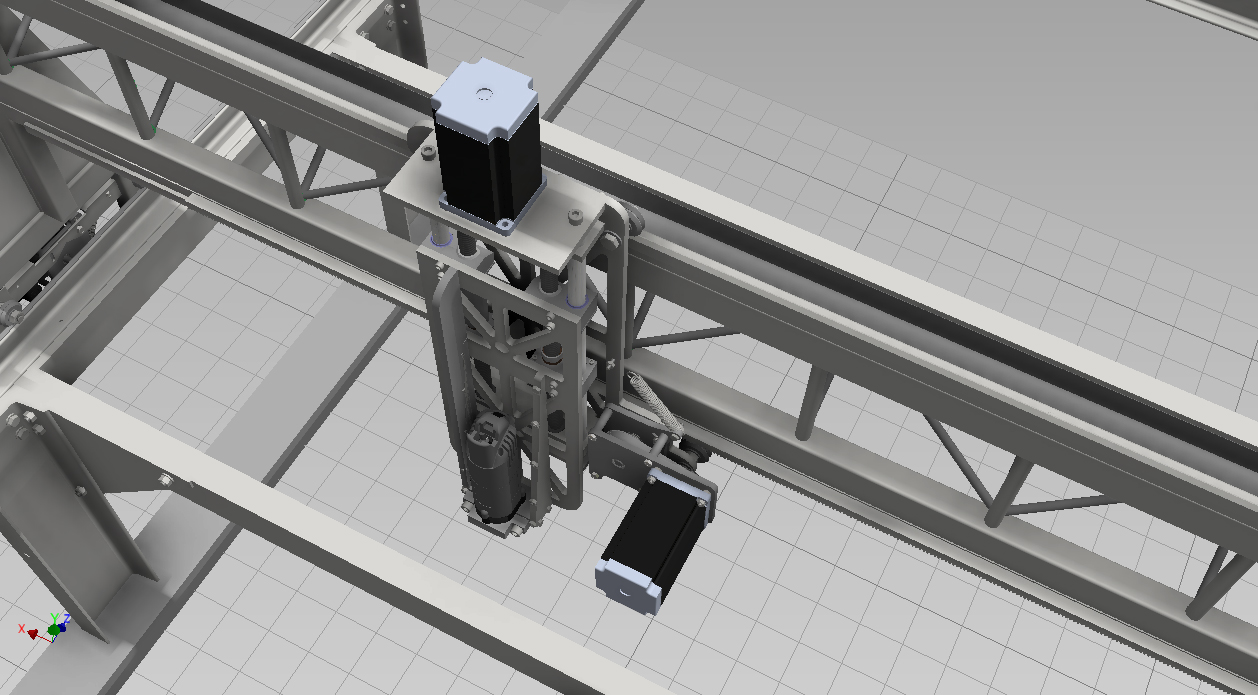

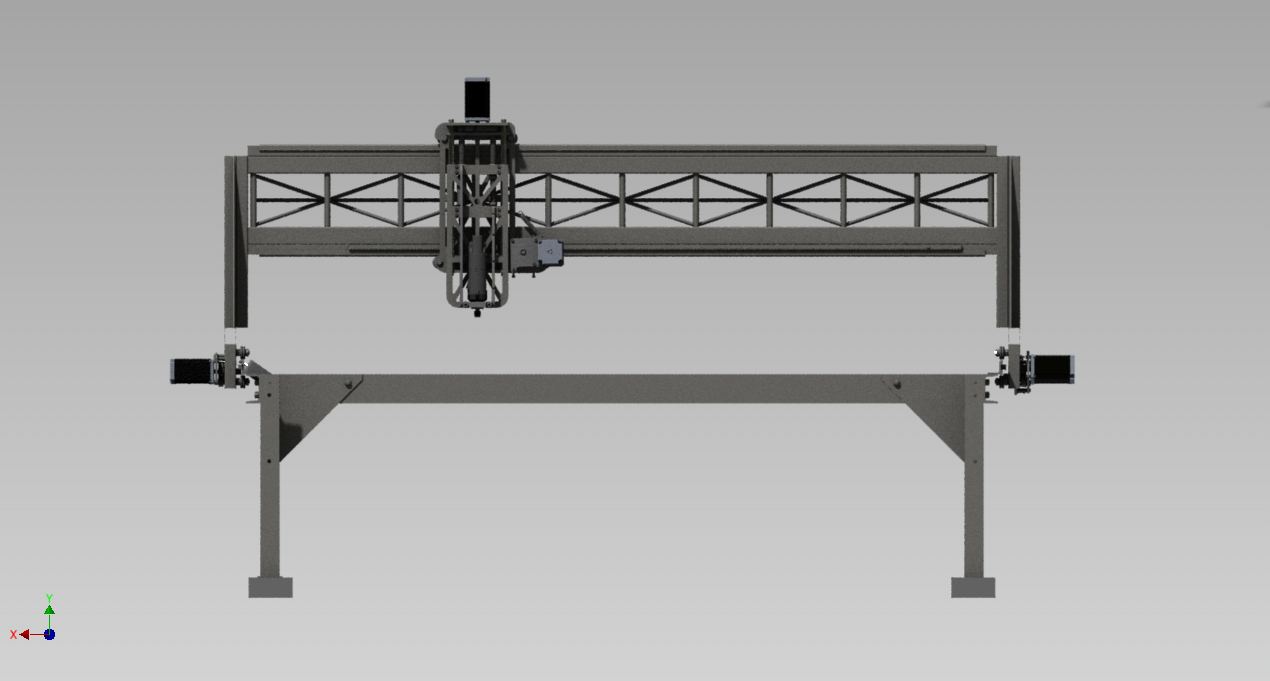

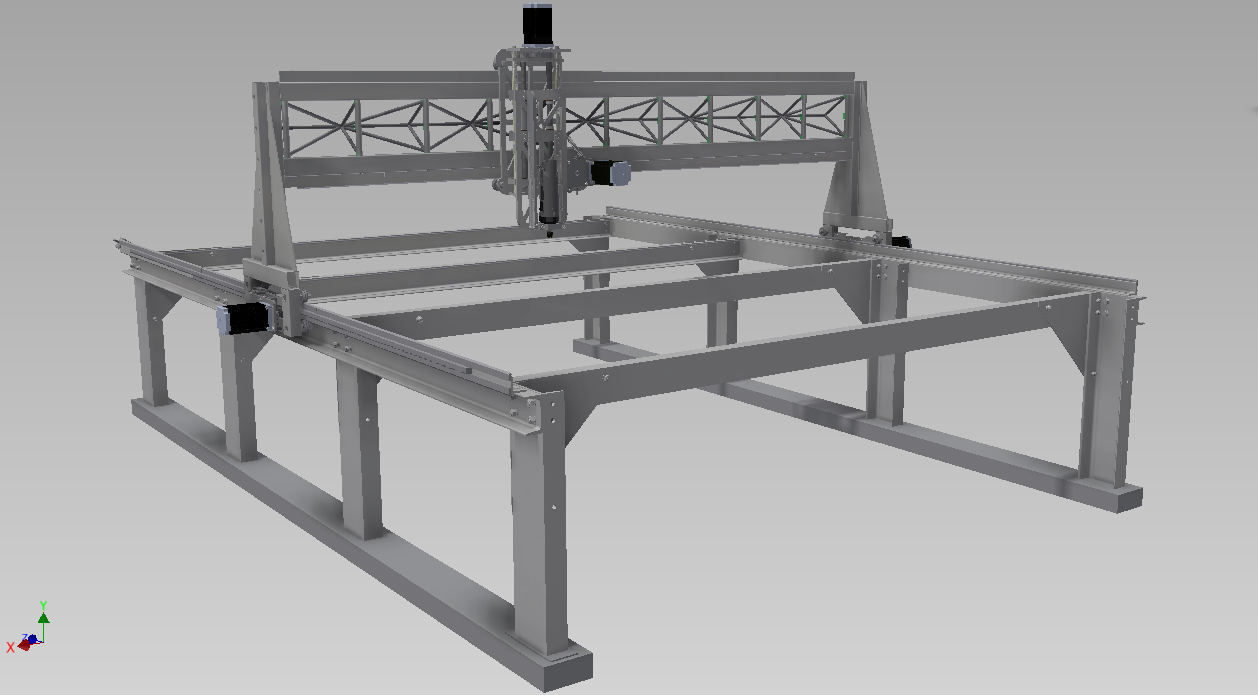

    Attaching some pictures from Inventor:

    Click image for larger version.

Name:	front.jpg
Views:	403
Size:	201.1 KB
ID:	8244Click image for larger version.

Name:	persp long.jpg
Views:	387
Size:	255.5 KB
ID:	8245Click image for larger version.

Name:	persp top.jpg
Views:	453
Size:	435.9 KB
ID:	8246Click image for larger version.

Name:	persp.jpg
Views:	545
Size:	371.5 KB
ID:	8247

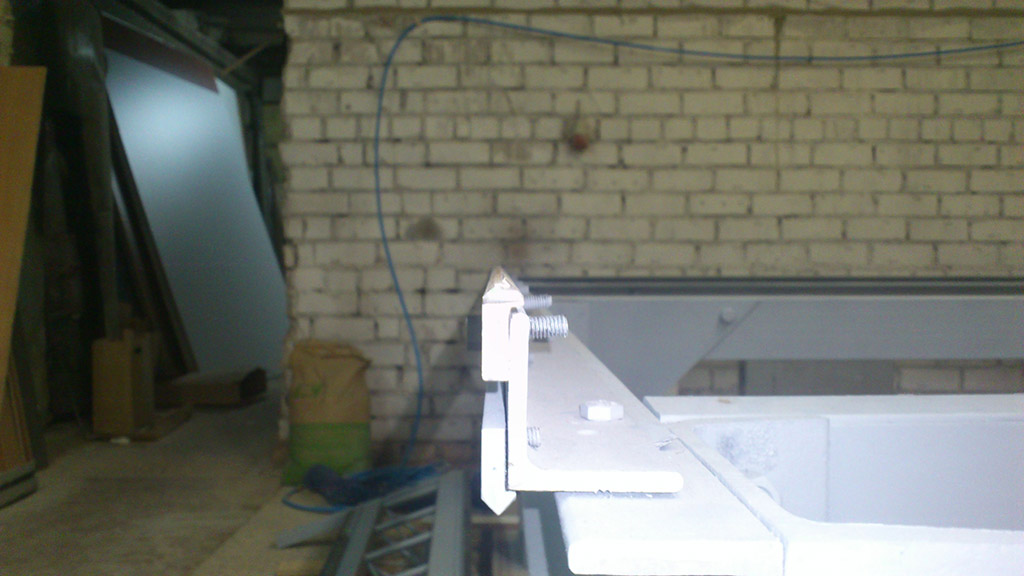

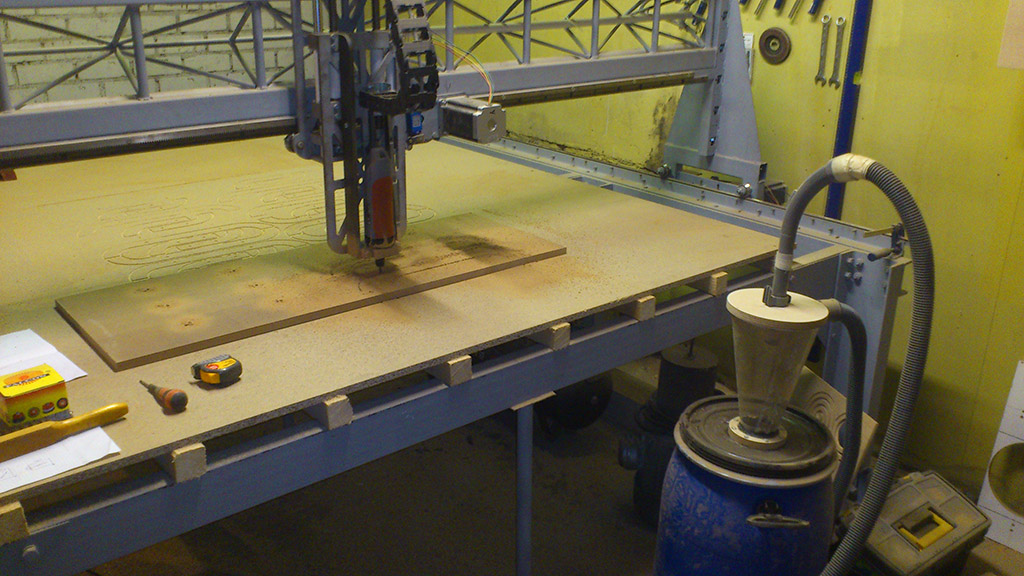

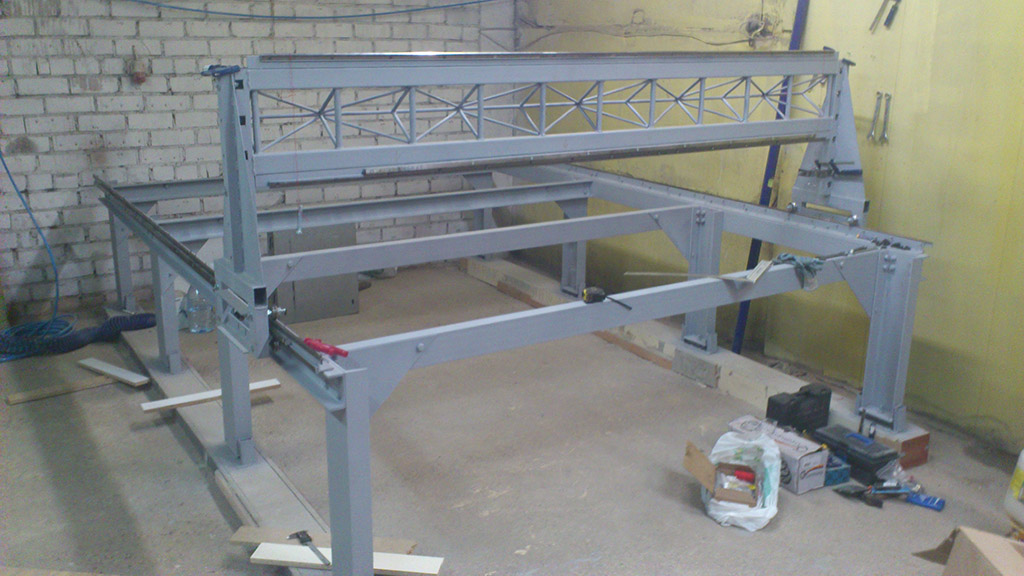

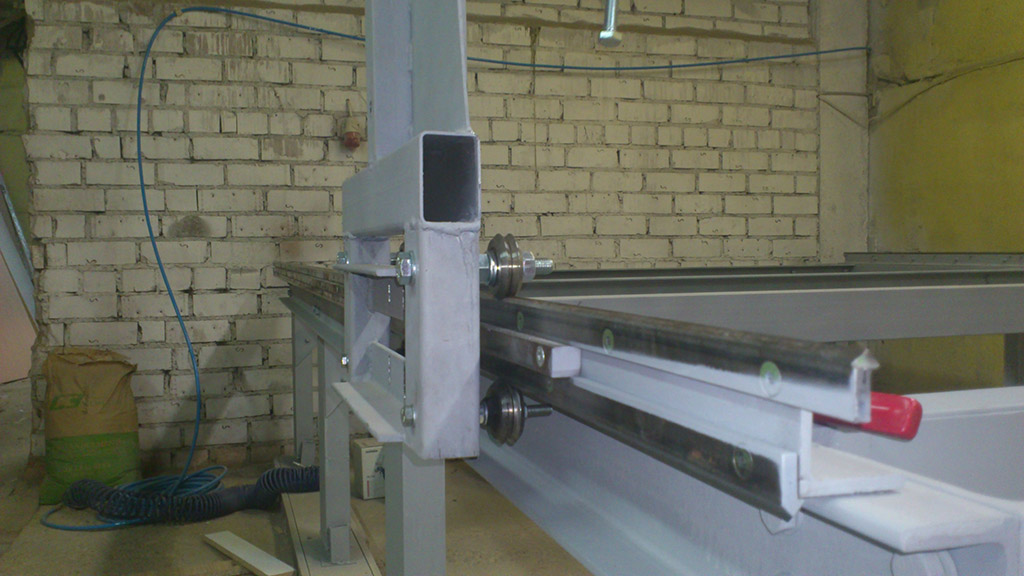

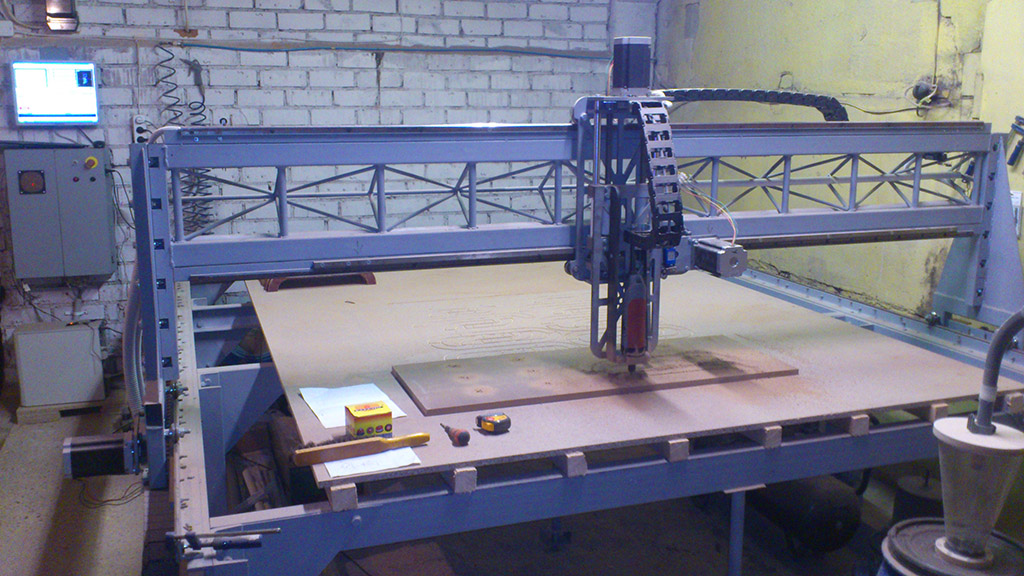

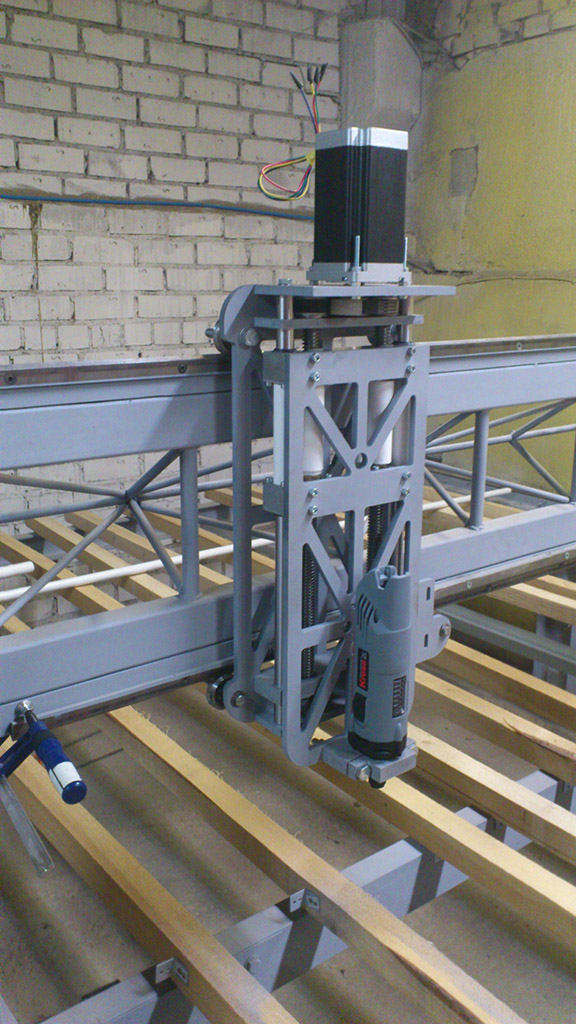

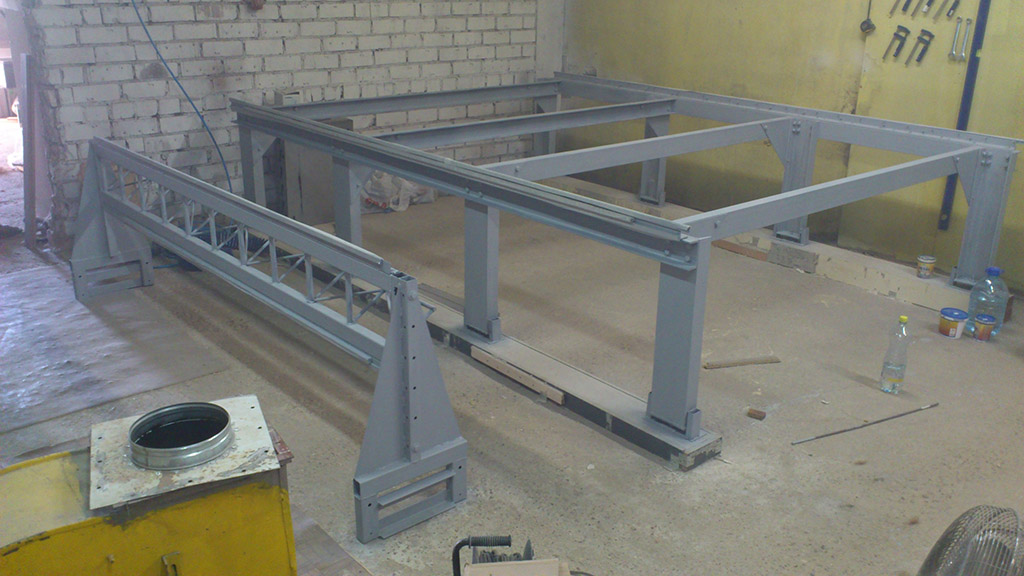

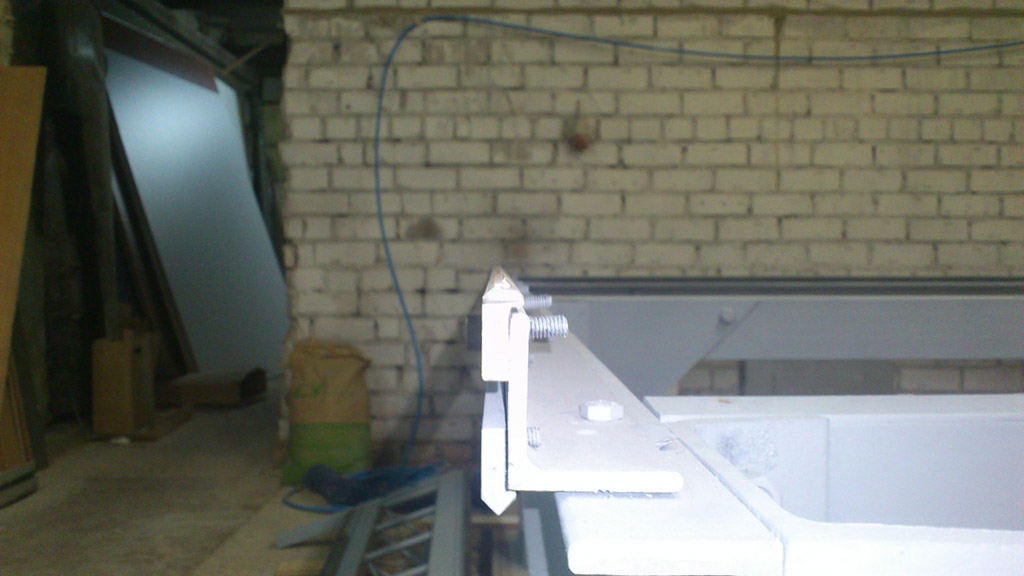

    And here is result after 10 month :)

    Click image for larger version.

Name:	DSC_0007.jpg
Views:	387
Size:	231.9 KB
ID:	8248Click image for larger version.

Name:	DSC_0008.jpg
Views:	421
Size:	240.7 KB
ID:	8249Click image for larger version.

Name:	DSC_0043.jpg
Views:	407
Size:	159.7 KB
ID:	8253Click image for larger version.

Name:	DSC_0042.jpg
Views:	391
Size:	177.7 KB
ID:	8252Click image for larger version.

Name:	DSC_0034.jpg
Views:	336
Size:	132.1 KB
ID:	8251Click image for larger version.

Name:	DSC_0027(2).jpg
Views:	393
Size:	179.5 KB
ID:	8250Click image for larger version.

Name:	DSC_0048.jpg
Views:	461
Size:	216.3 KB
ID:	8254

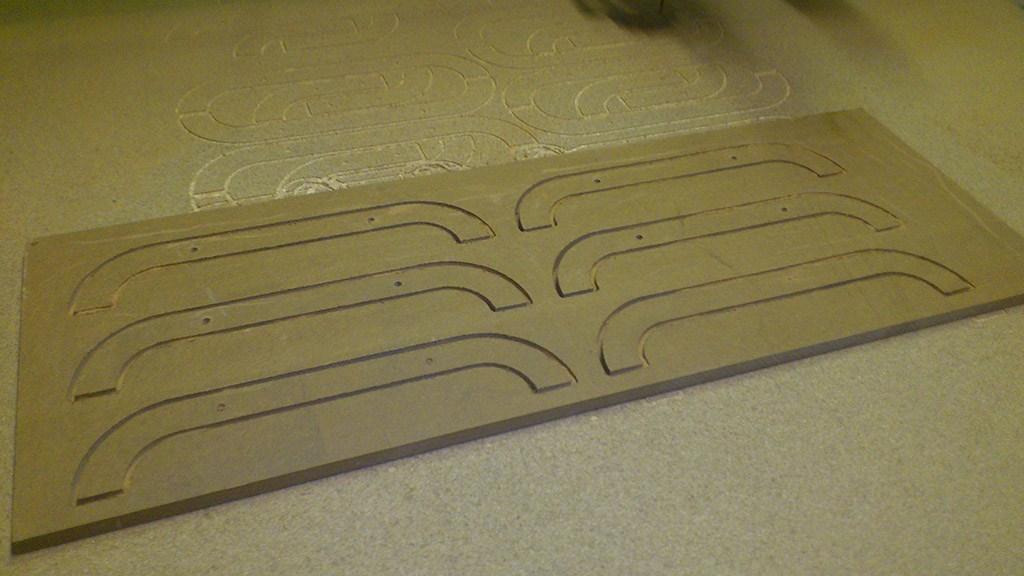

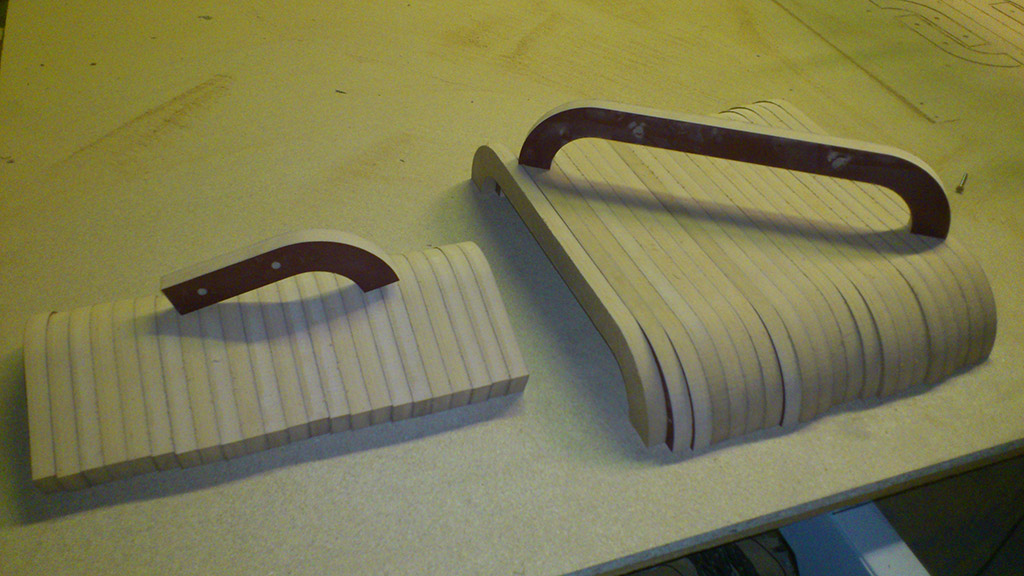

    And here is second cut after dust Cyclone:

    Click image for larger version.

Name:	DSC_0009.jpg
Views:	351
Size:	209.8 KB
ID:	8255Click image for larger version.

Name:	DSC_0010.jpg
Views:	396
Size:	198.7 KB
ID:	8256

    After these i got my Kress router broken. And the warranty ended 1 month ago :) So i have started at Indiegogo new Campaign to help me, to buy new spindle 3-4kw air cooled from China, because these kress routers are not so powerful to cut MDF and wood at high speeds.

    I will be very glad if someone can fund some money at Indiegogo, here is my campaign: CNC Motor Spindle 4kw | Indiegogo
