    Ok Im not going to hold my breath on this one but i will put it out there anyhow.

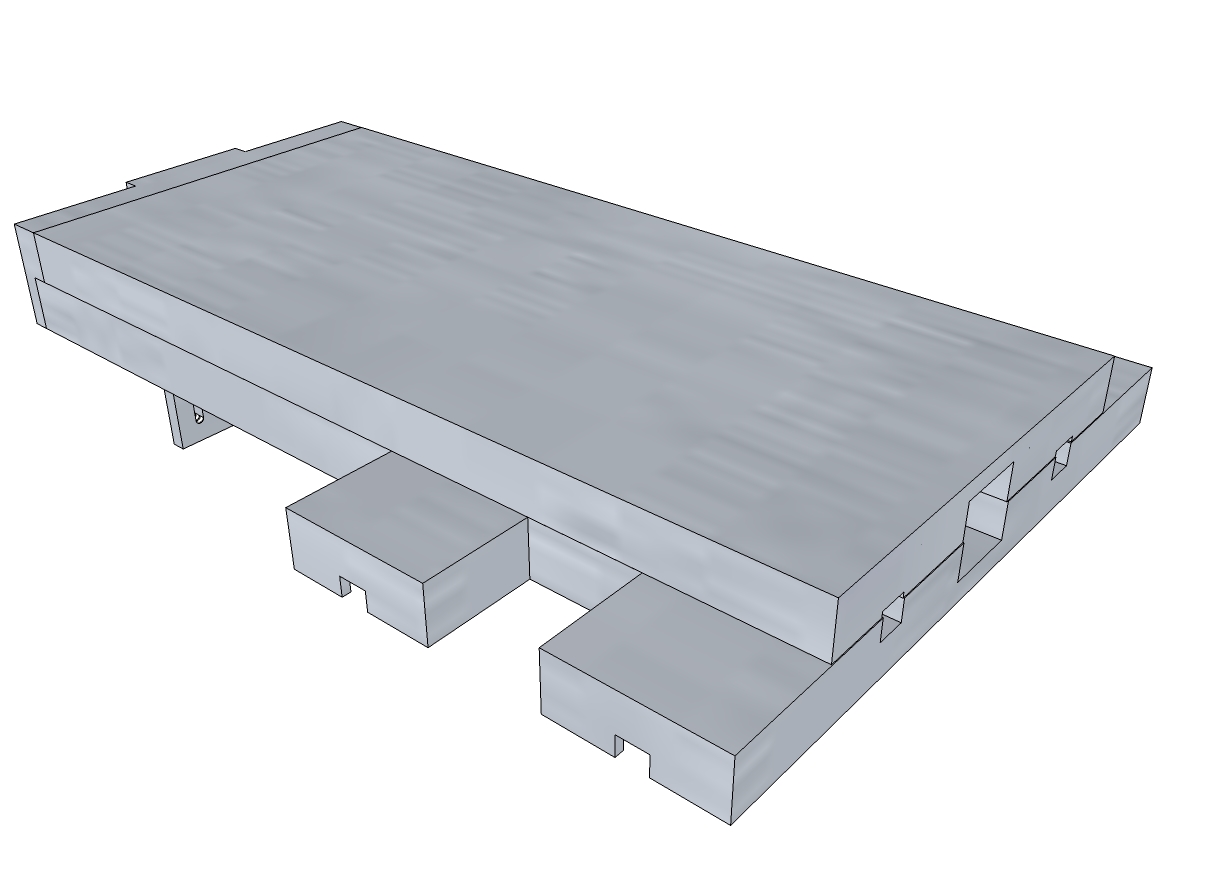

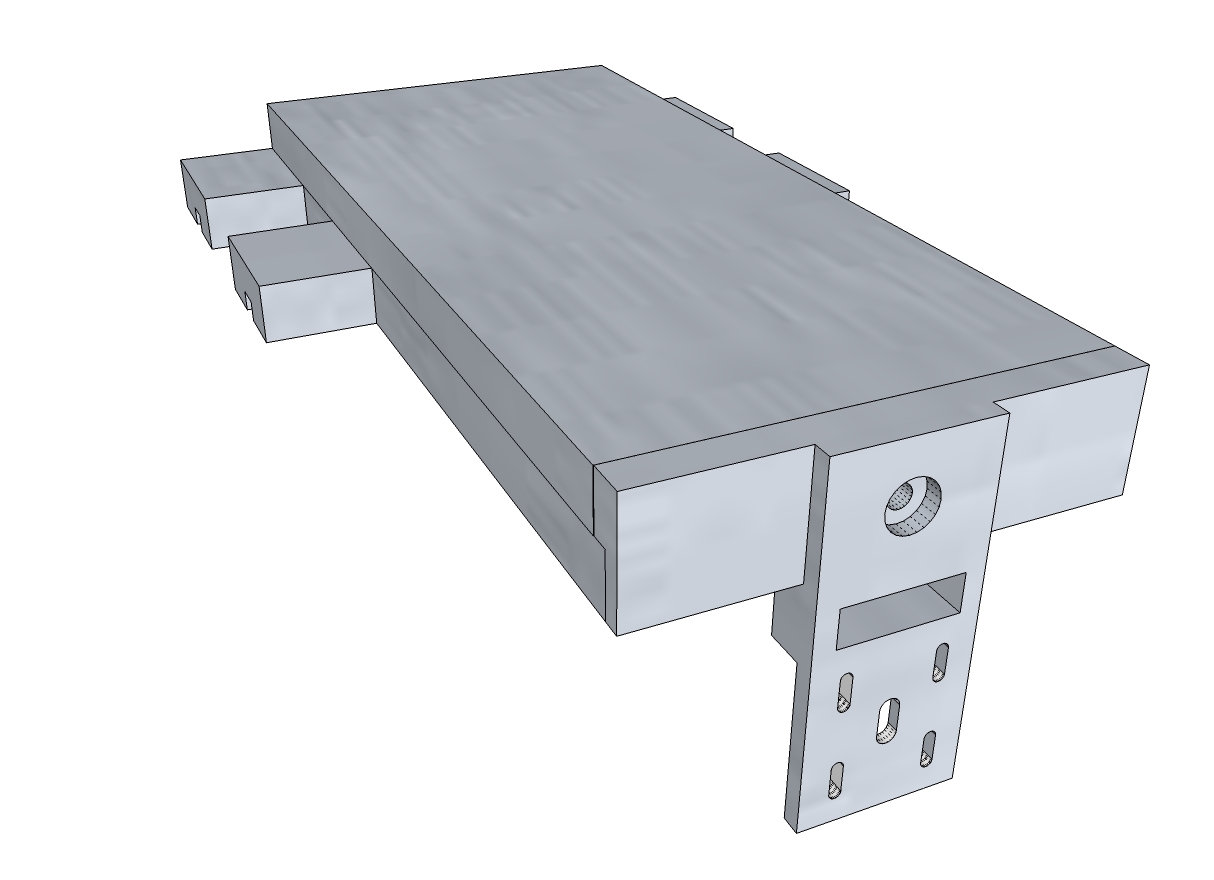

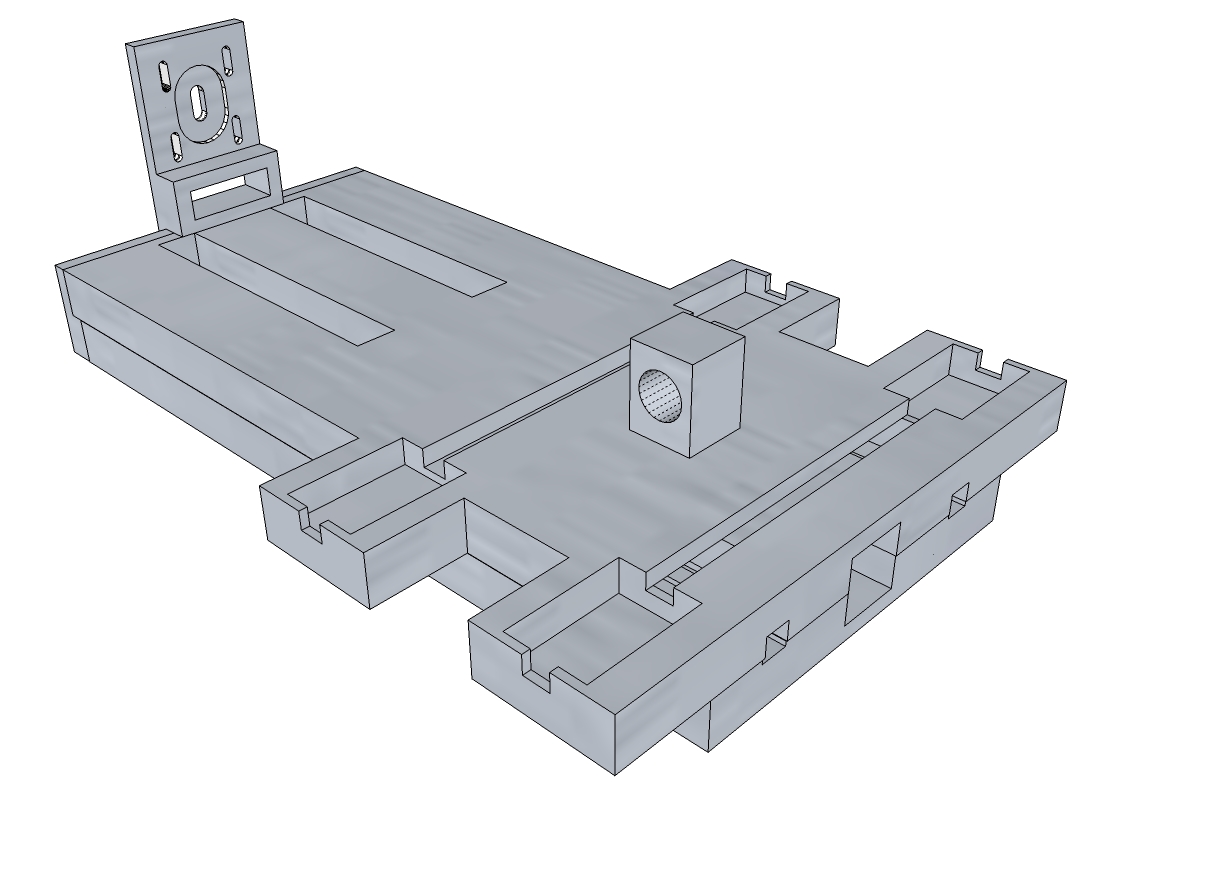

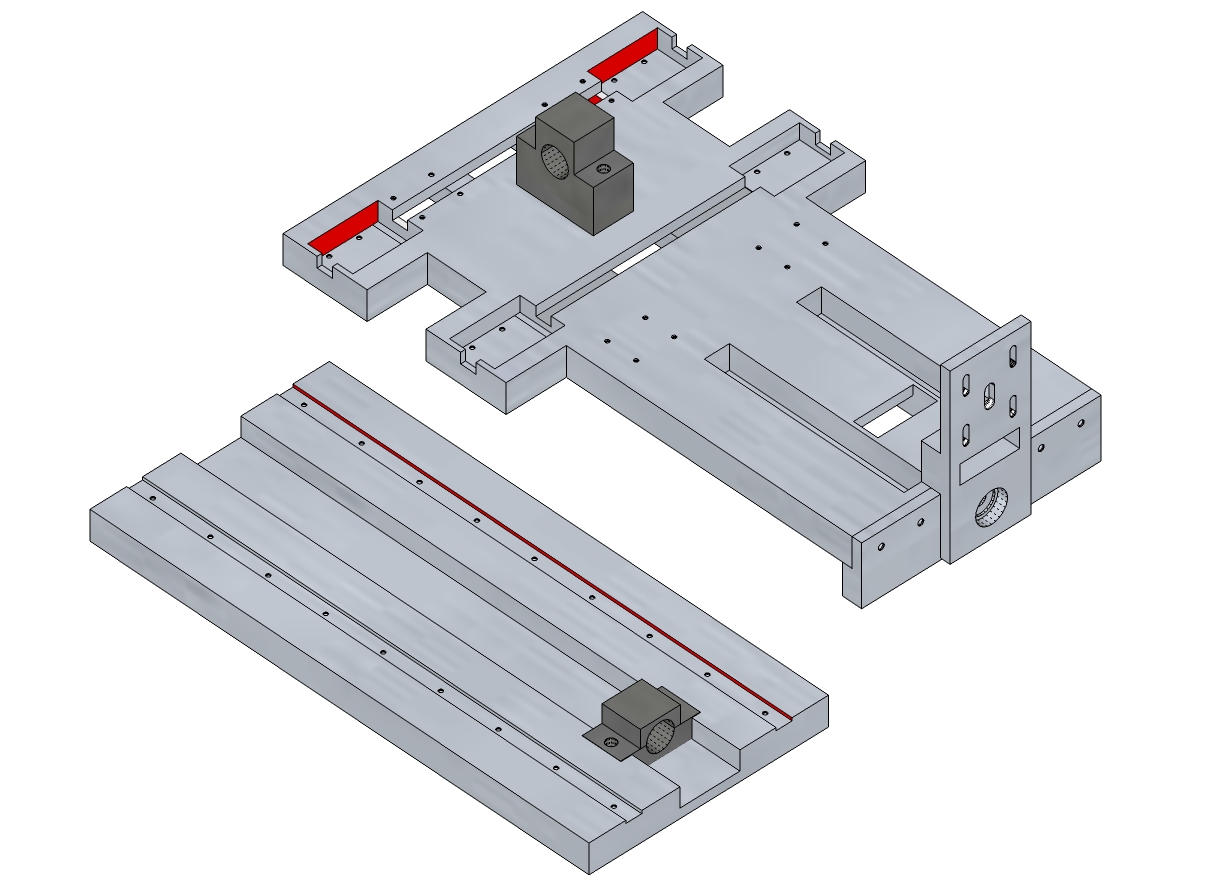

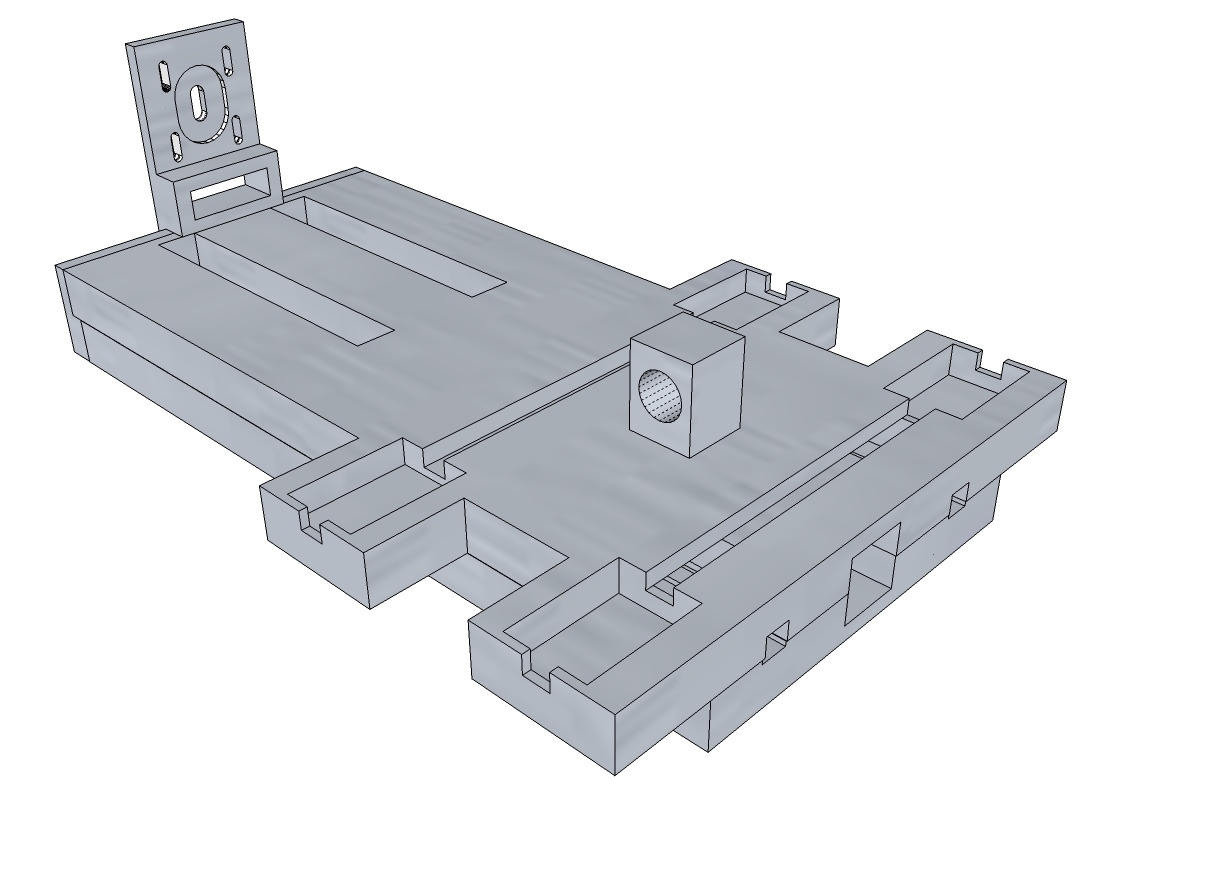

    I am inviting quotes for my Z axis. There is room for change if it is needed.
    Click image for larger version.

Name:	backplate%20wide%20mounts%20mk1.jpg
Views:	206
Size:	271.8 KB
ID:	8512Click image for larger version.

Name:	backplate%20wide%20mounts%20mk1b.jpg
Views:	212
Size:	250.1 KB
ID:	8513Click image for larger version.

Name:	backplate%20wide%20mounts%20mk1c.jpg
Views:	246
Size:	291.9 KB
ID:	8514Click image for larger version.

Name:	backplate%20wide%20mounts%20mk1d.jpg
Views:	191
Size:	286.1 KB
ID:	8515Click image for larger version.

Name:	backplate%20wide%20mounts%20mk1f.jpg
Views:	177
Size:	223.3 KB
ID:	8516Click image for larger version.

Name:	backplate%20wide%20mounts%20mk1g.jpg
Views:	156
Size:	173.8 KB
ID:	8517Click image for larger version.

Name:	backplate%20wide%20mounts%20mk1h.jpg
Views:	179
Size:	156.6 KB
ID:	8518

    These plates are 40mm plate 520mm long x 360mm Wide.

    Any questions let me know

    Rick

    PS.. more information can be seen in my 7X4 Combo Thread but please post questions about it here or PM me
    Always bear in mind that your own resolution to succeed is more important than any other - Abe Lincoln

  2. #2

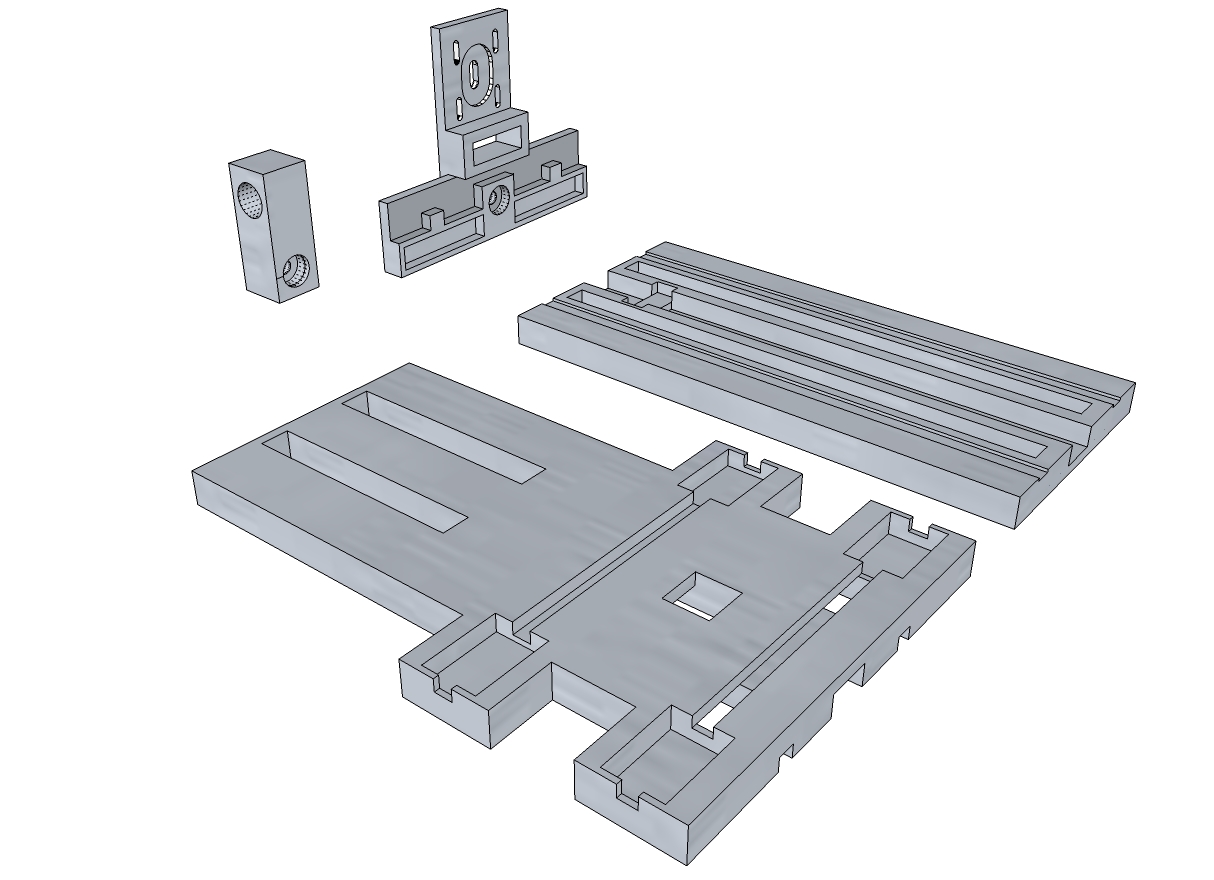

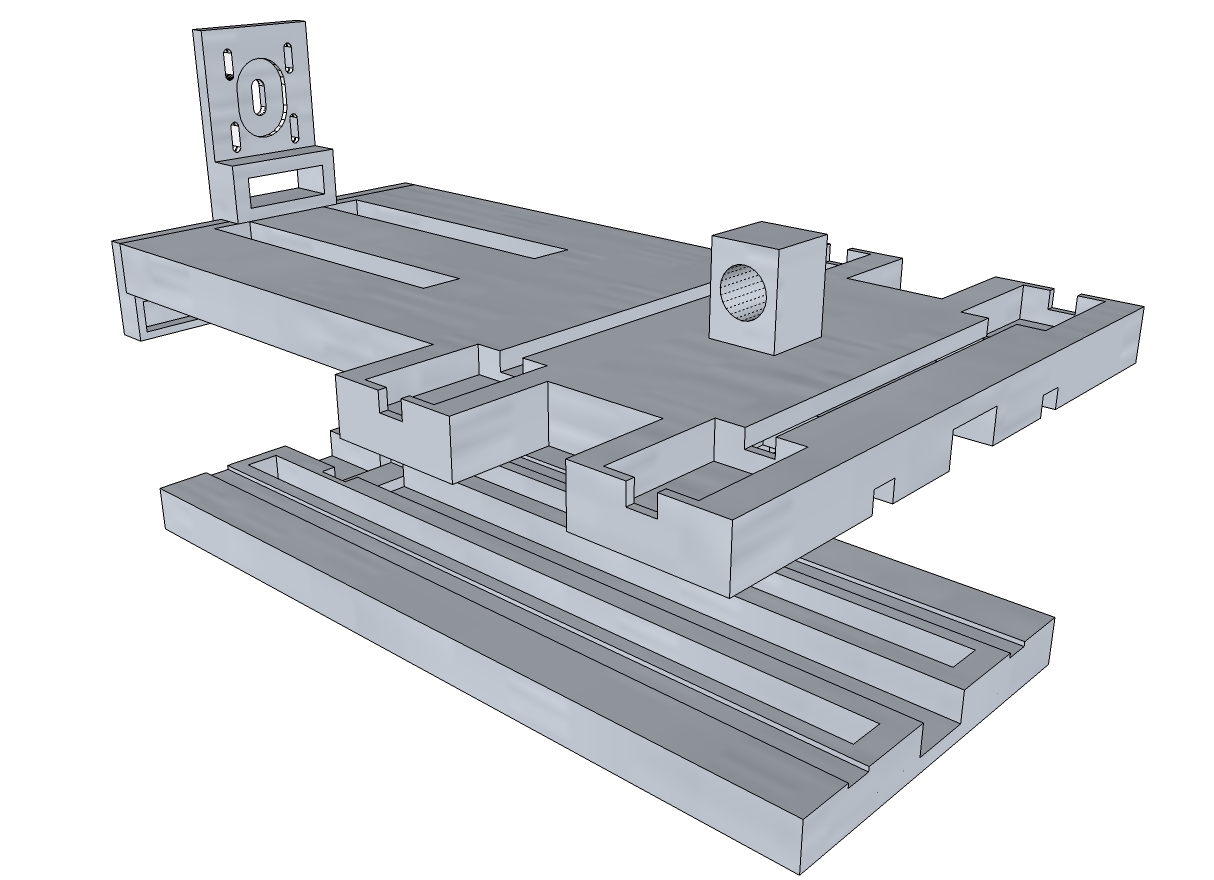

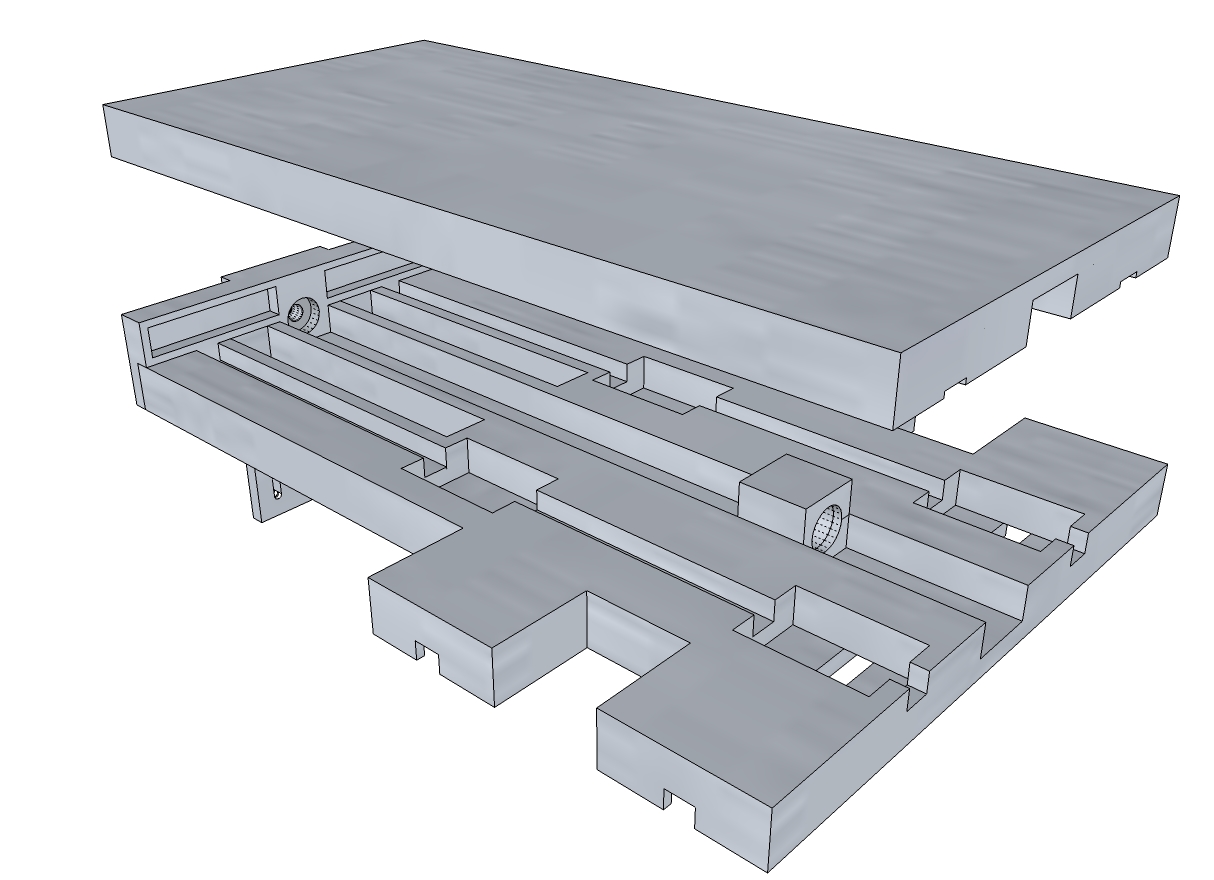

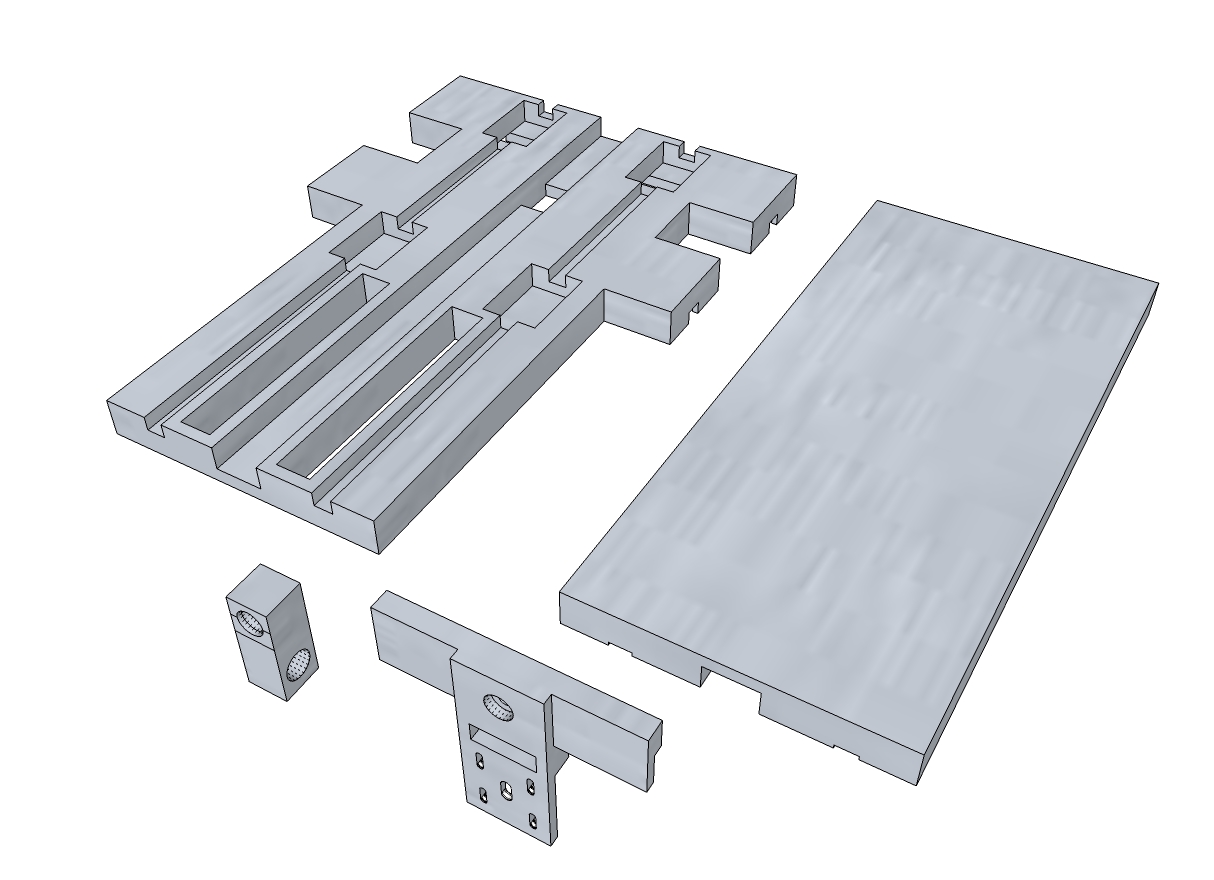

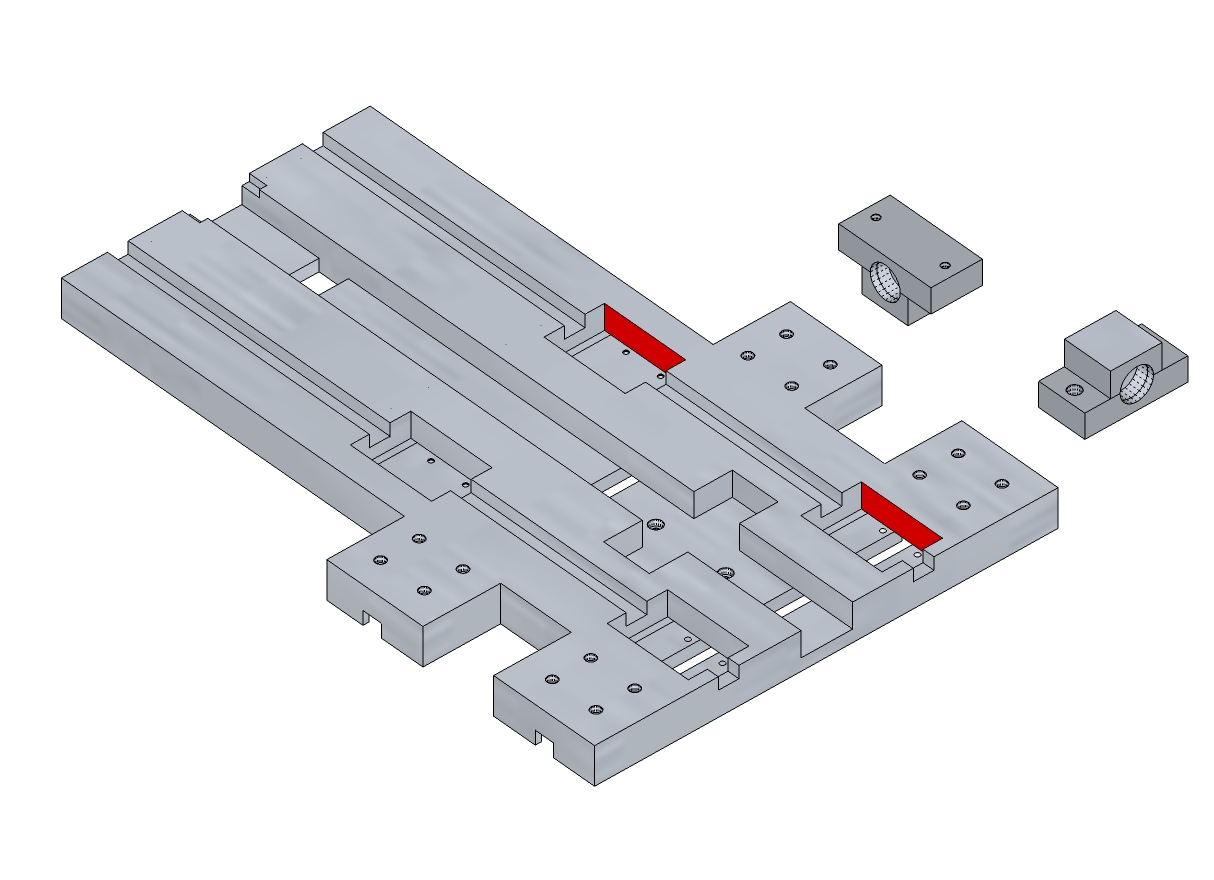

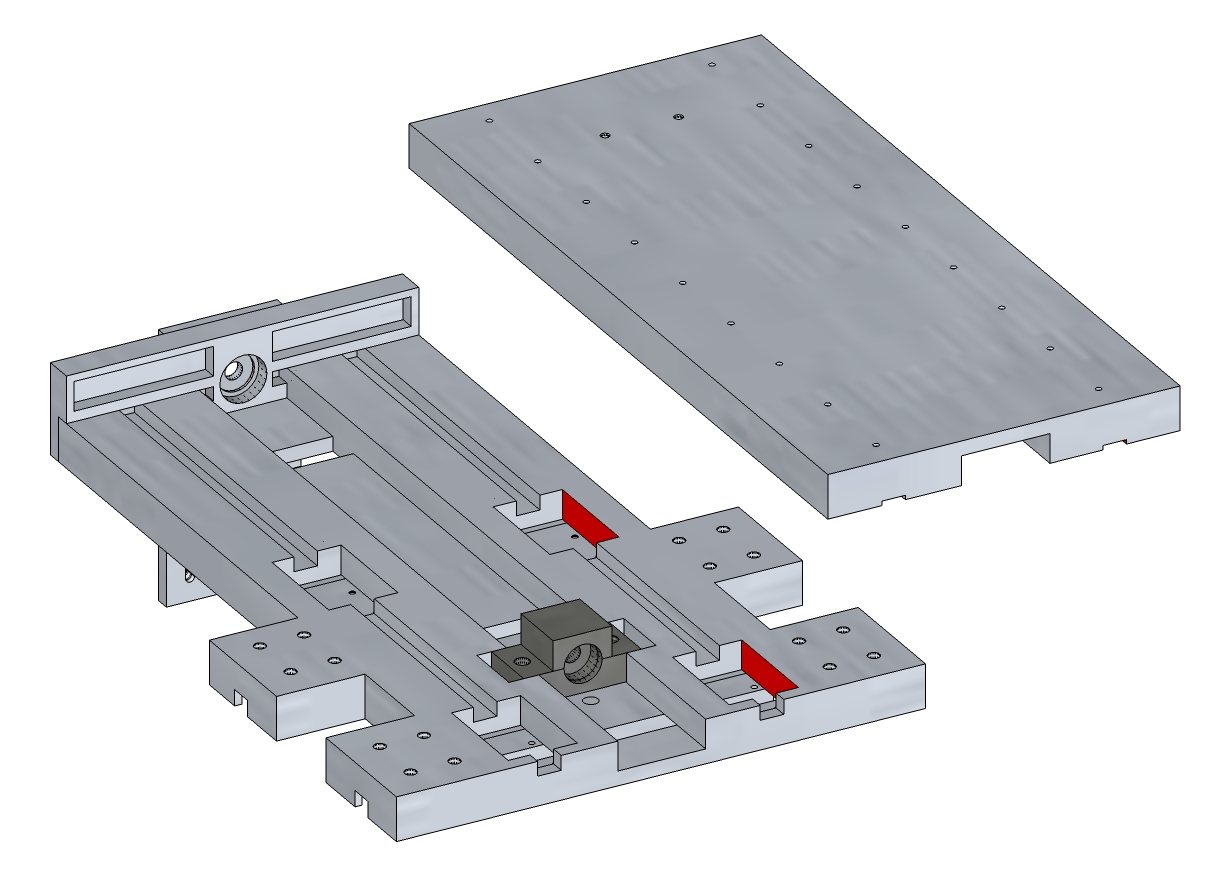

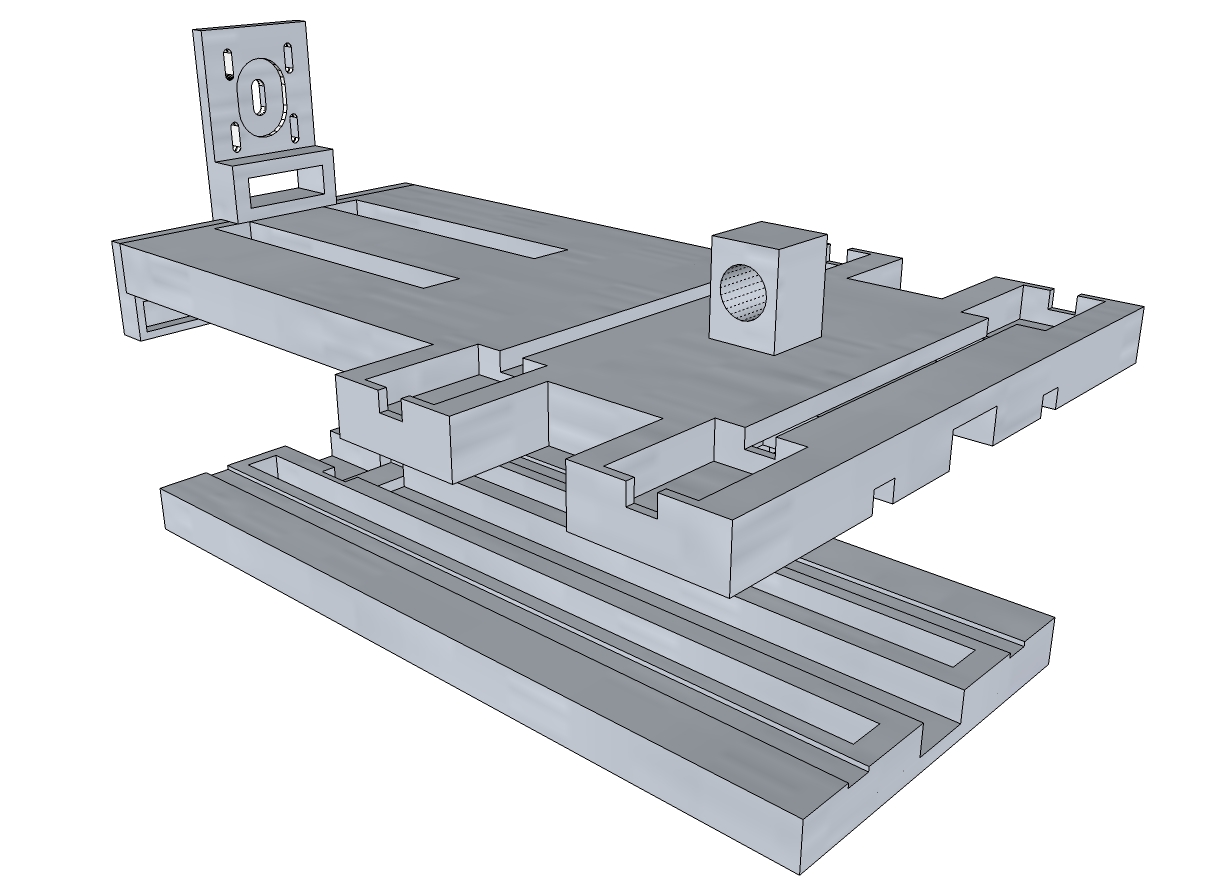

    Hi all, well ive been asked a few questions about the pockets and things. Ok the drawings i submitted above are were the concept Sketches only (although pretty complete), so here are some more complete designs to clarify things a little more.

    Click image for larger version.

Name:	backplate rev4 5a.jpg
Views:	201
Size:	249.5 KB
ID:	8519Click image for larger version.

Name:	backplate rev5.jpg
Views:	183
Size:	278.9 KB
ID:	8520Click image for larger version.

Name:	backplate rev5b.jpg
Views:	188
Size:	297.3 KB
ID:	8521

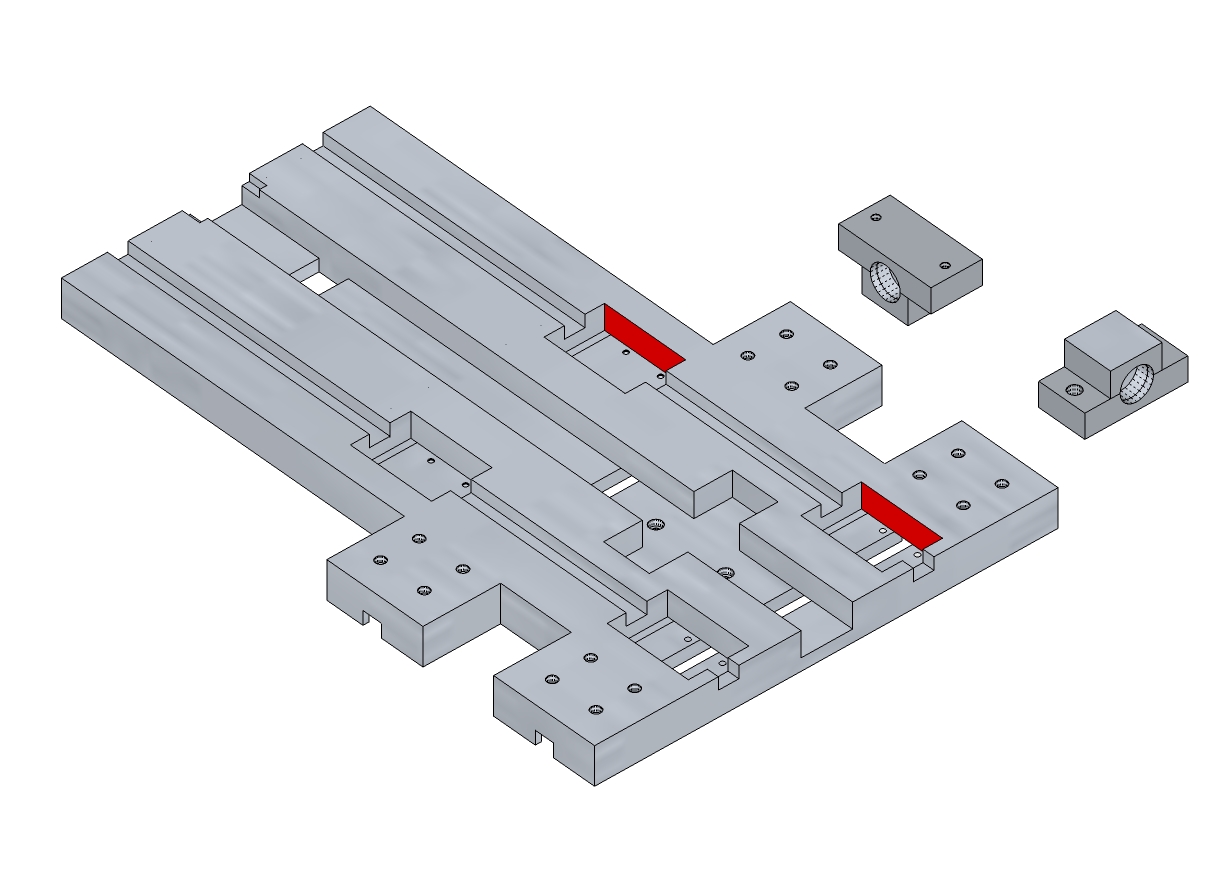

    The red shown are reference/datum surfaces only.I am also happy to provide the material for the job.

    Rick
    Last edited by Ricardoco; 20-03-2013 at 02:32 PM.
    Always bear in mind that your own resolution to succeed is more important than any other - Abe Lincoln

  3. #3
    How soon do you need it?
    Old router build log here. New router build log here. Lathe build log here.
    Electric motorbike project here.

  4. #4
    Quote Originally Posted by Jonathan View Post
    How soon do you need it?
    Well when is the earliest you could do it?
    Always bear in mind that your own resolution to succeed is more important than any other - Abe Lincoln

  5. #5
    Lee Roberts's Avatar
    Lives in Wigan, United Kingdom. Current Activity: Viewing Moderator Control Panel Has been a member for 9-10 years. Has a total post count of 2,544. Received thanks 161 times, giving thanks to others 652 times. Made a monetary donation to the upkeep of the community. Referred 10 members to the community.
    Loving this design Ric, nice one mate!

    Just as a side note as i'm following your build log over there >>>, so read the posts about the pockets for the bearing units to fit in, i.e round cutters vs square corners, what you can do is over run the corners of the pocket with the cutter in both directions, this dosnt look "great" but if done well it can and allows the corner to fit into the pocket.

    .Me
    .Me

  6. The Following User Says Thank You to Lee Roberts For This Useful Post:


  7. #6
    Quote Originally Posted by Lee Roberts View Post
    Loving this design Ric, nice one mate!

    Just as a side note as i'm following your build log over there >>>, so read the posts about the pockets for the bearing units to fit in, i.e round cutters vs square corners, what you can do is over run the corners of the pocket with the cutter in both directions, this dosnt look "great" but if done well it can and allows the corner to fit into the pocket.

    .Me
    Cheers Lee, I have made the pockets big enough to compensate for the corners. I will even be providing the files to do the job and if whoever is doing has V-Carve then all the better as that is what I've done it in. that's not to say I cant provide the drawings in other formats as the above drawings will show.

    Whoever gets the job will get the added bonus of being able to produce some very nice Z-Axis.

    Rick
    Always bear in mind that your own resolution to succeed is more important than any other - Abe Lincoln

  8. #7
    Rick, how big are the backplates. mouse hover reads 1214x880 @ 60%. BTW the design looks fantastic, G.

  9. The Following User Says Thank You to GEOFFREY For This Useful Post:


  10. #8
    Quote Originally Posted by GEOFFREY View Post
    Rick, how big are the backplates. mouse hover reads 1214x880 @ 60%. BTW the design looks fantastic, G.
    Hey G 520x320 I think I'm at work at the mo so not certain, it is on my build log I think.

    Cheers G

    Rick
    Always bear in mind that your own resolution to succeed is more important than any other - Abe Lincoln

  11. #9
    Lee Roberts's Avatar
    Lives in Wigan, United Kingdom. Current Activity: Viewing Moderator Control Panel Has been a member for 9-10 years. Has a total post count of 2,544. Received thanks 161 times, giving thanks to others 652 times. Made a monetary donation to the upkeep of the community. Referred 10 members to the community.
    Says in the first post guys, "These plates are 40mm plate 520mm long x 360mm Wide."

    Indeed some nice z-axis !!!

    .Me
    .Me

  12. #10
    Quote Originally Posted by Lee Roberts View Post
    Says in the first post guys, "These plates are 40mm plate 520mm long x 360mm Wide."

    Indeed some nice z-axis !!!

    .Me
    Cheers Lee...There you go 'G' what's worse is I designed them, and I started this post, and still got it wrong!!!

    Rick
    Always bear in mind that your own resolution to succeed is more important than any other - Abe Lincoln
