    Hi there,

    I'm looking for a couple of small parts machining out of some walnut.
    Modelled in CAD, the files are ready to go but I've not been able to find anywhere commercially that can do the small job. The body part measures 160x100x37mm and the top part measures 150x90x5mm and I'd need 2 of each.
    The complex part, I guess, is machining 4 faces of the body part.
    I have the wood on it's way to me shortly planed on all faces to the external dimensions of the attached images files.

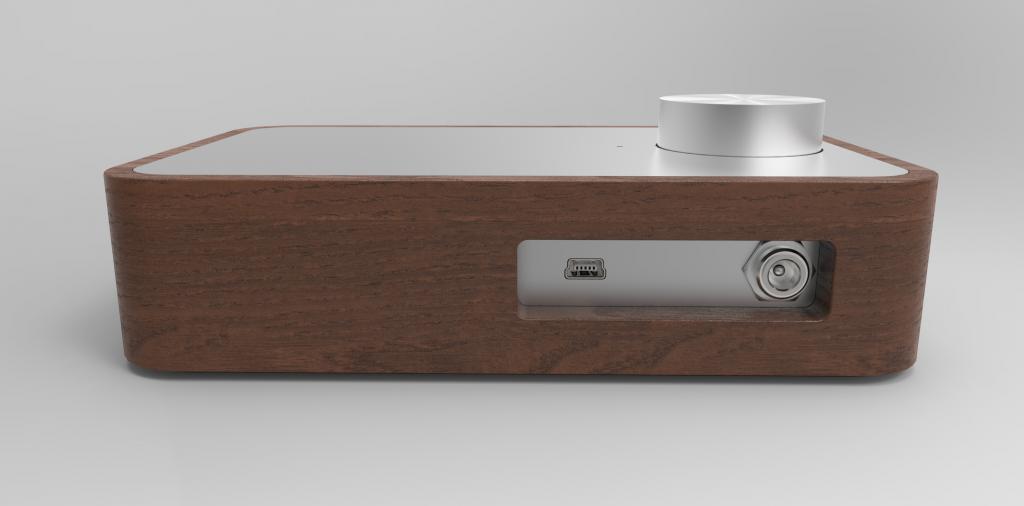

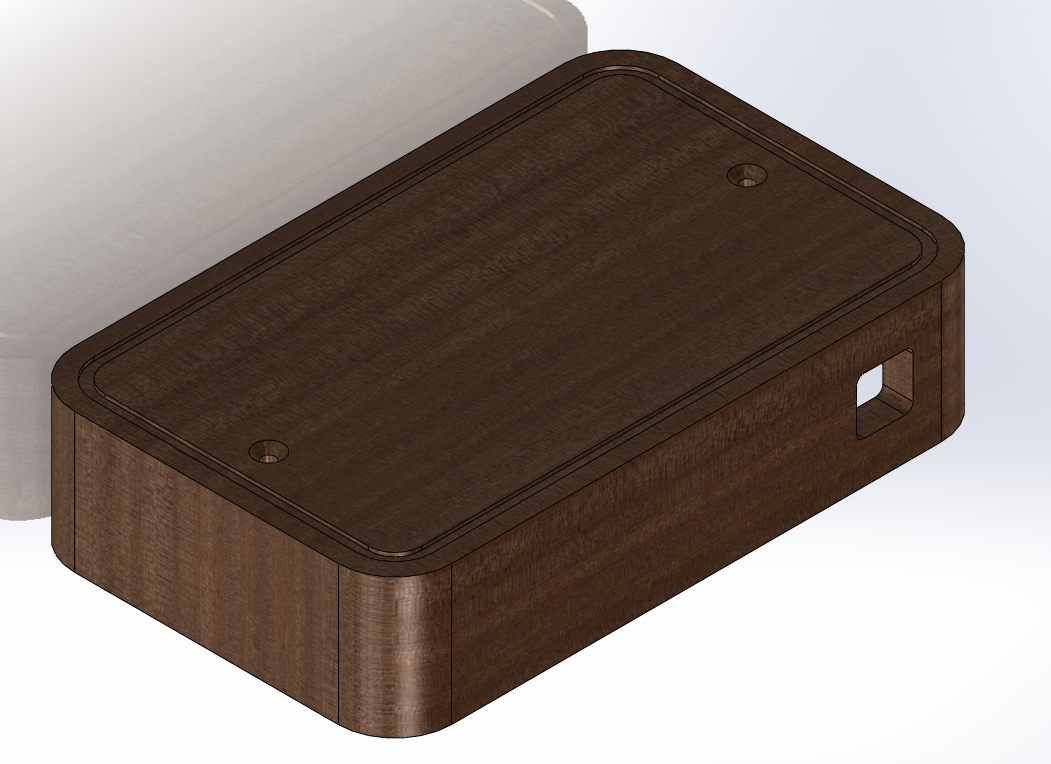

    Complete
    Click image for larger version.

Name:	Render24.jpg
Views:	334
Size:	27.9 KB
ID:	8789

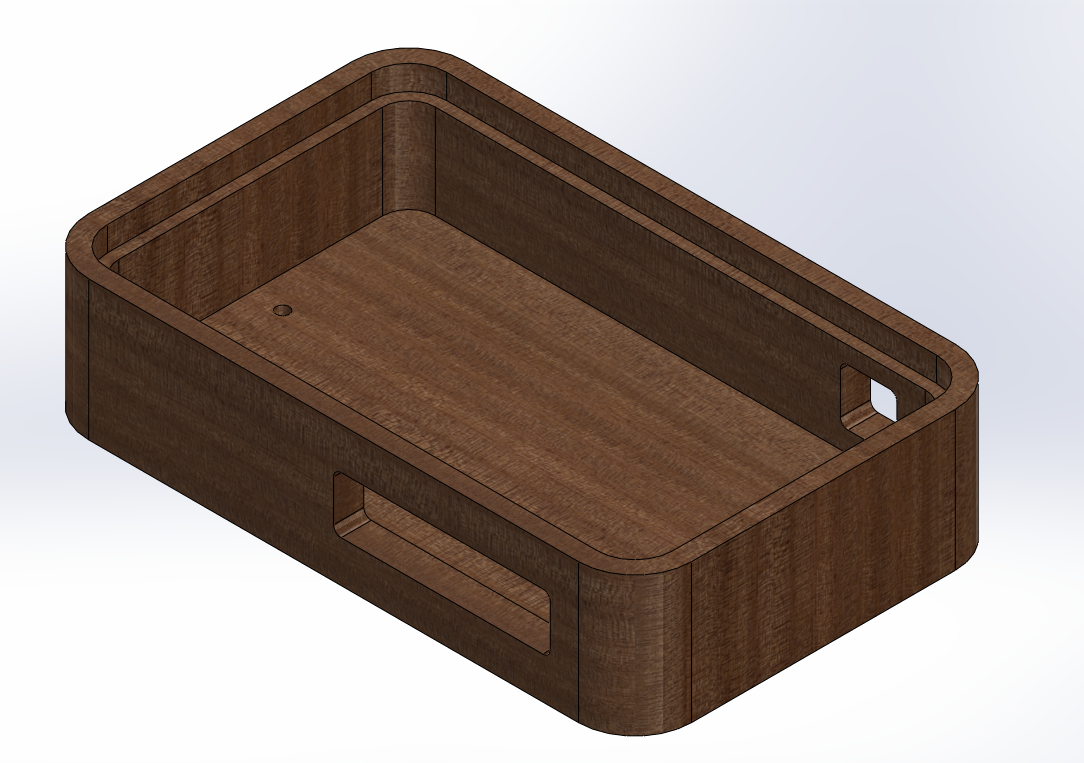

    Body
    Click image for larger version.

Name:	Body Iso 1.PNG
Views:	198
Size:	945.8 KB
ID:	8790
    Click image for larger version.

Name:	Body Iso 2.PNG
Views:	271
Size:	1,013.0 KB
ID:	8791

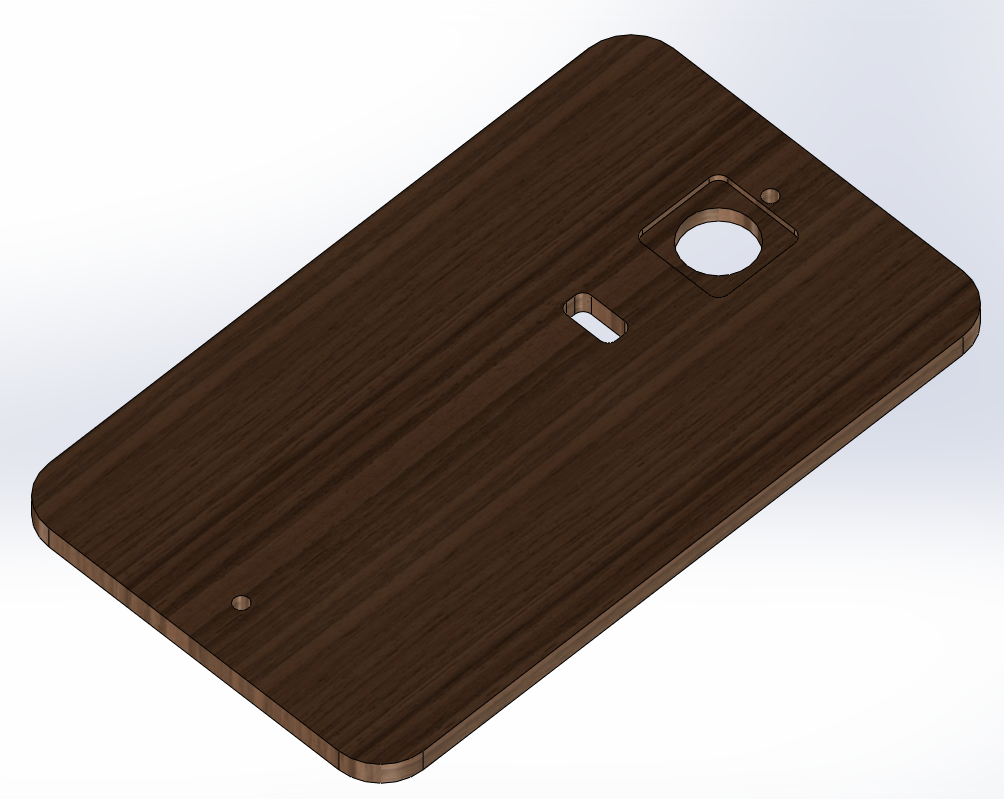

    Top
    Click image for larger version.

Name:	Wood Iso.PNG
Views:	245
Size:	662.6 KB
ID:	8792


    Thanks very much,
    Sam

  2. #2
    Sam are you saying the stock material is the same size as the extents of the box itself? ps i'm only up the road from you
    If the nagging gets really bad......Get a bigger shed:naughty:

  3. #3
    SamW's Avatar
    Lives in Devizes, United Kingdom. Last Activity: 28-07-2013 Has been a member for 3-4 years. Has a total post count of 4.

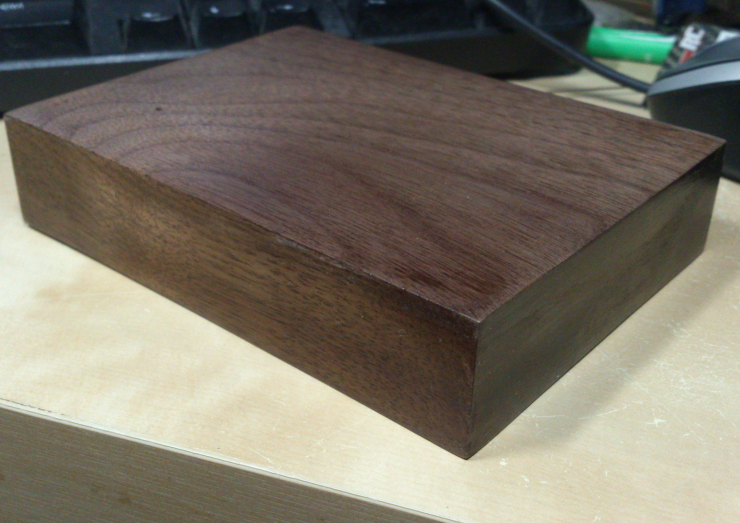

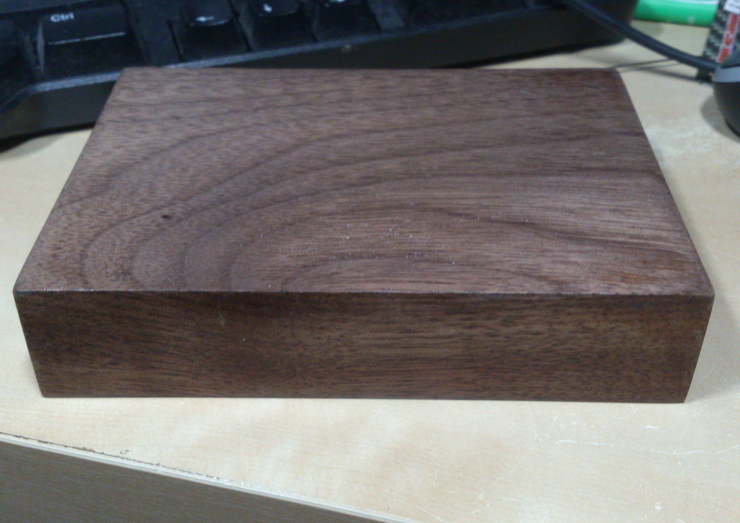

    Thanks for the quick reply. I have ordered planed all around walnut to 160x100x37mm and 150x90x5mm, the same size as the CAD.
    I'm in Devizes/can be around Uxbridge/can be around Northampton.

  4. #4
    Off topic slightly, where do you find walnut, maple etc in the UK?

    Thanks

  5. #5
    Look for a local wood turners supplier. They usually stock various timber blanks. Some saw mills deal in exotics and hard woods as well.
    I have a few hundred quids worth of timber blanks in my shed for wood turning although I havent done any for years now. Cant decide whether to keep the lathe or sell it.
    Strangest thing I turned was a grass root blank or maybe a banksia nut, you get furry tools and lathe with that one. Fun though.

  6. #6
    SamW's Avatar
    Lives in Devizes, United Kingdom. Last Activity: 28-07-2013 Has been a member for 3-4 years. Has a total post count of 4.
    I ordered mine from British hardwoods online. American black walnut.

  7. Quote Originally Posted by SamW View Post
    Hi there,

    I'm looking for a couple of small parts machining out of some walnut.
    Modelled in CAD, the files are ready to go but I've not been able to find anywhere commercially that can do the small job. The body part measures 160x100x37mm and the top part measures 150x90x5mm and I'd need 2 of each.
    The complex part, I guess, is machining 4 faces of the body part.
    I have the wood on it's way to me shortly planed on all faces to the external dimensions of the attached images files.

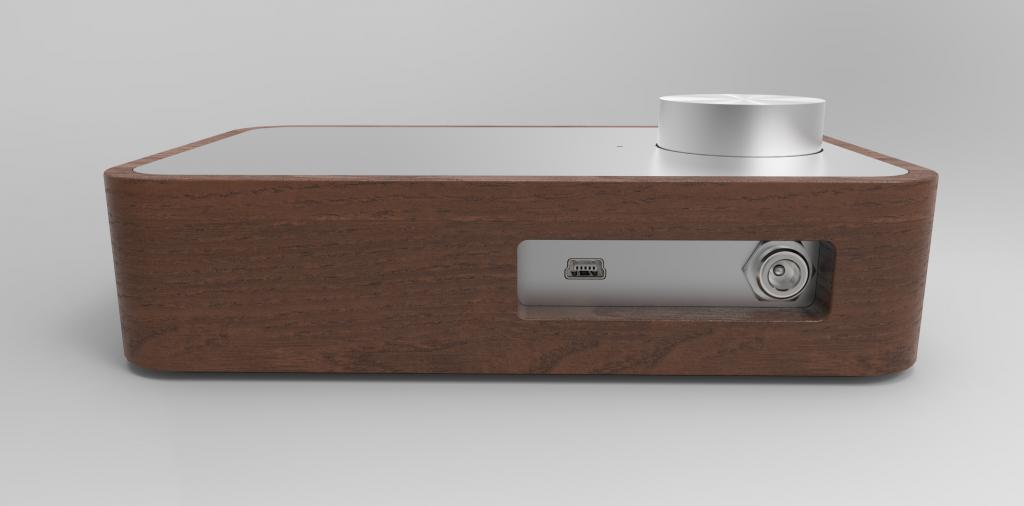

    Complete
    Click image for larger version.

Name:	Render24.jpg
Views:	334
Size:	27.9 KB
ID:	8789
    Body
    Click image for larger version.

Name:	Body Iso 1.PNG
Views:	198
Size:	945.8 KB
ID:	8790
    Click image for larger version.

Name:	Body Iso 2.PNG
Views:	271
Size:	1,013.0 KB
ID:	8791
    Top
    Click image for larger version.

Name:	Wood Iso.PNG
Views:	245
Size:	662.6 KB
ID:	8792


    Thanks very much,
    Sam
    Really nice little object - what else have you done?

  8. #8

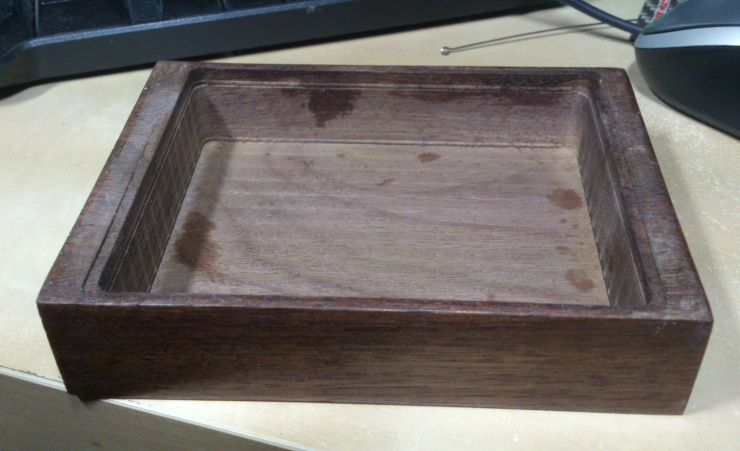

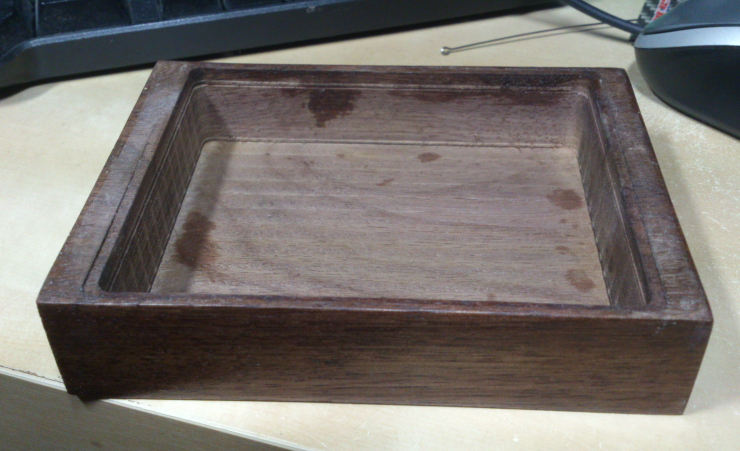

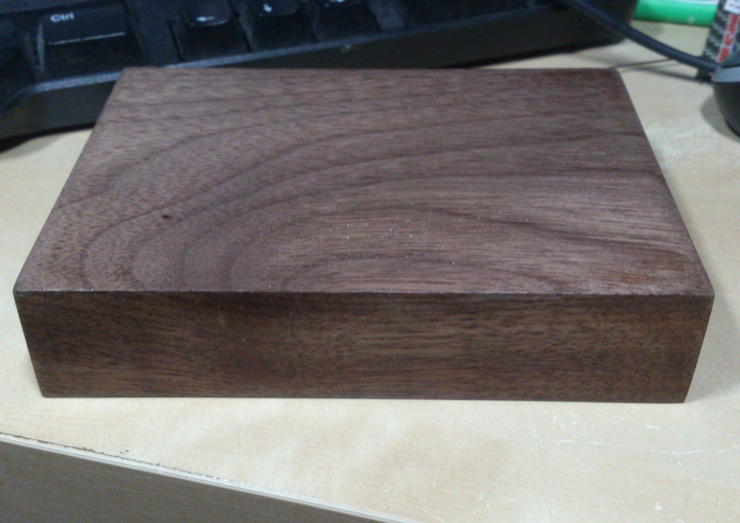

    As it so happens I have just started on prototyping some wooden cases for the Objective 2 headphone amp .. and just so happens in American Dark Walnut, however i dont as "yet" have the z travel to do the front holes and so doing them with a pillar drill next. I can supply them as in the pictures if someone wants to do the faces , I'm even considering adding some relief work to them in my own strange style lol sorry just understood the thread ... forget what i have said ..sorry

    Click image for larger version.

Name:	box.JPG
Views:	176
Size:	411.8 KB
ID:	8801Click image for larger version.

Name:	box2.JPG
Views:	156
Size:	419.9 KB
ID:	8802Click image for larger version.

Name:	box3.JPG
Views:	156
Size:	357.1 KB
ID:	8803
    Last edited by Fivetide; 19-04-2013 at 10:41 PM.

    Fiction is far more plausible when wrapped around a thread of truth

    Nothing great was ever achieved without enthusiasm.
    Ralph Waldo Emerson

  9. #9
    SamW's Avatar
    Lives in Devizes, United Kingdom. Last Activity: 28-07-2013 Has been a member for 3-4 years. Has a total post count of 4.
    Ah snap! Nice amp isn't it? I just wanted to get away from the standard extruded enclosure. Would like to keep a look out for what you do with yours.

    Thanks Joe - pinched a lot of the look of it from the Monome so shouldn't take too much credit! I'm at uni at the moment studying Product Design so got a few projects.
