  1. #11
    Quote Originally Posted by Wal View Post

    Anyway, it's made now. It works well, it's accurate and it should save me a bit of time in the future!
    Yes, industrial quality.
    In my former life as miller in a machine shop we suffered with the bigger plates and did similar solution (not so nice just slot). Struggling stimulates to do thing better and easier . Reeling on Ariadne' thread if I had a bunch of this type of job I would do one of that way as shown in the pictures. The vertical version does not seem good for a router generally because of the too long lever. On a better router one can make quite good offset for parallel pin too. (sorry just thinking
    out loud if you do not mind)


    Attached Thumbnails Attached Thumbnails Click image for larger version.

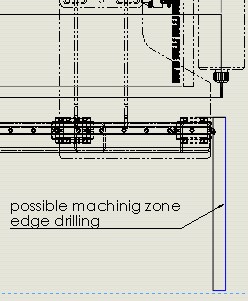

Name:	edge.JPG
Views:	569
Size:	247.4 KB
ID:	13976   Click image for larger version.

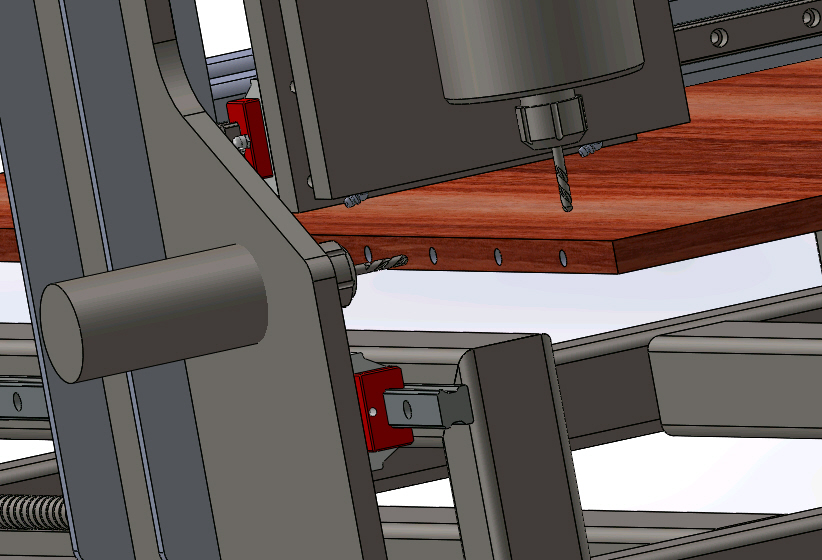

Name:	edge2.jpg
Views:	564
Size:	23.3 KB
ID:	13975
    Last edited by vargai; 04-12-2014 at 10:04 PM.
