    Hello,

    Anyone interested in making me 3 ballnut brackets for my RM1605 ballnuts?

    I'm using TBR20 rails with the corresponding blocks, and the spec of the bracket I need is a bit different to what I've seen available to buy.

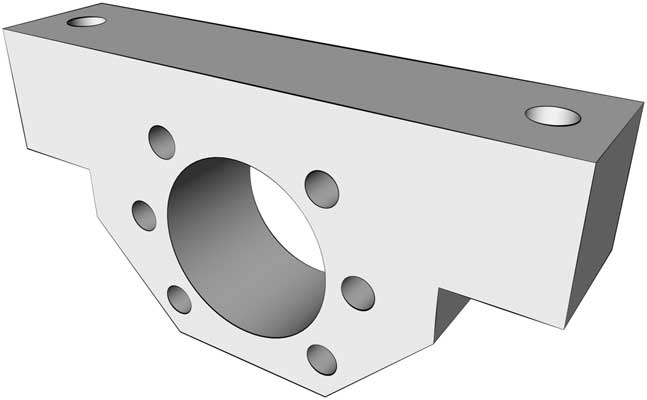

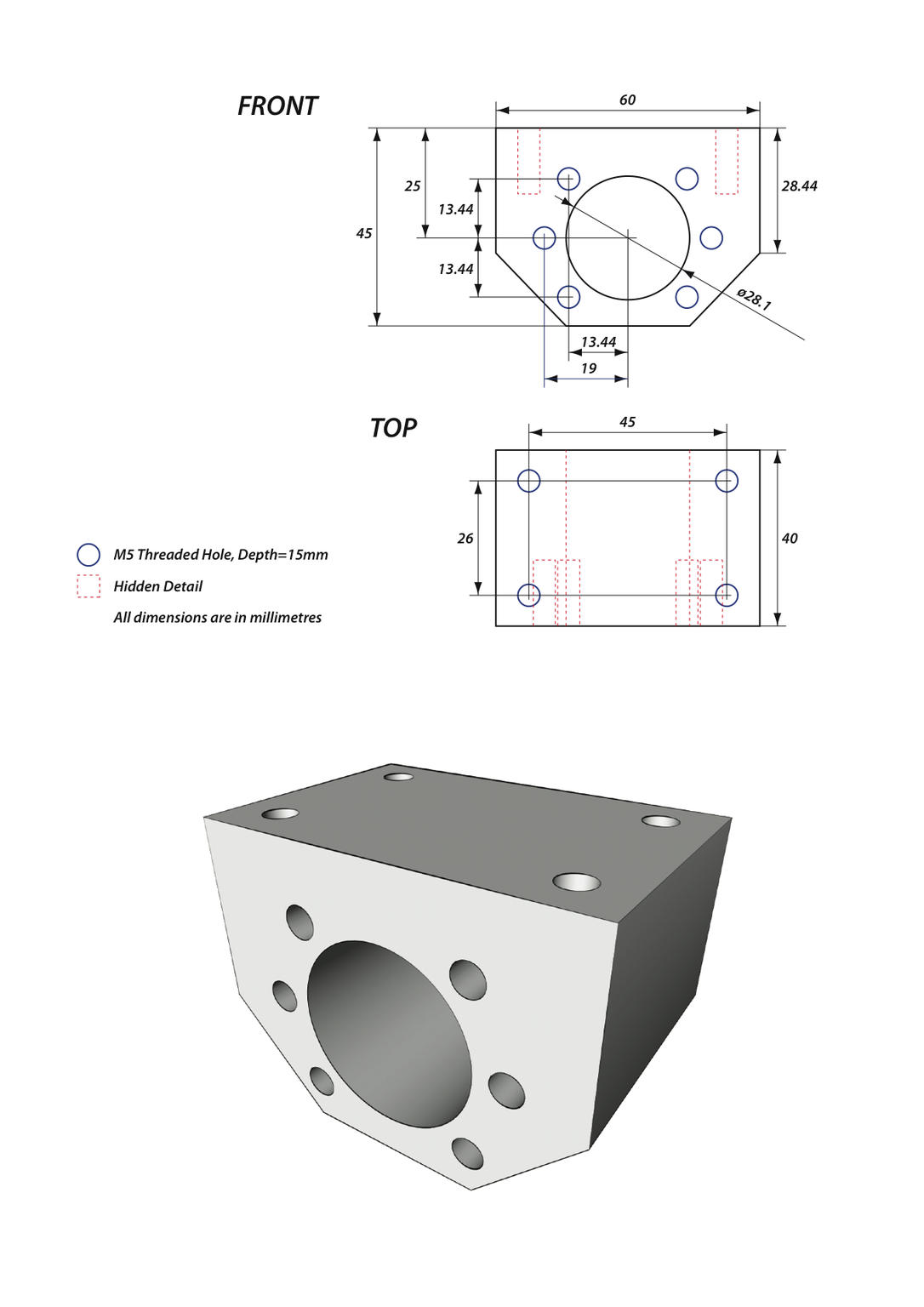

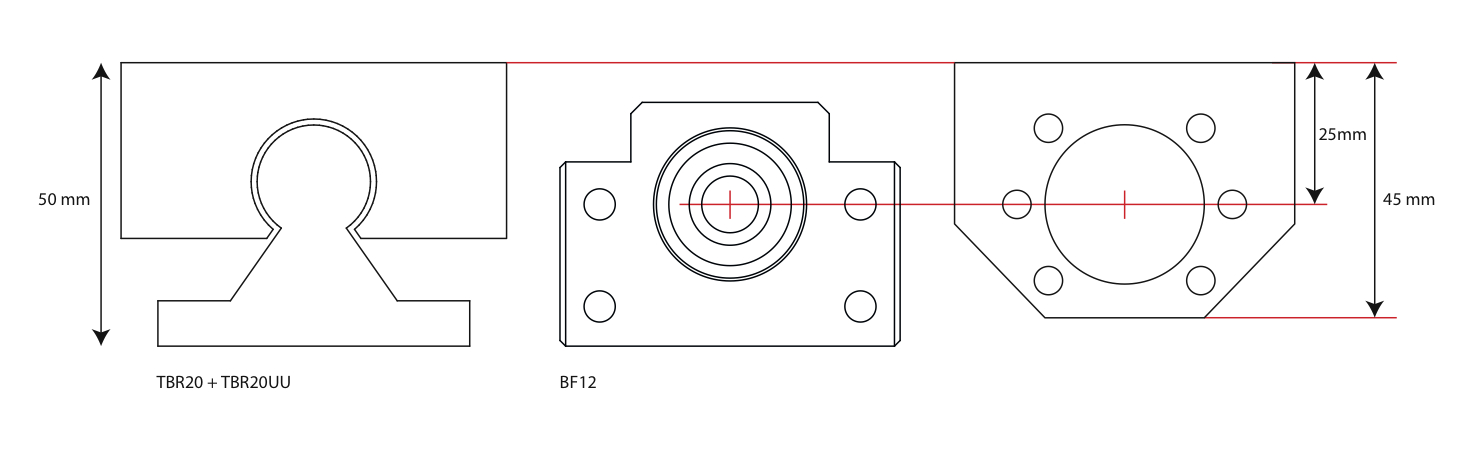

    Please find attached a couple of .jpgs which illustrate the specs I'm after, and also a .zip file which unzips to the following:

    RM05 Ballnut Bracket for use with TBR20 BF_BK:
    • RM05 Ballnut Bracket for use with TBR20 BF_BK PROFILE.pdf
    • RM05 Ballnut Bracket for use with TBR20 BF_BK.dxf
    • RM05 Ballnut Bracket for use with TBR20 BF_BK.pdf
    • RM05 Ballnut Bracket for use with TBR20 BF_BK.stl


    NB - the "RM05 Ballnut Bracket for use with TBR20 BF_BK PROFILE.pdf" has holes that are 4.2mm (for tapping M5)

    Click image for larger version.

Name:	TBR20UU_BF12_ballnut-bracket.jpg
Views:	734
Size:	113.6 KB
ID:	9339Click image for larger version.

Name:	RM05 Ballnut Bracket for use with TBR20 BF_BK.jpg
Views:	1851
Size:	75.0 KB
ID:	9340RM05 Ballnut Bracket for use with TBR20 BF_BK.zip

    Drop me a PM if you can help - or indeed, if you know somewhere that sells what I'm after..!

    Wal.
    Last edited by Wal; 29-07-2013 at 06:06 PM.

  2. #2
    Wal's Avatar
    Lives in Stockport, United Kingdom. Last Activity: 30-03-2023 Has been a member for 9-10 years. Has a total post count of 491. Received thanks 71 times, giving thanks to others 29 times.

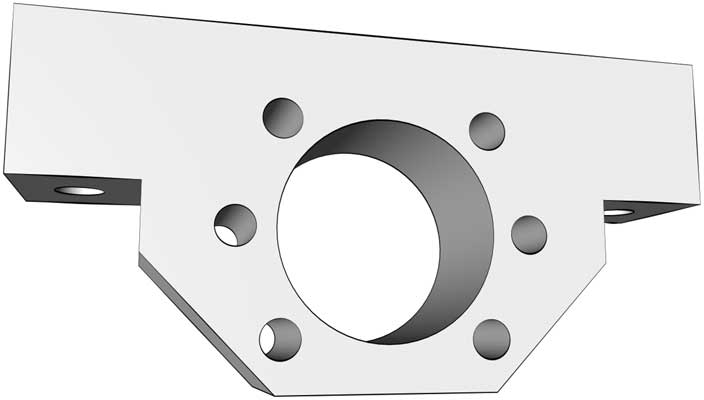

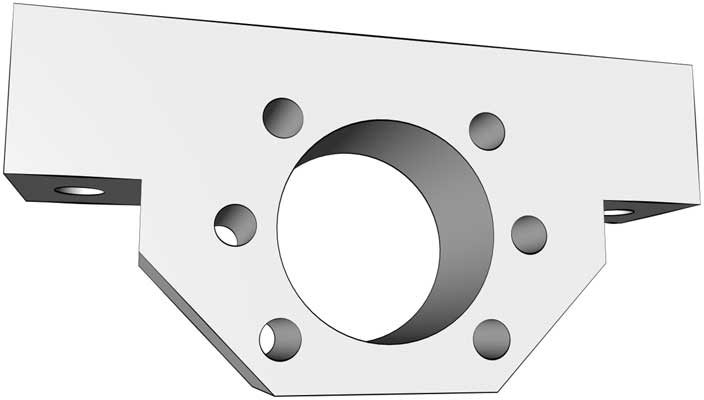

    Or maybe a simpler profile cut from 20mm plate if the 40mm depth is putting you off... Like this:

    Click image for larger version.

Name:	02_RM1605_ballnut-bracket-20mm.jpg
Views:	397
Size:	14.8 KB
ID:	9344 Click image for larger version.

Name:	01_RM1605_ballnut-bracket-20mm.jpg
Views:	357
Size:	14.6 KB
ID:	9345

    RM1605_ballnut-bracket-20mm.stl
    RM1605_ballnut-bracket-20mm.dxf

    (I'll make up a proper drawing if there are any takers...)

    Cheers!

  3. #3
    Just realised I forgot to reply to your message about this. I can make them to either design, but not for 2-3 weeks. How soon do you need them?
    Old router build log here. New router build log here. Lathe build log here.
    Electric motorbike project here.

  4. #4
    Wal's Avatar
    Lives in Stockport, United Kingdom. Last Activity: 30-03-2023 Has been a member for 9-10 years. Has a total post count of 491. Received thanks 71 times, giving thanks to others 29 times.
    Hi Jonathan,

    I'm not in a mad hurry for them. Of course, I'm keen to have 'em in my hands as then I can get the next stage under way, but if I have to wait a couple of weeks then that's cool.

    I'd prefer the design in the OP - for it's sturdiness. There's a good chance that I'll be needing a spindle mount too.

    PM me a price and let me know about any extra info that you may require.

    Cheers.

    Wal.
