  1. That works for me!

    Those renderings are great, really helps to visualise things. What are you using? Sadly there's nothing that runs on Android that does that.

    I'll post other drawings tomorrow, need to review them to see if I can simplify them.

  2. #22
    [QUOTE=irving2008;47875]That works for me!

    Those renderings are great, really helps to visualise things. What are you using?

    second that jazz, very impressive.

  3. #23
    Quote Originally Posted by irving2008 View Post
    That works for me!

    Those renderings are great, really helps to visualise things. What are you using? Sadly there's nothing that runs on Android that does that.
    Yes 3D models are great for showing visually unfortunately software to do this quickly and easy is not cheap. These are done with Solid works and it's bloody expensive fortunately I have it thru business so effectively tax mans bought it or should say not getting it. . .Lol

  4. #24
    Hi Irving,

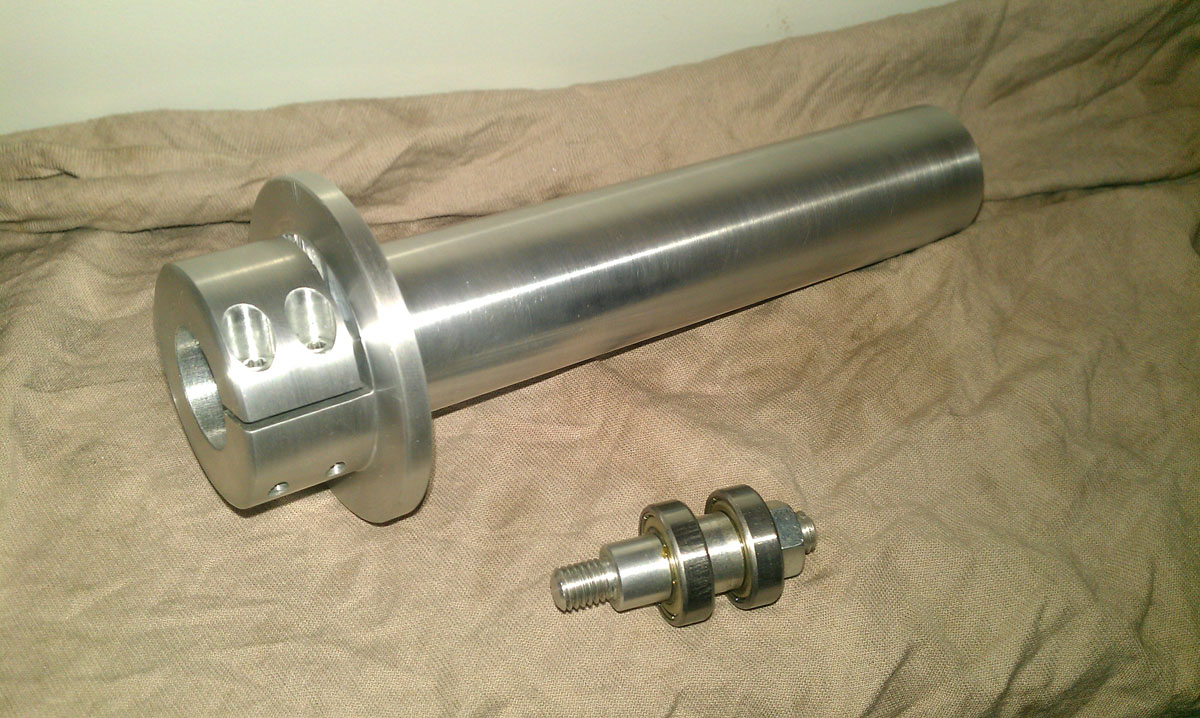

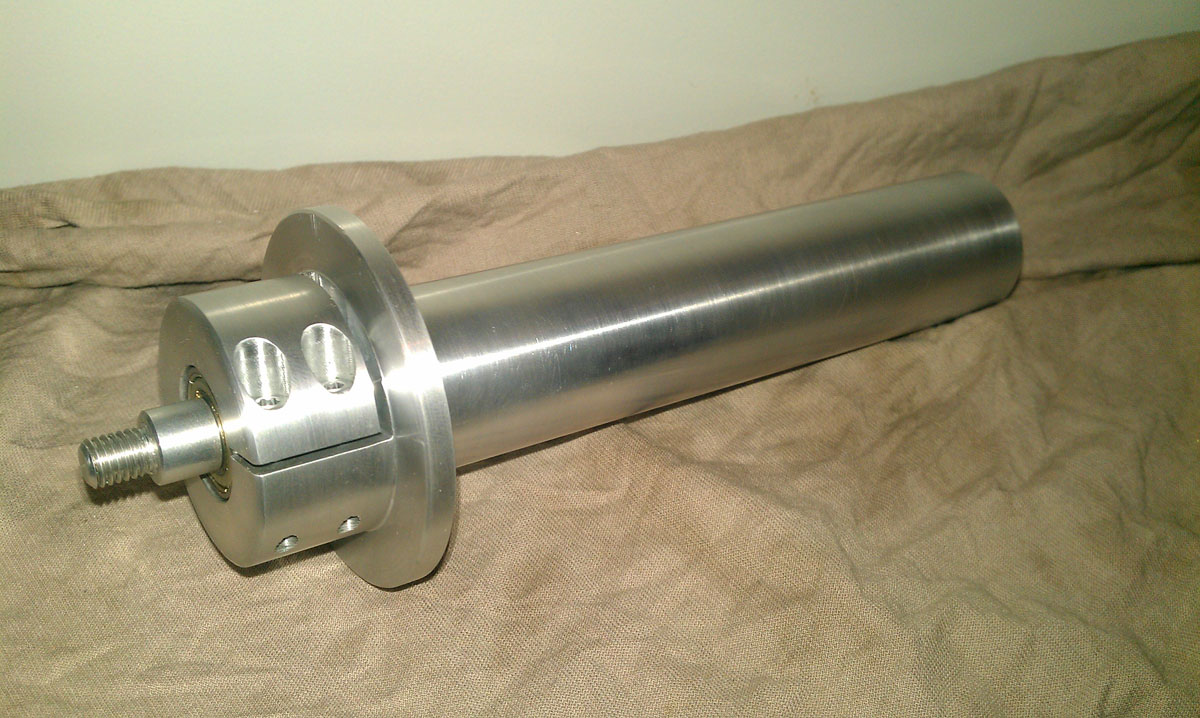

    Nearly done mate had loads of problems with Lathe and my dosy mate bring me wrong stuff.!! . . . But here's a couple of pics to wet your appetite. Just got flats to put on pin and whip crank up on CNC machine then done.

    Click image for larger version.

Name:	IMAG0382.jpg
Views:	119
Size:	207.9 KB
ID:	10136Click image for larger version.

Name:	IMAG0383.jpg
Views:	113
Size:	236.2 KB
ID:	10137Click image for larger version.

Name:	IMAG0386.jpg
Views:	122
Size:	239.0 KB
ID:	10138

    Cheers
    Dean.

  5. #25
    Clive S's Avatar
    Lives in Marple   Stockport, United Kingdom. Last Activity: 11 Hours Ago Forum Superstar, has done so much to help others, they deserve a medal. Has been a member for 5-6 years. Has a total post count of 2,308. Received thanks 402 times, giving thanks to others 35 times. Made a monetary donation to the upkeep of the community. Is a beta tester for Machinists Network features.
    Very nice Dean, how did you do the split to make the clamp bit? ..Clive

  6. #26
    Quote Originally Posted by Clive S View Post
    Very nice Dean, how did you do the split to make the clamp bit? ..Clive
    MAGIC.!!. . . . . . . Or . . . 1.5mm end mill in cnc machine. . .Lol

  7. #27
    Quote Originally Posted by irving2008 View Post
    The first drawings are for handles & crank assembly, others to follow. Ideally I'd like to get these done within next month. PM me if you can help.
    Let me have the drawings for the gears if you have them (and still want them printed) - got a bit of spare time at the moment (but don't tell my boss that :-) ).

  8. Dean

    Sorry I missed the update, those look amazing! Can't wait to see them in the flesh...and I am very grateful...

    Not been great last few days so haven't updated rest of drawings but will do so later today I hope.

  9. Quote Originally Posted by FatFreddie View Post
    Let me have the drawings for the gears if you have them (and still want them printed) - got a bit of spare time at the moment (but don't tell my boss that :-) ).
    Hi,

    Thanks - I still want to go with an epicyclic gear in the long run but the ratio I need to be safe on the design is nearer 4:1 rather than 3:1. So I've decided to go for a pulley/belt approach for v1 of this as was struggling to make it all fit plus the axle was getting increasingly complex - I need to prove the rest of the mechanism first.

    I will revisit the epicyclic version in Mk2 as its neater overall, once I'm happy 3:1 will work.

    Thanks for your efforts so far....

  10. #30
    Quote Originally Posted by irving2008 View Post
    Thanks for your efforts so far....
    No problem, it's been interesting.

    Let me know if you need anything printing for Mk1 (pulley covers etc).
