  1. #1

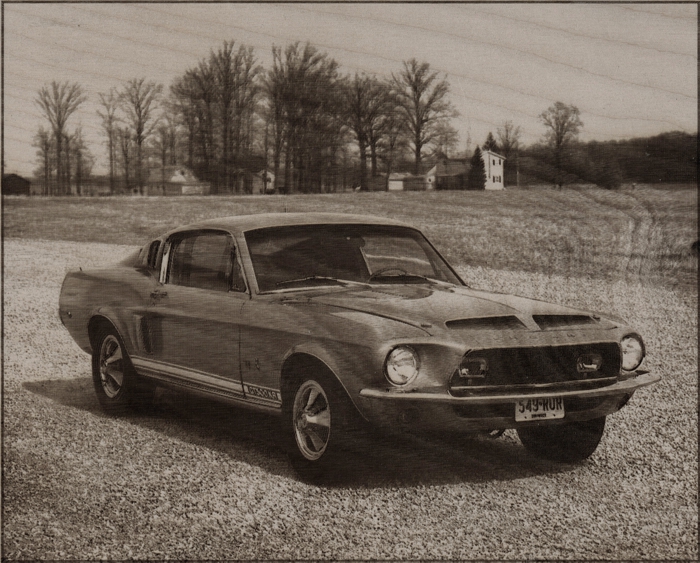

    I did a new 445nm 2W Laser Diode engraver build using a Shapeoko 2 with an Arduino UNO and GRBL Shield to control it. Here is a 8bit, analog modulated Laser Diode engraving I did on Birch Ply with this machine. The engraving is 9" X 7.5".
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Stang1.jpg
Views:	489
Size:	391.6 KB
ID:	13526   Click image for larger version.

Name:	Stang2.jpg
Views:	710
Size:	358.1 KB
ID:	13527
    Last edited by JJWMACHINECO; 03-10-2014 at 07:49 PM.
    Extensivly Re-worked/Re-designed/Modified Servo K2CNC KG-3925,
    Mini Laser Diode Engraver and PicEngrave Pro 4 + Laser
    Shapeoko 2 Laser Diode Engraver-Analog/TTL
    PicLaser Lite; Image to Gcode for 9g grbl/Mach3 controllers-Laser/Spindle
    PicEdit Lite: Image editing for use with PicLaser Lite
    PicSender: Streams 9g grbl Raster/Vector Engraving gcodes
    https://picengrave.com

  2. #2
    Impressive -thanks for showing. G.

  3. The Following User Says Thank You to GEOFFREY For This Useful Post:


  4. #3
    Thank you GEOFFERY.

    Here is information on our Shapeoko 2 laser engraver build.

    http://www.instructables.com/id/Shap...t-Raster-Phot/

    Jeff
    Extensivly Re-worked/Re-designed/Modified Servo K2CNC KG-3925,
    Mini Laser Diode Engraver and PicEngrave Pro 4 + Laser
    Shapeoko 2 Laser Diode Engraver-Analog/TTL
    PicLaser Lite; Image to Gcode for 9g grbl/Mach3 controllers-Laser/Spindle
    PicEdit Lite: Image editing for use with PicLaser Lite
    PicSender: Streams 9g grbl Raster/Vector Engraving gcodes
    https://picengrave.com

  5. #4
    We just finished a new build on our Shapeoko 2 using a 6W 450nm laser Laser Diode from DTR. We were able to reduce the 3D engraving time almost in half compared to using a 2.8W 445nm LD on the examples shown here.

    http://forum.darklylabs.com/index.php?p=/discussion/362/3d-engraving-using-picengrave-pro-5

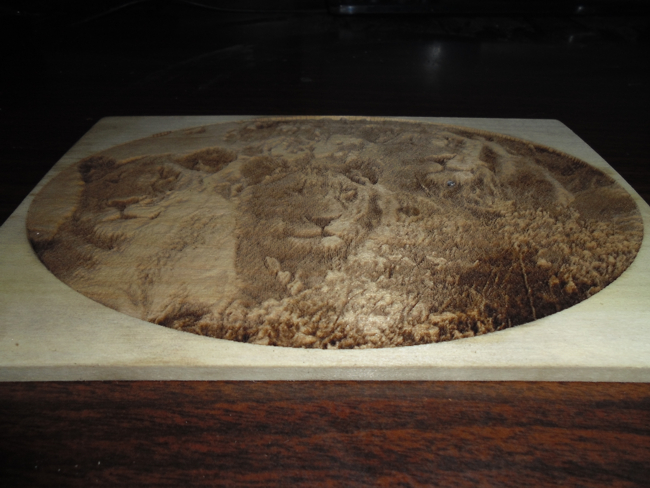

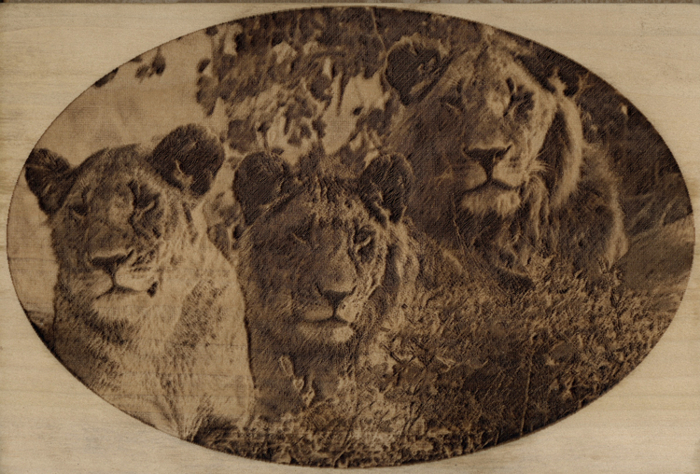

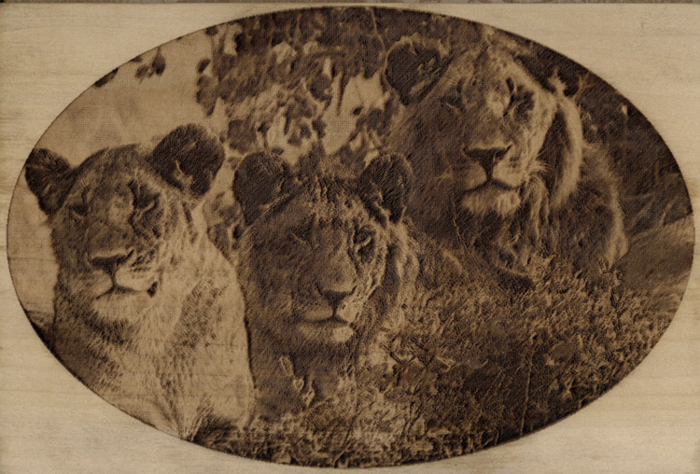

    We are still refining the settings in PicEngrave Pro 5, but here are the results of a 3D engraving we did. It's 7.875" X 5.25" in size with a.125" total depth of cut. We used the J-Tech PWM grbl with S20-S255 laser power commands, a variable feedrate (Feed Rate Change) and streamed the 507,365 lines of gcode with our PicSender program.




    www.picengrave.com
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	3D LionsS.jpg
Views:	2563
Size:	485.5 KB
ID:	15903   Click image for larger version.

Name:	DSC00621.JPG
Views:	1882
Size:	326.6 KB
ID:	15904
    Extensivly Re-worked/Re-designed/Modified Servo K2CNC KG-3925,
    Mini Laser Diode Engraver and PicEngrave Pro 4 + Laser
    Shapeoko 2 Laser Diode Engraver-Analog/TTL
    PicLaser Lite; Image to Gcode for 9g grbl/Mach3 controllers-Laser/Spindle
    PicEdit Lite: Image editing for use with PicLaser Lite
    PicSender: Streams 9g grbl Raster/Vector Engraving gcodes
    https://picengrave.com

  6. #5
    Looks great! How long did it take to do?
