    Hello all,

    After spending a long long time designing my CNC router, I feel I am now at the time to start getting some quotes for the aluminium parts I require. The design is not 100% finalised but I only anticipate very small changes here and there.

    See full build thread here: http://www.mycncuk.com/threads/5549-...e-Materials%29

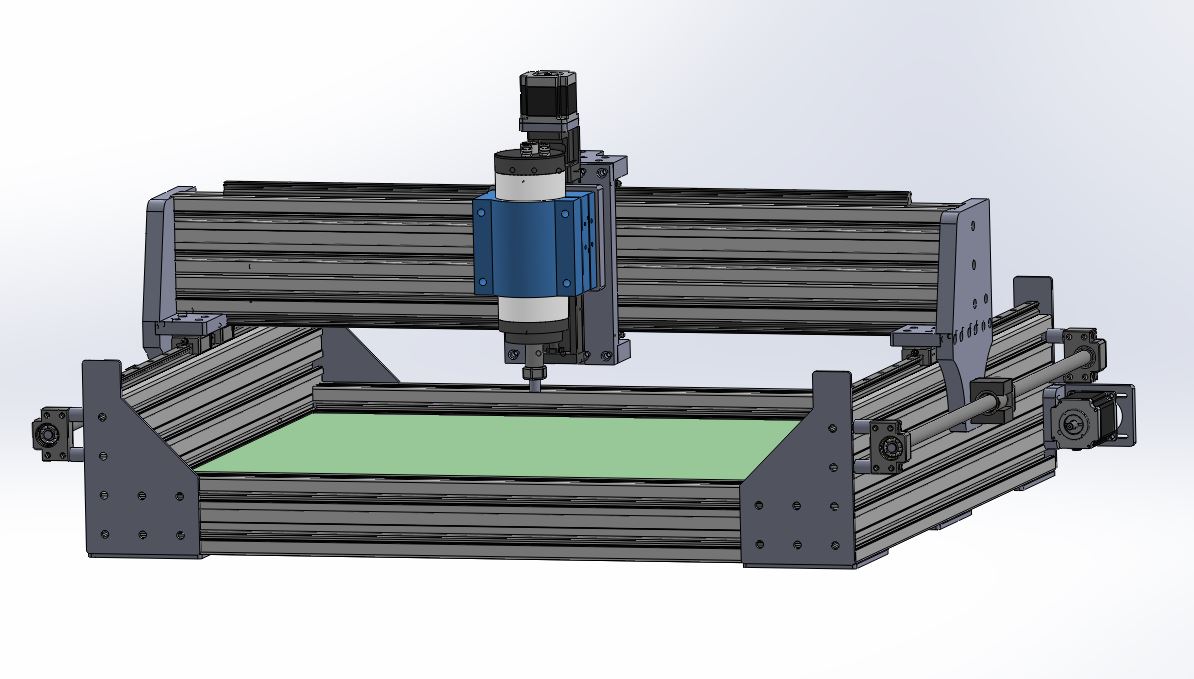

    Essentially all parts require machining on top and bottom. I will update this thread ASAP with screenshots of each part to give a better idea. I can also, of course, provide STEP files for each part.

    I am looking for an "all in" cost including material.



    Part 1 - Gantry Side Plate (Left)
    Quantity: 1
    Material: Aluminium
    Thickness: 20mm
    Outside Dimensions: 255mm x 160mm

    Part 2 - Gantry Side Plate (Right)
    Quantity: 1
    Material: Aluminium
    Thickness: 20mm
    Outside Dimensions: 255mm x 160mm

    Part 3 - Y Axis Bearing Mount Plates
    Quantity: 2
    Material: Aluminium
    Thickness: 15mm
    Outside Dimensions: 160mm x 60mm

    Part 4 - X Axis Carriage Plate
    Quantity: 1
    Material: Aluminium
    Thickness: 20mm
    Outside Dimensions: 231mm x 130mm

    Part 5 - X Axis Bearing Plate (Top)
    Quantity: 1
    Material: Aluminium
    Thickness: 20mm
    Outside Dimensions: 130mm x 100mm

    Part 6 - X Axis Bearing Plate (Bottom)
    Quantity: 1
    Material: Aluminium
    Thickness: 20mm
    Outside Dimensions: 130mm x 55mm

    Part 7 - Y Axis Ballnut Mount
    Quantity: 1
    Material: Aluminium
    Thickness: 20mm
    Outside Dimensions: 97.5mm x 40mm

    Part 8 - NEMA Motor Mount
    Quantity: 3
    Material: Aluminium
    Thickness: 10mm
    Outside Dimensions: 95mm x 70mm

    Part 9 - Motor Mount Extrusion Bracket
    Quantity: 3
    Material: Aluminium
    Thickness: 15mm
    Outside Dimensions: 40mm x 70mm

    Part 10 - Spindle Z Mount
    Quantity: 1
    Material: Aluminium
    Thickness: 20mm
    Outside Dimensions: 115mm x 130mm

    Any questions, please don't hesitate to ask!
