1. #1
    can anyone recommend a good pcb software for beginners?i need it for one small project then I will have a go at making the board on the router.
    I came across kicad on youtube so installed the windows version but get a bunch of error boxes on startup

  2. #2
    Quote Originally Posted by deisel View Post
    can anyone recommend a good pcb software for beginners?i need it for one small project then I will have a go at making the board on the router.
    I came across kicad on youtube so installed the windows version but get a bunch of error boxes on startup

    Not tried any but good selection here;
    http://www.electroschematics.com/224...sign-software/
    http://server.ibfriedrich.com/wiki/i...ons_and_Prices
    Spelling mistakes are not intentional, I only seem to see them some time after I've posted

  3. The Following User Says Thank You to EddyCurrent For This Useful Post:


  4. #3
    KiCAD is generally good. I also use Eagle, which is free so long as your design is below a certain size.

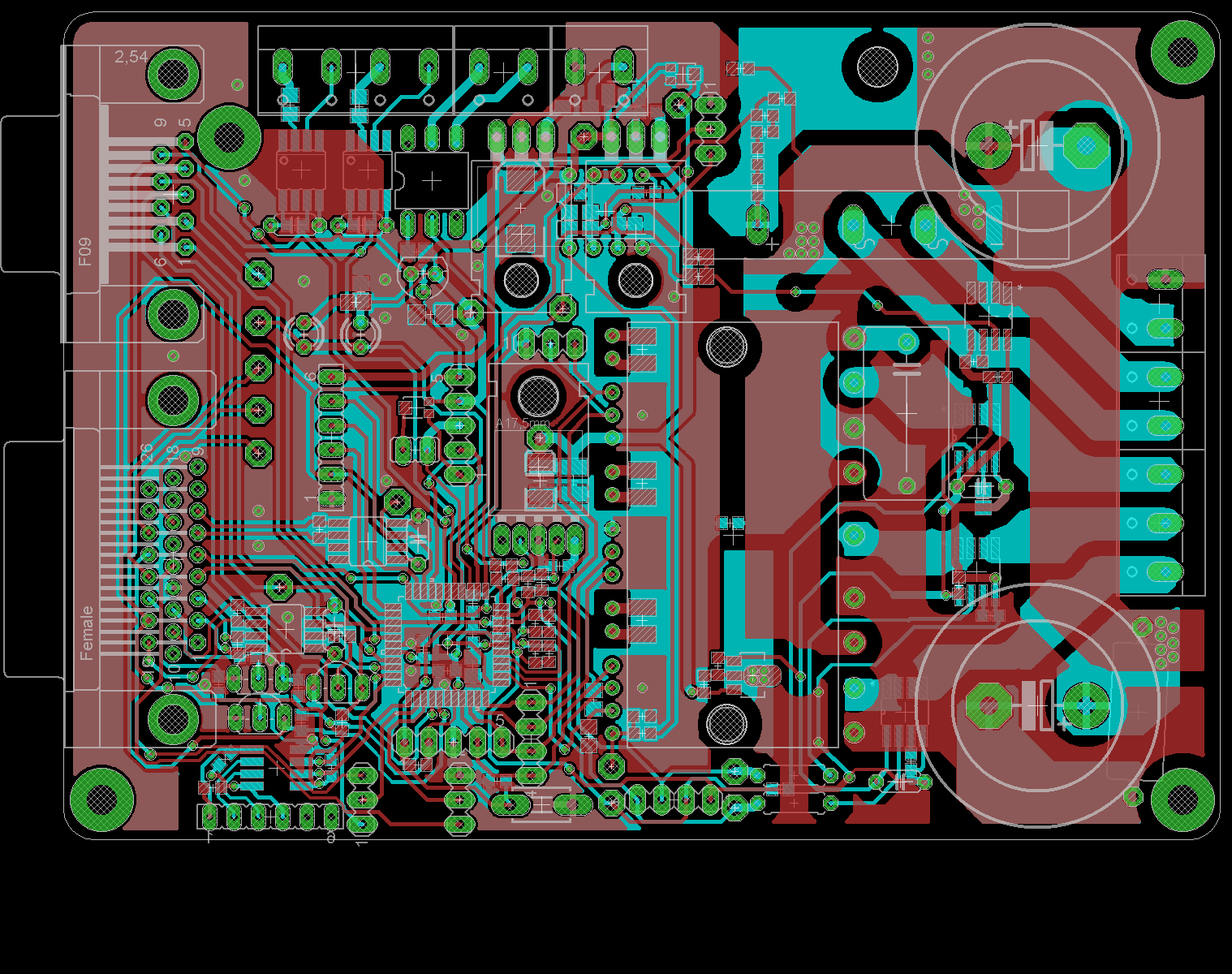

    I just sent this PCB off to be manufactured, because it was not feasible to make them the router:

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	ServoPCB_1p2.png
Views:	265
Size:	280.1 KB
ID:	14405
    Old router build log here. New router build log here. Lathe build log here.
    Electric motorbike project here.

  5. The Following User Says Thank You to Jonathan For This Useful Post:


  6. #4
    C_Bubba's Avatar
    Lives in LaGrange, GA USA, United States. Last Activity: 23 Hours Ago Has been a member for 7-8 years. Has a total post count of 77. Received thanks 11 times, giving thanks to others 1 times.
    My personal preference is Eagle with the pcb-gcode ulp that will generate the necessary gcode files to do the milling and drilling. A bit of a learning curve, but the results are good. As noted above, it is free for "small" sized single and doublesided boards.
    Art

    AKA Country Bubba
    (Older than Dirt)

  7. The Following User Says Thank You to C_Bubba For This Useful Post:


  8. #5
    The RS Components DesignSpark PCB is quite good.

    http://www.rs-online.com/designspark/electronics/eng/

  9. The Following User Says Thank You to IanS1 For This Useful Post:


  10. Quote Originally Posted by IanS1 View Post
    The RS Components DesignSpark PCB is quite good.

    http://www.rs-online.com/designspark/electronics/eng/
    Seconded... also look at their mechanical design tools... useful stuff for free

  11. The Following User Says Thank You to irving2008 For This Useful Post:


  12. #7
    thanks for all the suggestions folks.

  13. #8
    m_c's Avatar
    Lives in East Lothian, United Kingdom. Last Activity: 13 Hours Ago Has been a member for 9-10 years. Has a total post count of 1,831. Received thanks 192 times, giving thanks to others 5 times.
    I personally use DipTrace. It's free for personal use upto a certain pin/pad count.
    Avoiding the rubbish customer service from AluminiumWarehouse since July '13.

  14. #9
    finally deisel, which software do you use now? i n my highschool-time i preferred cadsoft eagle. looking at their newsest blogpost make me feel that their software is as good as in my times ;) http://blog.cadsoftusa.com/2015/03/eagle-won/
