    I have a simple graphic (pic below) that I want to cut in 3D (as its 3 axis probably 2.5D). Can anyone advise me on how to convert this image - if that's possible.

    I have Aspire 4, but I think I really need to import a shaded model in order to get shaped depth!! looking at other 3D models surely these are not created by hand! I am hoping that there is some form of software etc that will assist with this, any ideas!

    Earle

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	wyvern2.jpg
Views:	232
Size:	168.2 KB
ID:	15725

  2. #2

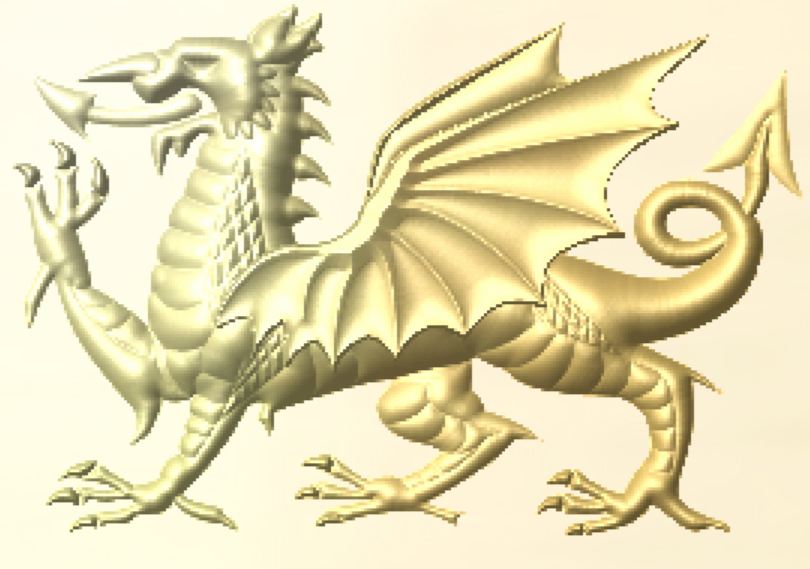

    I have this one in a stl file you might be able to change, size is 100 x 80 x 17

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	dragon.JPG
Views:	152
Size:	64.5 KB
ID:	15726

  3. #3
    Quote Originally Posted by Earle View Post
    I have a simple graphic (pic below) that I want to cut in 3D (as its 3 axis probably 2.5D). Can anyone advise me on how to convert this image - if that's possible.

    I have Aspire 4, but I think I really need to import a shaded model in order to get shaped depth!! looking at other 3D models surely these are not created by hand! I am hoping that there is some form of software etc that will assist with this, any ideas!

    Earle
    Aspire is the right software, i would say the best for the purpose. Here are the steps:

    -First yo have to import the JPG file and trace it

    -Clean the vector result having in mind what you aim is.

    -Decide what ball nose bit you will use

    -Node edit and divide all elements to separate groups.

    -3d extrude, shape and smooth all elements using Aspire 3d art capabilities

    -generate rouging cuts

    -generate finishing cuts
