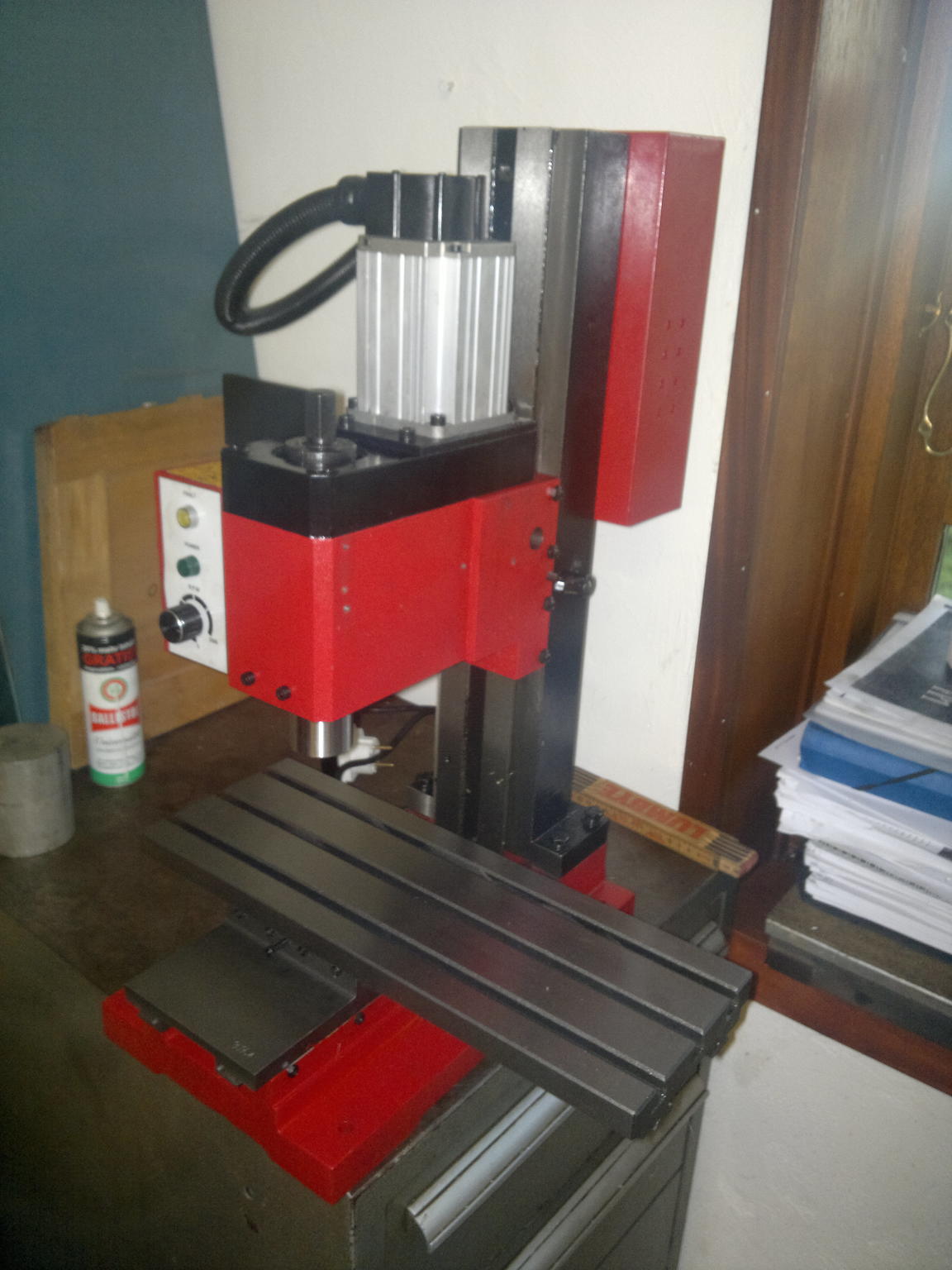

    I have been working on my project for some time but have just now gotten around to write about it.
    My machine is the SIEG Super X2P HiTorque Mill from Arceurotrade.co.uk
    The ball screws I’m using are from Isel and the 16 mm version, this was mainly because of the very limit space under the X and Y axis.
    My controle is the Eding CNC CPU5A4 Starter 4 axes in combination with a Triple Beast from benezan-electronics.de and one DM556 Leadshine Digital 18-50VDC 0,5 - 5,6A.

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	2013-11-24-413.jpg
Views:	3057
Size:	146.5 KB
ID:	15944
    Last edited by Soren DK; 25-08-2015 at 10:02 PM.

  2. #2

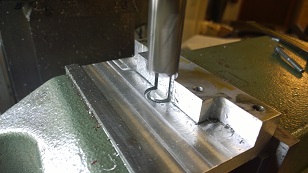

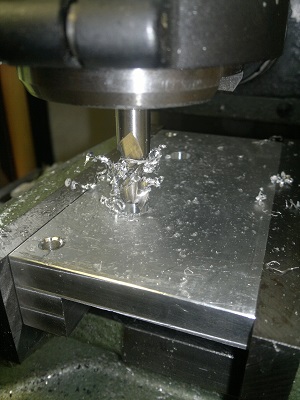

    After stripping the X2 from all not need for the conversion I started milling and drilling for the central lubrication system.

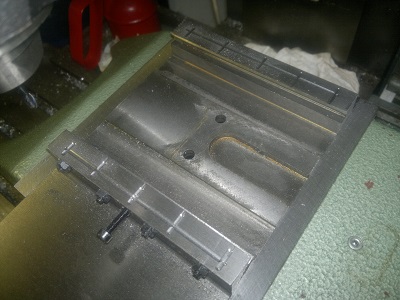

    And milling out for the ballscrew ball-nuts.

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	2014-05-03-755c.jpg
Views:	2025
Size:	65.6 KB
ID:	16004   Click image for larger version.

Name:	2014-05-02-750c.jpg
Views:	1940
Size:	49.9 KB
ID:	16001   Click image for larger version.

Name:	2014-05-02-751c.jpg
Views:	1946
Size:	52.1 KB
ID:	16003   Click image for larger version.

Name:	2014-05-02-748c.jpg
Views:	1946
Size:	73.5 KB
ID:	16002   Click image for larger version.

Name:	2013-11-23-410c.jpg
Views:	2168
Size:	53.8 KB
ID:	16000

  3. #3

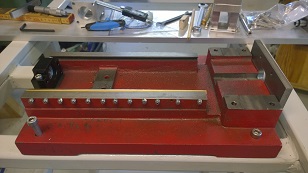

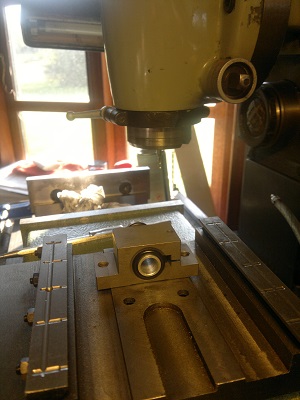

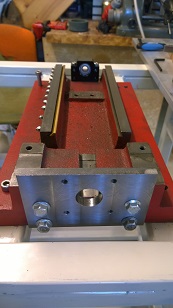

    Slow progress and updates on the project sorry, I have finished the Y axis and made a special bearing mount block for the Y axis because of the limit space if I want to install it under the Y axis (this is a standard bearing mount not the special mount block).
    Click image for larger version.

Name:	WP_20151213_11_42_55_Pro.jpg
Views:	512
Size:	56.0 KB
ID:	18167

    And another view
    Click image for larger version.

Name:	WP_20151213_11_43_05_Pro.jpg
Views:	450
Size:	53.6 KB
ID:	18168

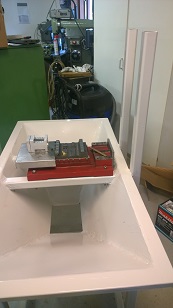

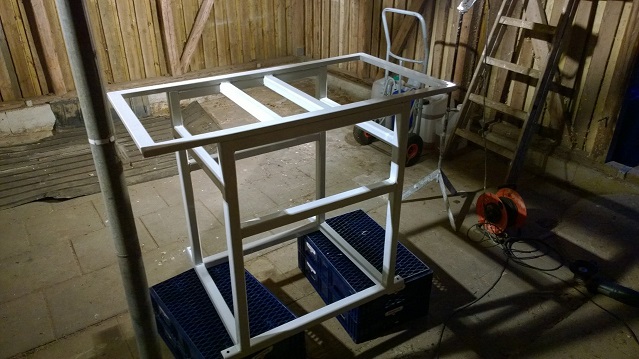

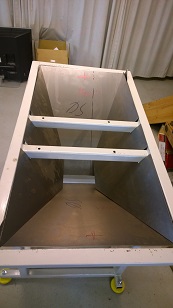

    I have also made some progress on the enclosure for the mill using 4x4 cm square steel pipes for the frame.
    Click image for larger version.

Name:	WP_20150426_11_47_49s_Pro.jpg
Views:	385
Size:	157.4 KB
ID:	18169

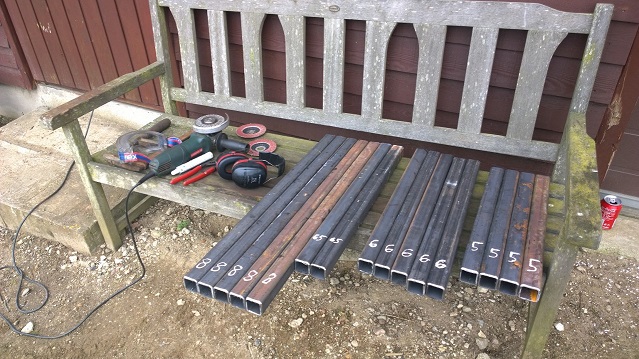

    First cutting the pipes
    Click image for larger version.

Name:	WP_20150525_18_22_01s_Pro.jpg
Views:	366
Size:	119.8 KB
ID:	18170

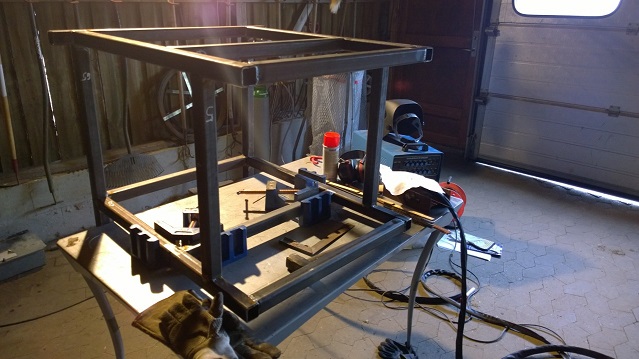

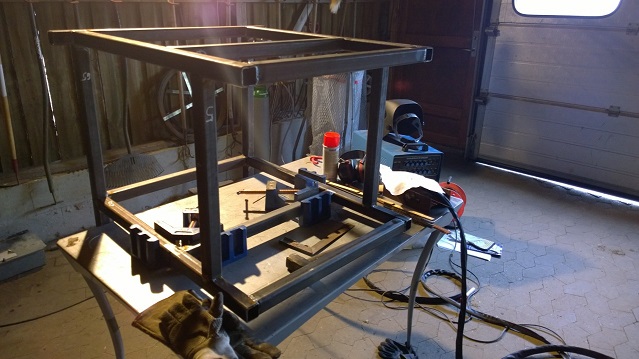

    And a bit of welding
    Click image for larger version.

Name:	WP_20150719_22_28_12_sPro.jpg
Views:	359
Size:	126.5 KB
ID:	18171

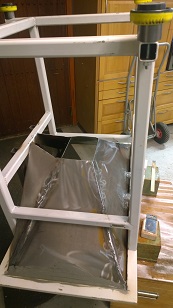

    And some paint and some more welding and painting :-)
    Click image for larger version.

Name:	WP_20151223_14_34_10_Pro.jpg
Views:	373
Size:	50.0 KB
ID:	18172Click image for larger version.

Name:	WP_20160401_21_30_56_Pro.jpg
Views:	332
Size:	56.3 KB
ID:	18173Click image for larger version.

Name:	WP_20160403_10_00_21_Pro.jpg
Views:	344
Size:	48.9 KB
ID:	18174

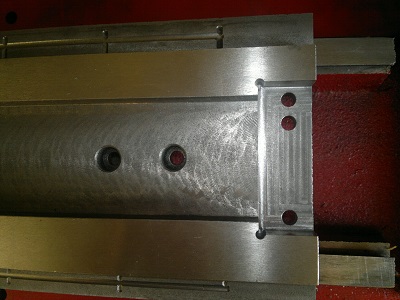

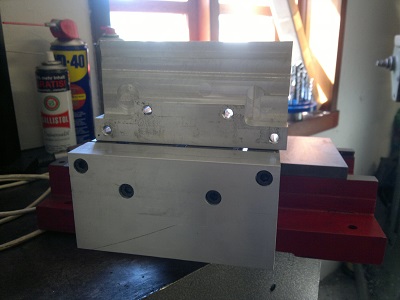

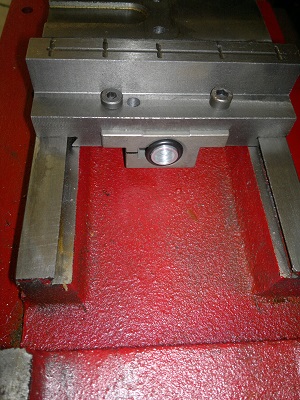

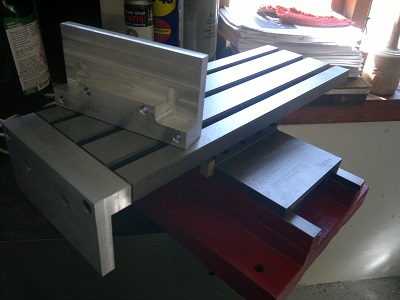

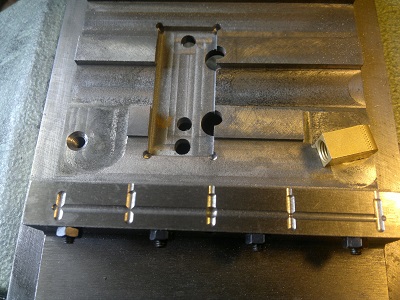

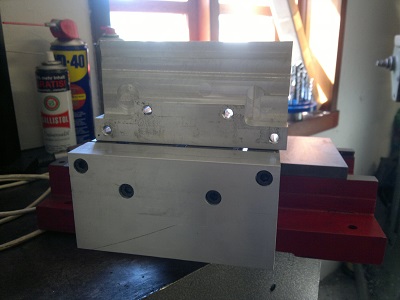

    I have also been working on the blocks for the x axis:
    Click image for larger version.

Name:	2014-06-06-831.jpg
Views:	388
Size:	54.4 KB
ID:	18175Click image for larger version.

Name:	2014-06-09-842.jpg
Views:	381
Size:	47.3 KB
ID:	18176Click image for larger version.

Name:	2014-06-09-843.jpg
Views:	357
Size:	42.4 KB
ID:	18177Click image for larger version.

Name:	WP_20160402_13_17_44_Pro.jpg
Views:	408
Size:	56.3 KB
ID:	18178
