    Dave, have you get any pictures of the existing setup/quill?
    Avoiding the rubbish customer service from AluminiumWarehouse since July '13.

  2. #262

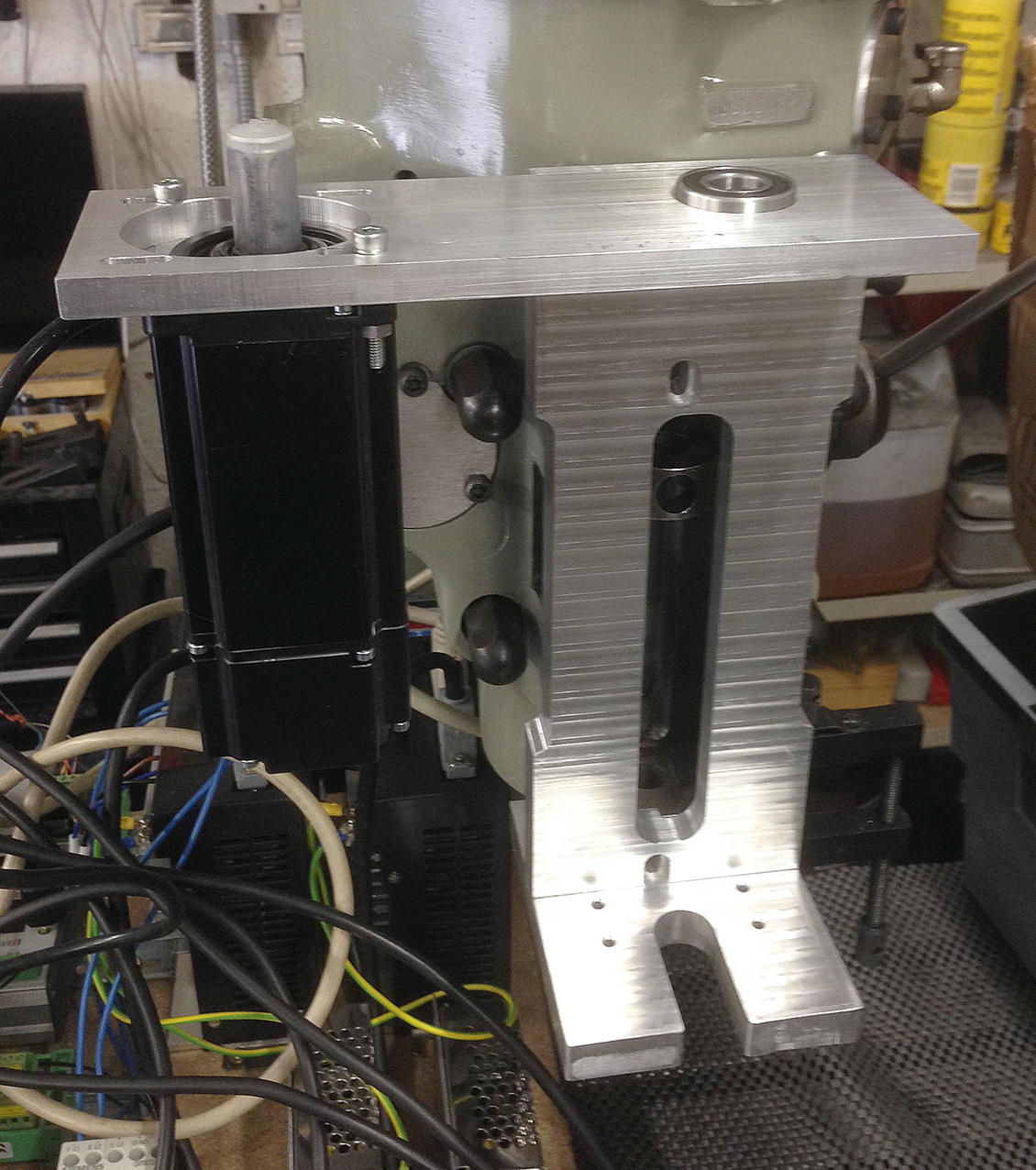

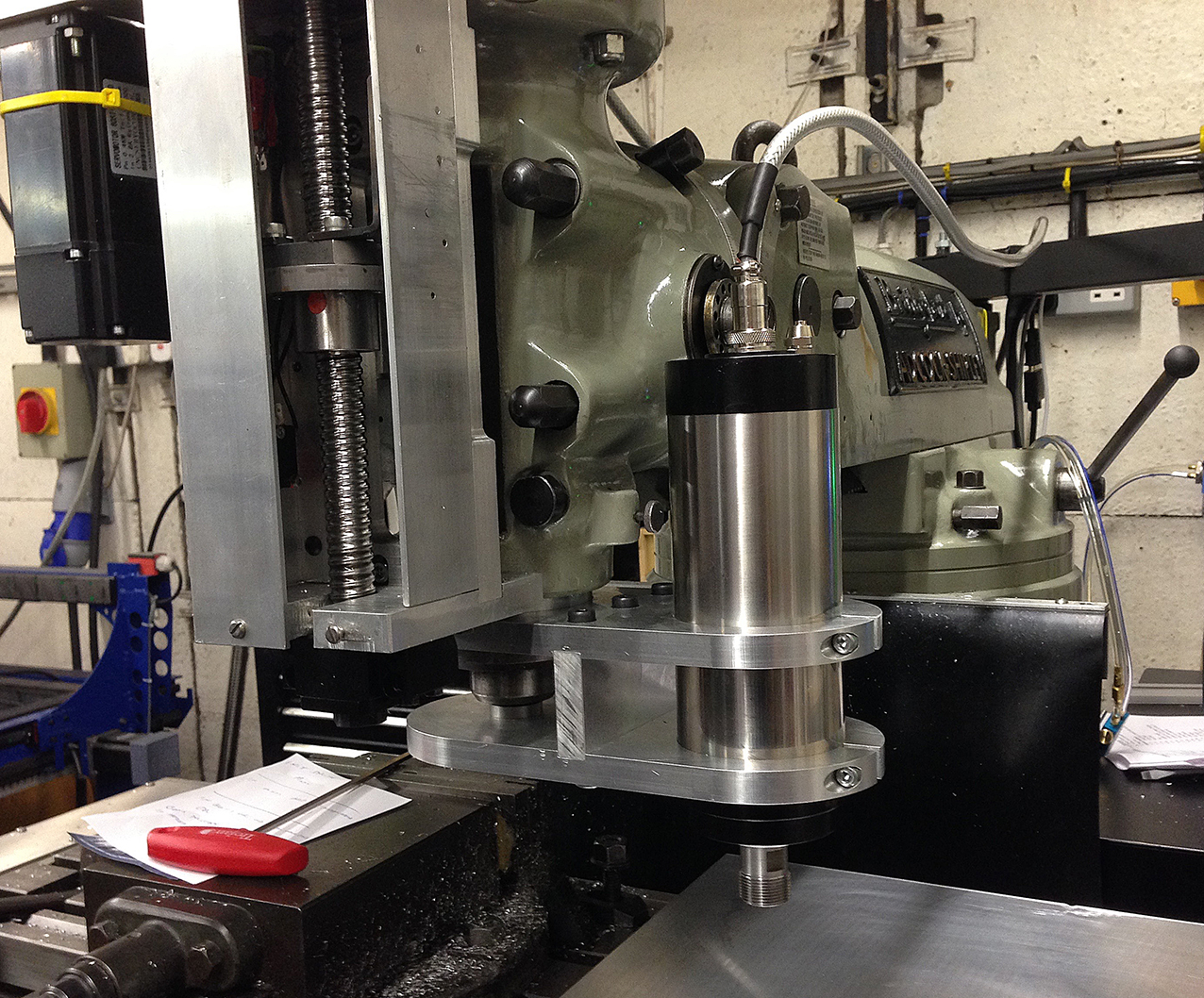

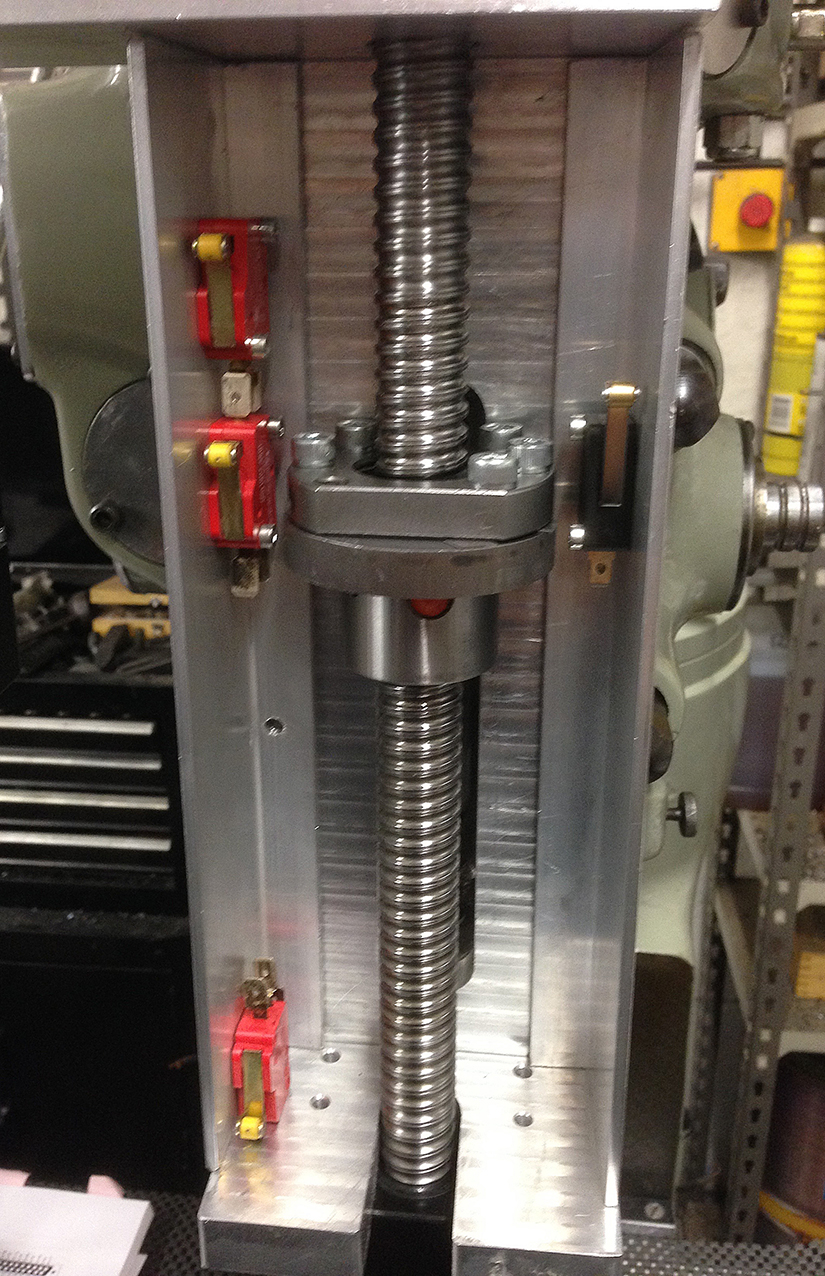

    A few pics here...


    Click image for larger version.

Name:	IMG_1471s.jpg
Views:	797
Size:	1.17 MB
ID:	19490Click image for larger version.

Name:	IMG_1478s.jpg
Views:	817
Size:	907.1 KB
ID:	19491Click image for larger version.

Name:	dIMG_1545.jpg
Views:	1016
Size:	1.17 MB
ID:	19489

    The weak spot is the joint between the coupler and the quill - there is a flat recess milled on the quill about 15mm dia and i picked up on that face, it really needs more contact above and below the bolt but then you lose more z axis travel and thats bad enough already.

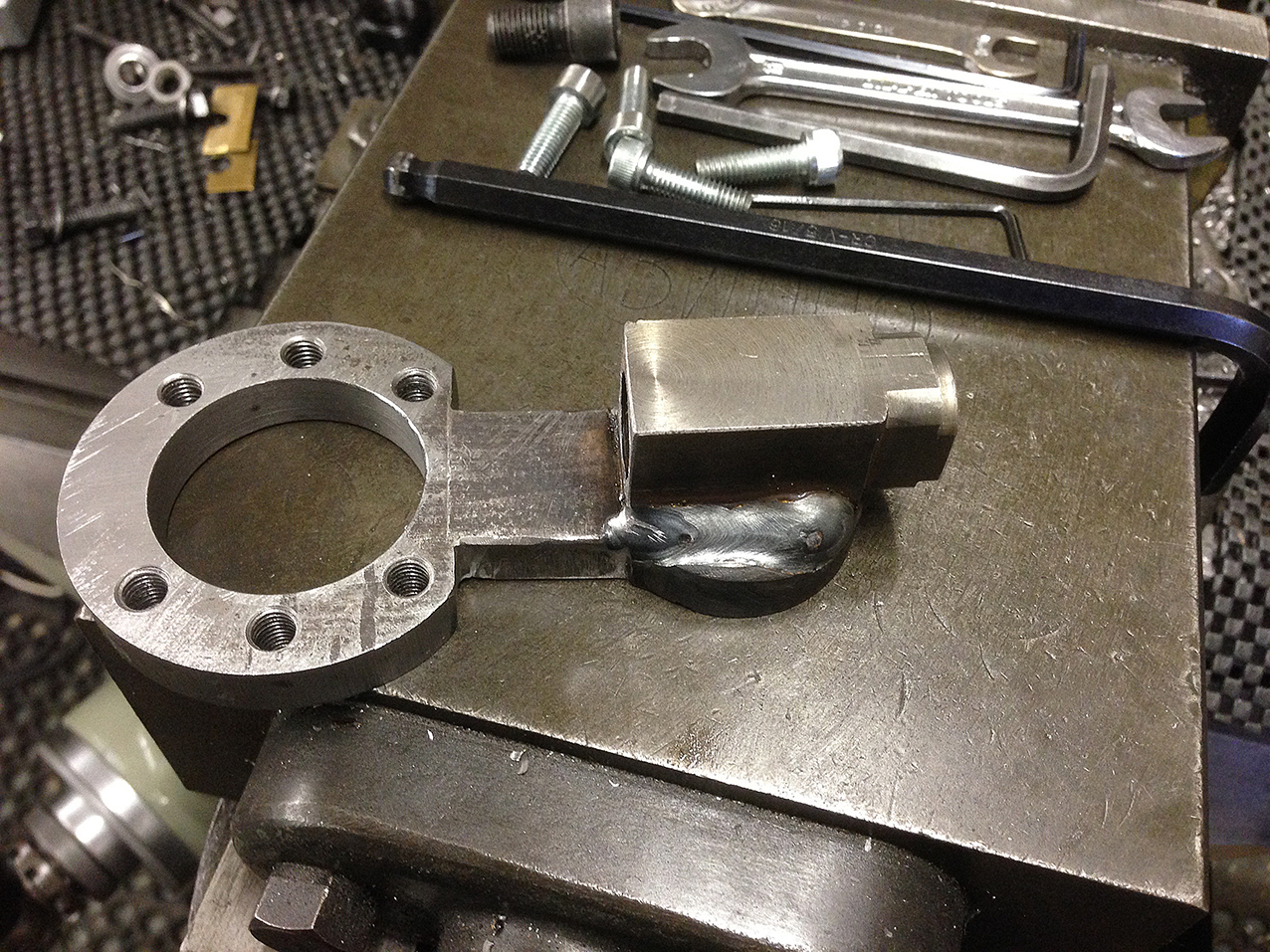

    Its the little round boss on the right of this part...
    Click image for larger version.

Name:	IMG_1485s.jpg
Views:	831
Size:	1.22 MB
ID:	19492
    Last edited by Davek0974; 26-10-2016 at 07:22 AM.

  3. #263
    m_c's Avatar
    Lives in East Lothian, United Kingdom. Last Activity: 3 Days Ago Forum Superstar, has done so much to help others, they deserve a medal. Has been a member for 9-10 years. Has a total post count of 2,908. Received thanks 360 times, giving thanks to others 8 times.
    How much Z travel would you lose, if you bridged between the current single bolt mounting, and the end of the quill (where you currently clamp on the second spindle bracket)?
    .
    If you were to bridge between the two, then you should get a stable piece to then mount the ball nut to.
    Avoiding the rubbish customer service from AluminiumWarehouse since July '13.

  4. #264
    I can see where you are coming from here, nice idea and would certain strengthen it 100%.

    But as always there is a negative - it would stop me being able to fit the aux spindle.

    By having the support on the end of the quill when running as a normal bridgeport, I would maybe lose 12-15mm of travel - not too bad. But to allow me space to fit the aux spindle as well below it, the support would have to be that much further up the quill, probably losing 40mm + of travel permanently - this would cause big issues when doing normal work.

    But it is a nice idea though.

  5. #265
    m_c's Avatar
    Lives in East Lothian, United Kingdom. Last Activity: 3 Days Ago Forum Superstar, has done so much to help others, they deserve a medal. Has been a member for 9-10 years. Has a total post count of 2,908. Received thanks 360 times, giving thanks to others 8 times.
    Rework the Aux spindle mount, so it attaches to the new adapter?
    Avoiding the rubbish customer service from AluminiumWarehouse since July '13.

  6. #266
    It's possible, the main draw-back is the loss of the already limited Z travel when doing normal work - this is a big pain in the wotsit really. Not so bad on the aux spindle as all the tools are so short as is the work itself.

    To make it really work would need the knee setting up as an axis and diverting all tool-length measurements to that axis - this would mean cutting is done on the quill but the loss of travel would not be as serious.

    I still feel the quill rack is a way forwards, won't cost much to try at least.

  7. #267
    Maybe a totally stupid off at a tangent idea but could you build an assembly just for that purpose on the other end of the ram, then you could leave it setup and it would not get in the way of normal milling. Sorry, did not see earlier post.
    Last edited by Colin Barron; 26-10-2016 at 11:01 AM.

  8. #268
    Which purpose?

    If you mean the auxiliary spindle - this is only mounted when i need it, that was the whole idea really - its a normal Bridgeport plus a high-speed engraving/milling machine when needed.

    The back of the ram was looked at, but adding a full Z-axis of any rigidity would be a considerable task, the aux idea is less cost and means not swivelling the ram.

    I have even seen a full linear rail Z axis mounted between the ram and the existing mill head - the user locked the quill up all the time and moved the whole head up and down. Sounds nice but to get it working would not be cheap or easy i feel.

  9. #269

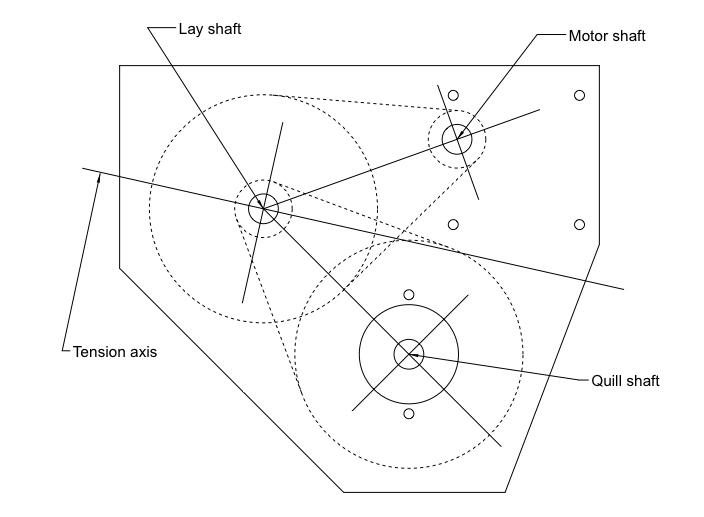

    Quill drive idea mk1,

    gives a 16:1 reduction, takes up little space, mounts to existing threaded holes on left side of head.

    Click image for larger version.

Name:	dk untitled.jpg
Views:	331
Size:	102.8 KB
ID:	19498

    Should allow both belts to be tightened by having only one moving shaft.

  10. #270
    Anyone have a video or link to some pics of a powered knee mill conversion?

    Seems a lot of people rate it but i cant find any proof!

    Still deciding which way to go.
