No. That will be fine just make sure that all grounds go to one star point. If the frame is painted I would make a direct connection from the box to the frame.Quote:
Also mounting the electrical enclosure directly to the frame (made of aluminium) would it be a problem since it would basically be in direct contact with the machine frame? I mean that would be a direct earth connection for the enclosure. I am not too into electronics (yet)!
I would at least fit a mains filter because of them being Servo's, however, I have seen that some people have had issues with DMM servo's because they didn't use line reactors so you might want to fit them to be safe, or just go with mains filter and if you get any issues you can always slip a line reactor in between.!Quote:
Originally Posted by NordicCnc
It mostly depends on your incoming supply quality I think and I seem to remember those who have had issues where US based which works on different Freq and voltage to EU.
Regards the frame then yes it's fine and you would want the earth to the frame anyway for safety just in case a wire shorted to the frame.
Quote:
Originally Posted by JAZZCNC
Thanks both of you! This helps a ton. A line reactor costs about 100€, so not a big deal. I will fit one just to be sure!Quote:
Originally Posted by Clive S
Skickat från min SM-A530F via Tapatalk

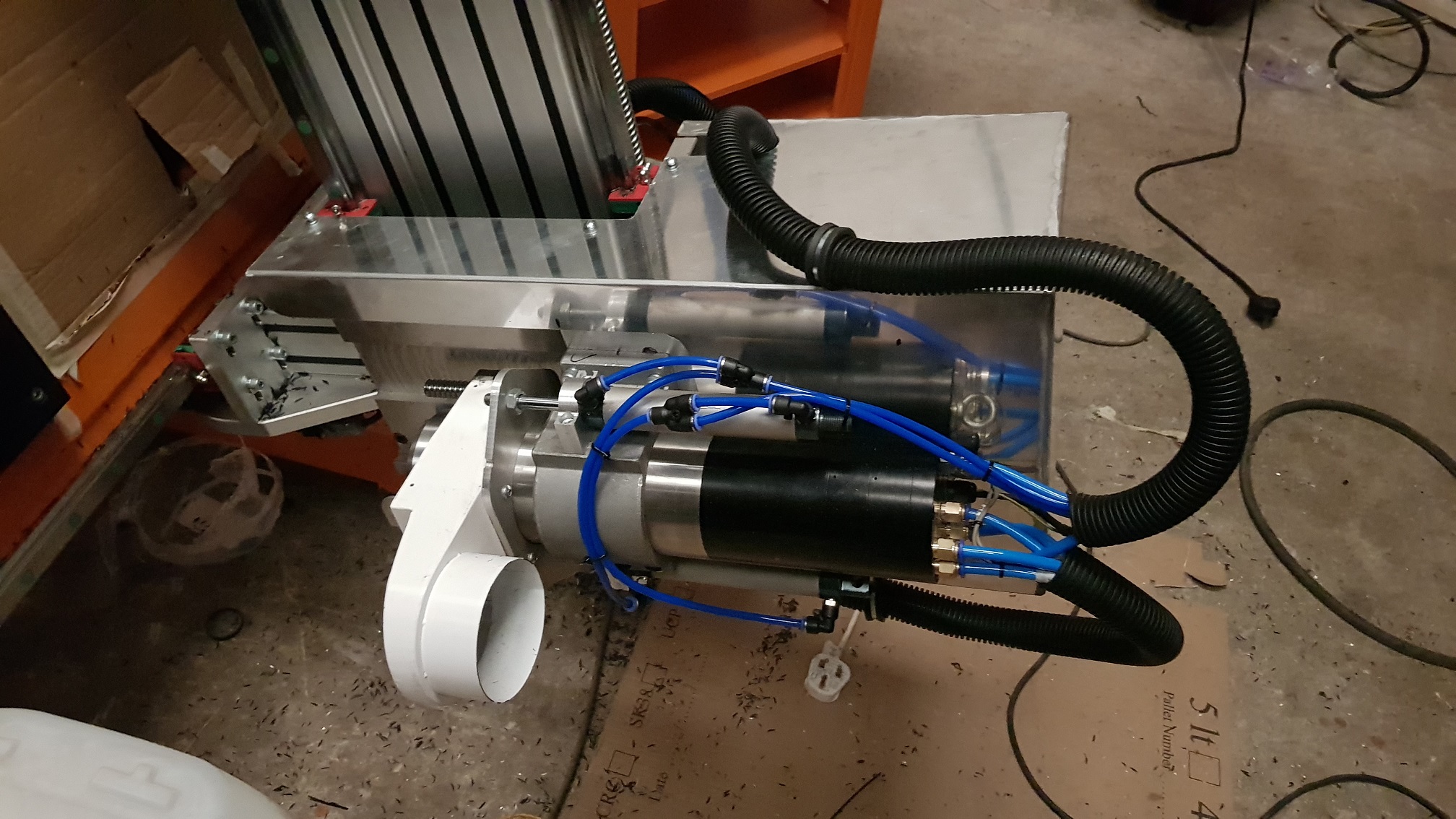

JAZZCNC, if you read this I have a question for you. How do you go about assembling the L-shape gantry together? I have received my aluminium profiles and to my surprise I noticed that they are not flat in the middle. It is probably hard to see in the picture but it is about 0.5mm.
Attachment 28260
I was thinking that I could sand it down, since the only critical thing would be that it is flat on the sides so that it wont wiggle when assembled.
I've never seen profile made like that.? If that picture is showing it correctly it looks like a flattened pyramid.!! . . . The profile I use is always flat but if there are any slight highs or lows I just shim the rail to suit.Quote:
Originally Posted by NordicCnc
Yes exactly. I got them from a local supplier, since I was not able to find any 160x80 heavy version profiles anywhere. Only the local supplier could offer them.Quote:
Originally Posted by JAZZCNC
Ill probably face them in my crappy cnc router. It will be flat enough that way. I can probably get within 0.2mm over the 1200mm lenght. I wll then just shim the top raik.
Skickat från min SM-A530F via Tapatalk
So I have installed 2 linear rail carriages just to test how they perform. Once again to my surprise, both of the tested carriages are running extremely bad. Same as in Joe's video. I am not sure if this is normal. I didn't apply any grease yet, I will try with grease applied tomorrow also. But I figure they should at least not bind/stagger every 10mm even without grease??
https://youtu.be/b_DDT43lBIchttps://uploads.tapatalk-cdn.com/202...ce64708adf.jpg
Skickat från min SM-A530F via Tapatalk
Well first have you got the bearing reference edge and rail reference edge-aligned.?
Also, they can feel stiff at first, esp when unloaded, just put some weight on them and feel how they slide. I think you'll find the slide easily with weight on them and greased up.
Yes I have those aligned. I reached out to Free and he said that it is most likely the plastic seal that is not aligned correctlt and thay it should be easy to fix. I will report back how it goes!Quote:
Originally Posted by JAZZCNC
Skickat från min SM-A530F via Tapatalk
No I very much doubt it. The plastic seals don't grip that much and not something that misalign because of how the bearings are put together.Quote:
Originally Posted by NordicCnc
Normally I don't get trouble with Hi-win bearings needing cleaning from new but if it feels like just one of the bearings is doing it then it may be worth taking apart and checking there's no debris in it.
They are very easy to take apart and rebuild, just do it inside a tray because the balls go every where.
Personally I think they will be ok and your feeling the normal Sticky clicky notchy feeling they can give when dry and new. Obviously very difficult to now without feeling them.
You were right. After pushing them around for a while and greasing them, they now run much smoother. Problem solved!Quote:
Originally Posted by JAZZCNC
Good, It's common for people not used to profiled rails to think they would glide as if on air when they are actually quite stiff. Preloaded ones are even worse, they can feel as if they have sized up.!!Quote:
Originally Posted by NordicCnc
Sorry everyone for keeping you in the dark for such a long time. I have had a really busy couple of months, but I've managed to almost finalize the mechanical side and I am now working on the electronics. First some test was done for the X-axis yesterday. 15m/min rapid easily as expected, with auto tuned DMM 400w servo!
Anyway there was some vibration on the fixed bearing mounting plate, which I believe is the because of the high mounting. I plan to fix this by adding a 20mm aluminium plate on top of the X-axis ballscrew nut housing, to get the bearing plates lower down on the aluminium profile.
And by the way, lots and lots of shimming and dialing has been done for the rails..!
I didnt take any pictures or videos so here are some old pictures when I was laying out the electronics. More pictures will follow later this week..
https://uploads.tapatalk-cdn.com/202...d104bfd2e8.jpghttps://uploads.tapatalk-cdn.com/202...5e9a28f391.jpg
Skickat från min SM-A530F via Tapatalk
