metalworking pillar drill experiences

First look at the UCCNC software, and getting some movement . . .

https://youtu.be/s1AIRR2HD-M

Finished ! . . . . for now.

https://youtu.be/AWvzFnInIRw

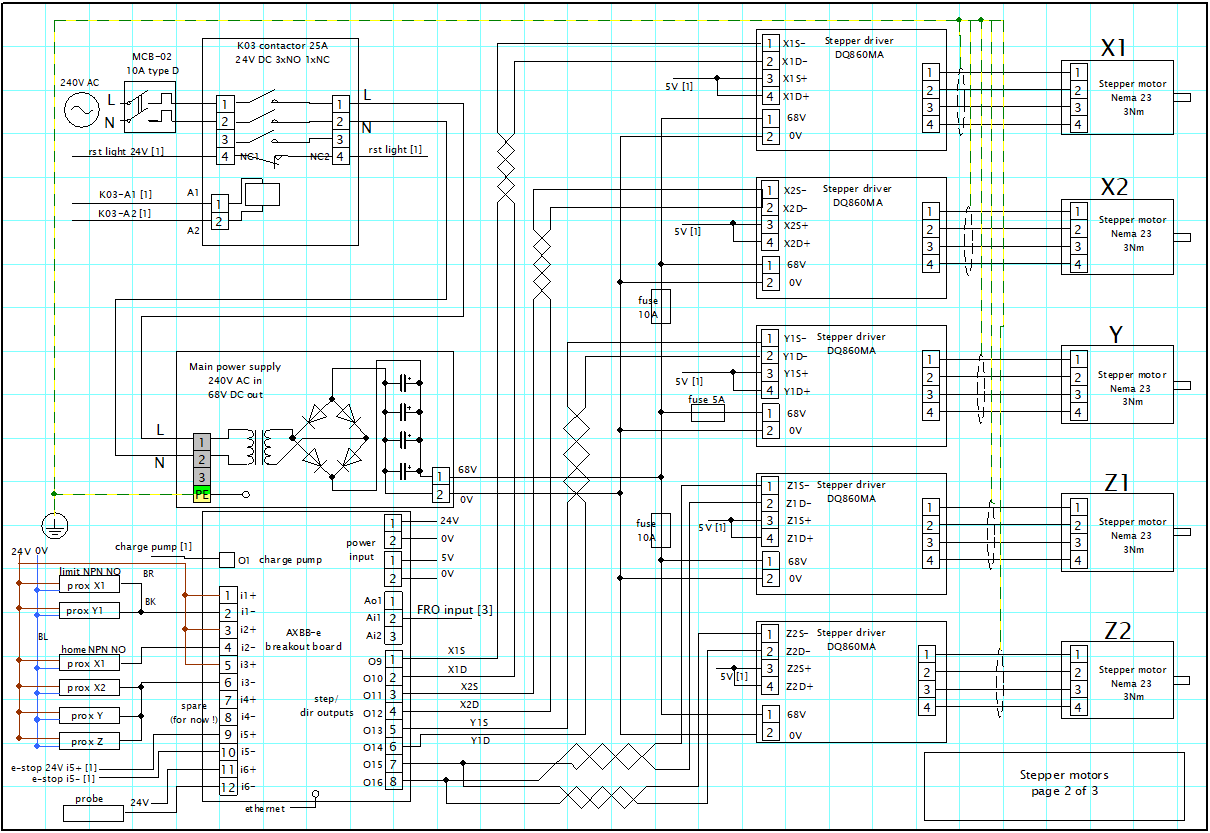

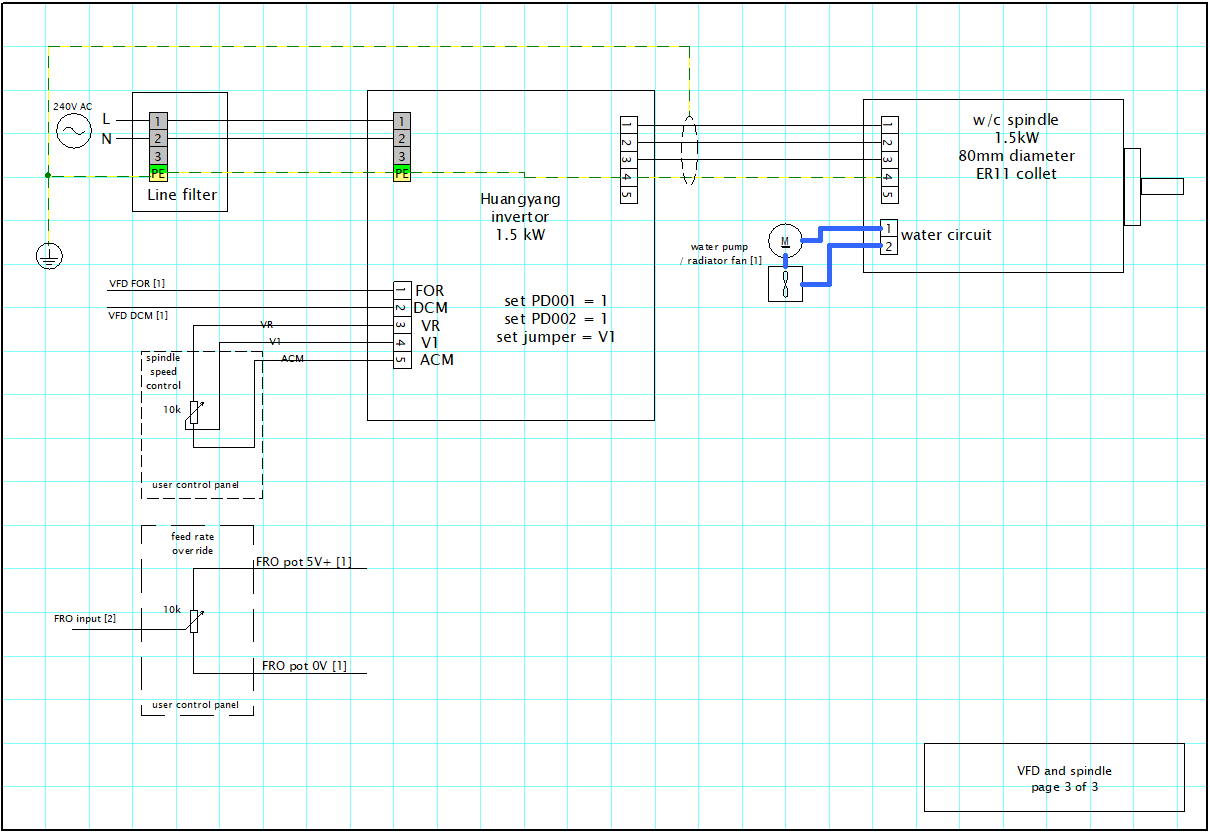

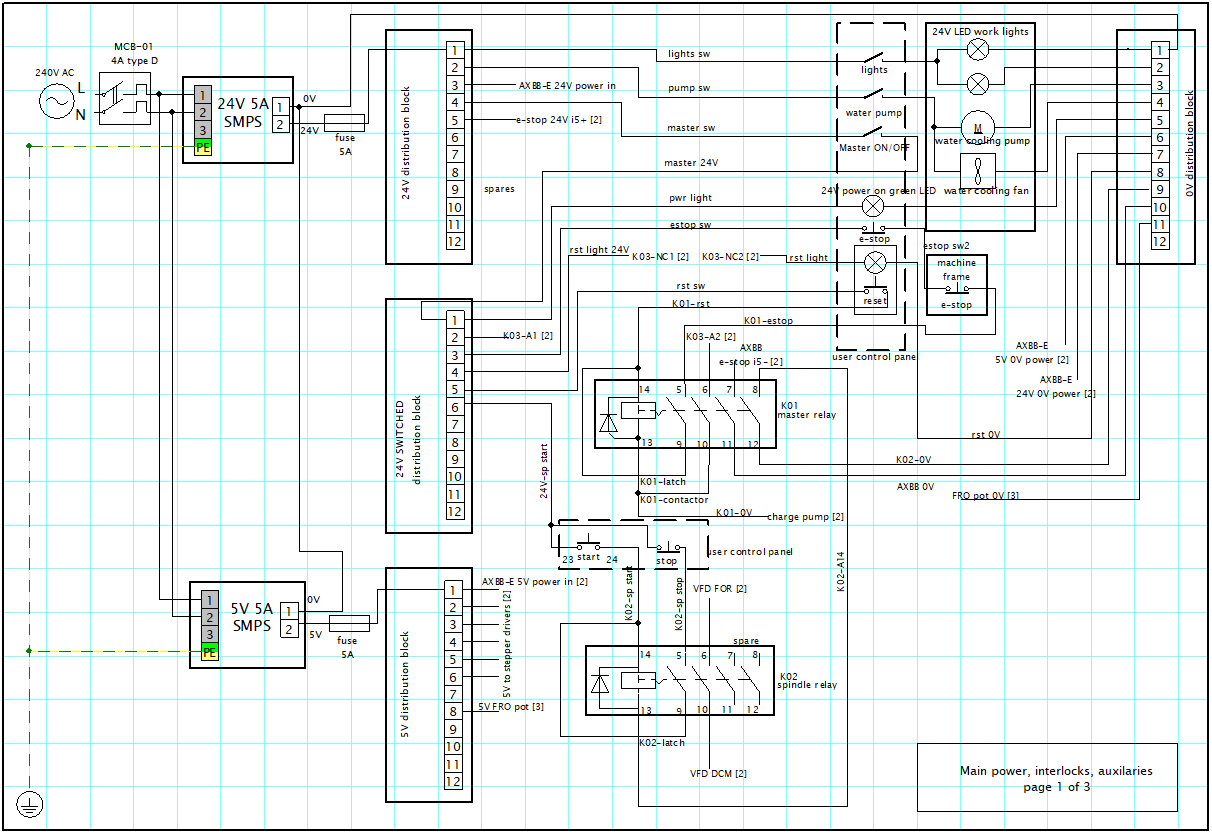

I had some requests for the new control cabinet wiring diagram on my YouTube channel so I'll direct people here (I guess they need to become members to download attachments ?).

While I was building the wiring I noticed a few small errors so hopefully I have remembered them all and corrected them in the diagram, but I can't guarantee it is error free !

By all means use this as a starter or for information, but note it was designed around what I wanted it to do. It is best to have an idea what you are trying to do and ultimately create one yourself. That way if there is a problem, or you want to customise it later, you can make it work.

Obviously there are high voltages used here so if you are not sure, please ask for professional help. Good luck with your project.

Attachment 30647

Attachment 30648

Attachment 30649

Controller upgrade video series starts here:
https://www.youtube.com/watch?v=JCE_Hf0RoFQ&t=135s

Hi Routercnc
Thanks very much for that. I'll have a good look through it. It looks like it's going to be a good guide.

Cheers
Andrew

We are finally back on track - hooray !

Then run straight into a problem - boo !

https://youtu.be/AJQd38dwgt8

Getting the Y axis moving . . .
https://youtu.be/W0qQK1_Tr_Q

Finishing the XY table !

https://youtu.be/etTpM385H2I

fitting the DROs . . . .

https://youtu.be/1Decpr6MYaU

Every project gets to a point where you need to make lots of small but necessary parts . . . this is that video !


https://youtu.be/mRkQaPk3DyI

Bit of a delay in getting this video sorted out but here we go - rear bellow / covers :

https://youtu.be/PdGkL9aIje8
