Hello everyone.
Has anybody made a hight ruler for kids?
I've seen them on line and would love to make one for my son's.
I'm a bit poor at design so if anyone has a v-carve file I could use
it would be much appreciated and would get the Mrs off my back lol
Cheers Aaron
Well what better incentive to improve your design skills than tayloring and personalizing something for your Son.? . . . Gu-on you can do it give it a go you'll be amazed what you can do. .:encouragement:
There's plenty of free CAD software to draw what you need and export to dxf for importing into V-carve. I think it's the wrong angle to be looking for a ready made V-carve file.
Thanks guys
yes I was being lazy
maybe I should man up
Any good ?
http://forum.vectric.com/viewtopic.php?f=5&t=4720
then scroll to the bottom
Thank you EddyQuote:
Originally Posted by EddyCurrent
They look like a great starting point.
Surely we can come up with something better than an oversized ruler.??Quote:
Originally Posted by EddyCurrent
What kind of things does your young one like.?
How Old.?
The ruler is to mark on as they get older and if we move we can take it with us.Quote:
Originally Posted by JAZZCNC
The boys are 7 and 1 so it's quite an age gap.
I have a few ideas for a toy box.
And i can be pretty handy but it's the set out on vcare I sometimes struggle.
Maybe like this ?

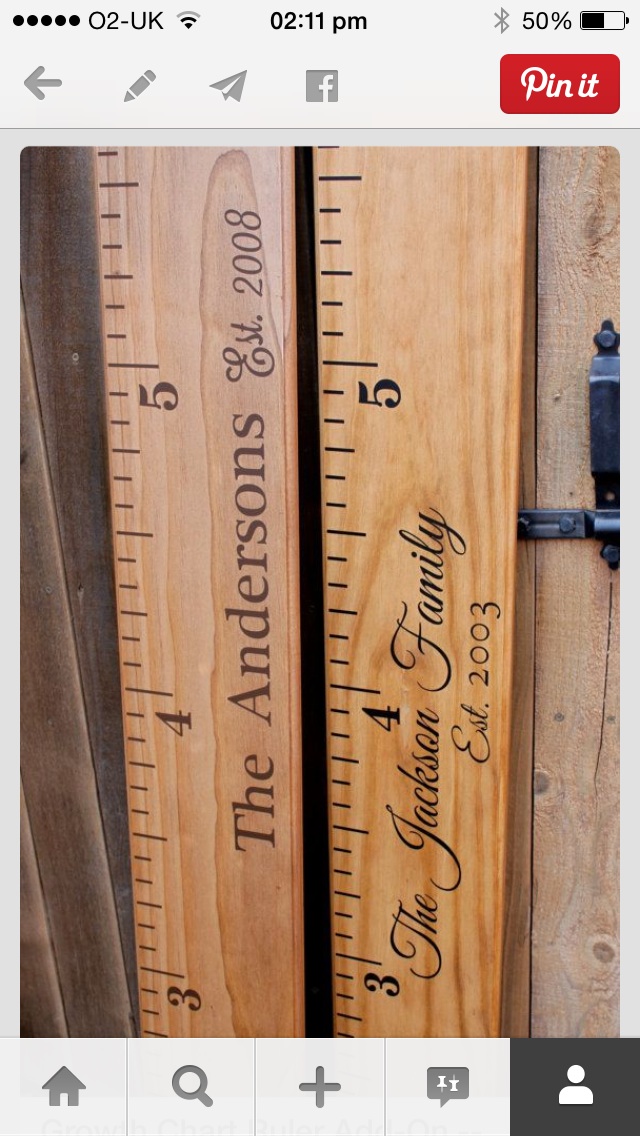

I was thinking more like this so it looks old school.Quote:
Originally Posted by EddyCurrent
Well I'm sorry to say that if you can't do something so simple as making a standard ruler then you really do need to get practising not using off the shelf DXF's.
Just making the rule marks would be a simple and easy execise to write G-code by hand let alone using a dedicated CAD/CAM program. IE: For 150cm length x 30cm width ruler using 6mm ballnose For 1cm rules 50mm long with 100mm long rules every 10cm set in 30mm in from the edge.
(This simple example code doesn't include cutting out the profile and presumes x0y0 is bottom left corner of ruler and z0 is material surface.)
G0 G40 G49 G80 G21 (Initialisation)
z20 (safe travel distance)
x30 y30 ( Rapid move to start point)
z0 ( Rapid Move Z to top of material)
G91 G1 f2000 (Enter incremental mode and set Linear Move & feedrate)
z-2.5 ( plunge 2.5mm)
y100 (Cut first mark)
z3.5 (lift Z with 1mm clearence)
y-100 x10 (back to rule start and increment 10mm)
( Repeat these 4 lines for every 1cm rule mark and every 10cm change y50 & y-50 to 100)
z-3.5 (plunge tool 2.5mm @ 500mm/min)
y50 (cut first rule 50mm long)
z3.5 ( lift Z leave 1mm travel clearence 2.5mm + 1mm)
y-50 x10 ( back to line start and increment 10mm)
So go on give it a whirl you'll be surprised what you can do and having an intended goal really makes learning software easier and more rewarding.!
Quote:
Originally Posted by JAZZCNC
It's a 6th rule I want to make son can chart the kids as they grow.
As for G codes I would not know where to start as I can't find the Mrs G spot never mind understand Get code (is there a forum on how to find a woman's G thingy )
I also want to put some text on it like the kids DOB and names.
Now I know I will need to segment the plan because of the size of my machine.
I will just have to man up and learn.
Not really a "Man up" thing more case of a having crack with nothing to loose train of thought.! . . . . Maybe give it a go and then ask about any area you struggle with. Like I say I find it's much easier to learn software when you have a goal in mind.Quote:
Originally Posted by Aaron74
Also while learning g-code isn't needed to work a CNC machine it really does help with understanding what machines doing or going to do. It's much simpler than most realise with very few commands and worth taking the time to learn.
The G-spot is myth made up by women to drive us blokes fucking mental. . .Lol
I ran the code but the spindle didn't start :joker: I even tried twiddling it's G-o button, but I ended up with woodworker's finger, G-cramp
Oh twiddling the thing into life is well beyond G-o buttons now you need a diving helmet and Oxy/helium mix to find the Mmm3 spot. . :hysterical:Quote:
Originally Posted by EddyCurrent
So update time.
well i've done one that i'm happy with with ( but have a big pile of fire wood lol)
I have to use a cad program to do the design and ensure the size's where correct.
then import it to Vcarve add the text.
work out how to use the tile function.
Well all i can say is that i'm glad I gave it ago, the only dow side is that now other ppl want then and it was meant to be a 1 off.

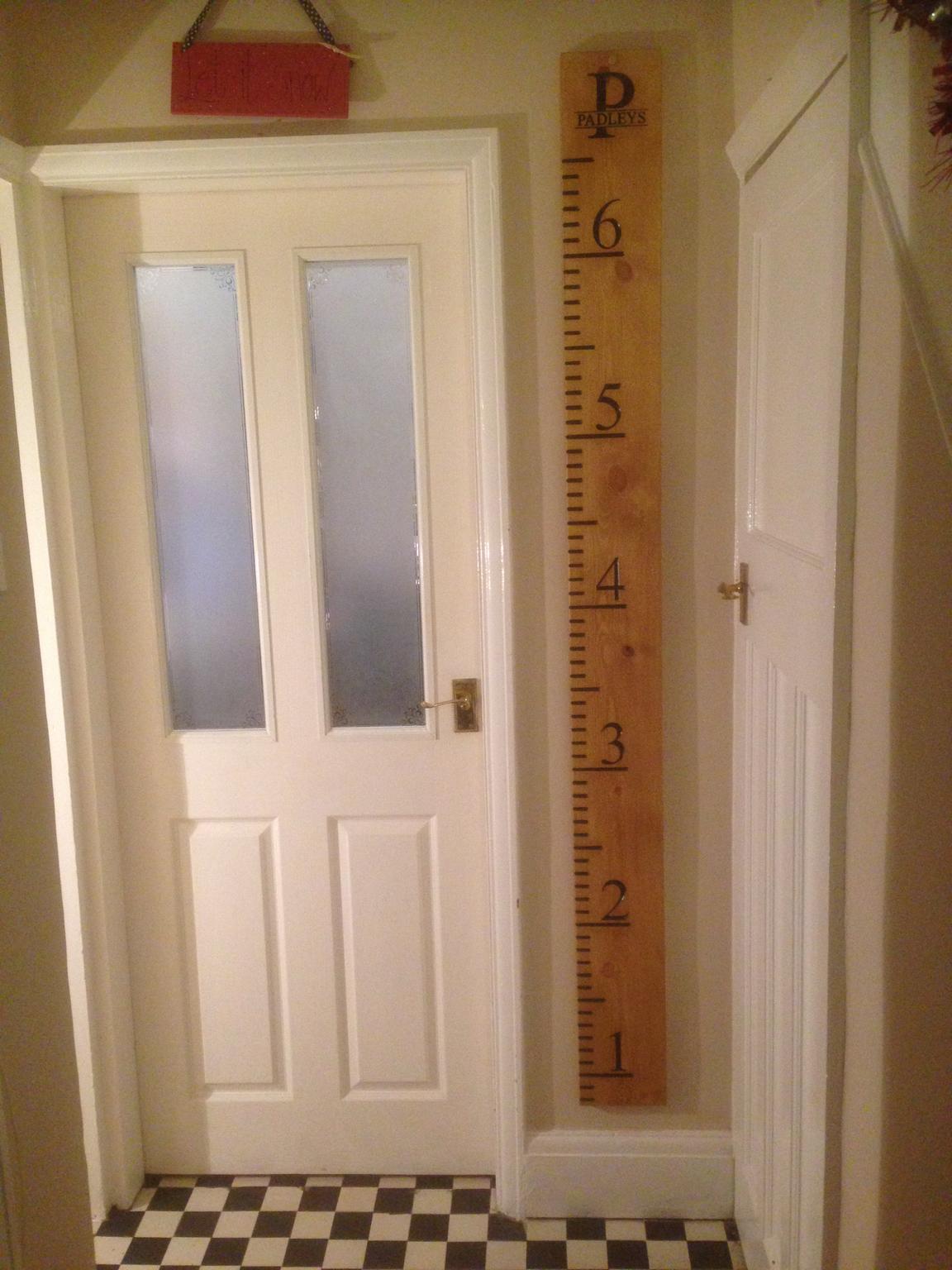

Here is a pic of how it looks.
http://www.mycncuk.com/attachment.ph...id=14034&stc=1http://www.mycncuk.com/attachment.ph...id=14034&stc=1
Good effort ! interesting you used inches. Like you I always draw it in CAD first, that way you can see what the outcome is likely to be, it's easy to later modify, you have the design for when other people want one too, and with their name on it :hysterical:
Edit: I lost my marbles a bit there thinking those numbered graduations were inches instead of feet, it's becasue it looked like a 'blown up' ruler.
Edit: I lost my marbles a bit there thinking those numbered graduations were inches instead of feet, it's becasue it looked like a 'blown up' ruler.[/QUOTE]
I think thats the idea of it Eddy!!! G.
Well I know that of course, but initially I wrote some stuff that I later deleted about using 16th's instead of 12th's then I came to my senses about it being feet and 12 inch divisions. I think my head was thinking about my dentist appointment for a tooth extraction in the afternoon.Quote:
Originally Posted by GEOFFREY
Good method, let's see how it works-I will design something for my wife..:onthego:Quote:
