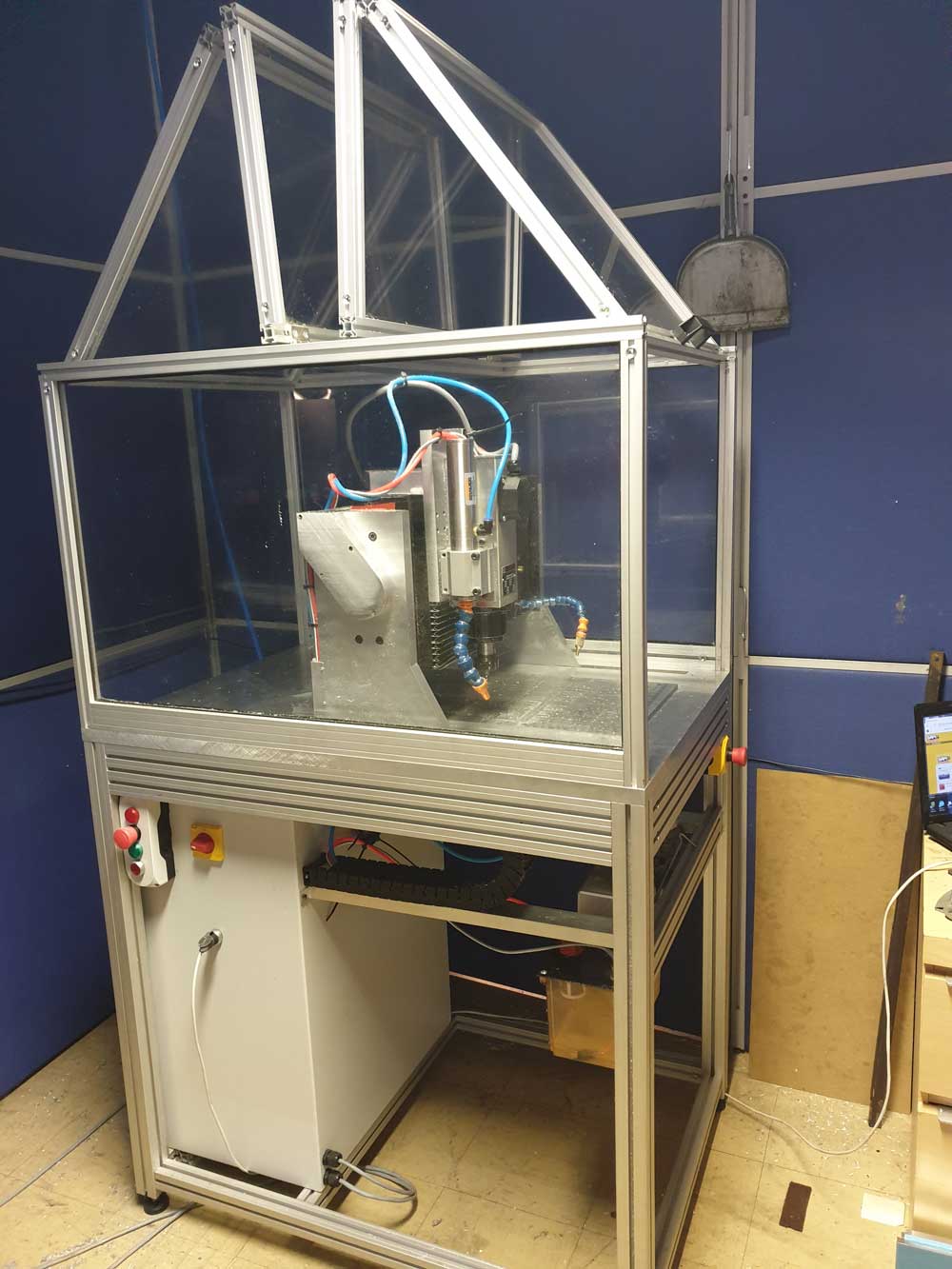

This machine is an Ex demo machine used internally for making small parts and demonstrating to potential customers.
The machine comes compete with four AC servo motors and associated ac servo drivers.

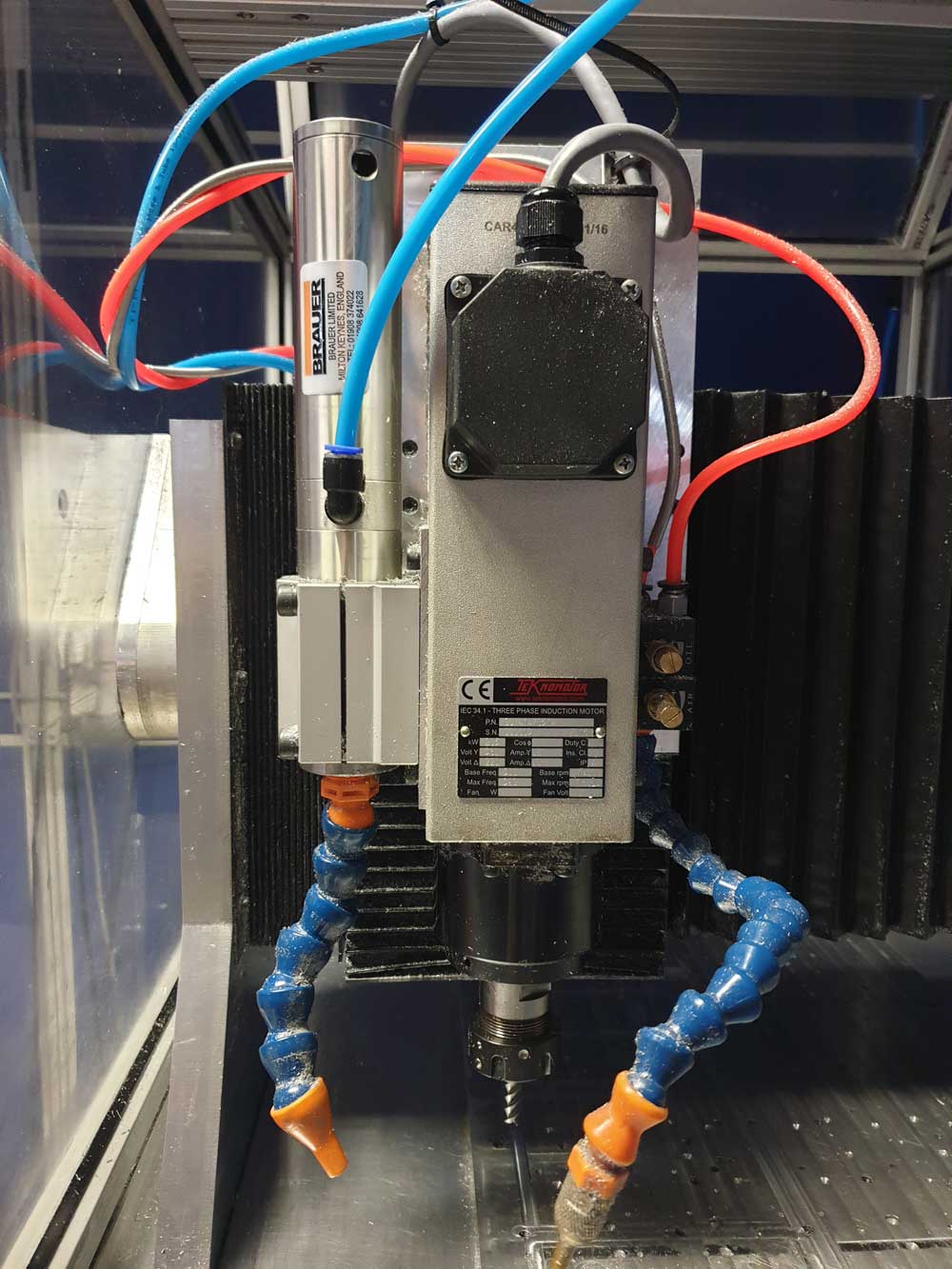

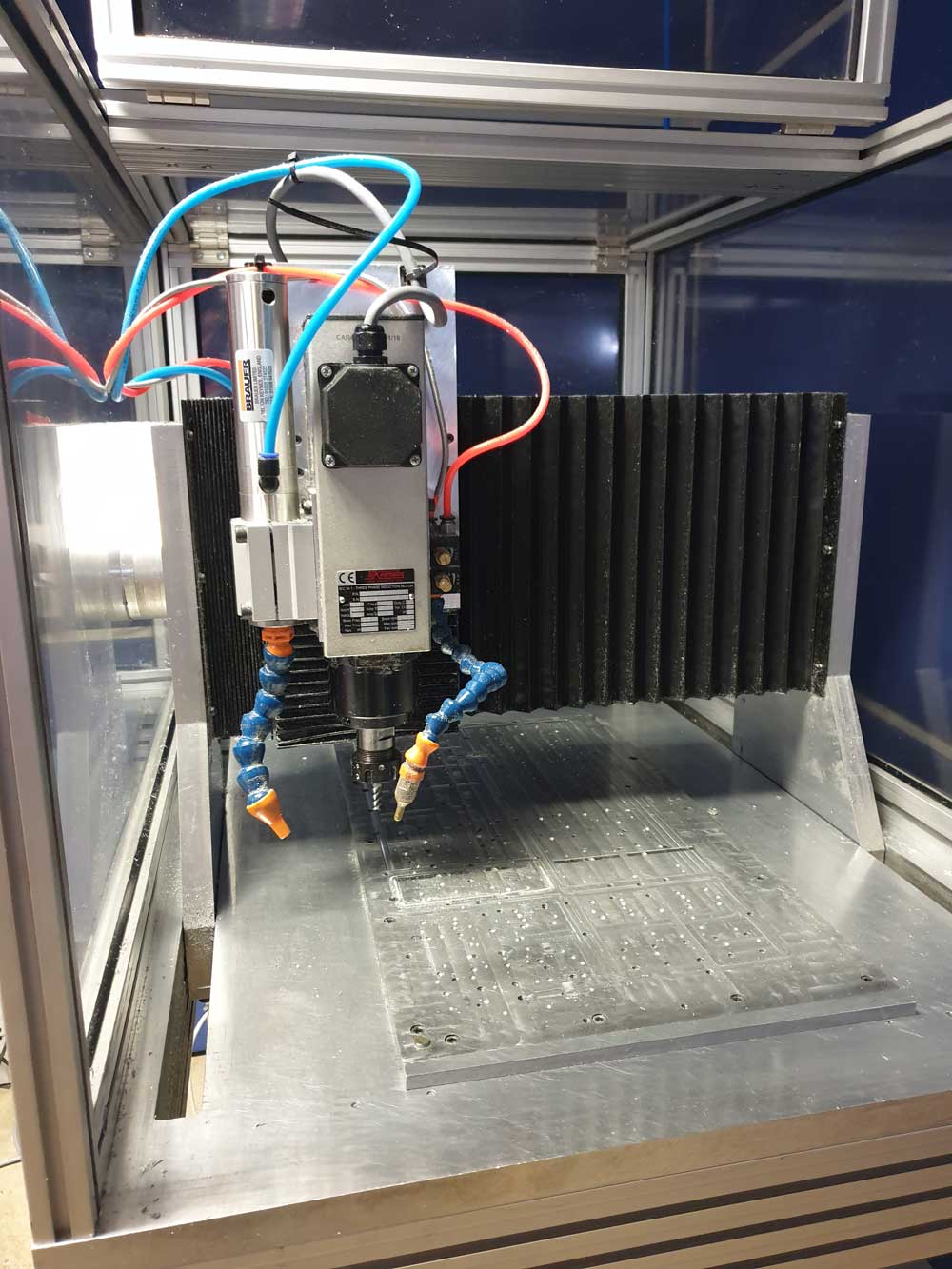

It comes fitted with a 2.7KW 18KRMP Teknomotor AC spindle motor with ER25 Collet.
The Controller is the CSLabs CSMIO/IP-A, and the encoder signals go back to the controller for full closed loop.
the machine comes with home and limits on all axis and homing is setup to home to index for more accurate homing.

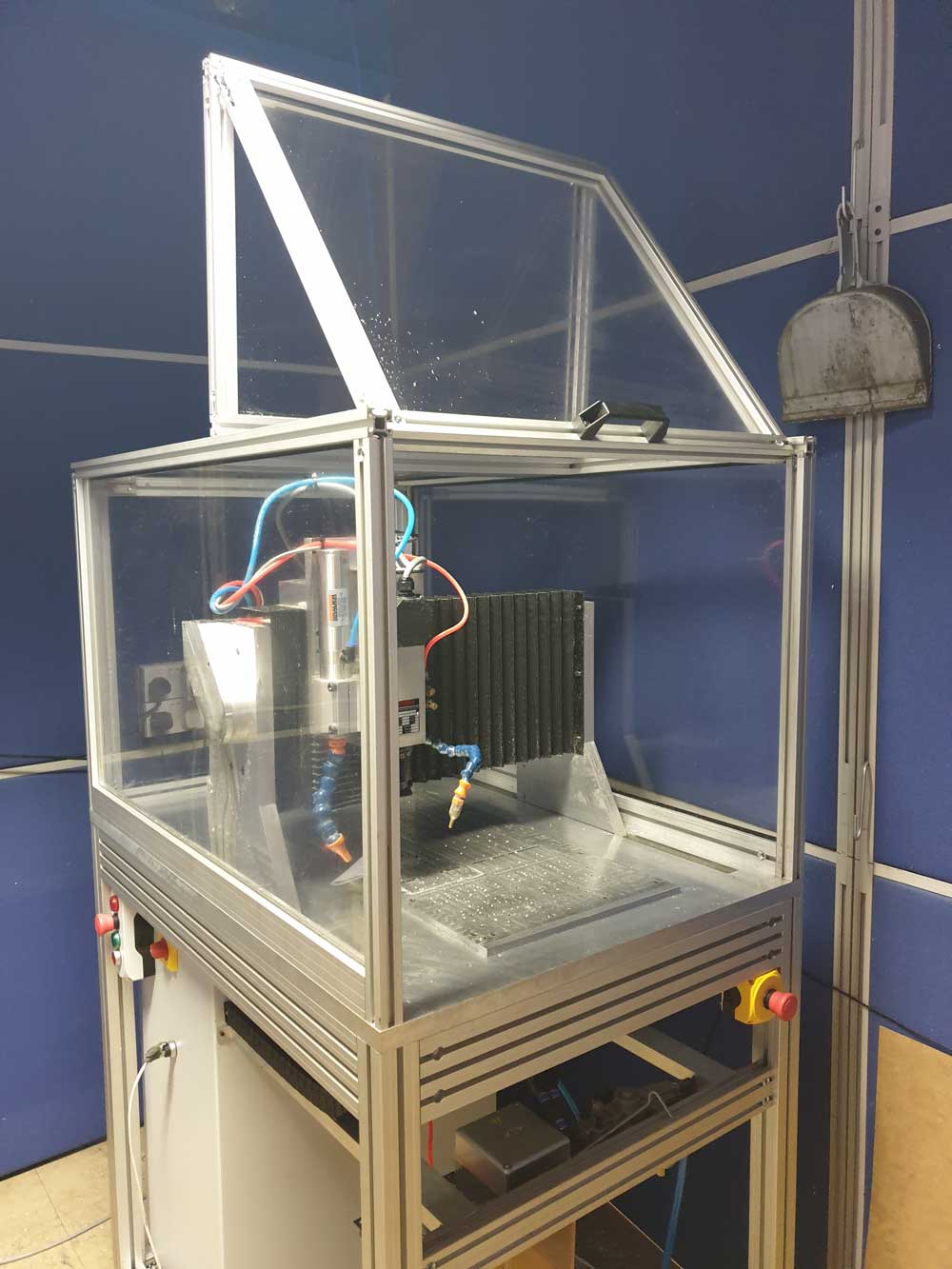

It also comes fitted with a gold air gun for additional cooling to help with tool life.
The 10060 CNC machine is designed and built in Poole in the UK; We have designed the 10060 specifically to accurately machine non-ferrous metals like aluminium and brass, but works just as well on other materials like woods and plastics.

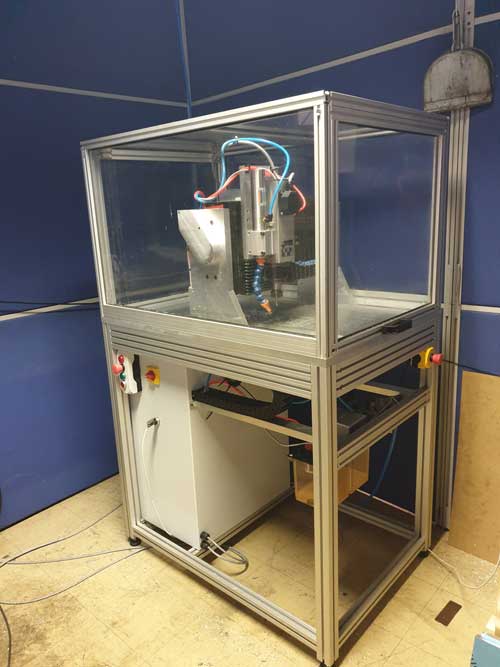

The 10060 CNC machine is 1060mm X 745mm X 600mm with a working area of 600mm(X) 325mm (Y) and 115mm (Z).

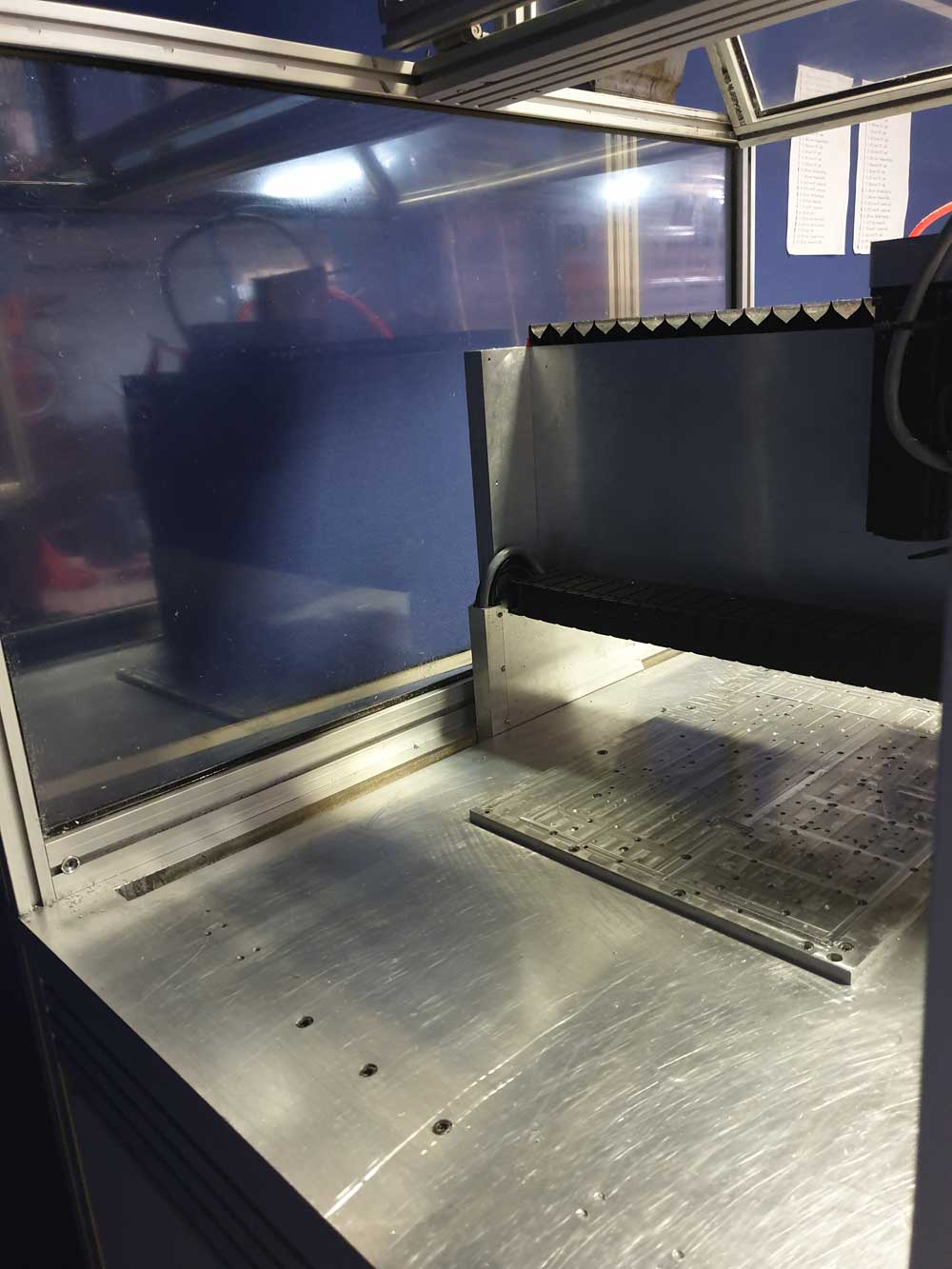

The main frame of the 10060 machine is manufactured from cast aluminium tooling plate (AW5083) with all of the linear motion parts pocketed into place to maximum accuracy and Rigidity. This not only make the machine more accurate and rigid, but also aids with the assembly process by making sure all the parts are accurately placed and seated.
Please do not confuse this machine with other cheaper kits available from other companies, this machine has been specifically built for machining metal plate, and we even use the 10060 to manufacture its own parts so in essence, it is a self-replicating machine.
Processing areas X/Y/Z (mm) 600mm / 320mm* / 115mm (400mm without covers)
Space under Gantree (mm) 124mm
Dimensions WxLxH (mm) 745mmx 1060mm x 600mm
Linear rail types Precision grade profiled rails on all axis (20mm on X and 15 on Y and Z)
Processing speed X/Y/Z* max. 800mm/min (Higher with other materials)
Repeat accuracy (mm) ± 0,01*
Drive motors AC Servo motors
Drive elements X/Y/Z C5 Ballscrews.
Controller CSMIO Motion Controller working With Mach3
Weight (kg) app. 200 KG
Software Needed Mach 3/4,
Options
Mist system and cold air gun
Fitted with a 2.7KW 18 KRPM Teknomotor spindle with ER25 collet.
Servo motors
C5 ballscrew on all axis
Concertina bellows for added protection.Last edited by Gary; 14-03-2021 at 09:29 AM.
