  1. #1
    Hello CNCers,

    I've just had this land in my lap.. and given the cursory comment of... can you find me some of this..

    clearly, I know nothing about it...

    It's got no makers marks or part numbers on it...

    it's lovely and ground on all the working surfaces..

    I've had a good day's worth of looking on the internet.. and I'm 50/50 on does this has a truck that fits it.. or is it more like a sideway and gib strip setup ..

    oh and I've no idea if it might use rollers.. (I'd think so with the shape of the surfaces) but finding something in a catalogue is not proving very easy...

    so the real hope with asking the hive mind is that someone recognises it... and goes that's a Matusumi XYZ rail ... i use it all the time..

    anyway, thanks in advance..

    Pb

    oh, and if I find out.. I'll put it up... :-)

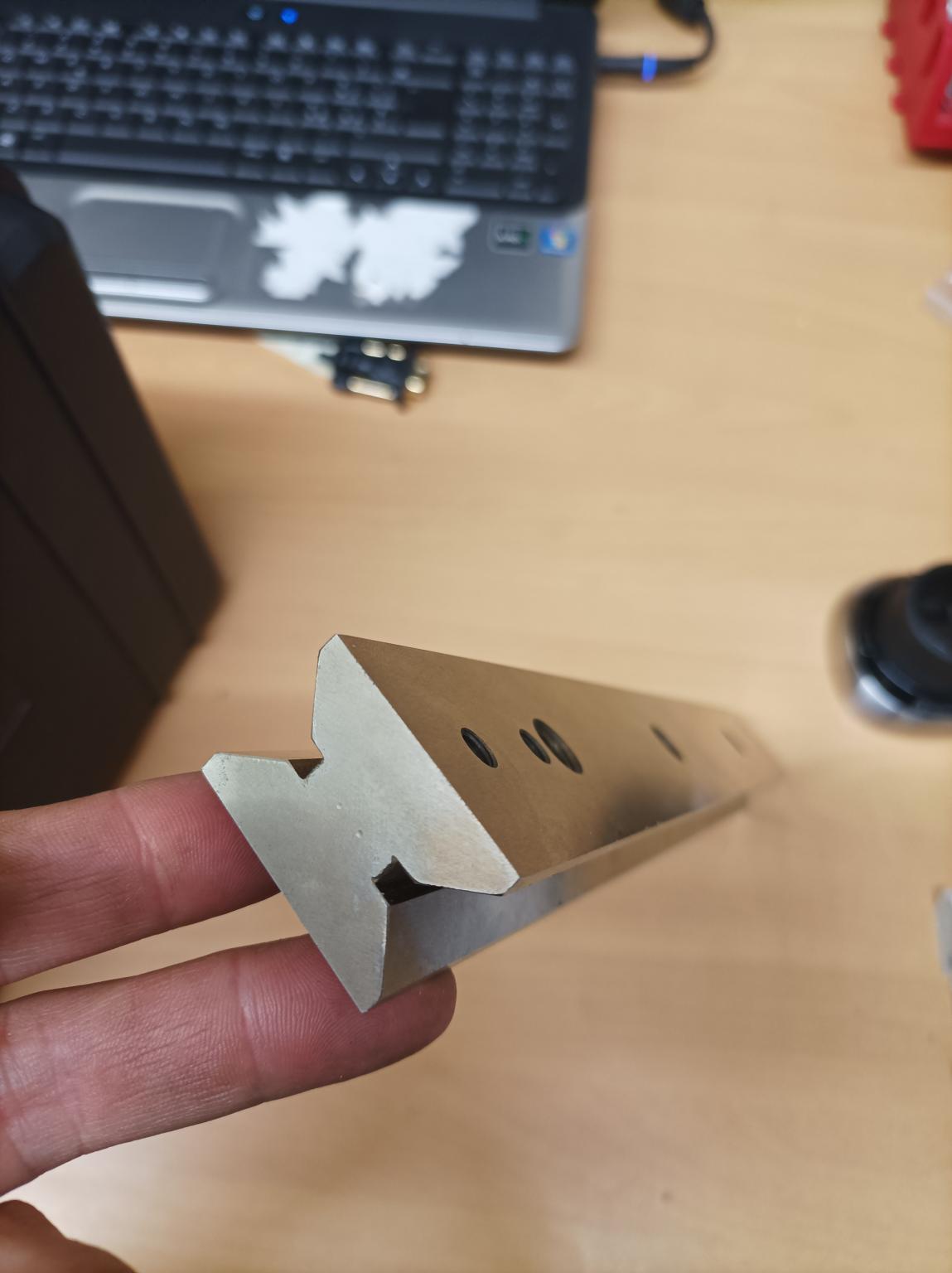

    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Rail1.JPG
Views:	114
Size:	120.5 KB
ID:	30981
    Attached Files Attached Files

  2. #2
    I've no idea of the manufacturer but I can tell you it uses linear ROLLER carriages rather than the more common ball bearings type carriages so it's most likely from a high-end machine and most likely a Milling machine if it's a short length.

    But to be honest I think you are looking for a needle in a haystack without any markings.?
    -use common sense, if you lack it, there is no software to help that.

    Email: [email protected]

    Web site: www.jazzcnc.co.uk

  3. #3
    it dawned on me that some more actual pictures might help..

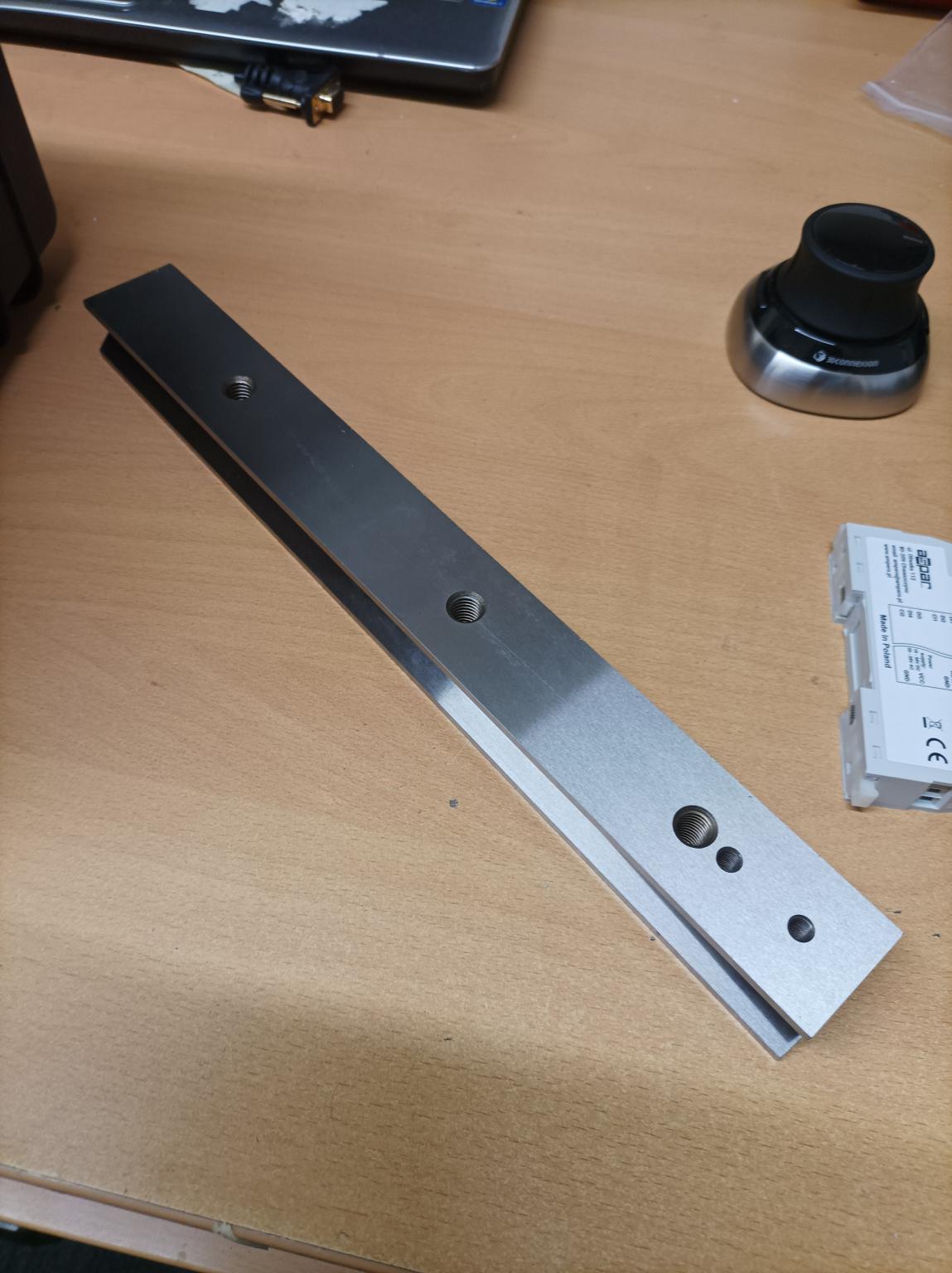

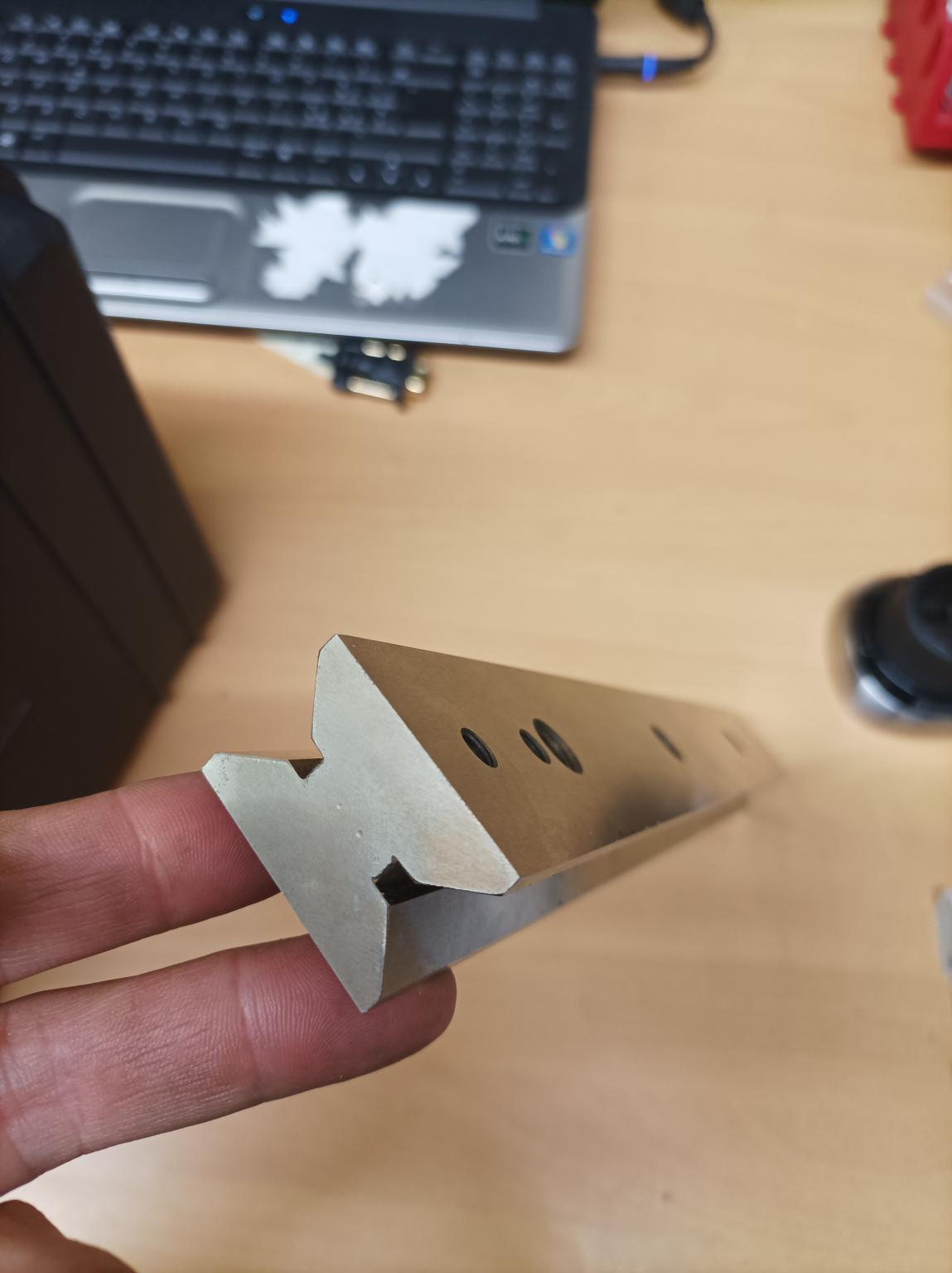

    Click image for larger version.

Name:	IMG_20220407_140556.jpg
Views:	118
Size:	88.2 KB
ID:	30984

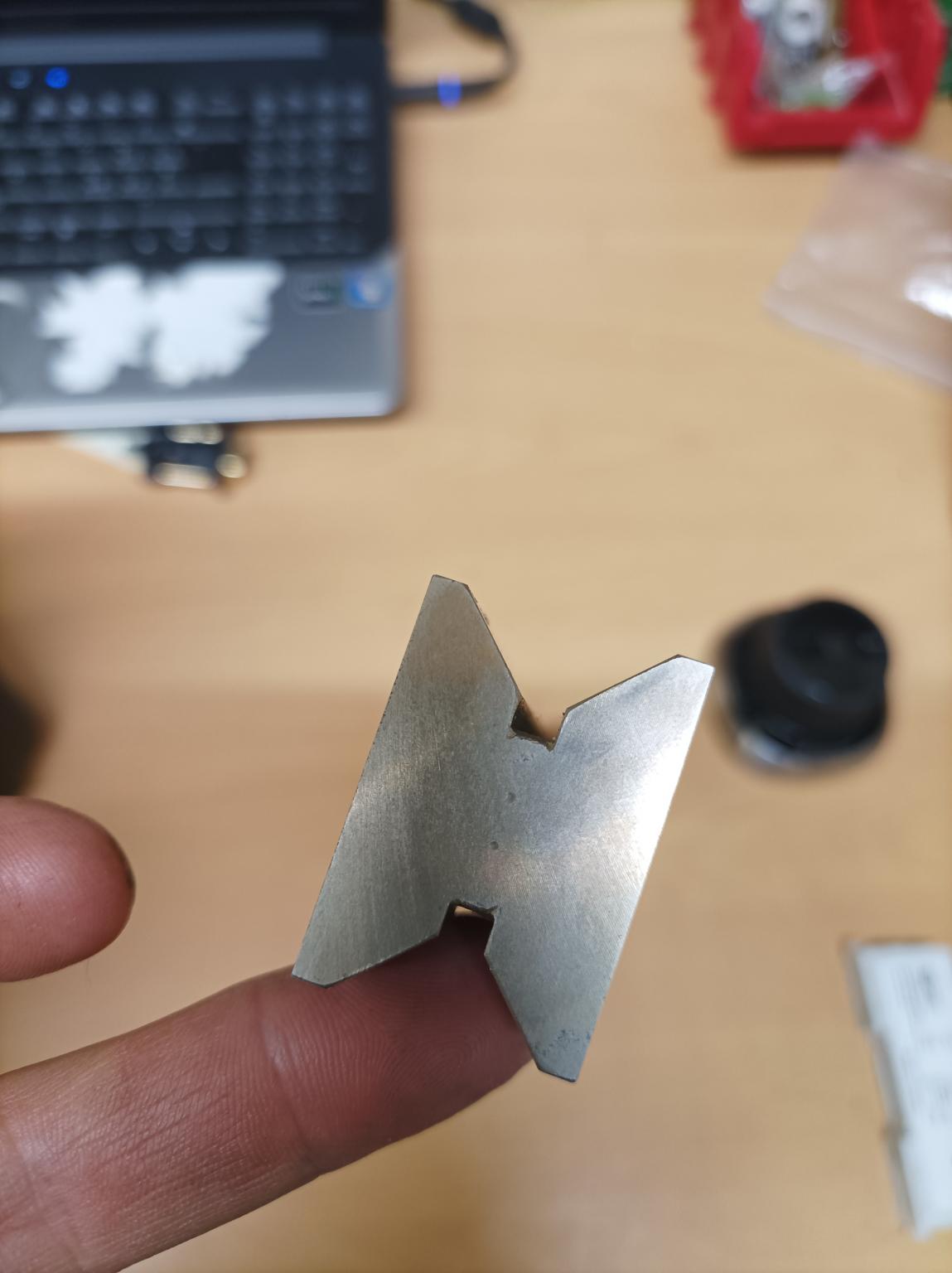

    Click image for larger version.

Name:	IMG_20220407_140522.jpg
Views:	116
Size:	160.5 KB
ID:	30985

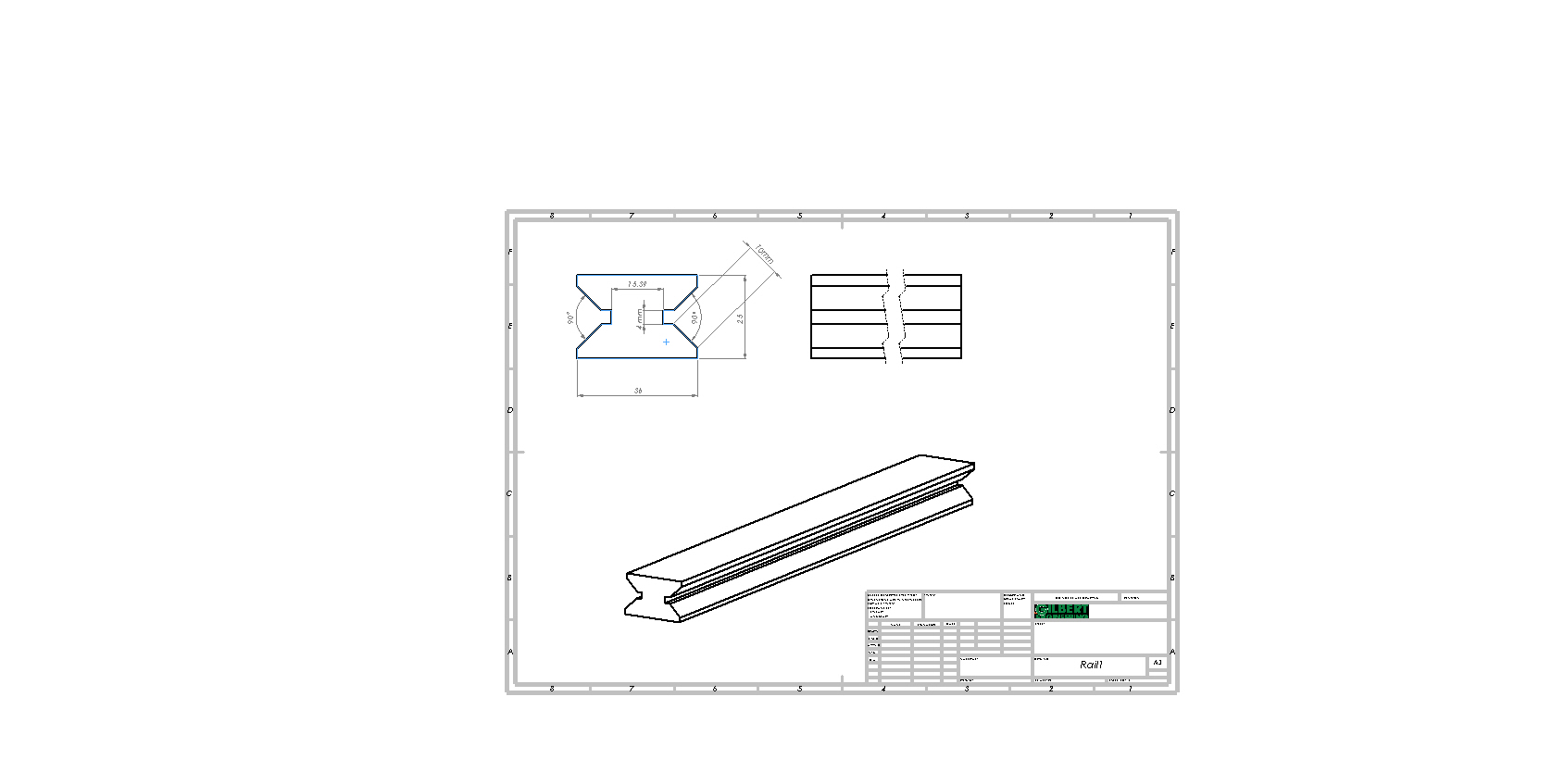

    Click image for larger version.

Name:	IMG_20220407_140544.jpg
Views:	107
Size:	82.5 KB
ID:	30986

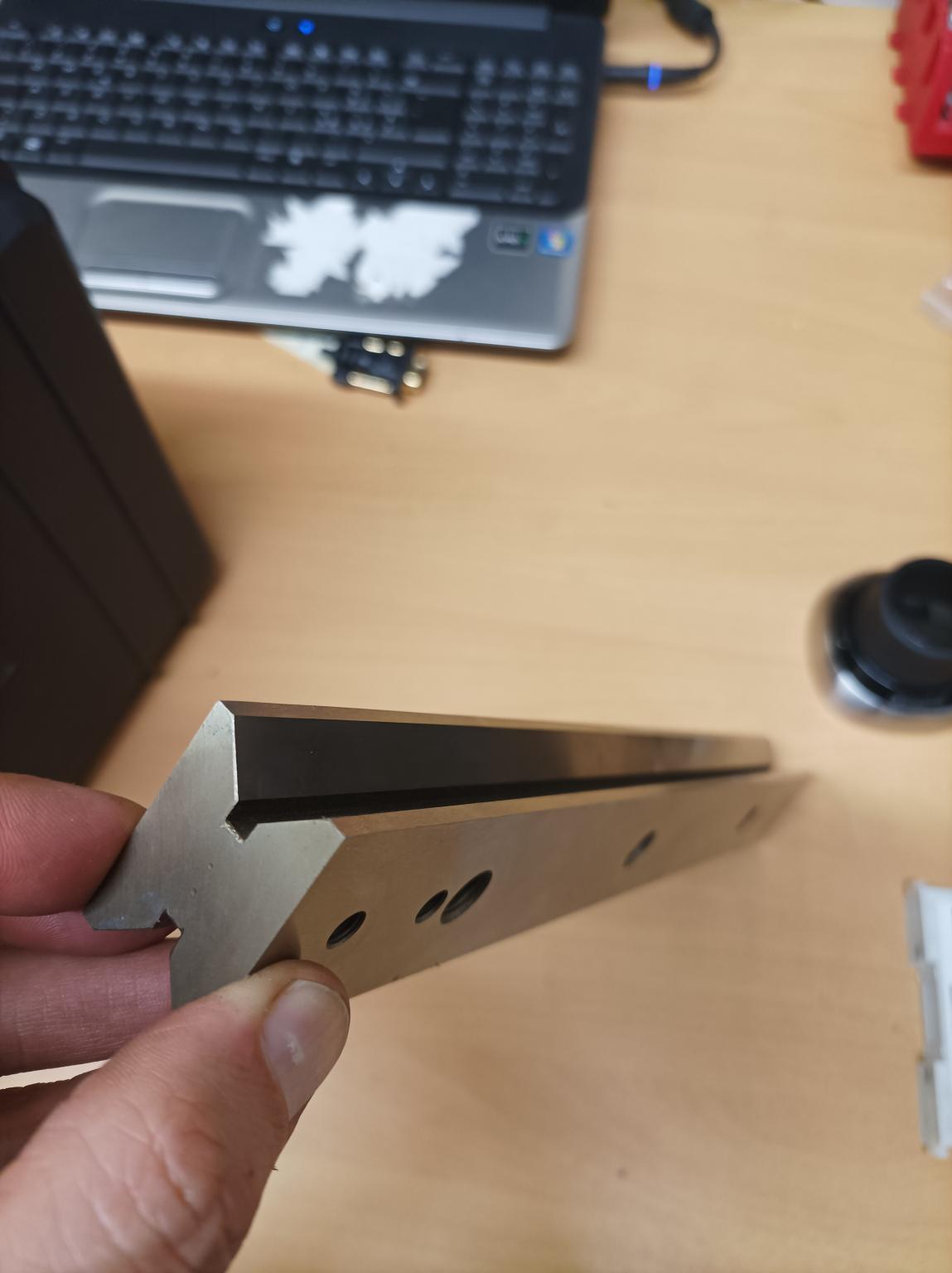

    Click image for larger version.

Name:	IMG_20220407_140548.jpg
Views:	107
Size:	87.7 KB
ID:	30987

    so here are some ...

    hope this gives you some idea..

    I've gone back to the customer and asked for a bit more info on what the truck / moving element looks like, as I'm able to find lots of things that measured at 35mm but 36mm seems a strange one..

    anyway thanks for anyone who looks at this..

    it might be that i get the grinder fired up and some steel cooking in the oven ..

    Pb.
