    Hello everyone,
    This is my first time building a CNC milling machine and I'm using NVUM5-SP controller. Does anyone know how i can power up the board?
    Currently, I'm only using motor drive pins, limits+/-, emergency stop and tool probe pins. The limit switches are connected to 12V pins & and input pin, (eg. INP4)
    The only pins that are left are "12V" , INP1, INP2. can i connect the power supply to these pins using INP1 as ground?

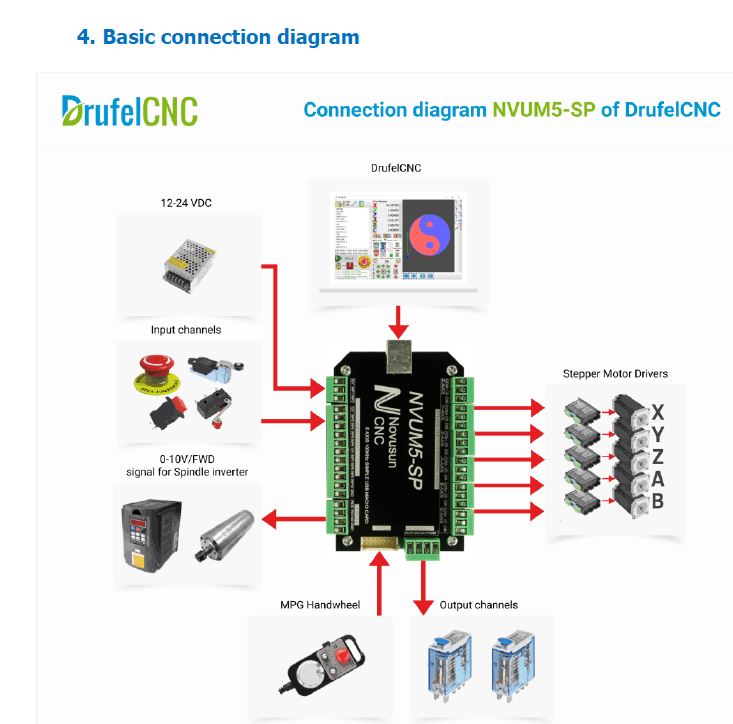

    Attached is the wiring that's found in the manual.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	NVUM5-SP Wiring.JPG
Views:	66
Size:	63.0 KB
ID:	30707
