    Hey folks - long time lurker on the forum and need some advice.

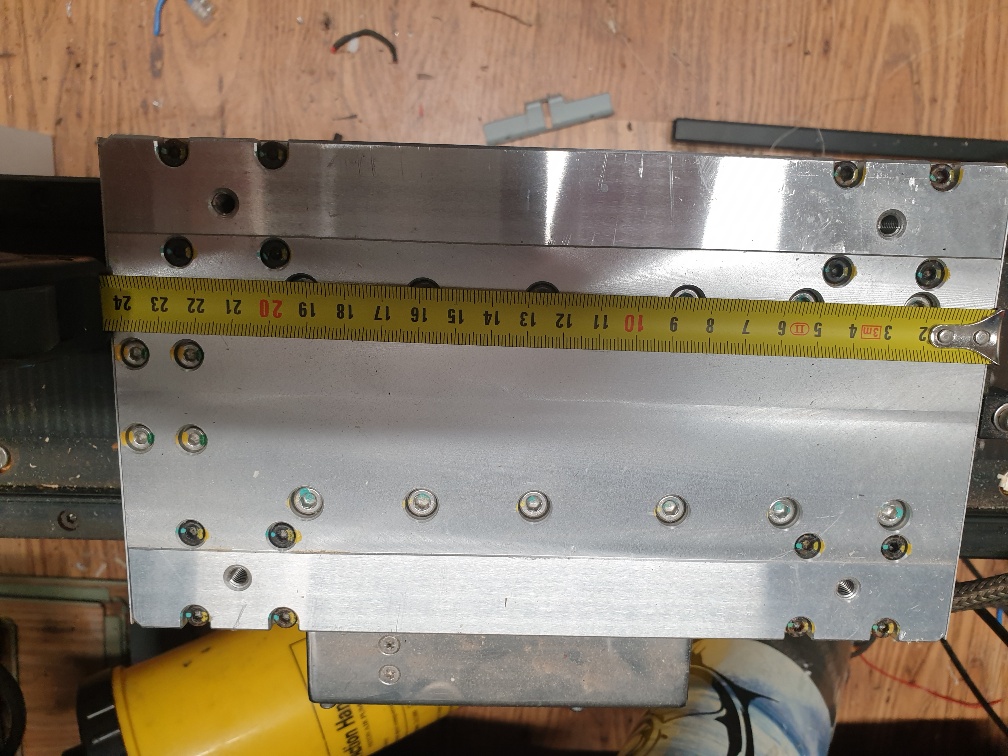

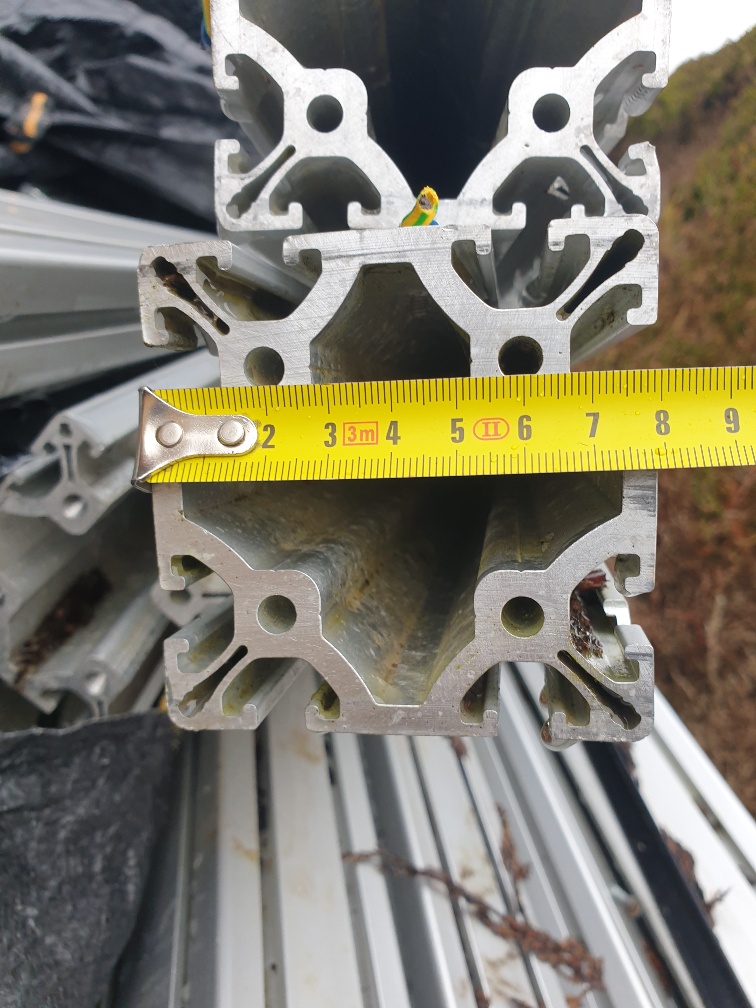

    Iíve some exotic linear motors and a pile of heavy duty extruded aluminium. What to do with them!?

    I was going to build a new machine but life gets in the way so time for a clear out. Seems too good to weigh in at the scrappy though.

    It was a very high end sampling machine in itís day. Cost about £500,000 10 years ago.

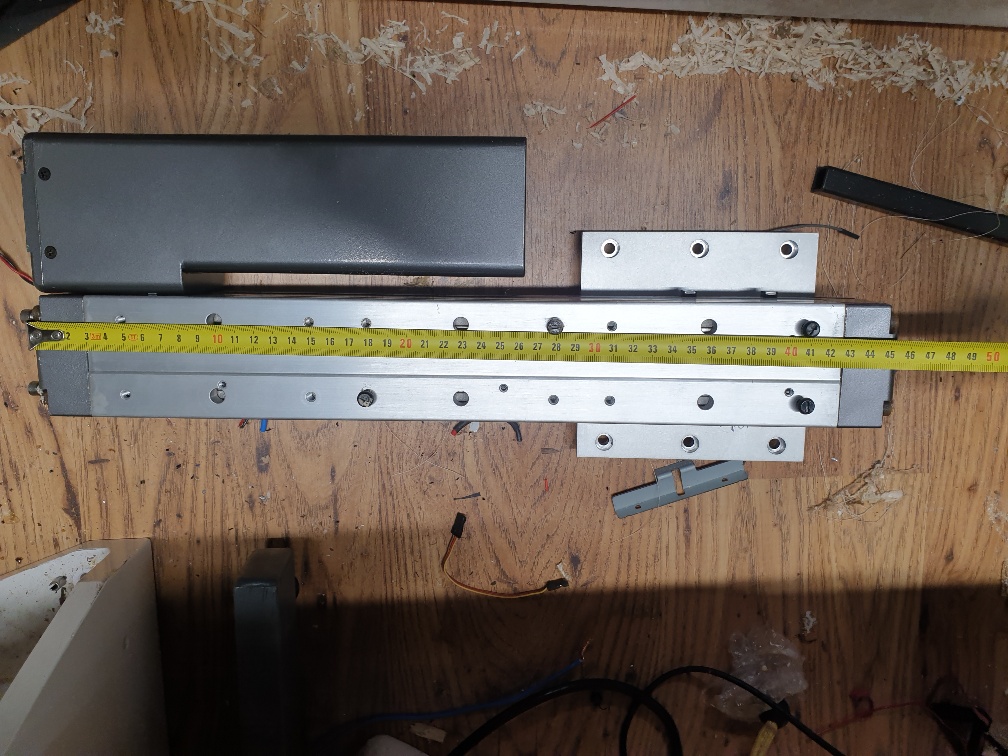

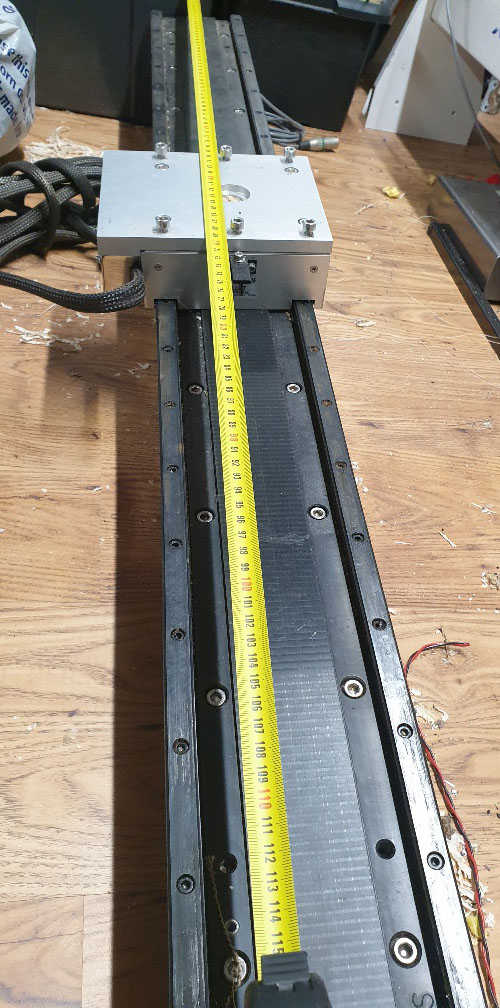

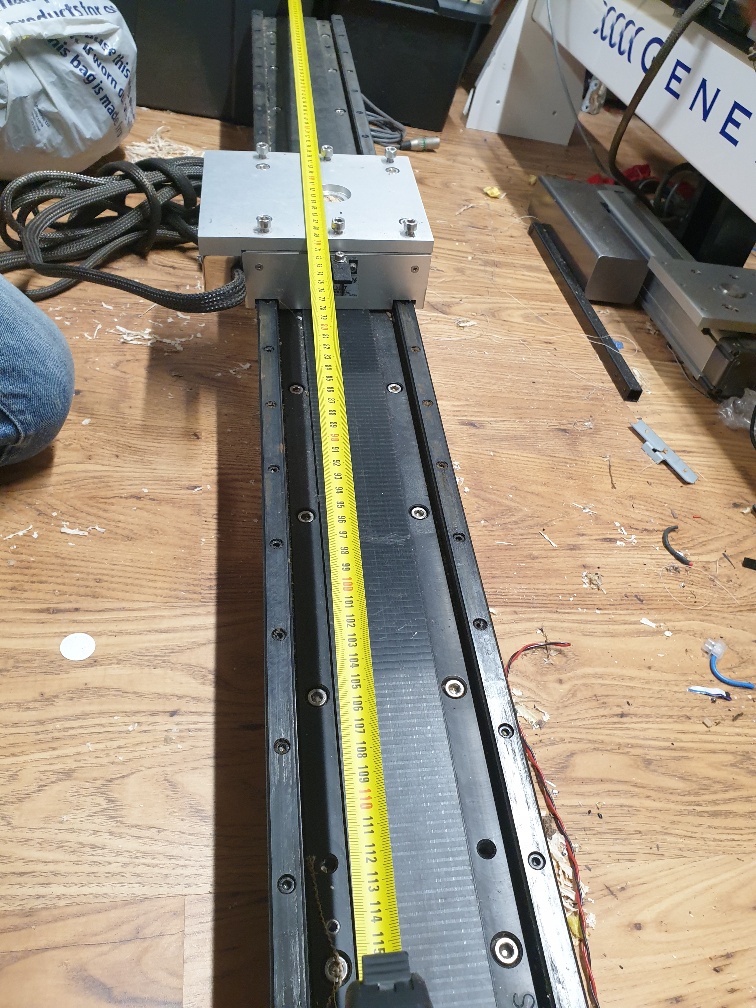

    The linear motors are things of beauty - but theyíre a bit beyond me. One is rail is 1500mm other is 1200mm.
    The controllers have some literature available but way over my head!

    Iíve been tripping over them for 2 years now so need to do something about it.

    So what to do - try and get it all working**, weigh it all in, or split for sale?

    Anyone have experience with linear motors?


    ** even if I could figure it out Iíve no idea of torque values or anything else about the motors. It will be super accurate when up and running though - and I bet it crazy fast and fun to play with :o)

    Click image for larger version.

Name:	1.jpg
Views:	43
Size:	347.2 KB
ID:	32176
    Click image for larger version.

Name:	2.jpg
Views:	45
Size:	339.8 KB
ID:	32177
    Click image for larger version.

Name:	3.jpg
Views:	43
Size:	332.8 KB
ID:	32178
    Click image for larger version.

Name:	4.jpg
Views:	50
Size:	164.0 KB
ID:	32180
    Click image for larger version.

Name:	5.jpg
Views:	46
Size:	275.1 KB
ID:	32181
    Click image for larger version.

Name:	6.jpg
Views:	48
Size:	259.9 KB
ID:	32182
    Click image for larger version.

Name:	7.jpg
Views:	50
Size:	228.7 KB
ID:	32183
    Click image for larger version.

Name:	zaxis.jpg
Views:	44
Size:	291.2 KB
ID:	32185
    Click image for larger version.

Name:	extrusion.jpg
Views:	48
Size:	244.6 KB
ID:	32184
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	4.jpg
Views:	31
Size:	357.1 KB
ID:	32179

  2. #2
    Quote Originally Posted by monstermunch762 View Post
    Hey folks - long time lurker on the forum and need some advice.

    I’ve some exotic linear motors and a pile of heavy duty extruded aluminium. What to do with them!?

    I was going to build a new machine but life gets in the way so time for a clear out. Seems too good to weigh in at the scrappy though.

    It was a very high end sampling machine in it’s day. Cost about £500,000 10 years ago.


    The linear motors are things of beauty - but they’re a bit beyond me. One is rail is 1500mm other is 1200mm.
    The controllers have some literature available but way over my head!

    I’ve been tripping over them for 2 years now so need to do something about it.

    So what to do - try and get it all working**, weigh it all in, or split for sale?

    Anyone have experience with linear motors?


    ** even if I could figure it out I’ve no idea of torque values or anything else about the motors. It will be super accurate when up and running though - and I bet it crazy fast and fun to play with :o)

    Click image for larger version.

Name:	1.jpg
Views:	43
Size:	347.2 KB
ID:	32176
    Click image for larger version.

Name:	2.jpg
Views:	45
Size:	339.8 KB
ID:	32177
    Click image for larger version.

Name:	3.jpg
Views:	43
Size:	332.8 KB
ID:	32178
    Click image for larger version.

Name:	4.jpg
Views:	50
Size:	164.0 KB
ID:	32180
    Click image for larger version.

Name:	5.jpg
Views:	46
Size:	275.1 KB
ID:	32181
    Click image for larger version.

Name:	6.jpg
Views:	48
Size:	259.9 KB
ID:	32182
    Click image for larger version.

Name:	7.jpg
Views:	50
Size:	228.7 KB
ID:	32183
    Click image for larger version.

Name:	zaxis.jpg
Views:	44
Size:	291.2 KB
ID:	32185
    Click image for larger version.

Name:	extrusion.jpg
Views:	48
Size:	244.6 KB
ID:	32184
    You need the datasheet to make it work

    https://www.nskamericas.com/en/produ...nocarrier.html

    I don't see it, I can't see the drive on the ones you pictured

    RS232 is a serial port to talk to a PC, probably so you can program the driver

    The IO looks like a parallel port

    Sensor is probably for closed loop

    But without the datasheet you cannot do a lot with it

    You should contact NSK

    They will send you the datasheets
    http://www.mycncuk.com/threads/10880...60cm-work-area My first CNC build WIP 120cm*80cm

    If you didn't buy it from China the company you bought it from did ;)

  3. #3
    Sorry for the late reply.

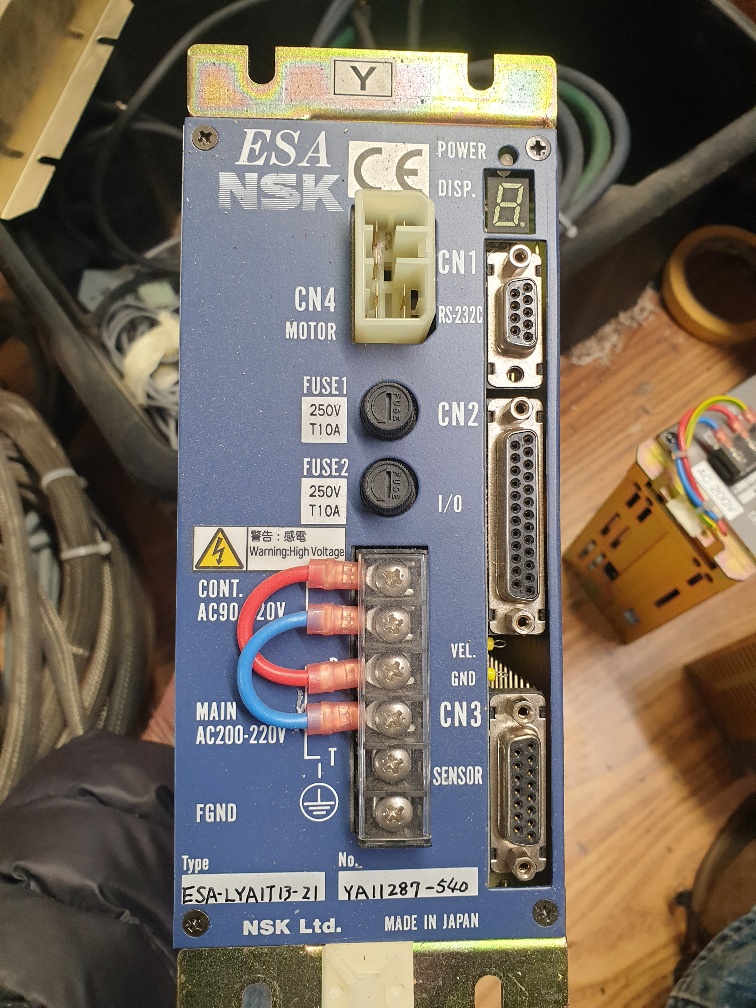

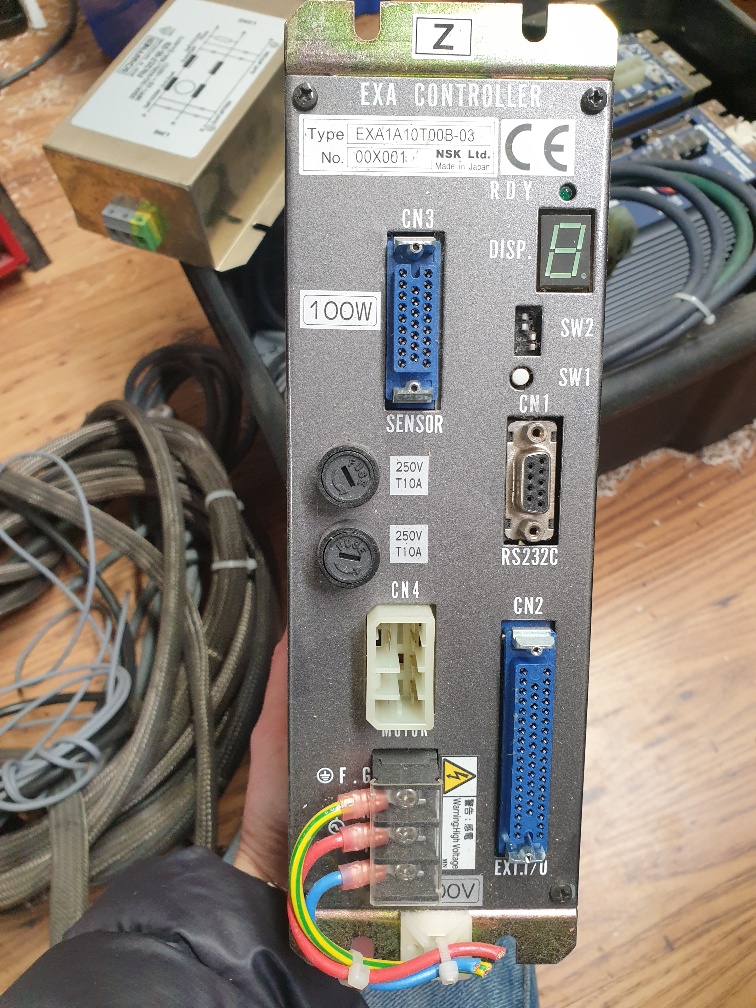

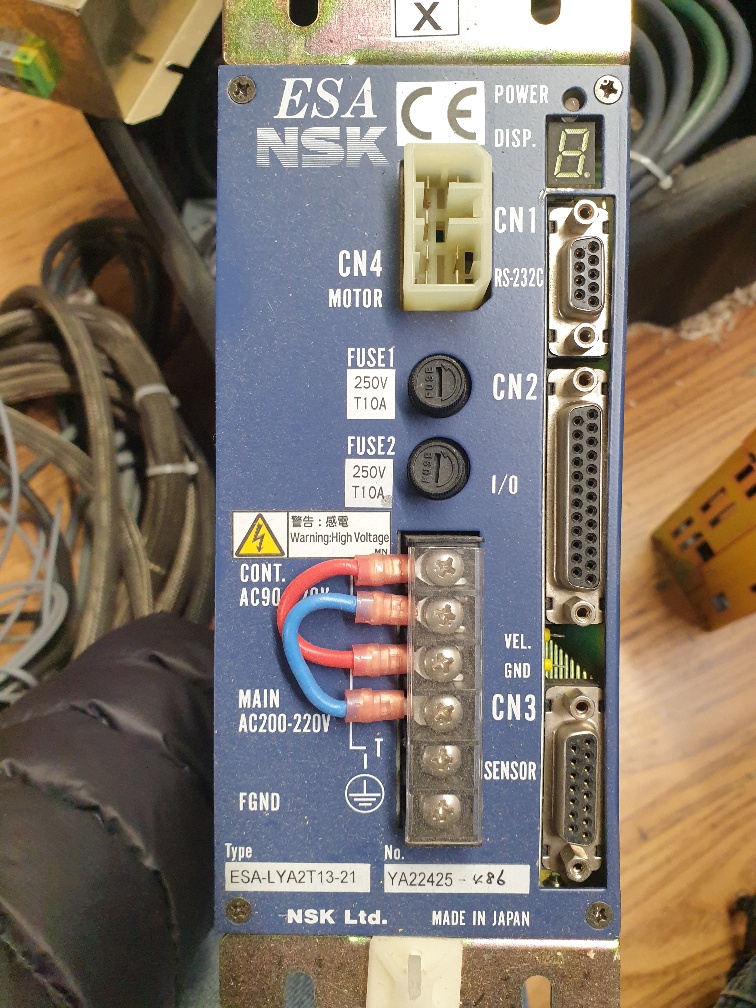

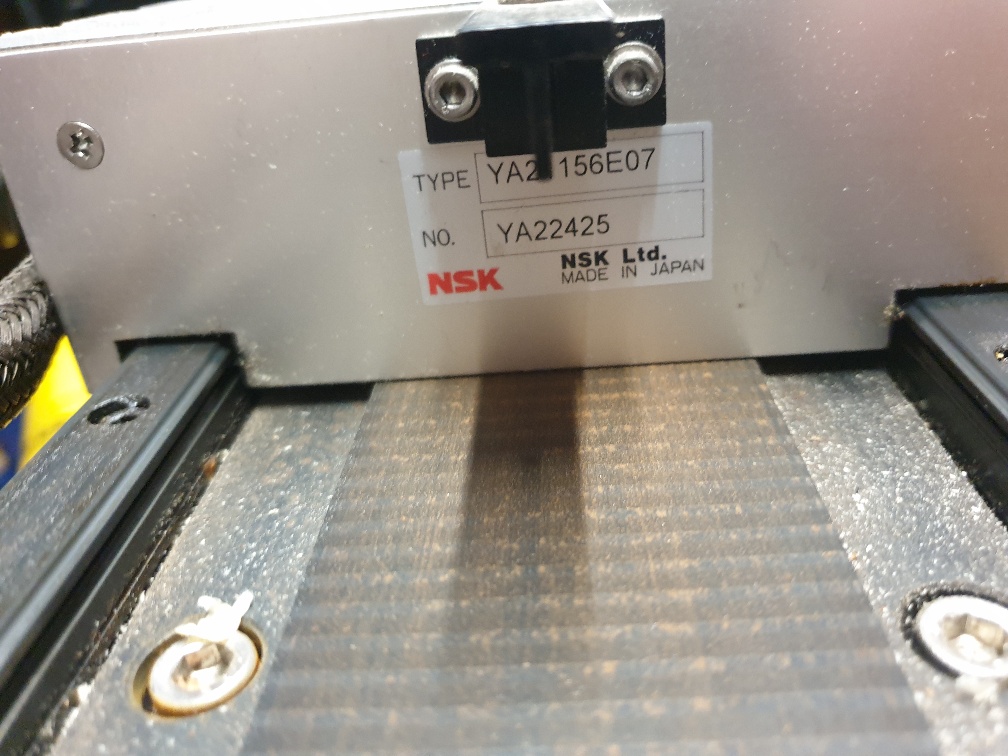

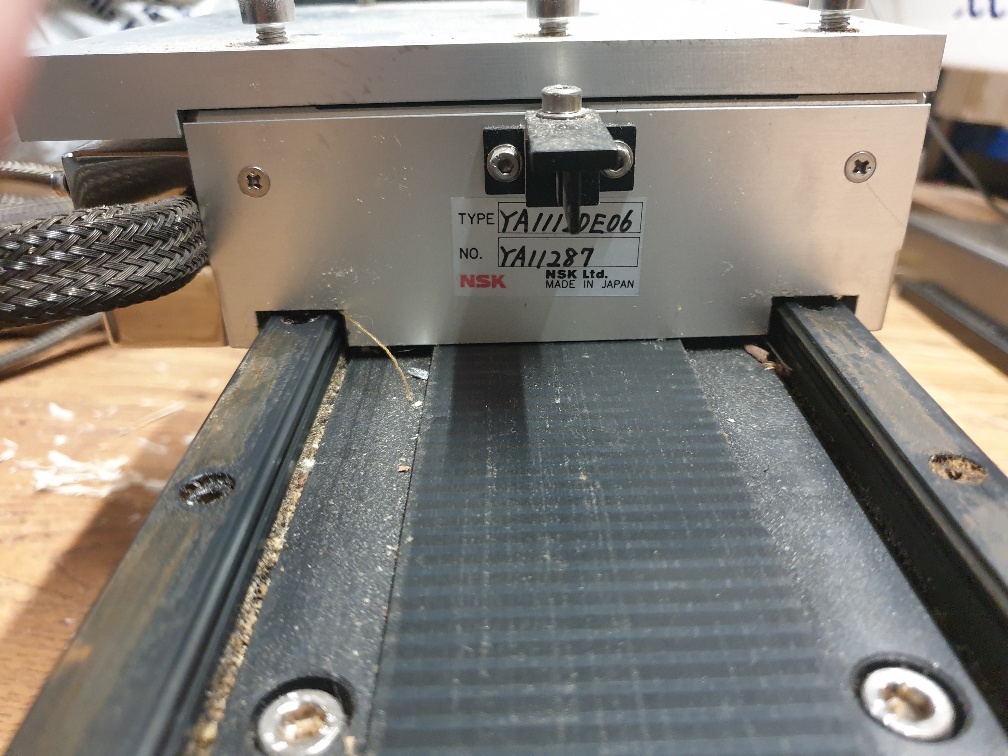

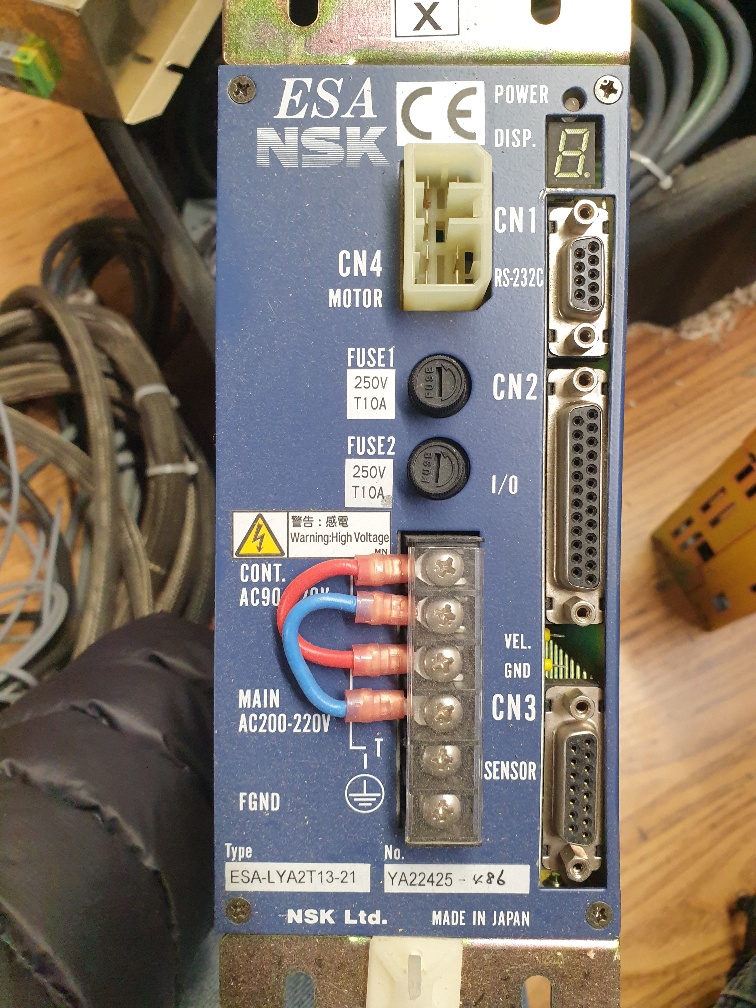

    The first 3 pictures are the drivers. The linear drives themselves are part of the "Megathrust" series and use the "Megatorque" drivers.
    I've reached out to NSK before and got no where...

    https://promshop.info/cataloguespdf/...rustpmandy.pdf

    That may be because I don't really know what I'm looking at. I'm fine with GRBL and arduino based CNCs but that' the limit of my experience.

    I was hoping for a simple STEP/DIR setup
    Last edited by monstermunch762; 20-03-2024 at 03:14 PM.
