Strike CNC (My first CNC router)

[Robin Hewitt]

For 10mm pitch screw, you can simply half the above to give 160 steps per unit.

Or, switch that axis to 16 microsteps and have 'em all the same.

[John S]

Every time you increase microsteps you loose torque.
There is no advantage in going above 8 and you only have to do the setup once.

[Shinobiwan]

Cheers for that.

I seem to be at a brick wall with the parallel port and motor speeds. The port will handle upto 35Khz, anymore and the PC starts to play up. This limits me to rapids of about 6m/min with 8x microstepping on the 5mm pitch screws. Its not really a big deal as the machine wouldn't handle cutting at those speeds anyway. Might have to consider a smoothstepper or perhaps lower the microstepping to 4x on the drivers. Is that's a good move or should I just be happy with what I've got?

[Shinobiwan]

Another quick question.

I bought one of these for the spindle http://www.ebay.co.uk/itm/3000-LITRE...ht_2067wt_1064

Now the only problem is finding adaptors to allowing fitting 4mm ID tubing the Chinese spindles use. I know your probably going to say google is your friend but I've been 'looking' for awhile now and still no luck.

[Shinobiwan]

I'm wiring up the spindle and have another question.

There's 3 wires for the 3phase power along with a ground. Can I identify which pins are the correct one's for the power and which is the ground? I notice the GX16 connector that these spindles use have their pins marked 1-4. I assume 1-3 are power and 4 is ground?

[JAZZCNC]

I'm wiring up the spindle and have another question.

There's 3 wires for the 3phase power along with a ground. Can I identify which pins are the correct one's for the power and which is the ground? I notice the GX16 connector that these spindles use have their pins marked 1-4. I assume 1-3 are power and 4 is ground?

Ant Think you'll find the 4th hisn't connected to anything.? Just test with circuit tester and you'll get no readings from that pin when connected either to any of the other pins or body.

[Shinobiwan]

Its not connected? Seems a bit silly. I was going to ground the spindle with that and also use it to complete the circuit for the tool height probe too. How did you ground yours?

[JAZZCNC]

Its not connected? Seems a bit silly. I was going to ground the spindle with that and also use it to complete the circuit for the tool height probe too. How did you ground yours?

Mine hisn't grounded and it doesn't need to be.! The VFD takes care of the EARTH side just make sure the VFD is EARTHED and it will be fine.
You could if you wanted belt and braces safety introduce a EARTH wire direct to the EARTH point in the control box but this is very different to DC ground the I/O's use.?
If the spindle shorts internally the VFD will trip so power will be cut and 99% of time this is fine.!! But if for some unlucky reason it didn't then the earth would leak back to the PCB trip so it does make it slightly safer.! . . . BUT. . .It can also work against you in some case, esp with a VFD, by using the long wire has an antena sending out electrical noise.?

Dont confuse the AC earthing to DC grounding that the I/O pins use.? Yes effectively they both end up at the same place but they are done very differently.
When your probing your complelting the DC circuit from the PP I/O pins which is low voltage low amps. If the machine frame is EARTHED and the spindle hisn't isolated thru bearings etc then often the circuit will complete because like I say the ultimately end back up at the same place EARTH.! . . Often and I'm 99% sure will be the case for you the spindle will return to Earth and allow the DC input circuit to complete.! . . . Again if you want belt n braces approach or for some reason the spindle is isolated then use a wire DIRECT from the DC negative pin of the BOB input NOT the EARTH of the control box and agian to avoid noise issues just use a temporey crocodile cliptype affair.! (BUT I'm 99.9 sure you won't need too)

EDIT: Do recommend you run a short as possible EARTH wire from star point in control box to the machine frame just in case of AC short of any kind. This will also more than likely be enough to allow the negative side of the DC input a path back to complete circuit.

[jimg100]

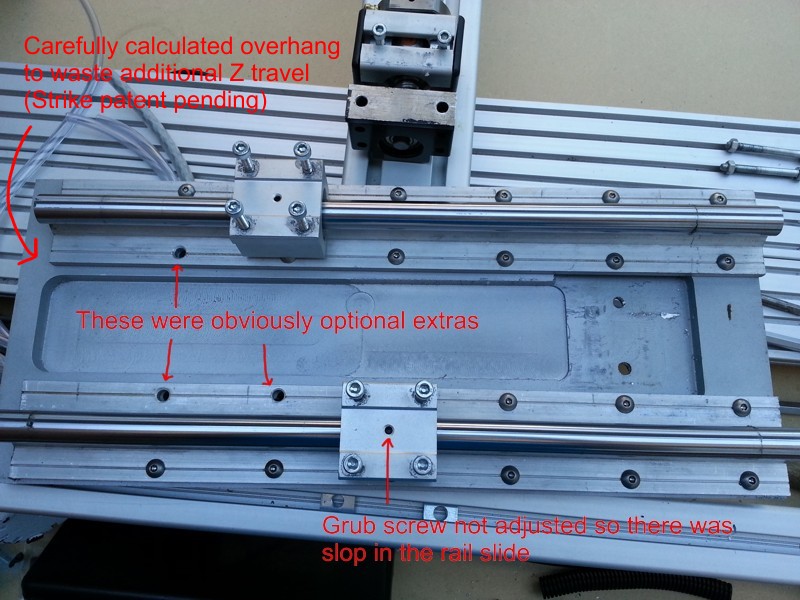

I bought a strike CNC balls up this year, it too was a month+ late and had all the above faults and more. It was supposed to have traverse speeds of 6m/min+ but Michael Powel advised that 6 would be best, to date I can only run at 2m/min. I went through the control cabinet and reconnected all the wires as they had been stripped too far and were also all loose one fell out of the emergency stop switch.
Is Strike still going or have they gone bust as they are'nt answering any cals or emails?

[Shinobiwan]

I bought a strike CNC balls up this year, it too was a month+ late and had all the above faults and more. It was supposed to have traverse speeds of 6m/min+ but Michael Powel advised that 6 would be best, to date I can only run at 2m/min. I went through the control cabinet and reconnected all the wires as they had been stripped too far and were also all loose one fell out of the emergency stop switch.
Is Strike still going or have they gone bust as they are'nt answering any cals or emails?

Sorry to hear of that Jim. Its a horrible feeling isn't it.

I assume Strike CNC are still active because I had an email from them saying they were taking legal action against me for the contents of this thread.

My advice is to do what I did and contact Trading Standards giving them a full and detailed report of situation your in and the faults with the machine. If you believe it was dangerous tell them that too and why. Even better if you have photographs.

Here's the details for trading standards and citizens advice along with the telephone number for both. You might be better off finding your local trading standards office and calling them, I did this.
http://www.tradingstandards.gov.uk/advice/index.cfm
http://www.adviceguide.org.uk/
08454 04 05 06

Good luck and keep us updated.
