    Hi

    I have a Z-axis that needs cutting. I have all the sheet materials - mostly ecocast in 20 and 25mm thicknesses. There's 9 parts in total requiring some basic pocketing and profiling then a bunch of holes requiring tapping and counter boring.

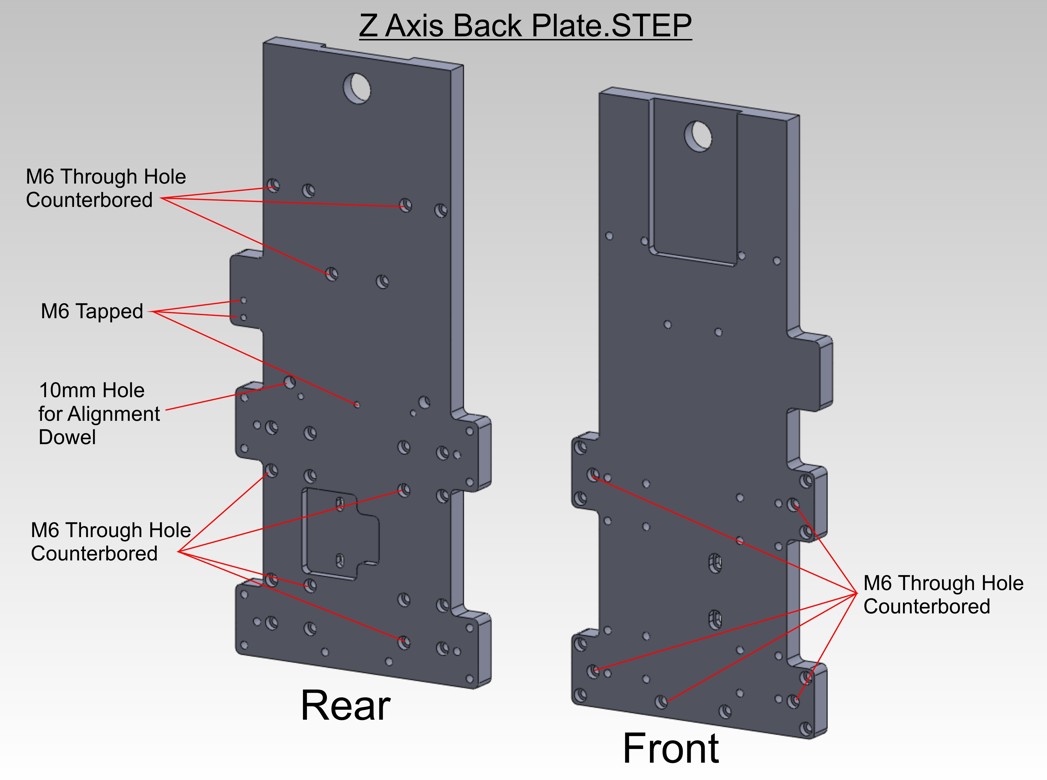

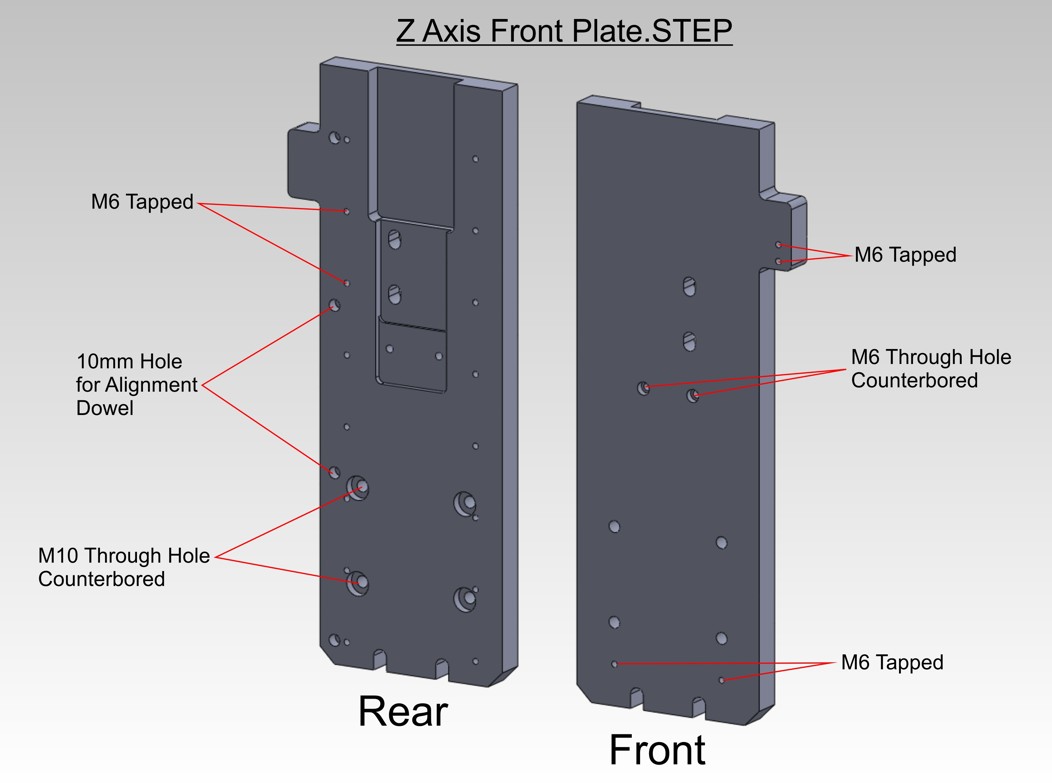

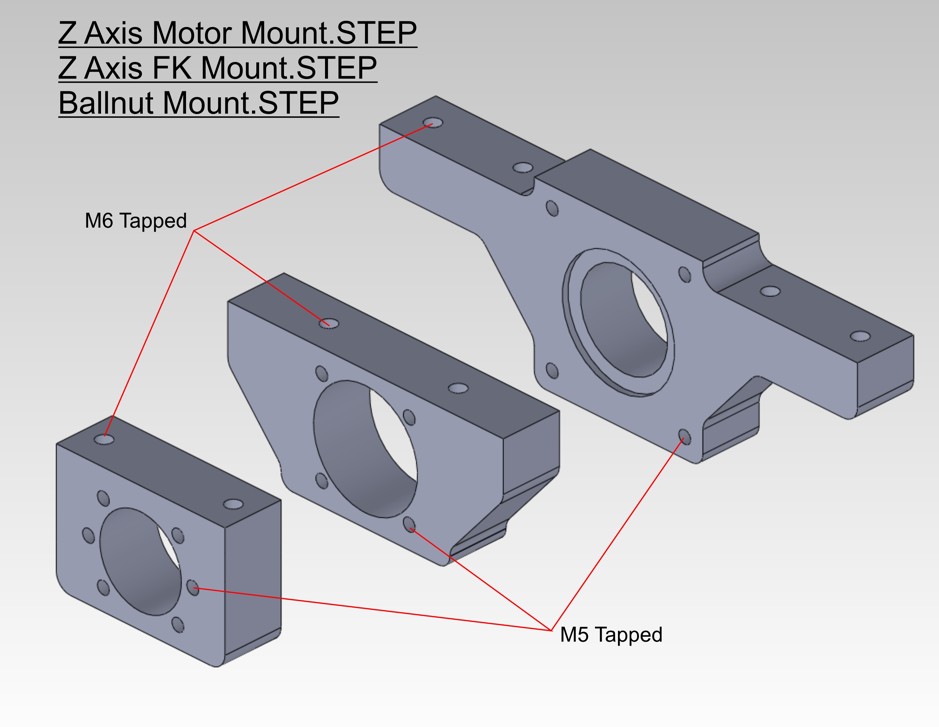

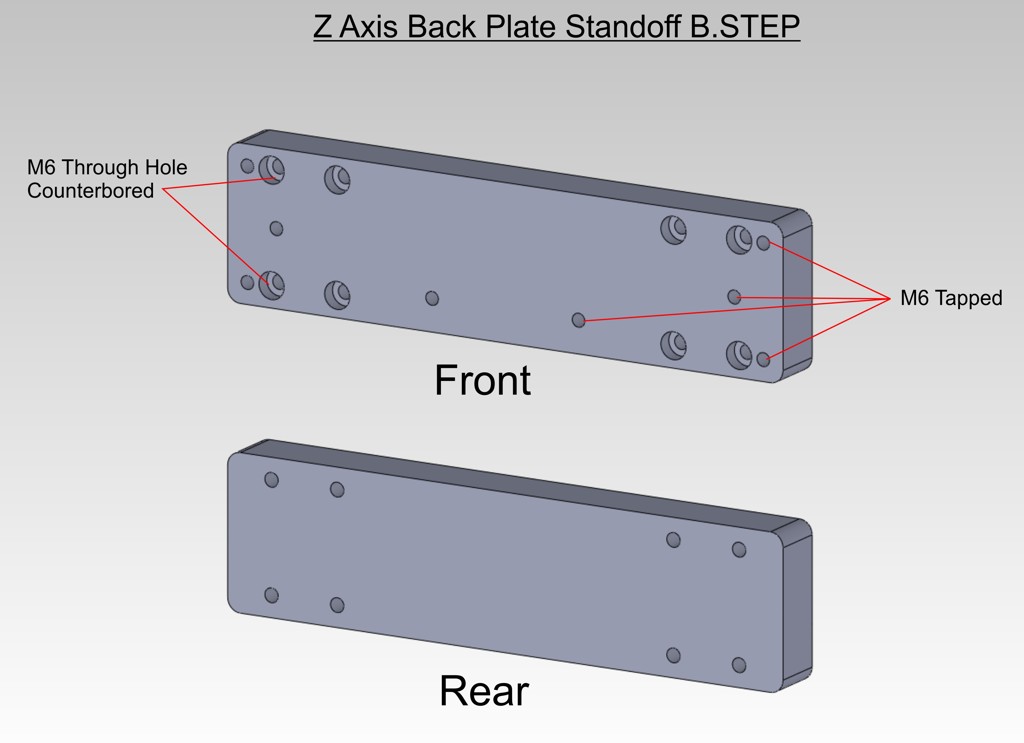

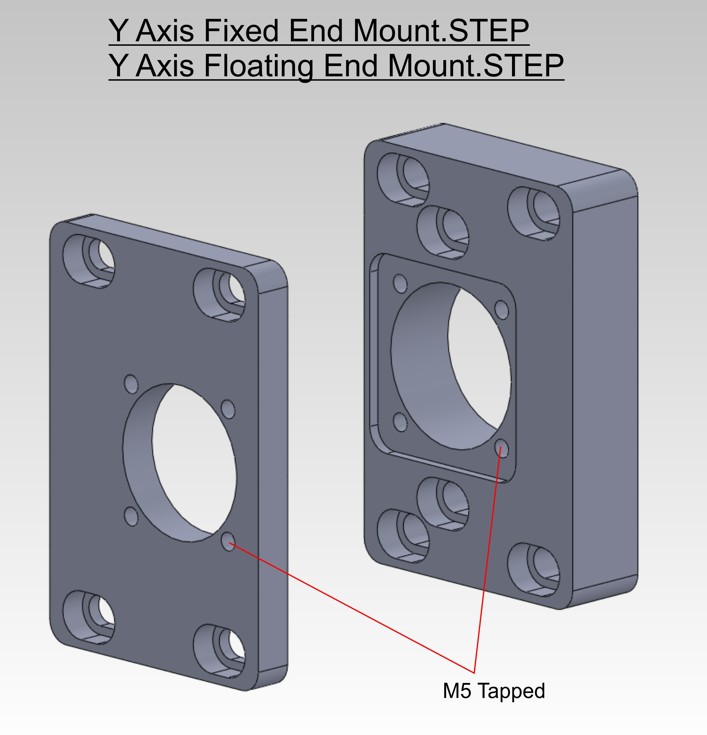

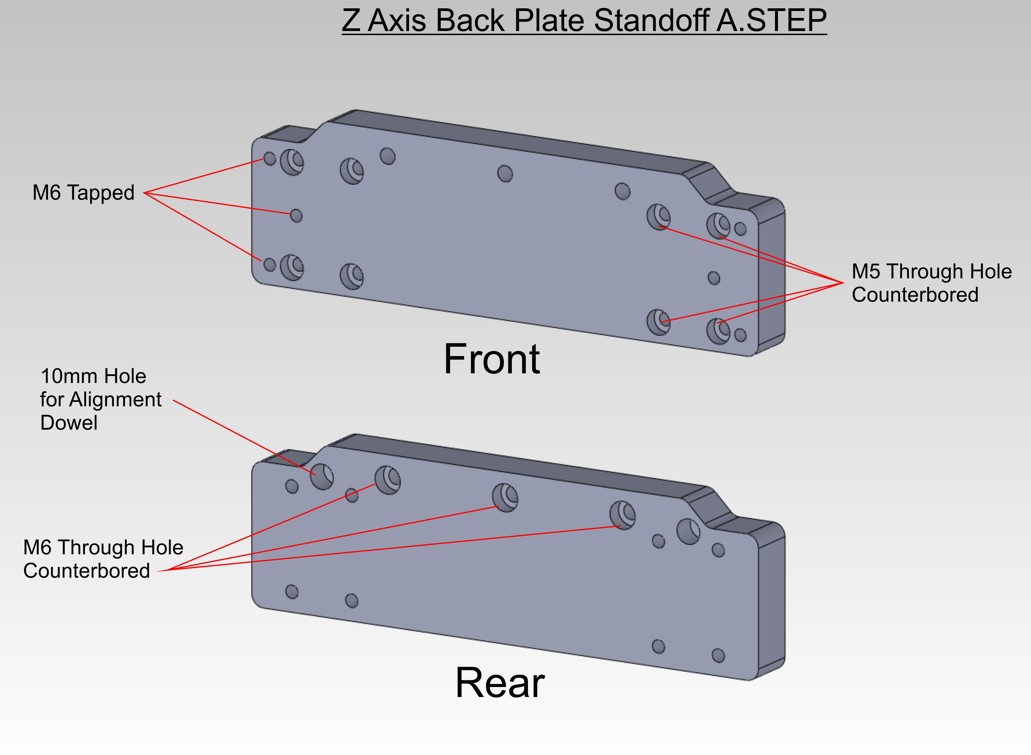

    I've attached the images giving an overview of what's required.

    Thanks
    Ant
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: Y Axis Parts Hole Description.jpg  Views: 260  Size: 66.6 KB  ID: 7364   Click image for larger version.  Name: Z Axis Back Plate Hole Description.jpg  Views: 275  Size: 84.5 KB  ID: 7365   Click image for larger version.  Name: Z Axis Back Plate Standoff A Hole Description.jpg  Views: 252  Size: 76.4 KB  ID: 7366   Click image for larger version.  Name: Z Axis Back Plate Standoff B Hole Description.jpg  Views: 254  Size: 62.4 KB  ID: 7367   Click image for larger version.  Name: Z Axis Front Plate Hole Description.jpg  Views: 266  Size: 72.8 KB  ID: 7368   Click image for larger version.  Name: Z Axis Other Parts Hole Description.jpg  Views: 288  Size: 80.1 KB  ID: 7369
