    Hey guys, can any of you give me some pointer of steps as to how i would create this kind of shape.

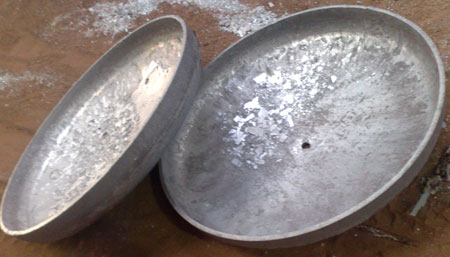

    Its a 200mm dia dished end with a 10mm wall if thats any help :)Click image for larger version.

Name:	dished_ends.jpg
Views:	427
Size:	29.1 KB
ID:	8493

  2. #2
    It has rotational symmetry, so use the revolved profile tool... or whatever they call it these days. You then just draw the cross section, specify the axis and the program creates the solid.
    Old router build log here. New router build log here. Lathe build log here.
    Electric motorbike project here.

  3. #3
    Nice one J! Now ive manage to do that dont suppose you have an idea of how to hollow the middle out do you? say 10mm thick

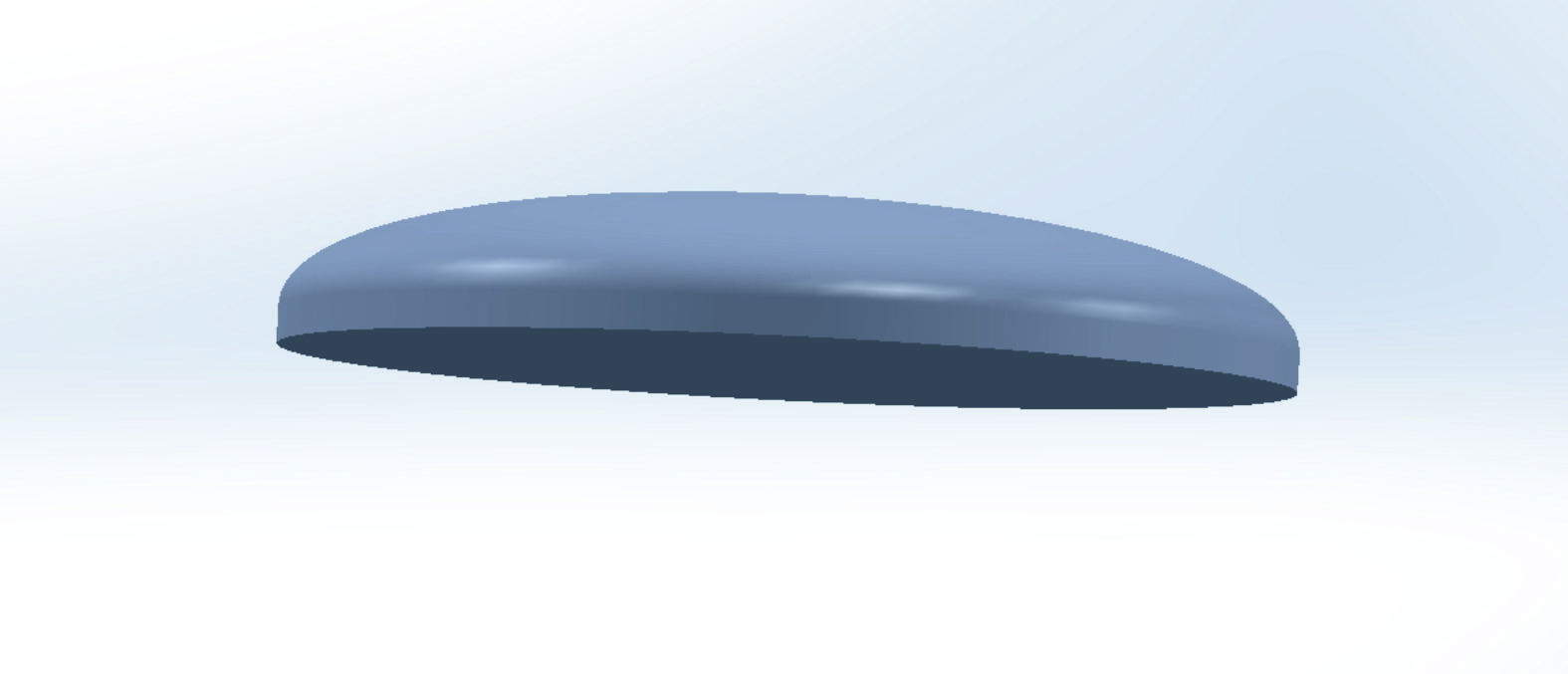

    Click image for larger version.

Name:	dishedend.jpg
Views:	422
Size:	1.84 MB
ID:	8494

  4. #4

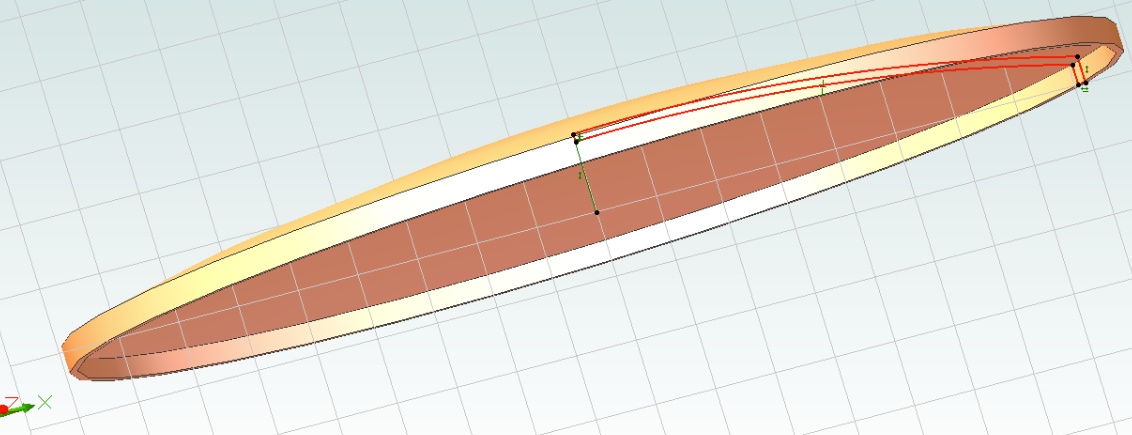

    Your 2D profile needs to include the 'hollow' as well, then there is no need to hollow out.. the red area indicates the original profile before revolving to 3D.

    See the attached file:

    Click image for larger version.

Name:	revolve.jpeg
Views:	399
Size:	43.2 KB
ID:	8495

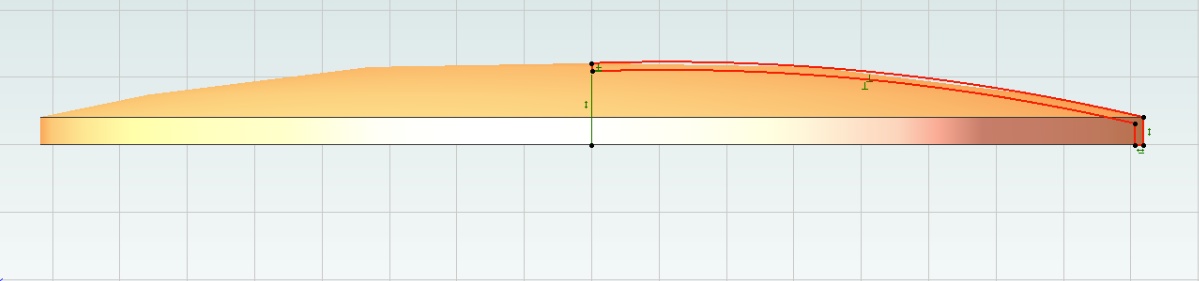

    Click image for larger version.

Name:	revolve2.jpeg
Views:	383
Size:	112.1 KB
ID:	8498

    By the way, this is Alibre Design, not solidworks but the principle is the same.
    Last edited by RoboCutter; 18-03-2013 at 04:35 PM.

  5. #5
    Ah ha nice one robo! unfortunately i still cant draw like that in SW so i have to draw that shape in corel and import it that way lol still getting used to the planes
    Last edited by D-man; 18-03-2013 at 05:12 PM.

  6. #6
    would it be the shell comand in SW by any chance Clive

  7. #7
    Quote Originally Posted by Clive S View Post
    would it be the shell comand in SW by any chance Clive
    I know it intended for Clive, but it was indeed the revolved tool. worked like a charm

  8. #8
    Anyone know where to download free models.... for example

    supported rail
    spindle etc etc

  9. #9
    asbo's Avatar
    Lives in Norwich, United Kingdom. Last Activity: 13-09-2019 Has been a member for 9-10 years. Has a total post count of 47. Received thanks 8 times, giving thanks to others 1 times.
    You can download them from within Sketchup (there's a very large google repository of all sorts of objects) then export them and import them into your program of choice. However sometimes this is problematic and after messing around with it, I found it easier just to model them from scratch(in AutoCAD in my case).

    Assuming you can extrude lines in solidworks? I can send you some files for supported rail and extrusion. What size extrusion?

  10. #10
    That would be great! I'm using TBR20 my email is Derek at leisure-systems.co.uk
