  1. #1

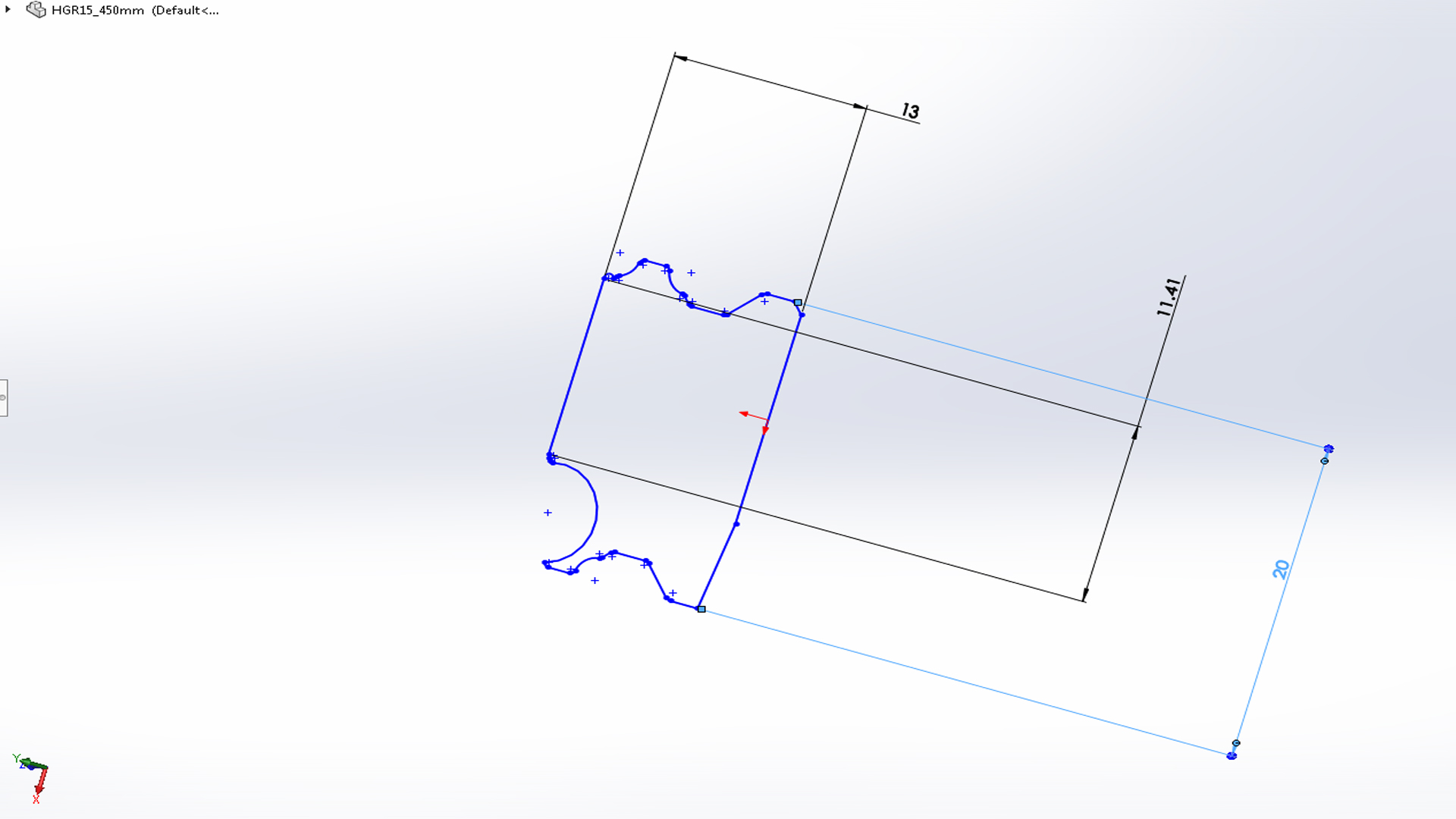

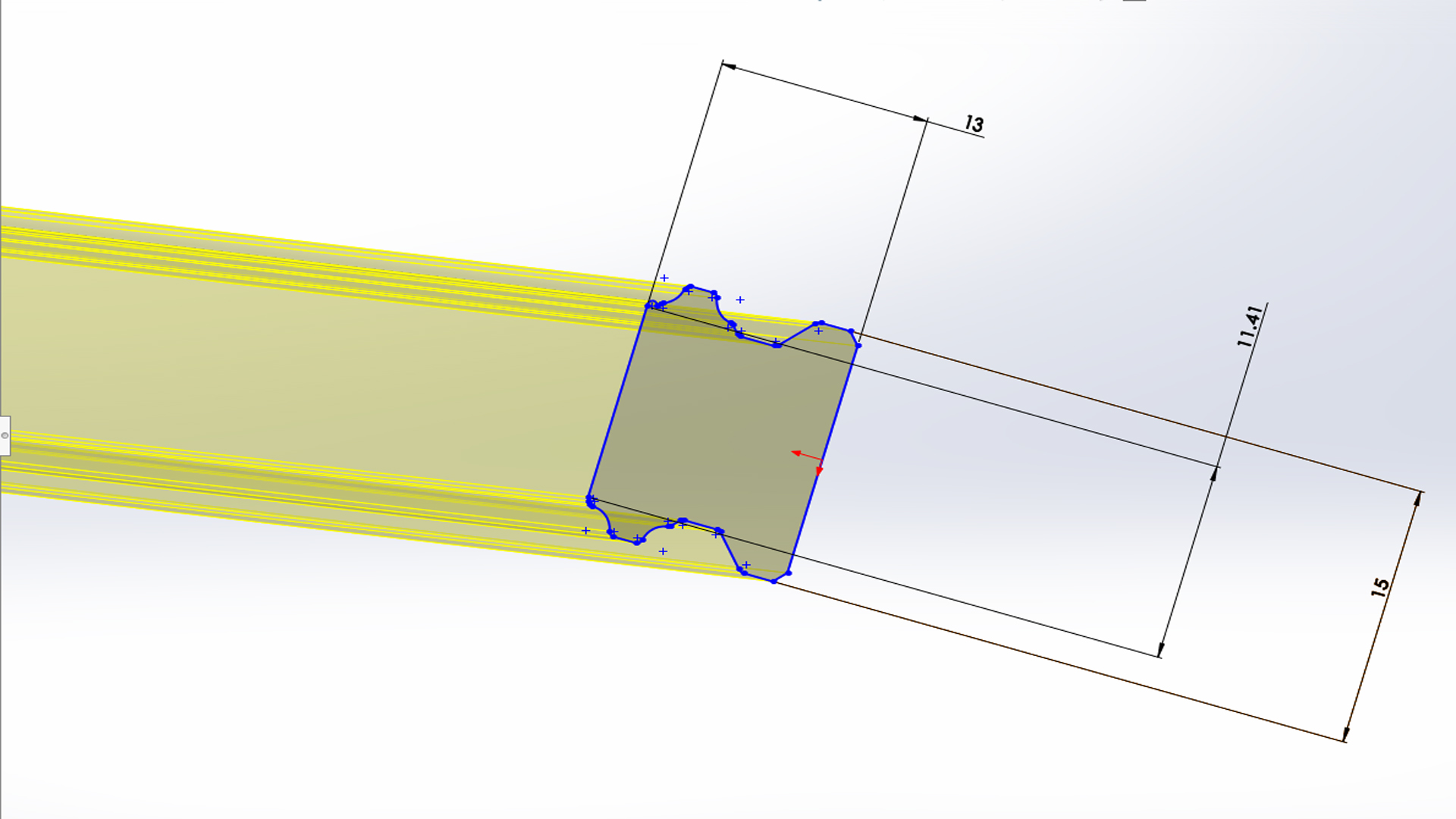

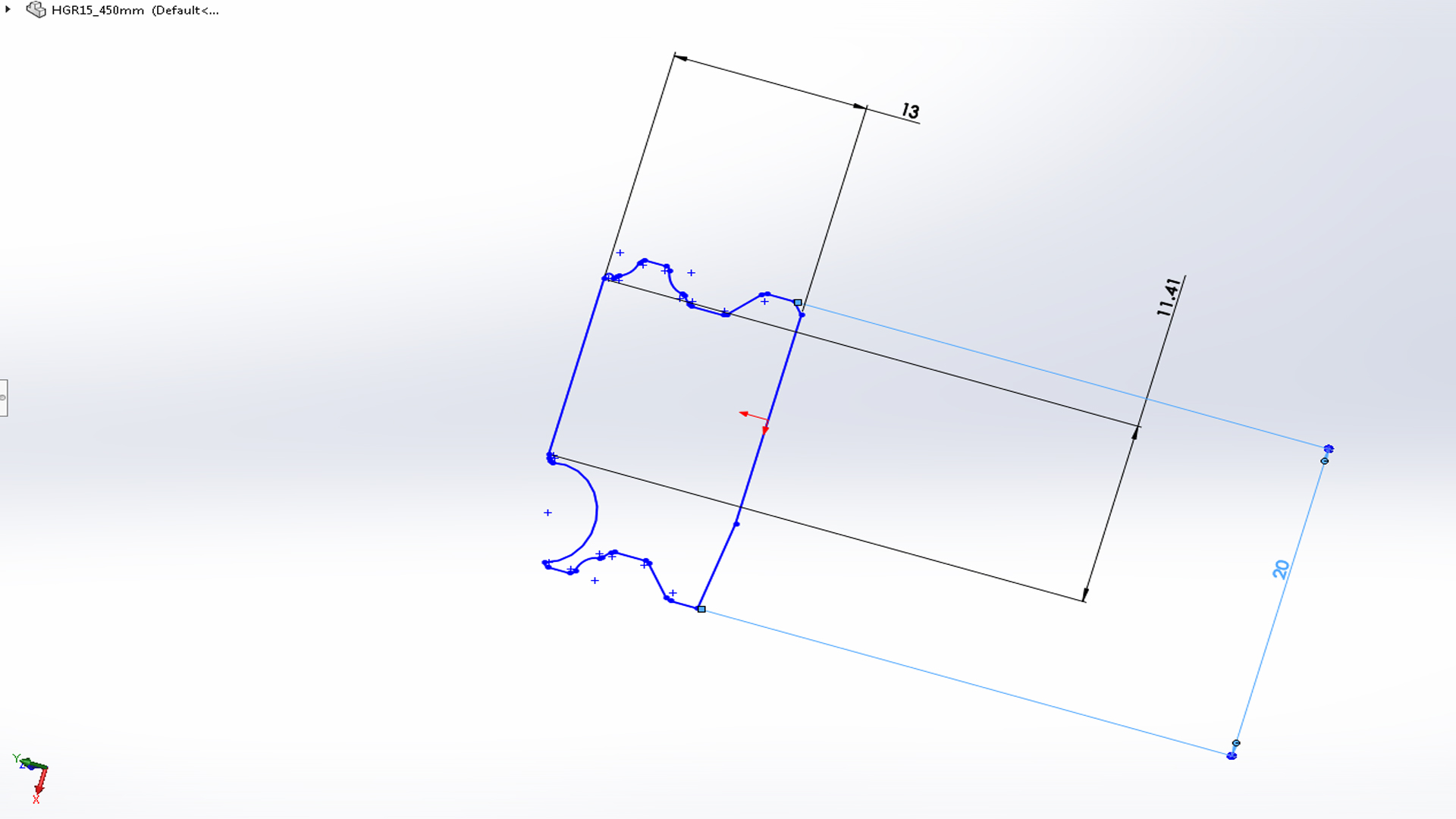

    How do i edit this drawing so i can change the dimensions of an already made linear rail? basically i want to change it from a 15mm rail to a 20mm ect but when i change the dimensions it messes the drawing up shown in pic below.



    Click image for larger version.

Name:	1.jpg
Views:	498
Size:	338.4 KB
ID:	17609Click image for larger version.

Name:	2.jpg
Views:	488
Size:	228.7 KB
ID:	17610



  2. #2
    I'd guess the outline is insufficiently constrained? It should be warning you that the shape is not completely defined.

  3. #3
    i only know the basics of solidworks so i have no clue on how to work around that lol :) i can edit ball screws just fine but linear rails are a nightmare

  4. #4
    Edit the sketch, select the profile, right click and Make Block. It should be possible to scale the block. If you have problems using the sketch at a later time, you can explode the block again.

    Hope it helps.

  5. #5
    just use Scale

    In the Search box in top right corner type Scale then click on it. This will allow you to scale the model.
    Last edited by JAZZCNC; 16-02-2016 at 11:58 PM.

  6. #6
    ive tried the scale part but there is no option to scale to a specific dimension :)

  7. #7
    Quote Originally Posted by reefy86 View Post
    ive tried the scale part but there is no option to scale to a specific dimension :)
    if 15mm then scale 1.25

  8. #8
    thankyou dean i know im being a nuisance. i actually managed to change the dimensions using the original model as it turns out once ive changed the dimensions once i no longer can re edit that file so i have to revert back to the original one.
